User Manual for Vortex Razor AMG UH-1 Holographic Sight Click to enlarge the picture
Contents of the user manual for the Vortex Razor AMG UH-1 Holographic Sight
- Product category: Red Dot/Holographic Sights Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Red Dot/Holographic Sights
 |
User manual for the Vortex Razor AMG UH-1 Holographic Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

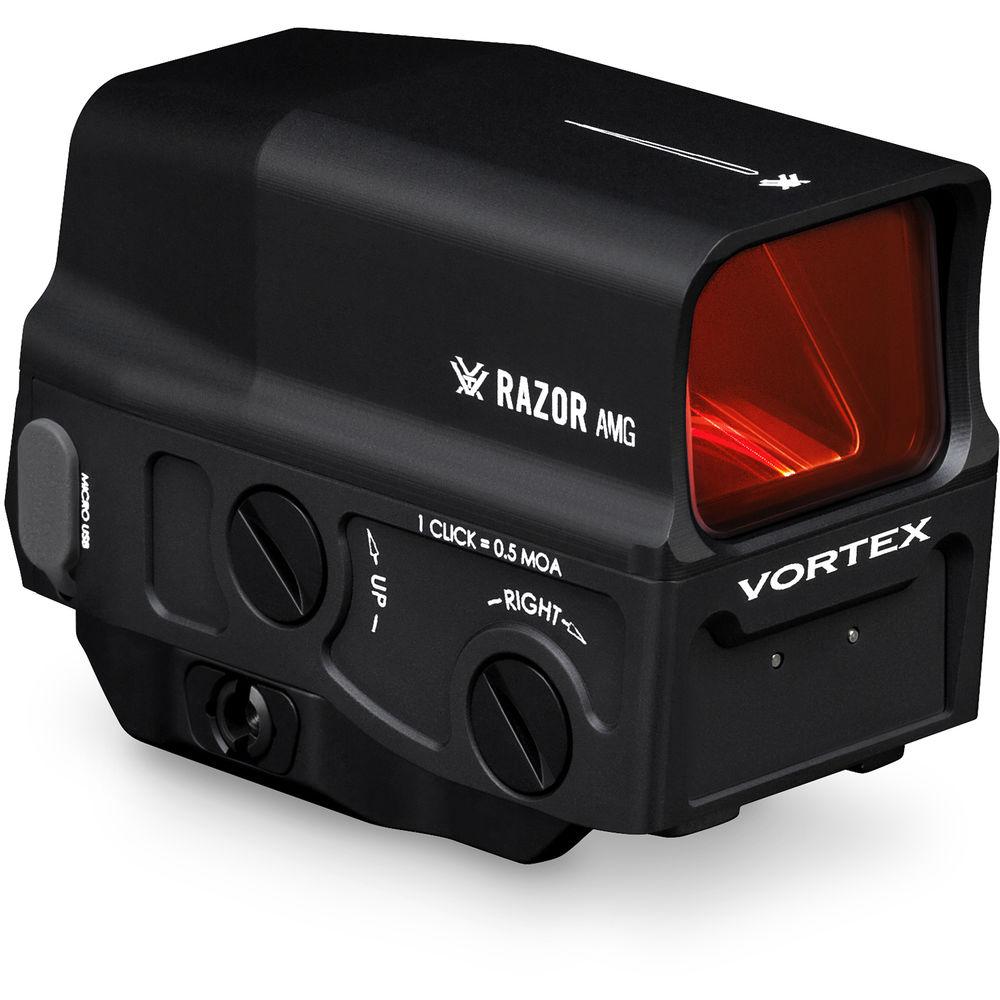

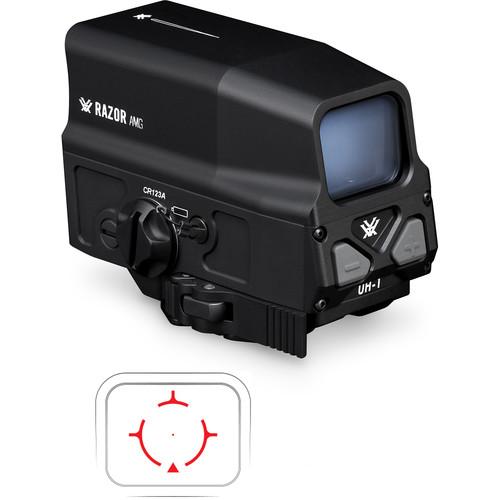

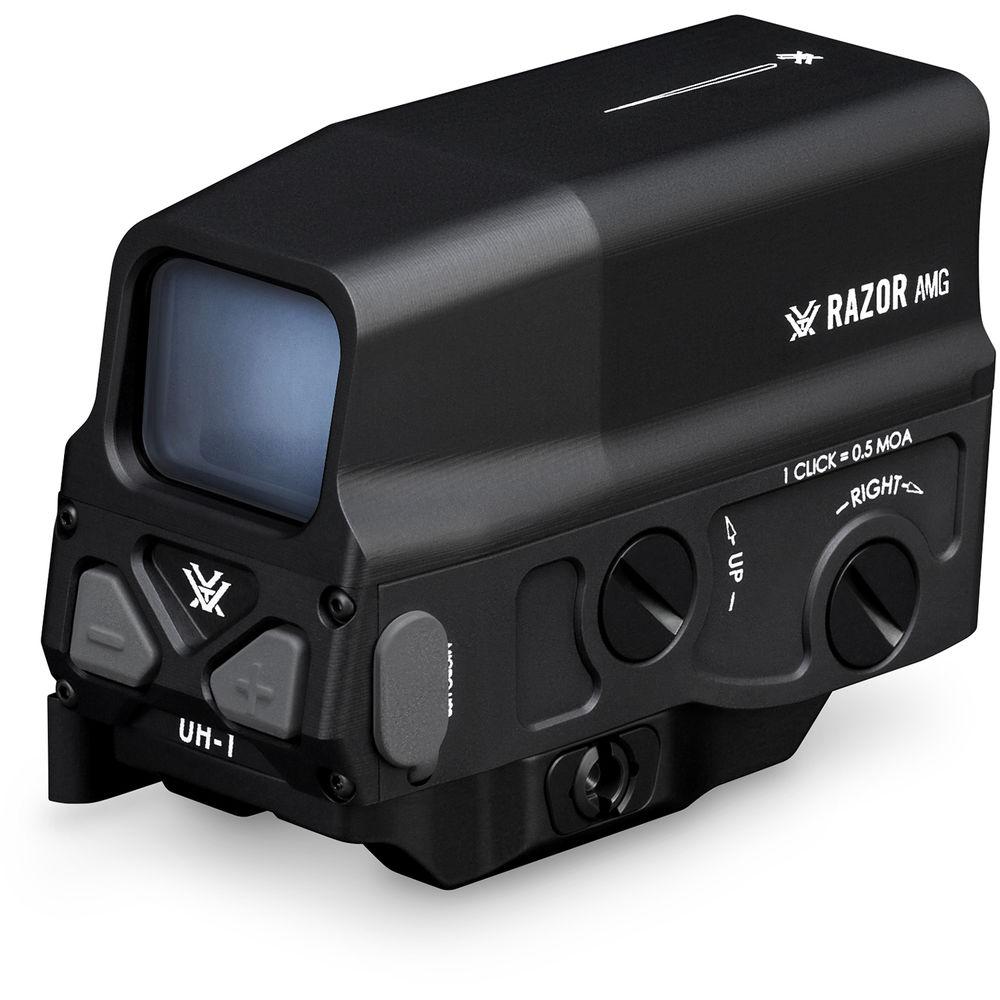

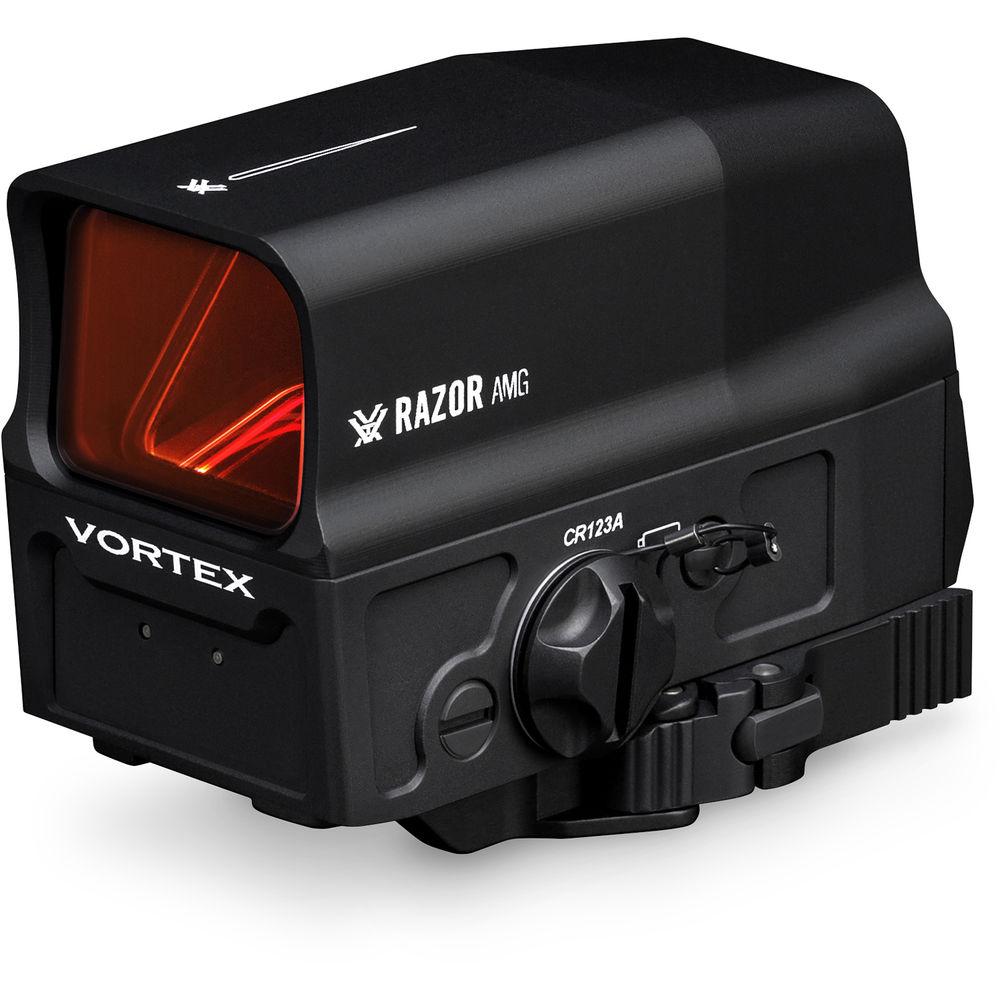

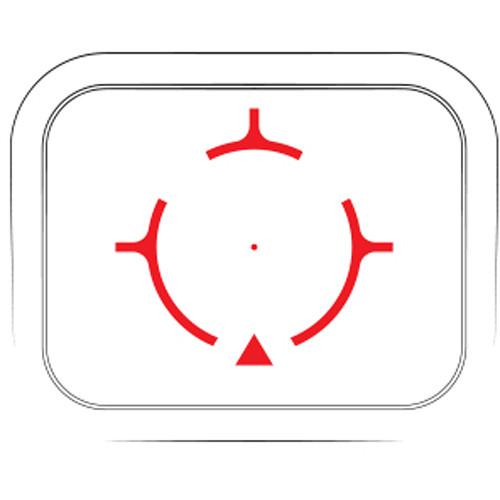

Product description Gain an upper hand in demanding situations with Vortex's Razor AMG UH-1 Holographic Sight. This device is optimized to create a minimal forward signature by introducing the innovative Fusion Hologram with Quantum Well Light Control technology (FHQ), significantly reducing stray light, glint in low-light, and glare while offering a clear red dot reticle. This parallax-free illuminated reticle offers a 1 MOA red target dot that is surrounded by an illuminated broken circle and a targeting triangle on the bottom. To deliver clarity and brightness, the optical surfaces are anti-reflection fully multi-coated and treated with Vortex ArmorTek protective anti-scratch coatings that also repel water droplets, dirt, and oil.

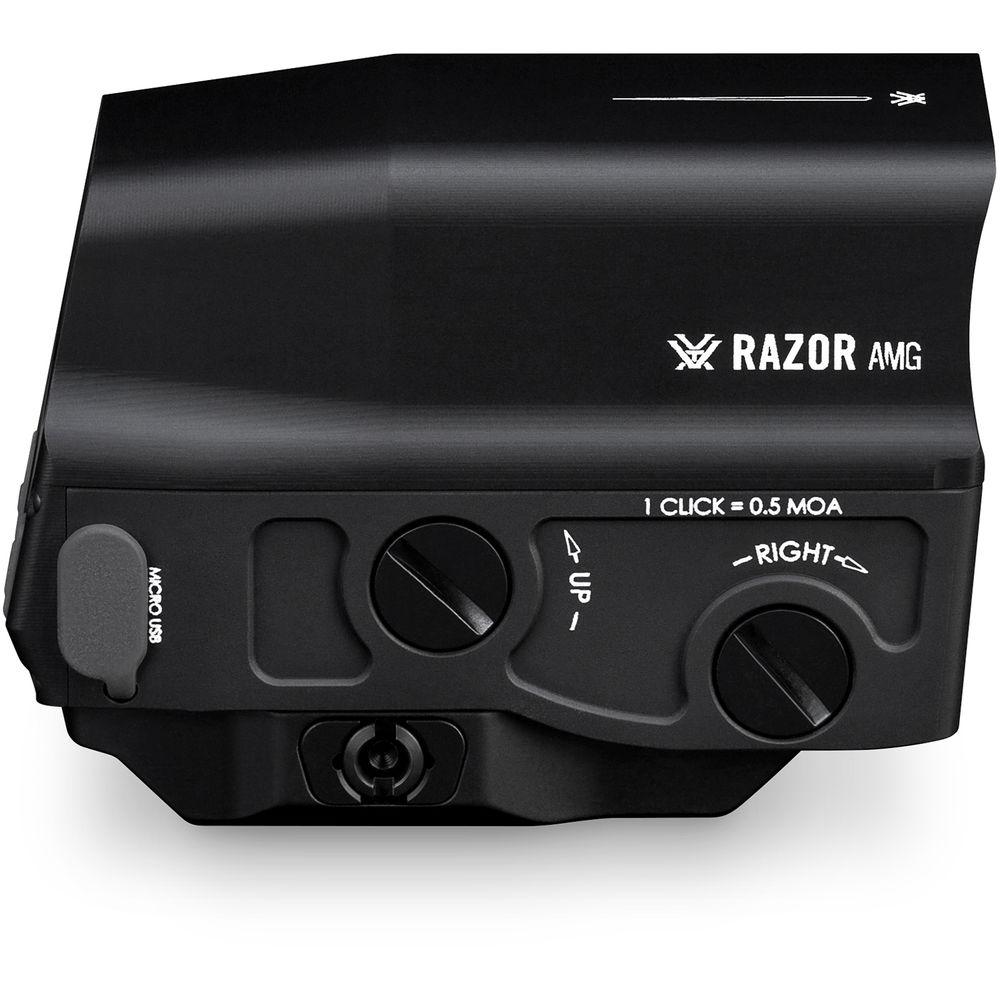

For versatility and ergonomics, the sight offers rear-facing reticle brightness control buttons and low-profile windage and elevation adjustments on the side. It can be powered by a regular CR-123A or a rechargeable LFP-123A battery. To meet the demands of the battlefield, the aluminum housing is impact-resistant, lightweight, and durable. It is purged with argon gas to ensure a fogproof and waterproof performance. For versatility and ease of attachment when time matters, the sight also features an integrated quick release Picatinny/Weaver rail mount. - Holographic Red Dot Reticle
-
- Laser holographic sight
- 1 MOA illuminated red dot
- Illuminated broken target circle
- Illuminated targeting triangle on the bottom
- 15 brightness levels
- Parallax-free
- Optical Performance
-
- Impact-resistant glass
- 1x magnification
- Fully multi-coated optics
- ArmorTek coatings protect from scratches, dirt, and oil
- FHQ technology reduces stray light, glint in low-light, and glare
- Unlimited eye relief
- Use and Handling
-
- 1/2 MOA impact point correction
- 100 MOA windage and elevation
- 16.5 MOA per revolution
- 14-hour illumination auto shut off
- Built-in micro-USB port for power and charting
- Construction Details
-
- Impact-resistant aluminum housing
- Built-in Picatinny/Weaver quick release mount
- Rubberized control buttons
- Argon-purged fogproof
- Waterproof
UPC: 875874006492 In the Box Vortex Razor AMG UH-1 Holographic Sight (1 MOA Red Dot Reticle, Matte Black) - CR-123A Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Razor AMG UH-1 Holographic Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RAZOR AMG UH-1 Specs | Magnification | 1x | | Mounting System | Picatinny/Weaver quick release mount | | Impact Point Correction | 1/2 MOA | | Windage/Elevation Adjustment | 100 MOA | | Weatherproofing | Argon-purged fogproof
Submersible to 33' / 10 m for 5 minutes | | Battery | 1 x CR-123A battery
1 x LFP-123A rechargeable battery (can be charged internally) | | Length | 3.5 x 2.3 x 2.0" / 88.9 x 58.4 x 50.8 mm | | Weight | 11.8 oz / 334.5 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 5.6 x 5.0 x 3.9" |
