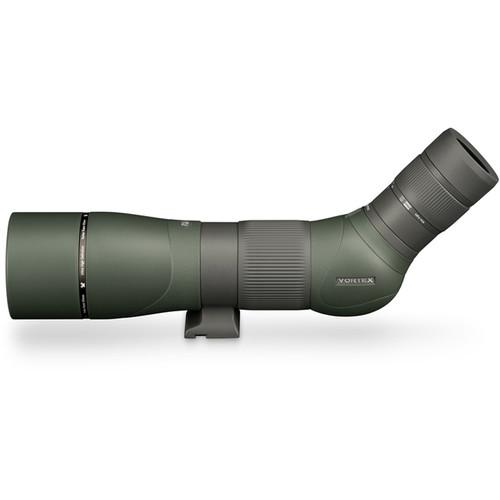

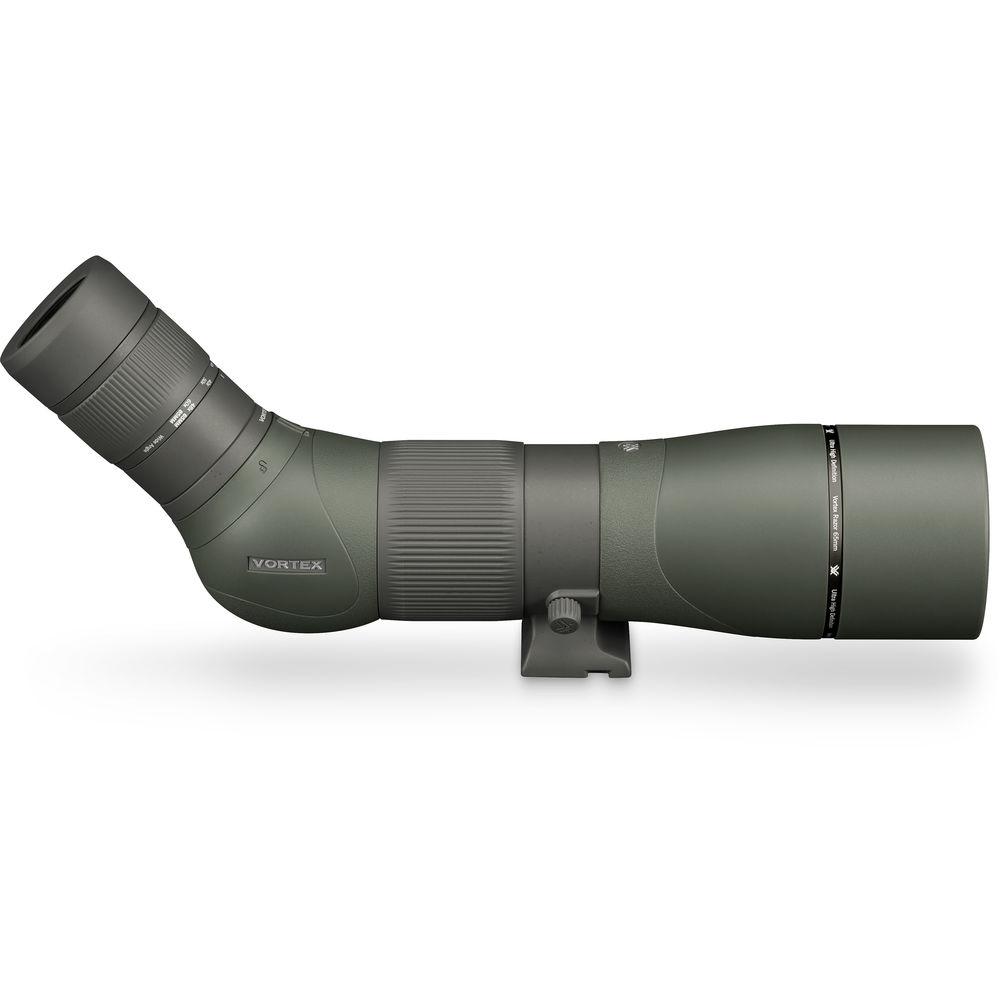

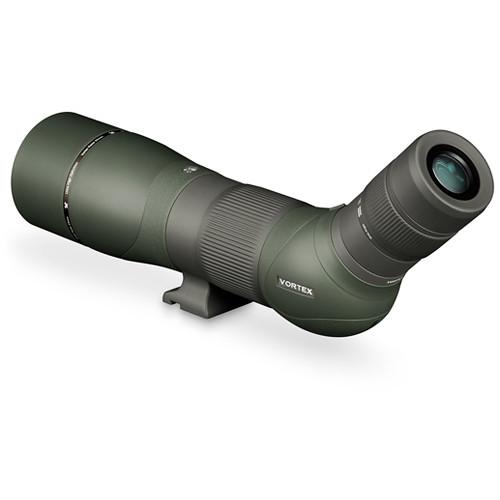

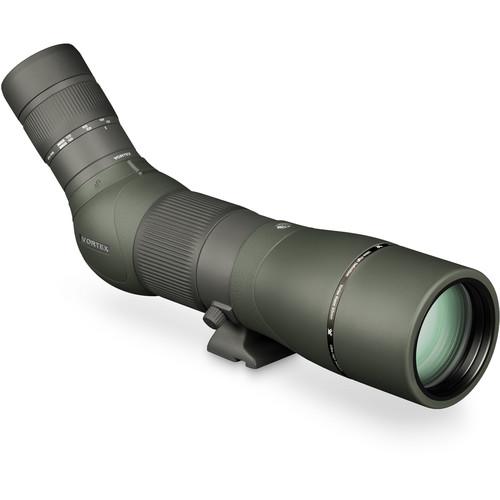

User Manual for Vortex Razor HD 22-48x65 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Vortex Razor HD 22-48x65 Spotting Scope
- Product category: Spotting Scopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Spotting Scopes
 |
User manual for the Vortex Razor HD 22-48x65 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The Vortex Optics 45° angled-viewing Razor HD 22-48x65 Spotting Scope is engineered with superior glass and specialized optical coatings to provide clear and bright images at all magnifications. The triplet apochromatic lens configuration is made of high-density (HD) extra-low dispersion (ED) glass to increase light transmission, minimize distortion, and virtually eliminate chromatic aberration. All air-to-glass surfaces have Vortex's XRPlus anti-reflective coatings to minimize light loss and maximize image brightness, while the Porro prisms have highly reflective dielectric coatings that improve brightness, clarity, and color accuracy. This combination of coatings and optics creates a spotting scope that produces bright, clear, high-contrast images with accurate color rendition.The lightweight and armored magnesium-alloy chassis is O-ring sealed and argon filled to be water and fogproof. A helical focus system, with a wide adjustment collar, allows for fast, yet fine focusing even when wearing gloves. The scope has a 1/4"-20 tripod mounting shoe and a tripod collar that rotates to permit the eyepiece to be positioned in the best viewing position. A retractable lens shade helps to reduce glare while keeping snow or rain off the objective lens. - Performance
-
- 22-48x zoom magnification
- 65mm objective lens
- Traditional Porro prism optical path
- High-density (HD) extra low-dispersion (ED) glass improves resolution and color fidelity
- Triplet apochromatic (Apo) lens increases color, sharpness, contrast
- XRPlus fully multi-coated optics increase light transmission and image brightness
- Dielectric prism coatings produce bright, clear, color-accurate images
- ArmorTek: Hard, scratch-resistant lens coating protects exterior lenses from scratches, oil, and dirt
- 138-84' field of view at 1000 yards
- Use and Handling
-
- Angled viewing
- Eyepiece is set at a 45° angle to optical tube for comfortable viewing when standing, sitting, or lying prone
- Helical focusing collar allows for fast, fine adjustments
- 3-1.4mm exit pupil
- Twist-up rubber eyecup for easy use with or without eyewear
- 17-16.7 mm eye relief
- Rotating tripod ring allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles
- 1/4"-20 tripod mount
- Construction Details
-
- Lightweight and corrosion-resistant magnesium-alloy chassis
- Rubberized armoring protects while providing slip-resistant handling
- Argon-filled optical tube prevents internal fogging over a wide range of temperatures
- O-ring seals prevent moisture, dust, and debris from penetrating the optical tube
- Built-in retractable sunshade reduces glare and shields the objective lens from raindrops and snow
UPC: 875874006331 In the Box Vortex Razor HD 22-48x65 Spotting Scope (Angled Viewing) Eyepiece Cap Objective Lens Cap Stay-On View-Through Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Razor HD 22-48x65 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RS-65A Specs | | | Magnification | 22 to 48x | | Objective Lens Diameter | 65 mm | | Field of View | 22x: 138.0' @ 1000 yd / 46.0 m @ 1000 m
48x: 84.0' @ 1000 yd / 28.0 m @ 1000 m | | Minimum Focus Distance | 26.2' / 8.0 m | | Exit Pupil Diameter | 22x: 3 mm
48x: 1.4 mm | | Eye Relief | 17.0 to 16.7 mm | | | | Fogproof | Yes, Argon Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 14.8" / L: 37.6 cm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 5.59 lb | | Box Dimensions (LxWxH) | 15.8 x 7.65 x 6.6" |
