User Manual for Vortex Razor HD 22x Ranging Reticle Spotting Scope Eyepiece Click to enlarge the picture
Contents of the user manual for the Vortex Razor HD 22x Ranging Reticle
- Product category: Eyepieces Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Eyepieces
 |
User manual for the Vortex Razor HD 22x Ranging Reticle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

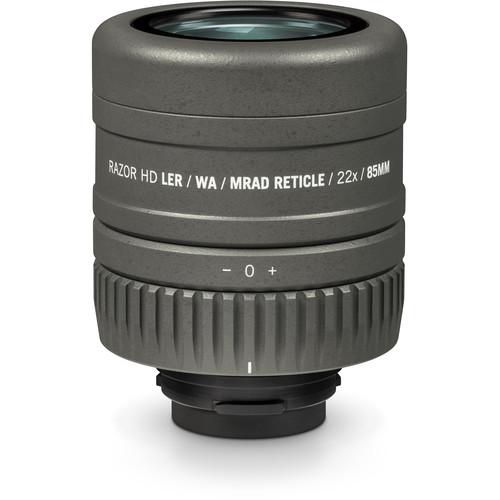

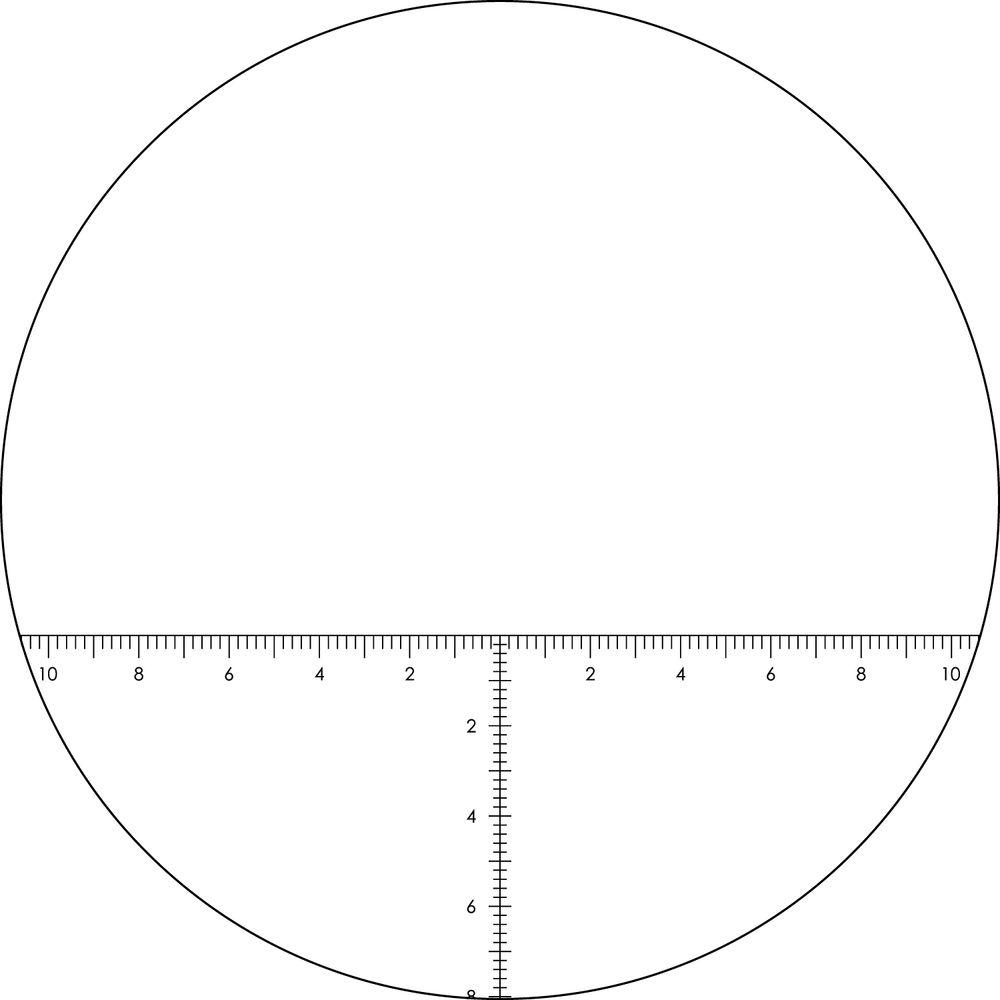

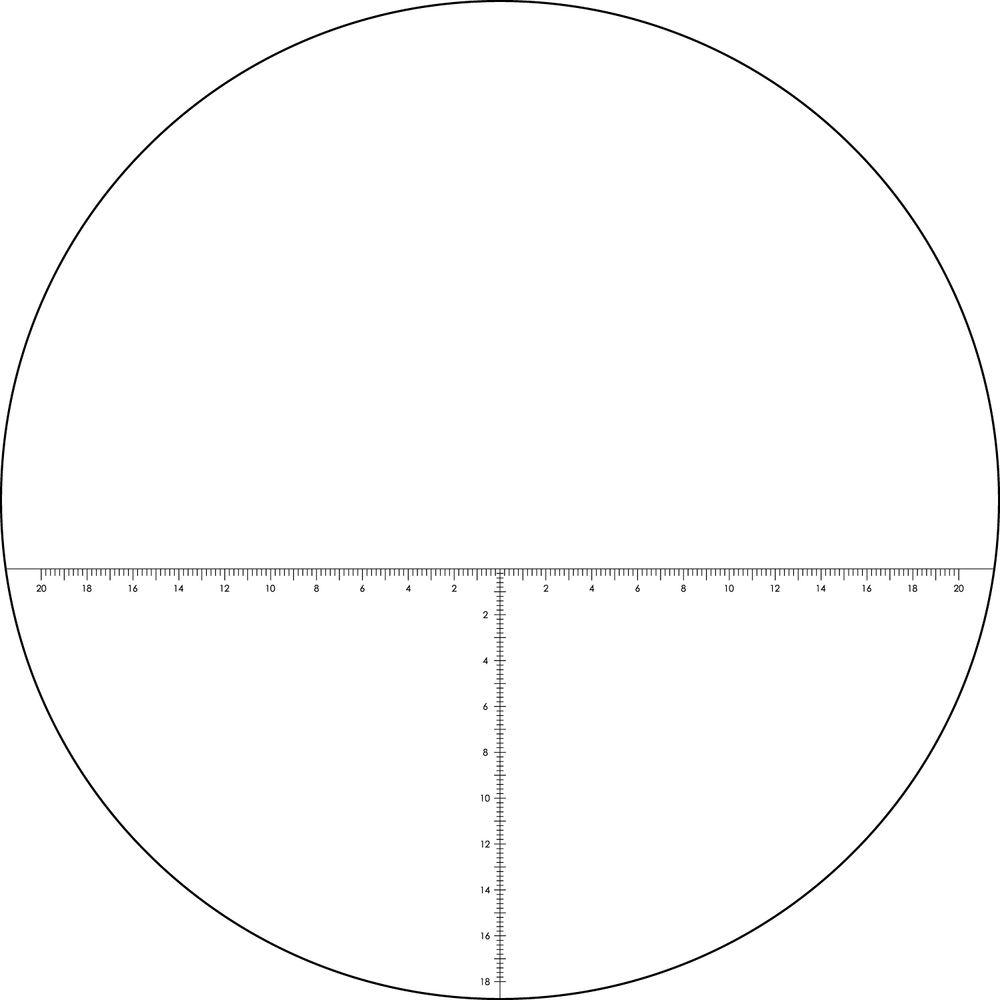

Product description Replace the stock zoom eyepiece on your 27-60x85mm Razor HD spotting scope with the Vortex Optics Razor HD 22x Ranging Reticle Spotting Scope Eyepiece to improve your accuracy and take your shooting to the next level. The fixed magnification provides a wide viewing angle to scan the scene before you and, when you find your target, utilize the in-view ranging reticle to help you estimate the distance to, and size of, the target. The reticle on this eyepiece is MRAD-based, to match your riflescope turrets and reticle.The ranging eyepiece is specifically designed to work with the 27-60x85mm Razor HD spotting scope and its optics are matched to those on the spotter to maintain image quality and brightness. The lens is made of high-density (HD) extra-low dispersion (ED) glass to increase light transmission, minimize distortion, and virtually eliminate chromatic aberration. All air-to-glass surfaces have Vortex's XR anti-reflective coatings to minimize light loss and maximize image brightness. ArmorTek exterior lens coatings offer scratch resistance to protect the lenses from scratches, while allowing oil and dirt to be easily cleaned off without leaving residue.This eyepiece will not fit older 65mm or 50mm HD models. UPC: 843829101455 In the Box Vortex Razor HD 22x Ranging Reticle Spotting Scope Eyepiece (MRAD) Lens Cloth 2 x Caps Limited Transferable Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Razor HD 22x Ranging Reticle Spotting Scope Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RS-85REM Specs | Magnification | 22x | | Angle of View | 2.5° (Actual) | | Field of View | 130.3' @ 1000 yd / 43.3 m @ 1000 m | | Eye Relief | 31.0 mm | | Reticle | MRAD Crosshair | | Dimensions | L: 3.1" / L: 7.9 cm | | Weight | 11.5 oz / 326 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
