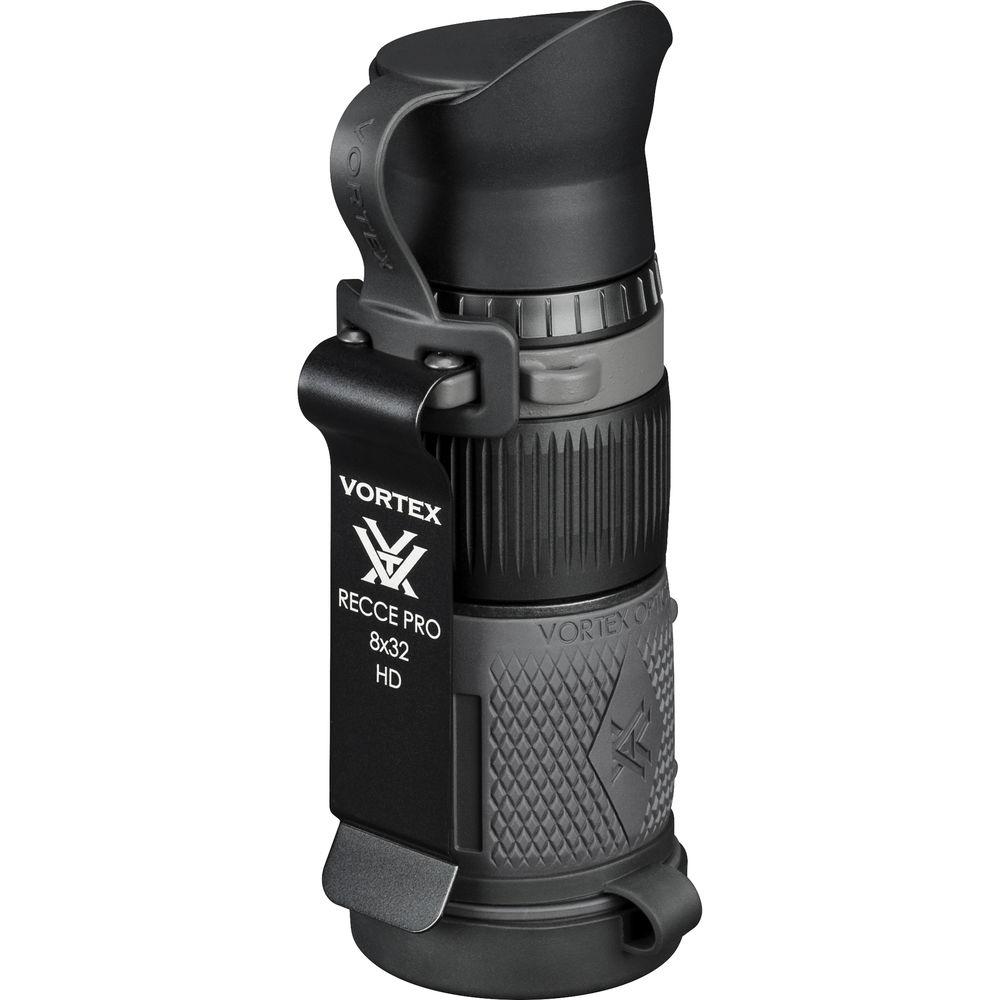

User Manual for Vortex Recce 8x32 Pro HD Monocular Click to enlarge the picture
Contents of the user manual for the Vortex Recce 8x32 Pro HD Monocular
- Product category: Monoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Monoculars
 |
User manual for the Vortex Recce 8x32 Pro HD Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

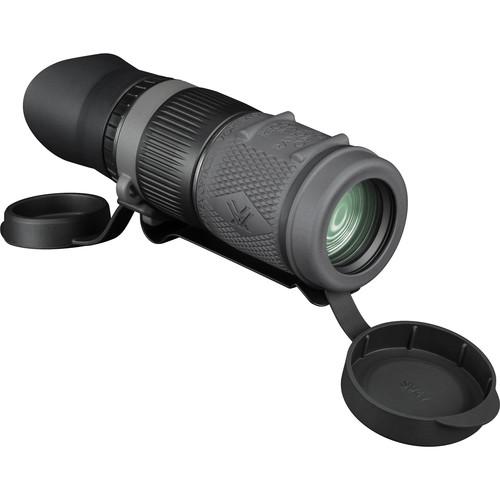

Product description A compact with premium components, the Recce 8x32 Pro HD Monocular from Vortex Optics delivers a sharp image but adds little weight or bulk to your gear. Compact at only 6.2 x 2", it features a ranging reticle for accurate distance estimates, and a clip so you can place it right where you need it for easy access.A generous 32mm objective lens and XR fully multi-coated extra low-dispersion glass lenses make sure plenty of light gets through for a good view even in periods of low light. With 8x magnification and a roof prism design, this monocular offers a wide 7.6° angle of view and a 5' minimum focus distance. A collar located in the middle makes for fast focus adjustments. The argon-filled construction is waterproof and fogproof. With textured rubber armoring and attached lens covers, this monocular is meant for use. - Optical Performance
-
- Magnification: 8x
- Objective lenses: 32mm diameter
- HD (High-Density) extra low-dispersion glass
- Apparent viewing angle: 60.8° wide angle
- 5' close focus distance
- Use and Handling
-
- Ranging reticle with 0.5 mrad subtensions and silhouettes
- Middle focus collar
- Eye relief: 14.5mm
- Exit pupil: 4mm
- Utility clip allows for quick attachment to pocket edges, equipment, or vests
- Construction Details
-
- ArmorTek scratch-resistant coating protects exterior lenses from scratches, oil, and dirt
- Argon-filled for fogproof and waterproof performance
- Rubber armor provides a secure, non-slip grip and durable external protection
- Attached covers protect lenses when not in use
UPC: 875874007376 In the Box Vortex Recce 8x32 Pro HD Monocular Carrying Case 2 x Lens Cap Lanyard Utility Clip Limited Lifetime Warranty (Transferable) Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Recce 8x32 Pro HD Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RP-100 Specs | Prism Type | Roof | | Magnification | 8x | | Objective Lens Diameter | 32mm | | Angle of View | 7.6° (actual) | | Apparent Angle of View | 60.8° | | Field of View | 400' @ 1000 yd / 399 m @ 1000 m | | Minimum Focus Distance | 5' / 1.5 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 14.5 mm | | Focus Type | Ring | | Dimensions | 6.2 x 2.0" / 15.7 x 5.1 cm | | Weight | 11 oz / 312 g | | | | Package Weight | 1.045 lb | | Box Dimensions (LxWxH) | 7.25 x 3.6 x 3.0" |
