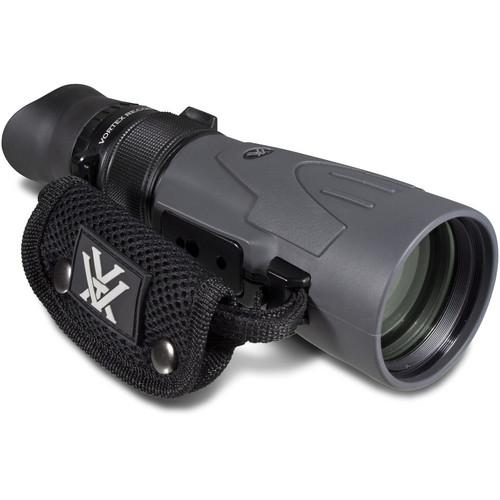

User Manual for Vortex Recon R T 15x50 Tactical Scope Click to enlarge the picture
Contents of the user manual for the Vortex Recon R T 15x50 Tactical
- Product category: Monoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Monoculars
|
User manual for the Vortex Recon R T 15x50 Tactical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description With premium optical elements, a rugged design, and a ranging reticle, the Recon R/T 15x50 Tactical Scope from Vortex is a full-featured monocular designed specifically for field surveillance and range estimating. The powerful magnification allows for detailed observation of distant subjects, while the large 50mm objective lens gathers abundant light. The optical path consists of extra-low dispersion XD lenses, fully multi-coated with Vortex XR anti-reflective coating, and phase-corrected prism glass for a vivid image, even in low light. A layer of ArmorTek guards exterior lenses from scratches, oil, and dirt.O-ring sealed and argon-purged, the Recon R/T is waterproof and fogproof in any climate. Rubber armoring protects the housing and provides a secure and comfortable grip. There are 1/4"-20 threaded mounts on either side for a tripod or accessories, and the included Picatinny rail can be attached to it to accept a wide range of accessories. The stabilizing hand grip can be attached to either side. The eyecup folds up or down as needed to accommodate people who wear eyeglasses; it is also flared to block out light, and rotates so the flared edge can be used with either eye. A utility clip lets you hang the monocular on a belt, strap, MOLLE webbing, or pocket.Highly accurate range estimates are possible with the R/T ranging reticle, which employs MRAD-based subtensions and a secondary quick-ranging system based on a human silhouette. - Optical Performance
-
- XD lens elements: extra-low dispersion glass for maximum resolution, color, and contrast
- XR lens coating: lenses are fully multi-coated to enhance light transmission
- Phase-corrected roof prism: accurate viewing, compact design
- Use and Handling
-
- Carry clip: versatile multi-position clip attaches securely to belts, straps, webbing
- Flared eyecup: blocks stray light – folds up and down for comfortable viewing with or without eyeglasses or sunglasses and rotates for use with either eye
- Ranging reticle with 0.5 and 1.0 MRAD subtensions and silhouette for size estimation
- Large knurled image focus wheel
- Smaller reticle focus wheel
- Construction Details
-
- Waterproof & fogproof: housing is O-ring sealed/argon purged for all-weather performance
- Rubber-armored housing
- Attach included Picatinny rail or optional tripod to 1/4"-20 accessory mounts on either side
- Hand strap mounts on either side
- Flip-up objective lens cover, detachable rain/dust hood, soft case can attach to MOLLE webbing, straps, etc.
UPC: 875874002296 In the Box Vortex Recon R/T 15x50 Tactical Scope Rain/Dust Hood Hand Strap Uni-Daptor Tripod Adapter Flip Cap Objective Lens Cap Picatinny Rail Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Recon R T 15x50 Tactical Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RT155 Specs | Magnification | 15x | | Objective Lens Diameter | 50mm | | Field of View | 215' @ 1000 yd / 71.4 m @ 1000 m | | Angle of View | 4.1° | | Apparent Angle of View | 61.5° | | Minimum Focus Distance | 12.0' / 3.7 m | | Exit Pupil Diameter | 3.3 mm | | Eye Relief | 16 mm | | Weatherproofing | Waterproof, fogproof | | Dimensions | 7.0 x 3" / 17.8 x 17.6 cm | | Weight | 15.2 oz / 431 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.1 x 4.7 x 2.9" |
