User Manual for Vortex Solo 10x36 Monocular Click to enlarge the picture
Contents of the user manual for the Vortex Solo 10x36 Monocular
- Product category: Monoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Monoculars
|
User manual for the Vortex Solo 10x36 Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

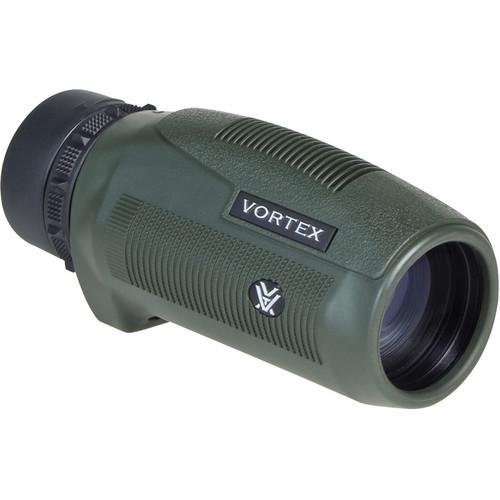

Product description With powerful magnification, a generous objective lens, and a housing designed to withstand the elements, the Solo 10x36 Monocular from Vortex is suited to birding, hiking, hunting, travel, sightseeing, concerts, sports, theater – anywhere you want a good look at distant details. It also offers a very useful close-focus distance of just 16.4 feet, and the 36mm objective has light-gathering power for a bright image even at low-light times such as dawn and dusk. Its rubber-armored housing is O-ring sealed to keep out water and dust, and it is purged with nitrogen to prevent internal fogging no matter the conditions. The twist-up eyecup and 15mm eye relief make this monocular comfortable for people who wear eyeglasses. And at 4.9 x 2.6", it's easy to carry and store. - Optical Performance
-
- 10x magnification
- 36mm objective lens
- Roof prism for a compact form factor
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, clarity, and contrast
- Use and Handling
-
- Easy focusing collar around eyepiece
- Twist-down eyecup for full field of view when wearing eyeglasses
- 325' field of view at 1000 yards
- 15mm eye relief
- 3.6mm exit pupil
- 16.4' close focus
- Construction Details
-
- Protective slip-resistant rubber armor
- O-ring sealed waterproof & dustproof
- Nitrogen-filled for fog-free performance
- Integrated utility clip for belt, strap, pocket, etc.
- Compact at 4.9 x 2.6"
- Lanyard & carrying case
UPC: 875874002357 In the Box Vortex Solo 10x36 Monocular Soft Carrying Case Lanyard Utility Clip Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Solo 10x36 Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex S136 Specs | Magnification | 10x | | Objective Lens Diameter | 36mm | | Angle of View | 6.2° | | Apparent Angle of View | 62° | | Field of View | 325' @ 1000 yd / 108 m @ 1000 m | | Exit Pupil | 3.6 mm | | Eye Relief | 15 mm | | Close Focus | 16.4' / 4.9 m | | Dimensions | 4.9 x 2.6" / 12.4 x 6.6 cm | | Weight | 9.7 oz / 275 g | | | | Package Weight | 0.855 lb | | Box Dimensions (LxWxH) | 6.0 x 3.0 x 2.9" |
