User Manual for Vortex Solo Tactical R T 8x36 Monocular Click to enlarge the picture
Contents of the user manual for the Vortex Solo Tactical R T 8x36
- Product category: Monoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Monoculars
 |
User manual for the Vortex Solo Tactical R T 8x36 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

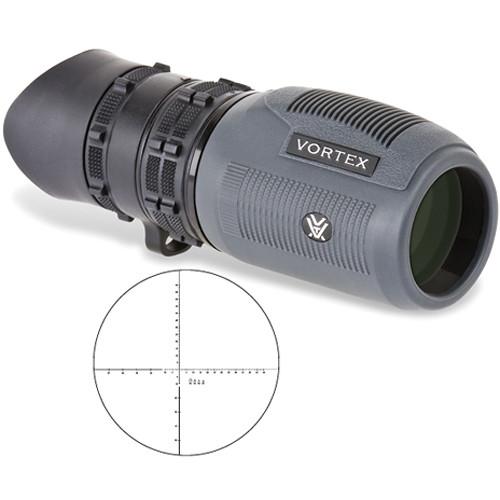

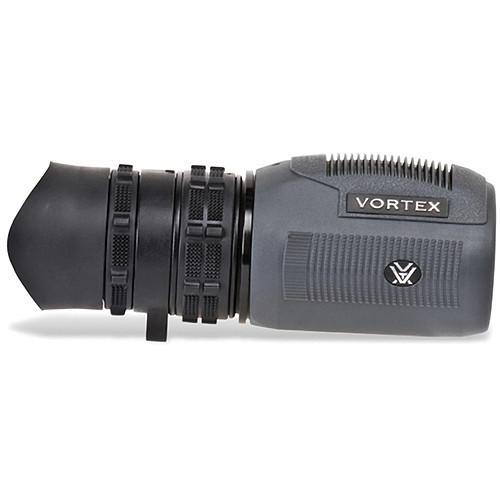

Product description The Solo Tactical R/T 8x36 Monocular from Vortex offers a wide 393 foot field of view that is bright, crisp, and clear. Designed as a take-along-everywhere optic, the Solo Tactical R/T 8x36 is compact and easy-to-handle. This monocular comes with an R/T ranging reticle for precise target range estimation. It features mrad (milliradian)-based subtensions and includes a secondary quick-ranging system with silhouettes. These angular measurements allow the user to calculate ranges when comparing the reticle to objects of known dimension. The reticle focus ensures a sharp reticle image at all distances. The Solo's optical system features a premium roof prism and fully multicoated lenses. The rugged housing is waterproof, fogproof, and covered with a protective rubber armoring. A utility clip allows the monocular to be attached to a belt, strap, or webbing with ease. - Top focus wheel for focusing the reticle and a bottom focus wheel for focusing the image

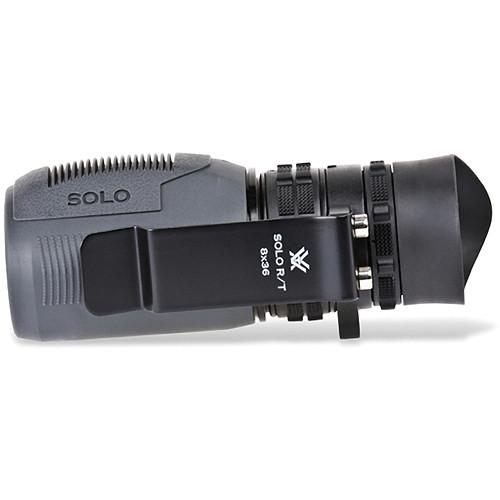

- Integral carry clip: attaches securely to any belt, strap or webbing
- Rubber Armoring: provides a secure no-slip grip, durable external protection
- Adjustable flared eyecup: twist-up style for comfortable viewing with/without eye/sunglasses
- Waterproof/fogproof: housing is nitrogen filled/o-ring sealed for all-weather performance
- Fully multicoated: anti-reflective coatings on all air-to-glass surfaces enhance light transmission
- Ranging Reticle: ranging reticle scaled with hashmarks and crosshairs using mrad based subtension lines for ranging, holdover, and windage corrections. Quick-ranging silhouettes on the reticle
UPC: 875874003569 In the Box Vortex Solo Tactical R/T 8x36 Monocular Soft Carrying Case Neck Lanyard Utility Clip VIP Unconditional Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Solo Tactical R T 8x36 Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex SOL-3608-RT Specs | Magnification | 8.0x | | Objective Lens Diameter | 36 mm | | Eye Relief | 18.0 mm | | Exit Pupil | 4.5 mm | | Field of View | 7.5° - 393' @ 1000 yd / 131 m @ 1000 m | | Close Focus | 16.4' / 4.9 m | | Dimensions | Length: 5.4" / 13.7 cm | | Weight | 10.2 oz / 289.2 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.1 x 4.3 x 3.5" |
