User Manual for Vortex Summit SS-P Aluminum Tripod Kit with 3-Way Pan Tilt Head Click to enlarge the picture
Contents of the user manual for the Vortex Summit SS-P Aluminum Tripod Kit
- Product category: Tripods & Support Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Tripods & Support
 |
User manual for the Vortex Summit SS-P Aluminum Tripod Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

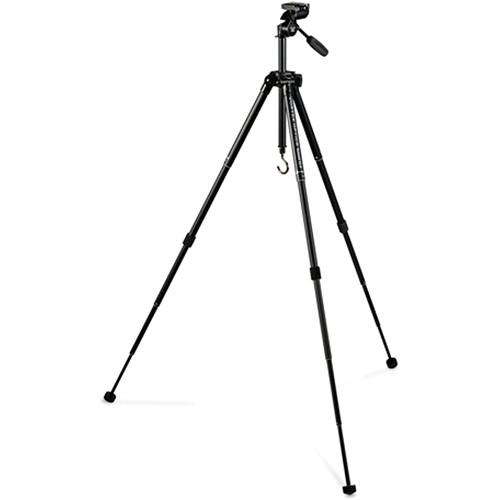

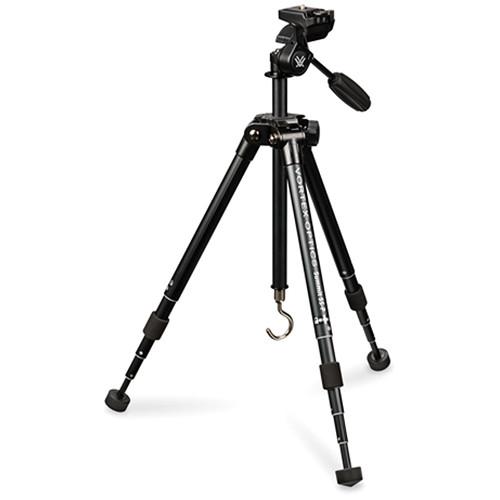

Product description The Summit SS-P Aluminum Tripod with 3-Way Pan/Tilt Head from Vortex is a lightweight 5-section aluminum tripod that can hold 5 lb worth of gear. It extends up to 54.5" and folds down to just 14" for travel. It has a split center column so that when one section is removed the tripod can reach a minimum height of just 6.3". A ballast hook on the bottom of the center column allows you to add weight to increase the tripod's stability.

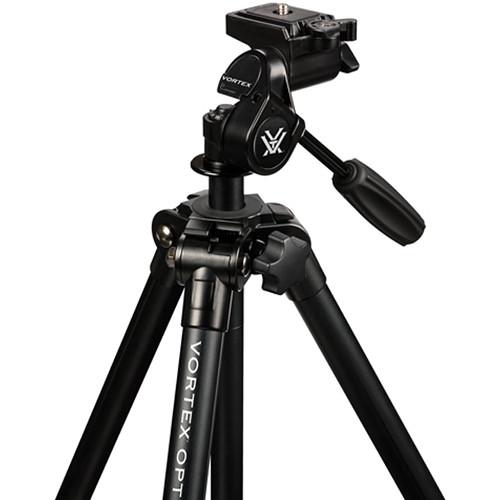

The included 3-way pan/tilt head has one handle that locks and unlocks the panning and tilting, and a locking knob that controls the plate angle adjustment. A quick-release plate allows you to quickly attach or detach your camera, binoculars, or spotting scope from the tripod. Additionally, a carrying case is included to protect your tripod during transport. UPC: 875874005693 In the Box Vortex Summit SS-P Aluminum Tripod Kit with 3-Way Pan/Tilt Head QR Plate Carrying Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Summit SS-P Aluminum Tripod Kit with 3-Way Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex ST-5 Specs | | | Mounting Screw | 1/4"-20 (Head) | | | | Load Capacity | 5 lb / 2.3 kg | | Maximum Working Height | 54.5" / 138.4 cm | | Minimum Working Height | 6.3" / 16 cm | | Materials | Aluminum | | Dimensions | L: 14.0" / L: 35.6 cm (Folded) | | Weight | 2 lb / 0.9 kg | | | | Head Type | Pan & Tilt Head | | Quick Release | Yes | | Independent Pan Lock | Yes | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 5 | | Feet Features | Rubber | | | | Center Column Features | Ballast Hook | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | | | Package Weight | 2.89 lb | | Box Dimensions (LxWxH) | 15.25 x 4.65 x 3.45" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
