User Manual for Vortex Venom Red Dot Sight Click to enlarge the picture
Contents of the user manual for the Vortex Venom Red Dot Sight
- Product category: Red Dot/Holographic Sights Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Red Dot/Holographic Sights
 |
User manual for the Vortex Venom Red Dot Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

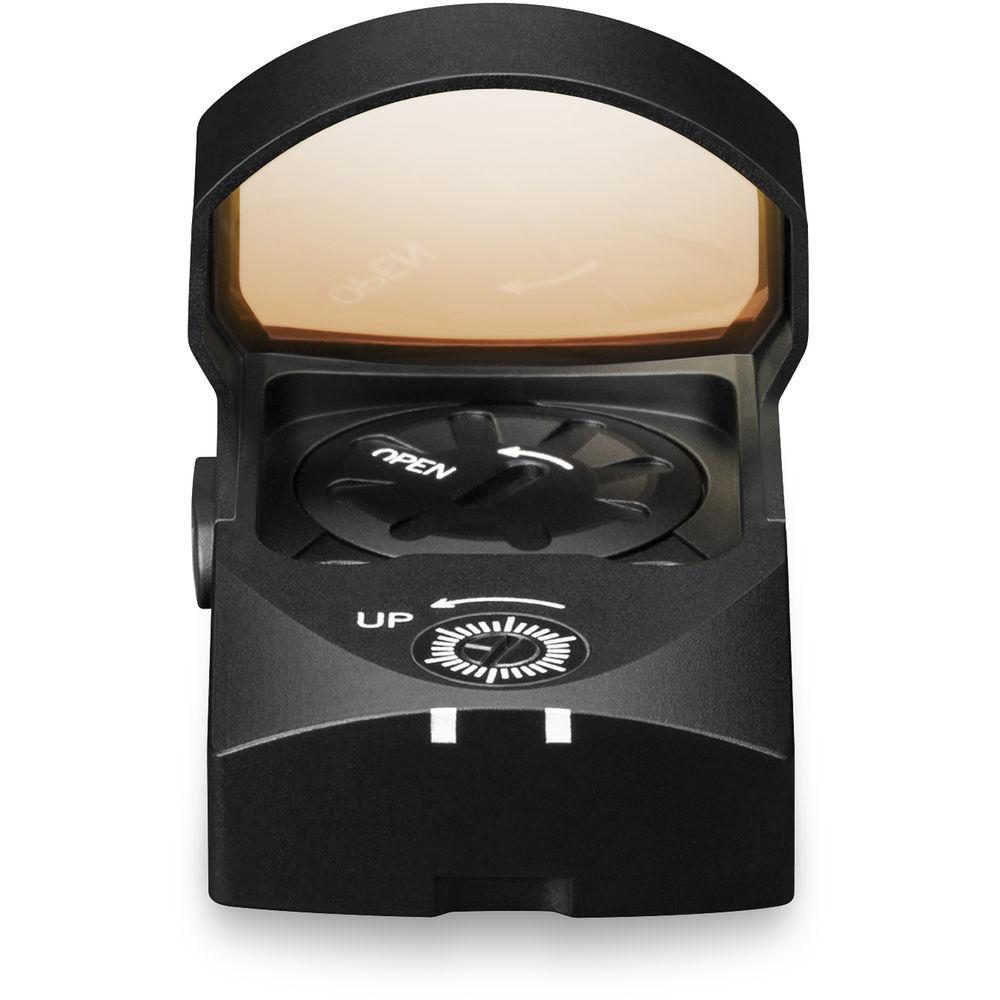

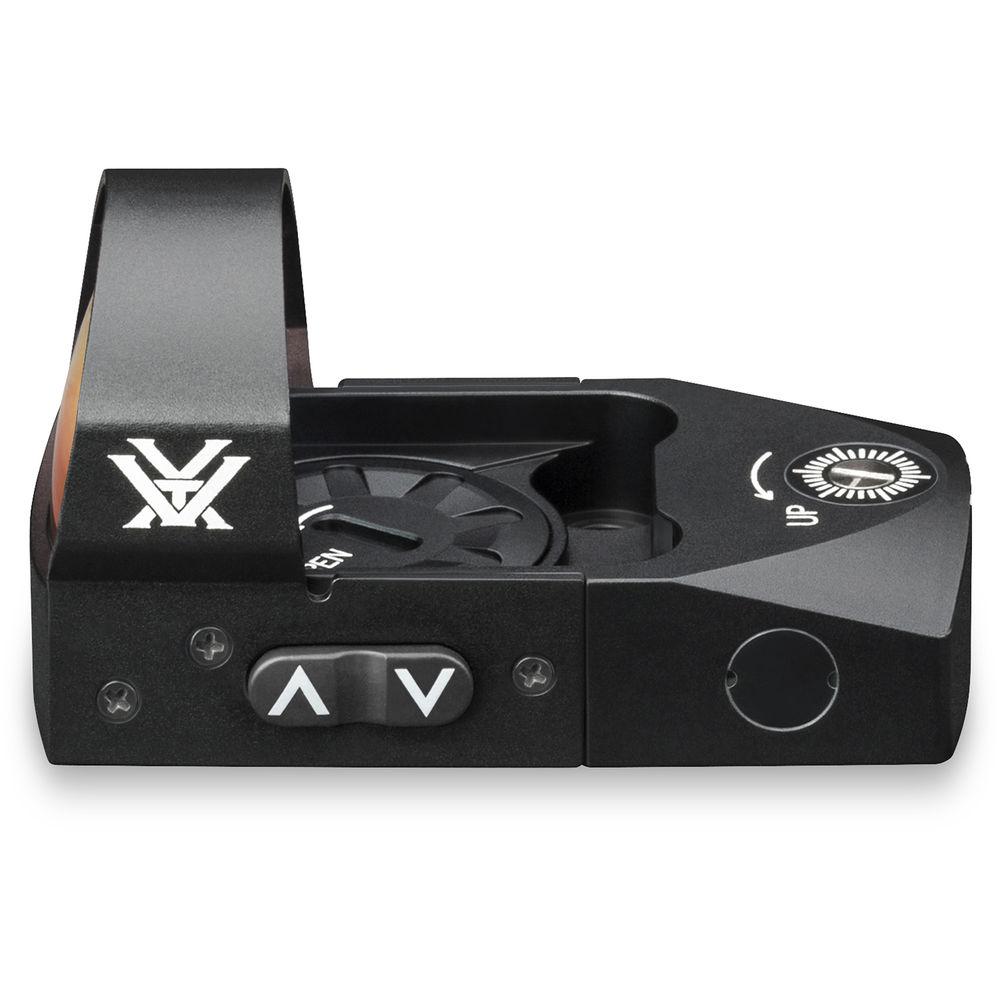

Product description Get an upper hand in close quarter combat with the Vortex Optics Venom Red Dot Sight. This ultra-compact and lightweight yet durable sight provides a 6 MOA Red Dot reticle for laser-sharp precision in target acquisitions. You will also be able to fine-tune your accuracy with the ballistic and windage compensation controls that allow 1 MOA per click adjustments. The reticle provides 10 brightness levels to deliver ideal illumination of the red dot for given lighting conditions and features an auto shut-off to save battery and a runtime of 150 hours at maximum brightness. To help the reticle achieve its purpose, the optics offer a fully multi-coated lens that provides a wide angle of view with exceptional edge-to-edge image clarity. To ensure quality of service for years to come, the lenses are also treated with ArmorTek protective coating that defends against scratches, abrasions, dust, and oil stains. The compact, lightweight, and durable aluminum housing features a single-piece chassis, anti-corrosion and anti-scratch Type III hard anodizes finish, and waterproof and impact-resistant performance. Also included with the sight are a Picatinny mount, a CR-1632 battery, and a Torx wrench. - Reticle
-
- Red Dot Reticle: 6 MOA
- Parallax-free performance
- Auto shutdown extends battery life
- Optical Performance
-
- 1x magnification
- Fully multi-coated optics
- Wide-field lens provides exceptional edge-to-edge clarity
- ArmorTek coatings protect from scratches and repel oil and dirt
- Unlimited eye relief
- Use and Handling
-
- 100 MOA windage range
- 130 MOA elevation range
- 1 MOA per click correction
- Construction
-
- Single-piece chassis
- Lightweight and durable aluminum construction
- Type III hard anodized finish for corrosion- and scratch-resistance
- Compatible with Picatinny style rails
- Waterproof with O-ring seals
- Shock-resistant
- Compatibility
- Side Cutout Type:
- Glock MOS 9mm/0.40 and 10mm/0.45
- M&P Core and FNX-45
Rear Sight Dovetail Mounts:- Sig P220 series
- Springfield XD/XDM
UPC: 875874009004 In the Box Vortex Venom Red Dot Sight (6 MOA Red Dot, Matte Black) Picatinny Mount CR-1632 Battery T-15 Torx Wrench Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Venom Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vortex Venom Red Dot Sight can be downloaded in PDF format at the link stated below.
Technical parametersVortex VENOM Specs | Reticle | 6 MOA Red Dot | | Magnification | 1x | | Mounting System | Picatinny style rail | | Impact Point Correction | 1 MOA | | Maximum Windage/Elevation Adjustment | 130 MOA / 100 MOA | | Parallax Correction | Parallax-free | | Weatherproofing | Waterproof | | Shock Resistance | Shock-resistant against recoil and impact | | Battery / Runtime | 1 x CR-1632 battery / High: 150 h, Low: 30,000 h | | Dimensions | 1.9 x 1.0" / 47.5 x 25.4 mm | | Weight | Sight: 1.1 oz / 31.2 g
With mount: 1.6 oz / 45.4 g | | | | Package Weight | 0.455 lb | | Box Dimensions (LxWxH) | 6.6 x 5.25 x 2.55" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Vortex Venom Red Dot Sight
| Subject: Closer distance zero | | Date: 08.10.2021 22:41:05 | Name: Dan | | Do you have a thinner plate for the Vortex Venom? I am using the recommended optics mounting plate for the optic and my Smith & Wesson M&P CORE pistol. I am looking for a much closer sight picture than the 25-50 yards recommended in the manual. I am out of zero on adjustment to co-witness with factory suppressor height sights. Please advise. Thanks! | | Post reply |
| Subject: MANUAL FOR VORTEX VENOM | | Date: 27.11.2020 19:29:21 | Name: Charles Keeran | | I DID ANOTHER GET A MANUAL FOR A VORTEX VENOM | | Post reply |
