User Manual for Vortex Viper HS 4-16x50 LR Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex Viper HS 4-16x50 LR Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex Viper HS 4-16x50 LR Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

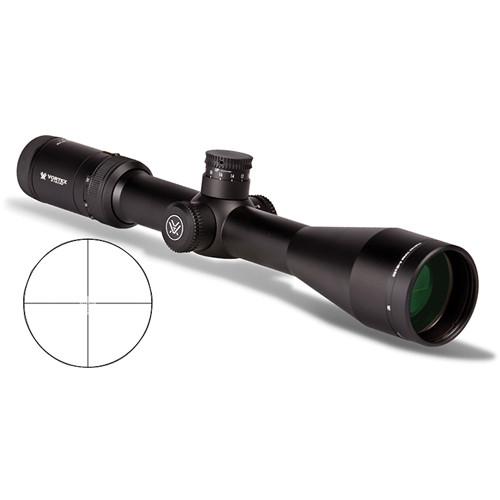

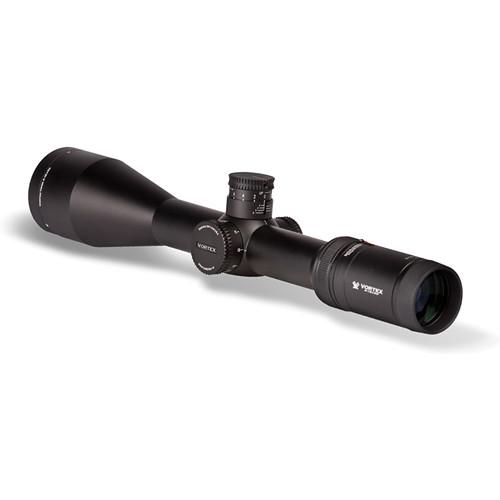

Product description Featuring a 30mm one-piece tube, constructed from aircraft-grade aluminum, the Viper HS 4-16x50 LR Riflescope from Vortex delivers top-tier performance for precision long-range shooters. The Viper HS is configured with a high-performance optical system. XD lens elements have been employed to ensure maximum resolution and contrast. The entire optical path is fully multicoated with Vortex's anti-reflective XR coatings for optimum light transmission. A new optical system highlighted with a 4x zoom range provides magnification versatility. The user-friendly eye box with increased eye relief puts shooters on target quickly and easily. The Viper HS delivers increased windage and elevation for optimal adjustment. Finally, the external lens surfaces have been treated with ArmorTek - an ultra-hard scratch-resistant coating that repels water, oil, and salts. The tube's exterior is hard-coat anodized, o-ring sealed and purged with argon gas to ensure a fog-resistant, water-tight seal. The Viper HS 4-16x50 LR (LR for Long Range) features an exposed tall elevation turret with Vortex's CRS (Customizable Rotational Stop) zero stop. Combine that with 75 MOA of elevation adjustment (24 MOA per revolution) and you get a riflescope perfect for precision long-range shots. - Optical Performance
-
- XD lens elements: extra-low dispersion glass for maximum resolution, color, and contrast
- XR lens coating: Vortex proprietary XR fully multi-coated lens coatings increase light transmission for maximum brightness
- ArmorTek Coating: ultra-hard scratch resistant coating applied to the exterior lens surfaces repels oils, salts and dirt and provides abrasion protection
- Dead-Hold BDC Reticle: customized hash mark design helps eliminate guesswork on hold-over and windage corrections where estimating hold-over is a concern
- Construction Details
-
- One-piece 30 mm main-tube for greater strength and wider adjustment latitude
- Lenses are locked in place with machined locking rings to remain in perfect alignment and withstand recoil and impact
- Aluminum construction from a solid block of aircraft-grade aluminum delivers increased strength and rigidity
- Hard-coat anodization is durable and the low-glare matte helps camouflage the shooter's position
- Waterproofed and fogproofed with o-ring seals and argon purged
- Use and Handling
-

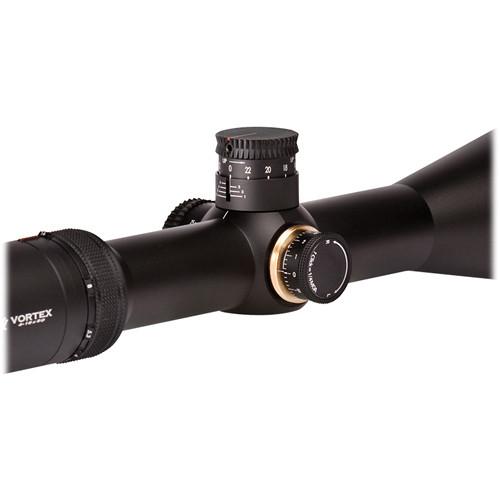

- Tall open-type elevation turret with 1/2 MOA clicks and 24 MOA per turn allows rapid, accurate dialing of hold over corrections when desired
- Fast focus eyepiece: quick and easy reticle focusing
- Customizable Rotational Stop (CRS) prevents dialing more than one rotation below your zero so you don't lose the zero when dialing large amounts of elevation corrections
- MagView Bar: fiber optics magnification indicator with raised rear-facing magnification references for clear viewing in low light conditions
- Travel per Rotation: 24 MOA for elevation and 12 MOA for windage for quick turret changes
UPC: 875874003613 In the Box Vortex Viper HS 4-16x50 LR Riflescope Protective Lens Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Viper HS 4-16x50 LR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex VHS-4307-LR Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 27.4' @ 100 yd / 9.1 m @ 100 m
16x: 7.2' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
16x: 3.125 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Dead-Hold BDC Reticle | | | | Impact Point Correction | 1/4 MOA per Click (Windage)
1/2 MOA per Click (Elevation) | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 75 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 13.7" / 34.7 cm | | Weight | 22 oz / 624 g | | | | Package Weight | 2.705 lb | | Box Dimensions (LxWxH) | 19.8 x 4.55 x 4.5" |
