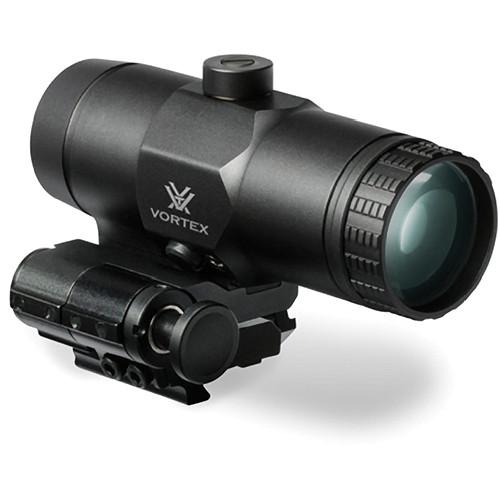

User Manual for Vortex VMX-3T Reflex Sight Magnifier Click to enlarge the picture
Contents of the user manual for the Vortex VMX-3T Reflex Sight Magnifier
- Product category: Multipliers (Magnifiers) Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Multipliers (Magnifiers)
|
User manual for the Vortex VMX-3T Reflex Sight Magnifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The VMX-3T Red Dot Sight Magnifier from Vortex is an optical accessory used to magnify the image transmitted by an unmagnified red dot sight. This secondary optic mounts directly behind the weapon's primary optic, allowing the shooter to co-witness standard AR-style iron sights. Additionally, the VMX-3T features windage and elevation correction that allows the shooter to align the magnifier with the red dot without affecting the impact point of the primary optic. When the extra 3x magnification is not required, an integrated quick-release flip mount allows the VMX-3T to be shifted aside so only the primary optic is visible. Complementing the functionality of the VMX-3T magnifier is the image quality and durability needed for years of high-performance. The lens system is fully multicoated, allowing maximum transmission of available light from the primary optic. This magnifier's aluminum housing is finished with a corrosion-resistant hard coat and nitrogen-filled for weather-resistant operation. Combined with the long 3.25-inch eye relief and focusable objective lens, the VMX-3T is backed by Vortex's unconditional VIP Warranty. - Optical Performance
-
- 3x magnification
- Fully multicoated optics
- 3.25" eye relief
- Use and Handling
-
- Co-witness absolute or lower 1/3 with weapon's iron sights
- Dual-axis centering screws for aligning with the red dot of primary optic
- Manual focus objective lens
- Quick-release button disengages flip mount
- Construction Details
-
- Machined aluminum construction with anodized hard coat
- Nitrogen-filled housing for fogproof and waterproof performance
- 11.9 oz weight
UPC: 875874004344 In the Box Vortex VMX-3T Reflex Sight Magnifier Flip Mount with Removable Shim Plate Lifetime Unconditional Vortex VIP Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex VMX-3T Reflex Sight Magnifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex VMX-3T Specs | Magnification | 3.0x | | Main Tube Diameter | 30 mm | | Eye Relief | 3.25" | | Field of View | 38.2 ft (11.6 m) at 100 yd | | Length | 4.3" (11 cm) | | Weight | 11.9 oz (337 g) | | | | Package Weight | 1.035 lb | | Box Dimensions (LxWxH) | 6.6 x 5.45 x 2.75" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
