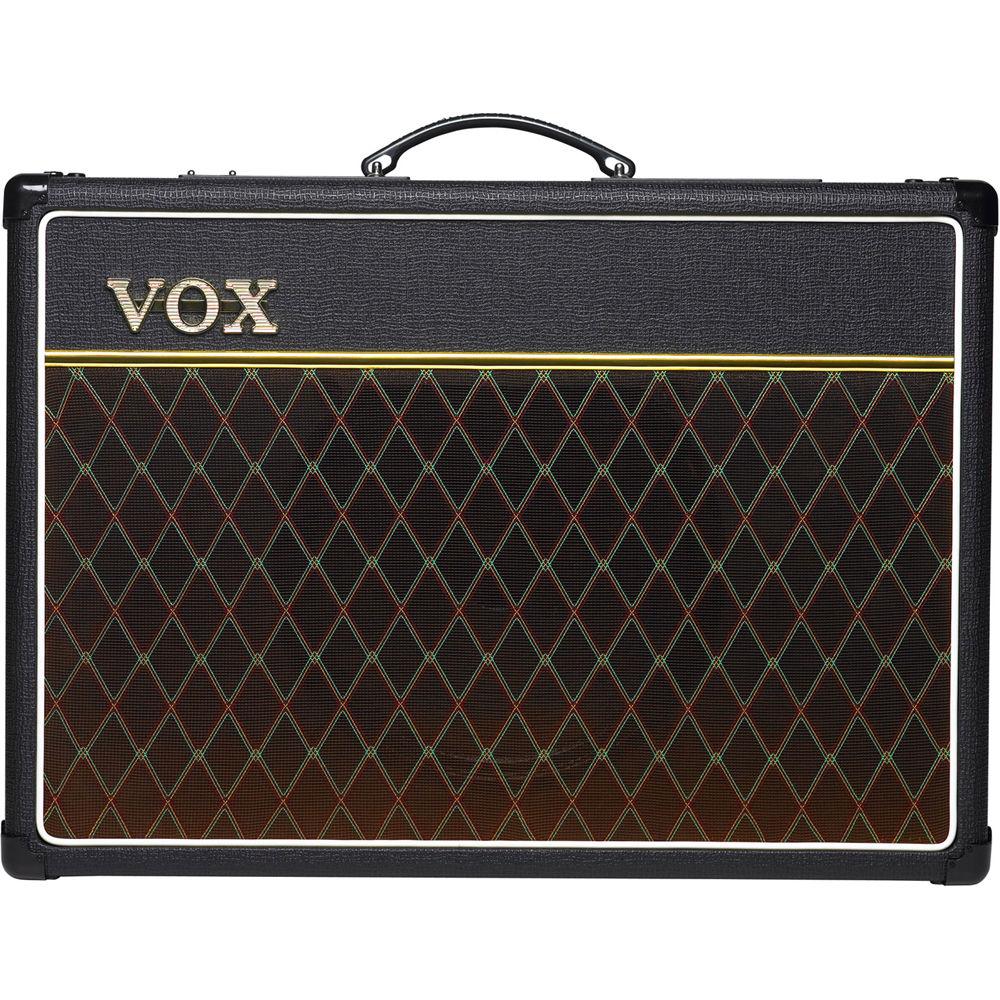

User Manual for VOX AC15C1X Custom 15W 1x12 Combo Amplifier Click to enlarge the picture
Contents of the user manual for the VOX AC15C1X Custom 15W 1x12 Combo
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
 |
User manual for the VOX AC15C1X Custom 15W 1x12 Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|

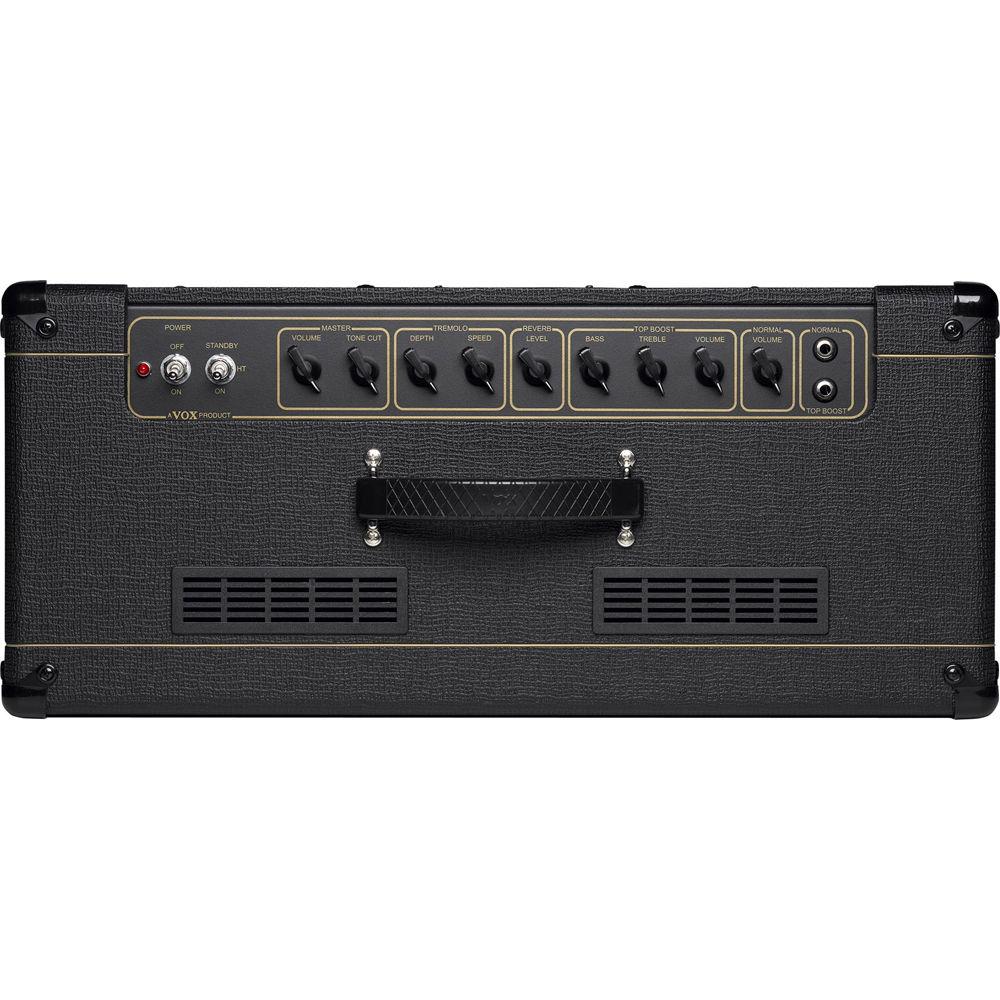

Product description Designed for use with electric guitar, the AC15C1X Custom from VOX is a 15W RMS combo amplifier sporting a 12" Celestion Alnico Blue speaker. The amp also boasts a tube-driven preamp, a tube-driven power-amp stage, and two independent channels: Normal and Top Boost. The Top Boost channel offers access to an interactive EQ section—interactive in that the treble knob affects levels of bass and vice versa—while the Normal channel provides a clearer signal path. Whichever channel you choose, the Tone Cut knob across the power-amp stage gives you even more control over your signal's high end. Also, both channels utilize the onboard tremolo and reverb, both of which can be manipulated using a footswitch (available separately).
Turn your attention to the back of the amplifier and you'll see a 1/4" extension jack for powering an extra 16 Ohm speaker, as well as a 1/4" external speaker output. Using the external speaker jack will mute signal to the internal cabinet, though you can hook up both 8 Ohm and 16 Ohm cabinets, so long as you set the impedance switch accordingly. You'll also notice a footswitch input, through which you can toggle reverb and tremolo with the tap of your toes. In the Box VOX AC15C1X Custom 15W 1x12 Combo Amplifier (Celestion Alnico Blue Speaker) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AC15C1X Custom 15W 1x12 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AC15C1X Specs | | | Amplifier Type | Tube | | Output Power | 15 W RMS | | Channels | 2 | | Tube Types | 3 x Preamp 12AX7/ECC83
2 x Power EL84/6BQ5 | | Output Impedance | 16/8 Ohms Mono | | Effects Loop | No | | Built-In Effects | Spring Reverb, Tremolo | | Master Volume | Yes | | Inputs | 2 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch | | Outputs | 2 x 1/4" Mono External Speaker | | Tone Section | Channel 1: Channel Volume
Channel 2: Bass, Channel Volume, Treble | | | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Input Impedance | 16 ohms Mono | | | | Dimensions (WxHxD) | 23.7 x 18.0 x 10.4" / 602.0 x 456.0 x 265.0 mm Combo | | Weight | 48.5 lb / 22.00 kg Combo | | | | Package Weight | 56.5 lb | | Box Dimensions (LxWxH) | 28.0 x 21.5 x 15.25" |
