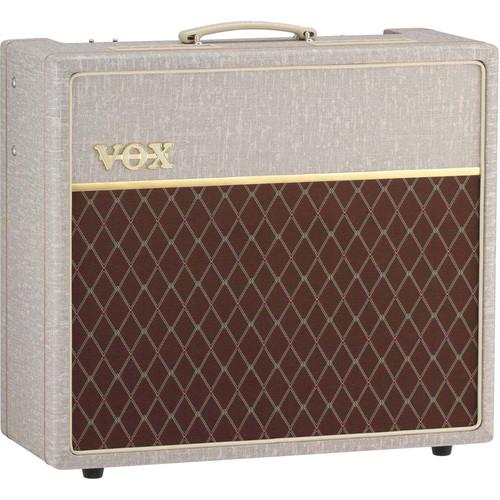

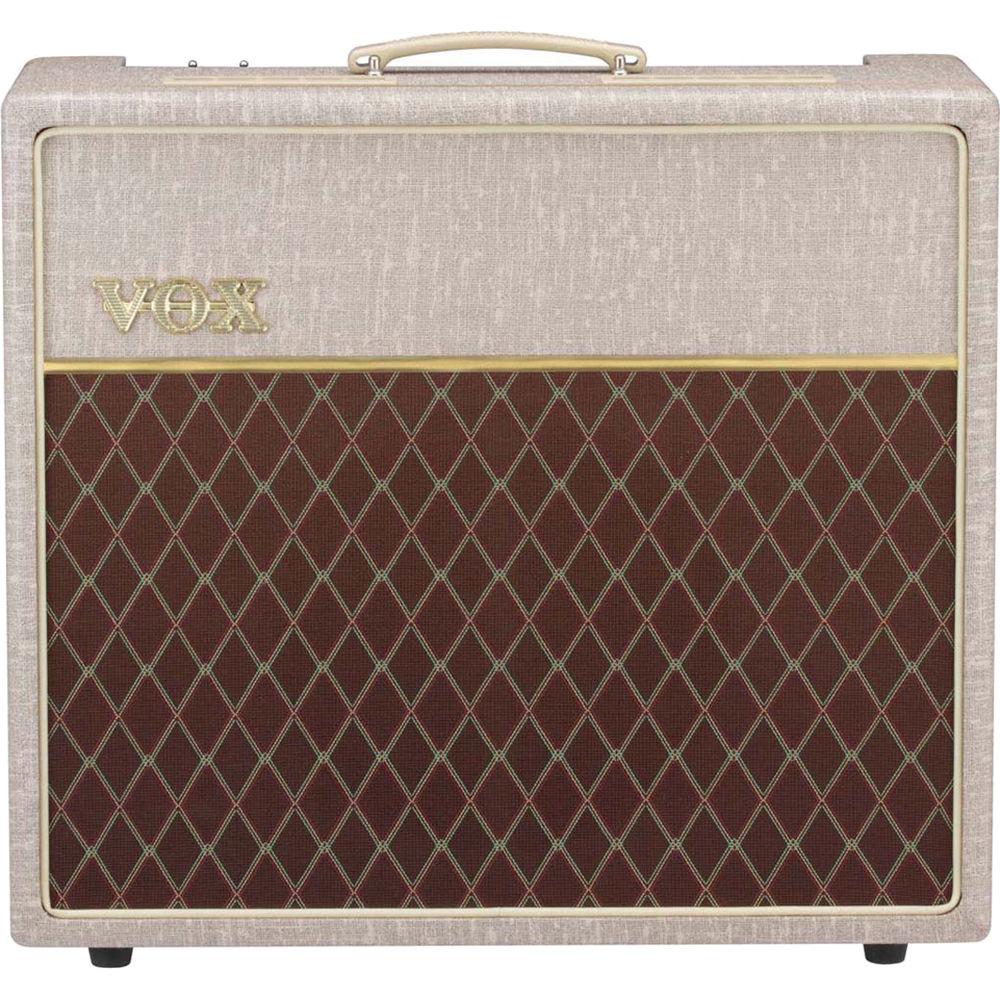

Product description Designed to impart that classic VOX tube-tone upon your electric guitar, the AC15HW1X is a 15W RMS combo amplifier sporting a 1x12" Celestion Alnico Blue speaker. The unit boasts a full tube complement—three preamp tubes, two power-amp tubes, and rectifier tube—while its front panel offers you two independent channels, with each channel providing both high and low input jacks. This gives you a total of four ways of plugging into the amp. Also, each element of the turret board has been hand-wired to ensure the most efficient signal path.
A Tone Cut control across the power-amp section affords you a generalized way of tweaking the high end in your guitar signal; however, for further fine-tuning of EQ, plug into the Top Boost channel, which offers Bass, Treble, and a Hot/Cool switch—a handy feature which partially bypasses the tone controls to provide more gain and a purer signal path. As this Hot/Cool switch can be toggled via an independent footswitch, this feature can be utilized to give you some more juice for lead parts and soloing.

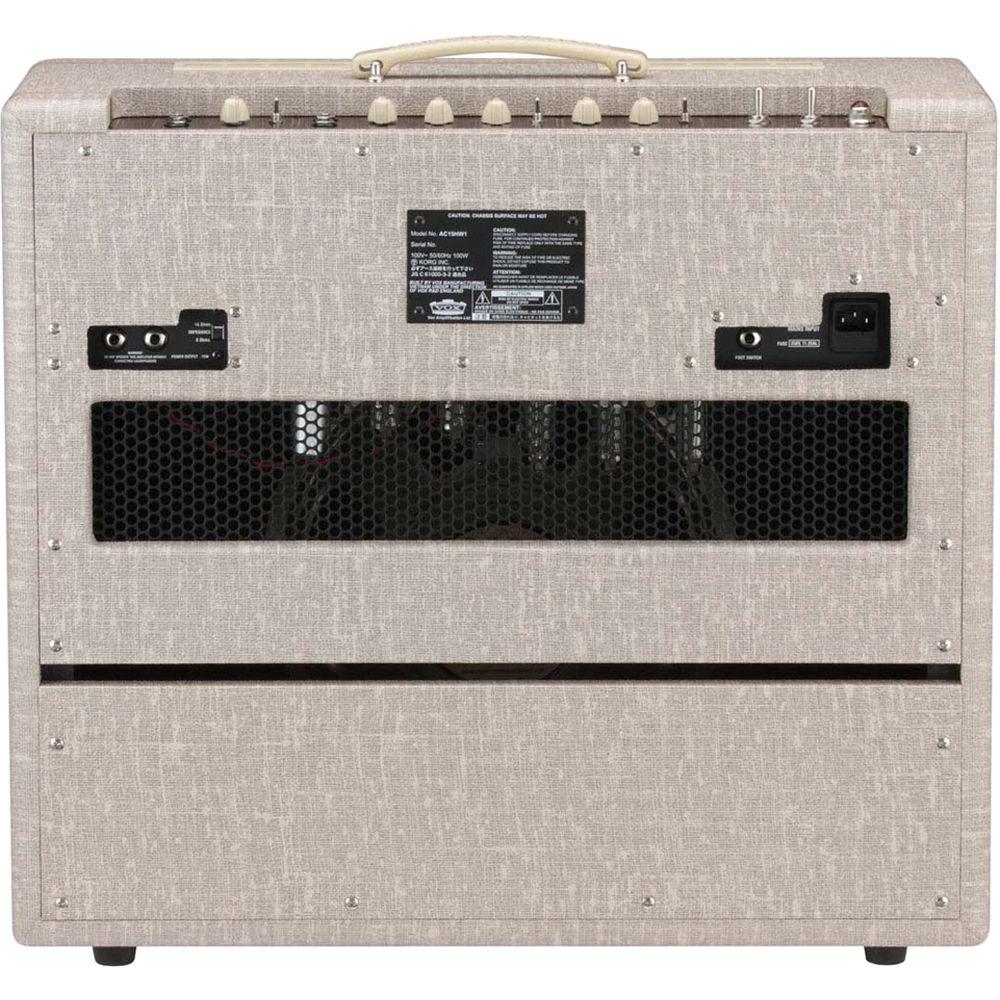

Turn your attention to the back of the amplifier and you'll see two external speaker output jacks wired for 16 Ohms, though, depending on the speaker configuration you're using, they can be switched for 8 Ohms as well. You'll also notice a footswitch input which allows you to control the Hot/Cool switch with the tap of your toes. The footswitch, a power cable, and a dust cover are included with your purchase. In the Box VOX AC15HW1X Hand-Wired 1x12 Combo Amplifier (Celestion Alnico Blue Speaker) Power Cable VFS1 Footswitch Dust Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AC15HW1X Hand-Wired 1x12 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AC15HW1X Specs | | | Amplifier Type | Tube | | Output Power | 15 W RMS | | Channels | 2 | | Tube Types | 3 x Preamp 12AX7/ECC83
4 x Power EL84/6BQ5
1 x Rectifier 5AR4/GZ34 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | No | | Master Volume | Yes | | Inputs | 2 x 1/4" Hi Instrument
2 x 1/4" Low Instrument
1 x 1/4" Mono Footswitch | | Outputs | 2 x 1/4" Mono External Speaker | | Tone Section | Channel 1: Preamp Volume
Channel 2: Bass, Channel Volume, Treble | | | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Half-Open Mono | | Power Rating | 15 W RMS | | Input Impedance | 8/16 ohms Mono | | | | Dimensions (WxHxD) | 24.0 x 21.7 x 10.2" / 610.0 x 550.0 x 260.0 mm Combo | | Weight | 50.26 lb / 22.8 kg Combo |
