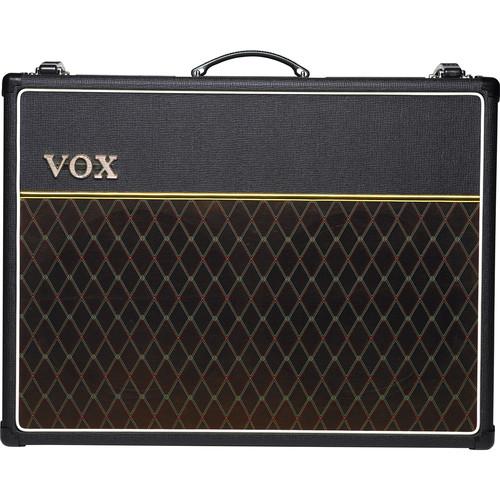

User Manual for VOX AC30C2X Custom 30W 2x12 Tube Combo Amplifier Click to enlarge the picture
Contents of the user manual for the VOX AC30C2X Custom 30W 2x12 Tube
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
|
User manual for the VOX AC30C2X Custom 30W 2x12 Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|
Product description Designed for use with electric guitar, the AC30C2X Custom from VOX is a 30W RMS combo amplifier sporting a 2x12" cabinet with Celestion Alnico Blue speakers. The amp also boasts a tube-driven preamp, a tube-driven power-amp stage, and two independent channels: Normal and Top Boost. The Top Boost channel offers access to an interactive EQ section—interactive in that the treble knob affects levels of bass and vice versa—while the Normal channel provides a clearer signal path. There are high and low inputs for either channel, and the Tone Cut knob across the power-amp stage provides even more control over your high end, no matter which input you choose. Also, these channels are affected by the onboard tremolo and reverb, both of which can be manipulated using a footswitch (available separately).
Turn your attention to the back of the amplifier and you'll see a 1/4" effects loop, a 1/4" extension jack for powering an extra 16 Ohm speaker, and a 1/4" external speaker output. Using the external speaker jack will mute signal to the internal cabinet, though in utilizing this jack you'll be able to hook up both 8 and 16 Ohm cabinets, so long as you set the impedance switch accordingly. You'll also notice the footswitch input to toggle reverb and tremolo with the tap of your toes. In the Box VOX AC30C2X Custom 30W 2x12 Tube Combo Amplifier (Celestion Alnico Blue Speakers) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AC30C2X Custom 30W 2x12 Tube Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AC30C2X Specs | | | Amplifier Type | Tube | | Output Power | 30 W RMS | | Channels | 2 | | Tube Types | 3 x Preamp 12AX7/ECC83
4 x Power EL84/6BQ5 | | Output Impedance | 16/8 Ohms Mono | | Effects Loop | No | | Built-In Effects | Spring Reverb, Tremolo | | Master Volume | Yes | | Inputs | 4 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch
1 x 1/4" Mono Effects Return | | Outputs | 2 x 1/4" Mono External Speaker
1 x 1/4" Mono Effects Send | | Tone Section | Channel 1: Channel Volume
Channel 2: Bass, Channel Volume, Treble | | | | Configuration | 2 x 12" Speaker(s) | | Cabinet Type | Straight Closed Mono | | | | Dimensions (WxHxD) | 27.6 x 21.9 x 10.4" / 702.0 x 556.0 x 265.0 mm Combo | | Weight | 73.59 lb / 33.38 kg Combo |
