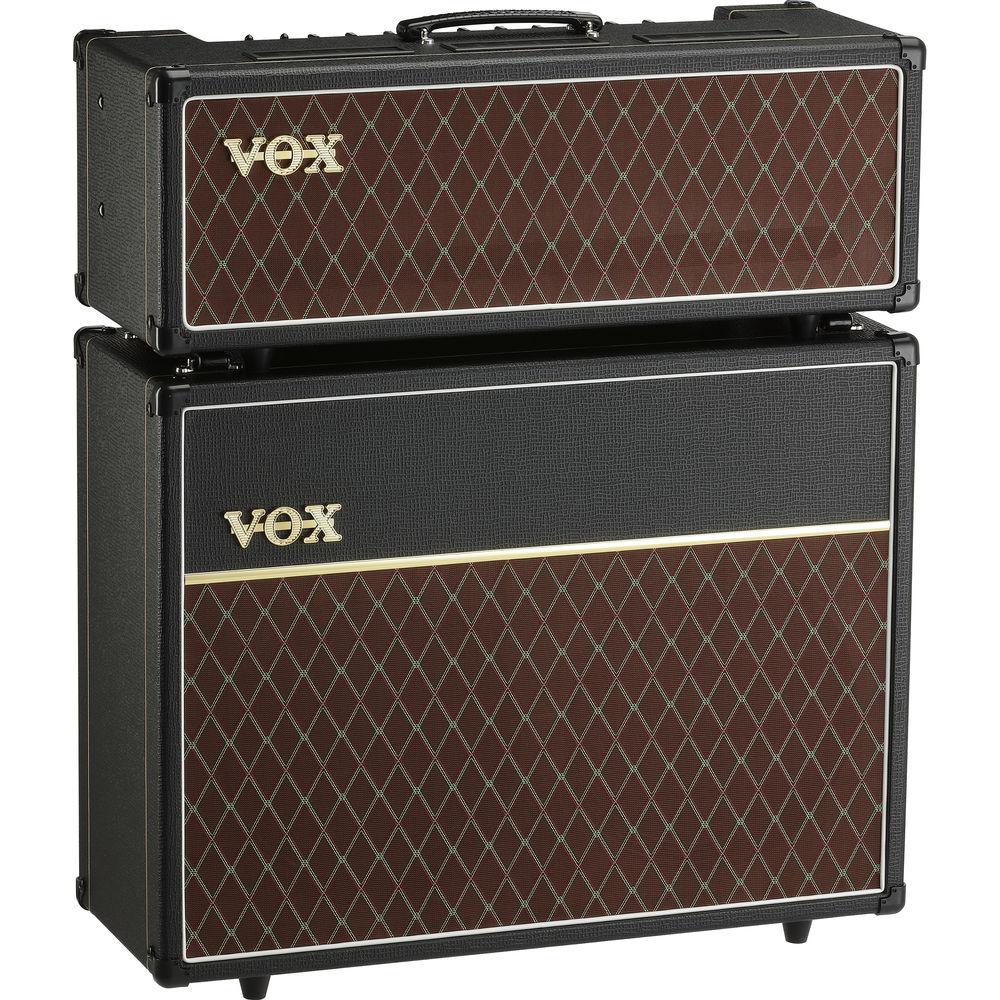

User Manual for VOX AC30CH 30W Custom Amplifier Head for Electric Guitars Click to enlarge the picture
Contents of the user manual for the VOX AC30CH 30W Custom Amplifier Head
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
 |
User manual for the VOX AC30CH 30W Custom Amplifier Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|

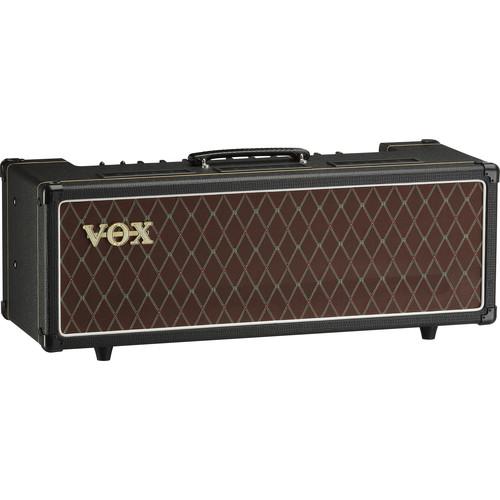

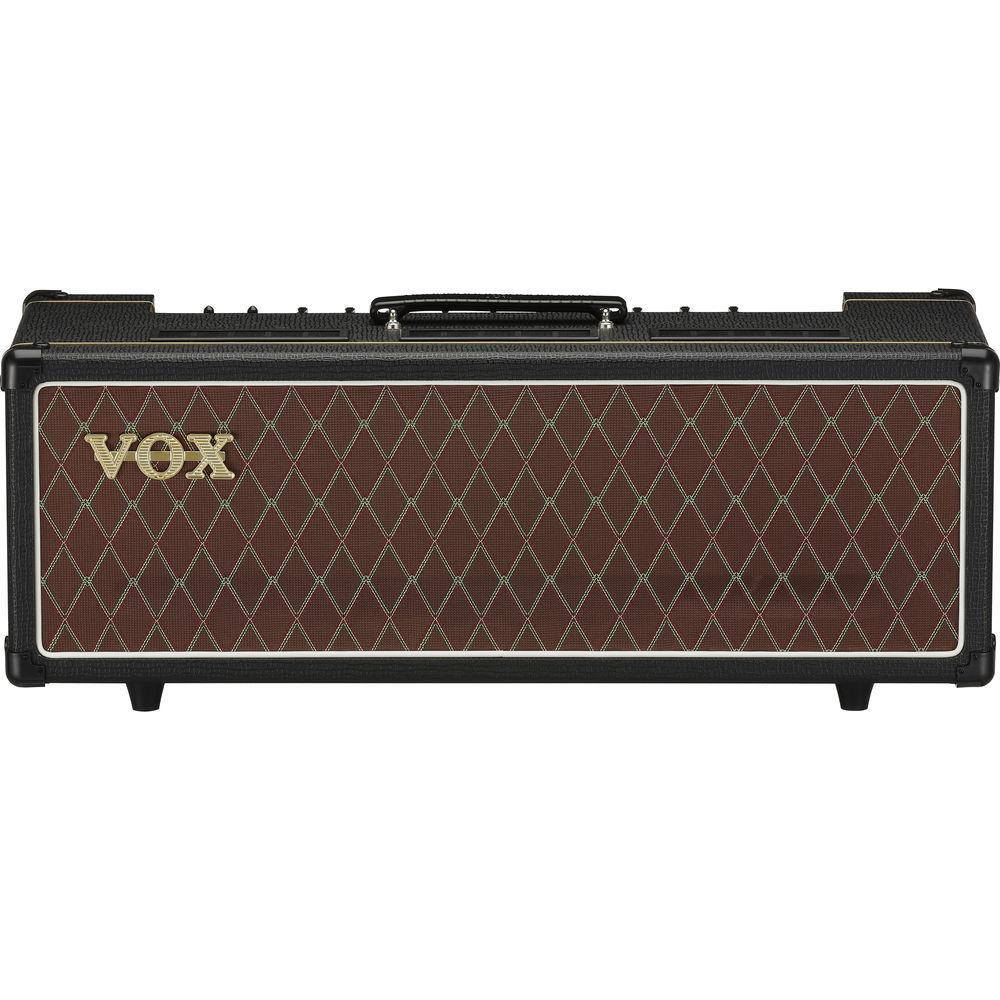

Product description The VOX AC30CH is an amplifier head designed for electric guitars and provides that classic British tone used from everyone from the Beatles to Radiohead. With a full tube complement including 4 EL84 power tubes, the AC30 operates at 30W and is capable of achieving bell-like, chiming timbres or lively, creamy overdrives.

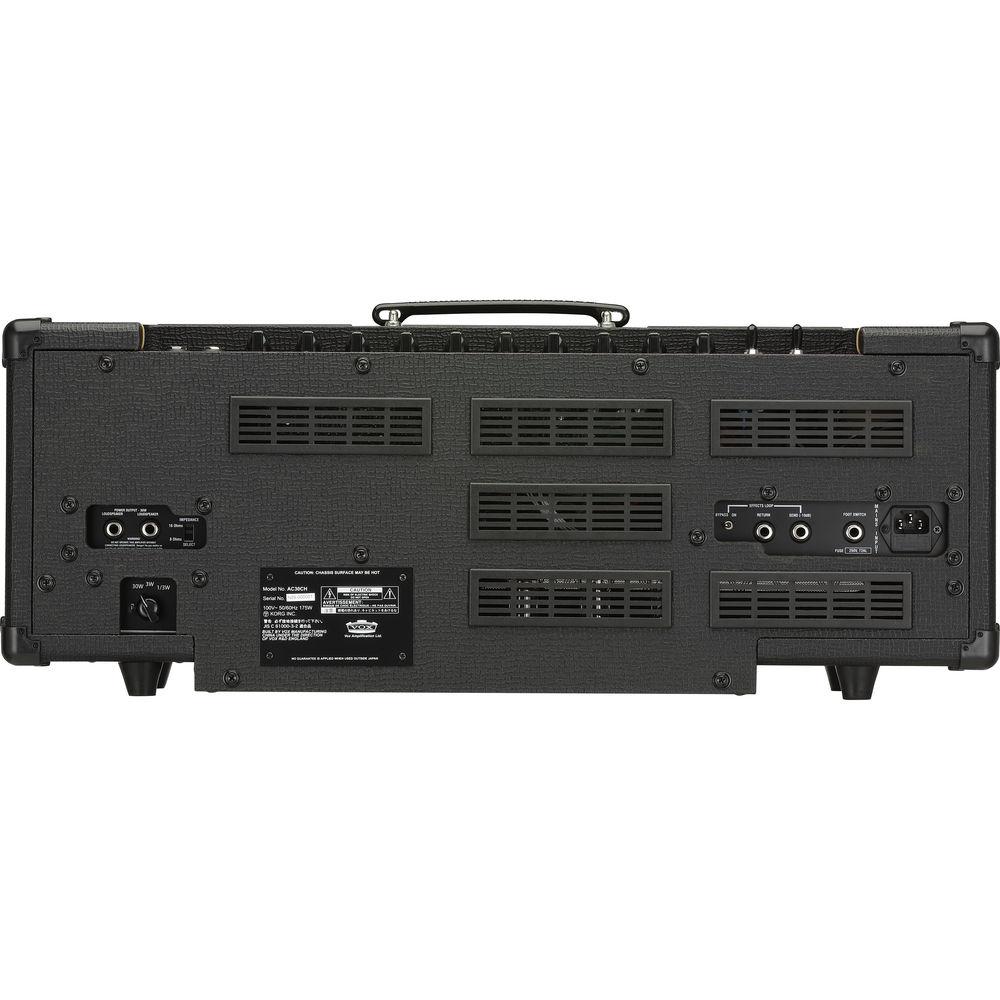

Yes, some variation of the VOX AC30 has been out for a while, so what makes this iteration of the product different? One key answer to this question would be the Reactive Attenuator, available on the rear of the unit. It allows you to achieve the exact tone you want out of any corresponding cabinet—even at the low levels necessary for playing in domiciles or small venues. It effectively reduces the wattage, giving you the ability to attain that creamy, overdriven sound regardless of the spatial situation.

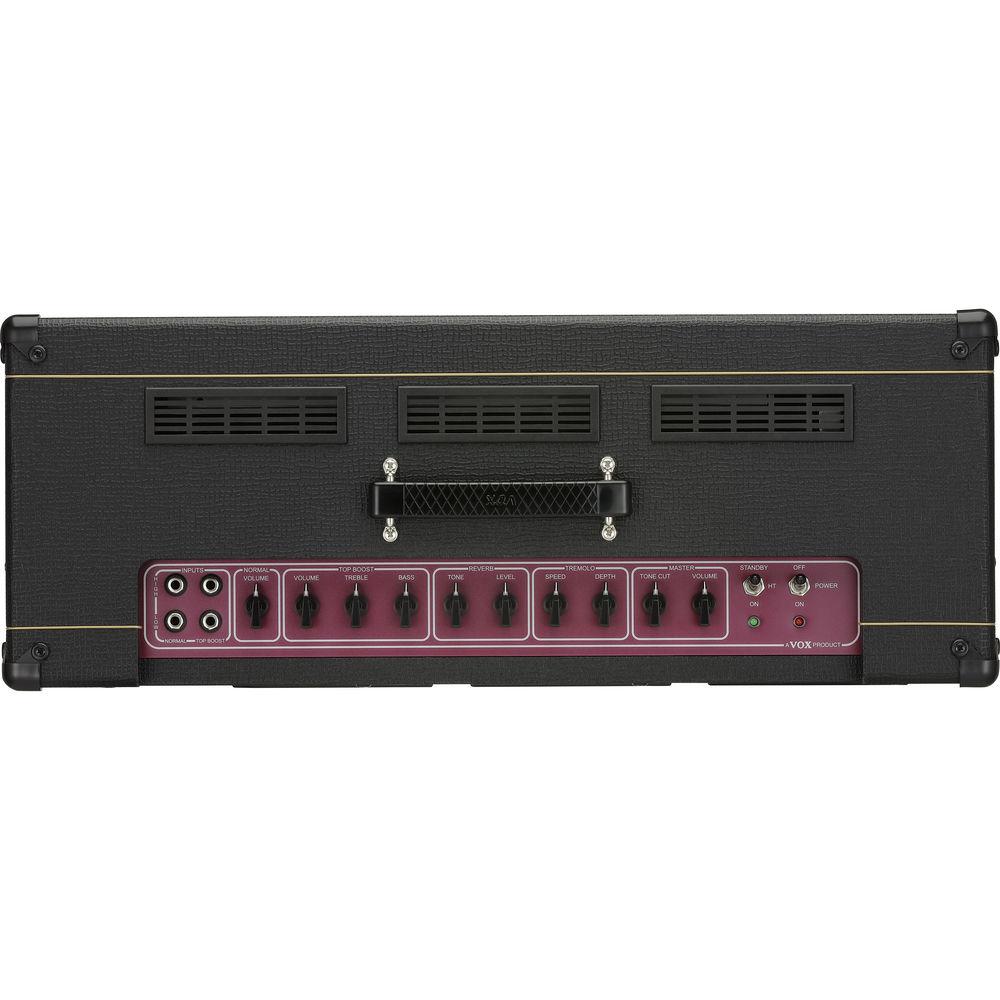

The amplifier provides two channels, one of which offers controls for volume, treble, and bass. Both channels feed the tremolo, reverb, and master section; this master section gives you a tone cut knob for overall timbre shaping, and a master volume controller. Each channel is fed by two 1/4" instrument jacks, one for low-level guitars and the other for higher-outputting axes, such as those with active pickups.
The AC30CH head sports two 1/4" speaker jacks, as well as a switchable effects loop and an input for the separately available VFS2 footswitch. You can select between 8 and 16 Ohms to meet the needs of numerous cabinets. In the Box VOX AC30CH 30W Custom Amplifier Head for Electric Guitars AC Cable Speaker Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AC30CH 30W Custom Amplifier Head for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AC30 Specs | | | Amplifier Type | Tube | | Output Power | 30 W RMS | | Channels | 2 | | Tube Types | 3 x Preamp 12AX7/ECC83
4 x Power EL84/6BQ5 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Spring Reverb, Tremolo | | Master Volume | Yes | | Inputs | 2 x 1/4" Hi Instrument
2 x 1/4" Low Instrument
1 x 1/4" Stereo Footswitch
1 x 1/4" Mono Effects Return | | Outputs | 2 x 1/4" Mono External Speaker
1 x 1/4" Mono Effects Send | | Tone Section | Channel 1: Channel Volume, Tone
Channel 2: Bass, Channel Volume, Tone, Treble | | | | Dimensions (WxHxD) | 27.8 x 10.5 x 11.2" / 705.0 x 266.0 x 284.0 mm Amplifier | | Weight | 41.45 lb / 18.8 kg Amplifier |
