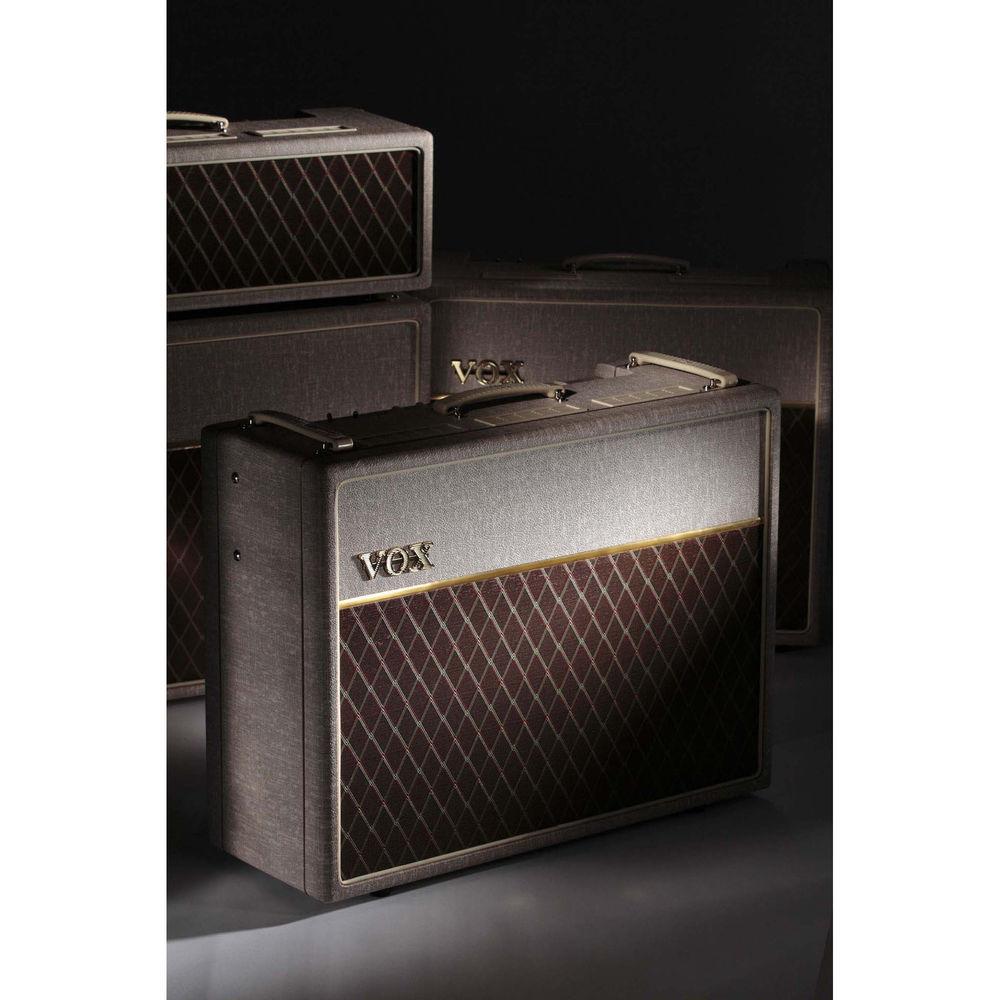

User Manual for VOX AC30HW2X Hand-Wired 2x12 Combo Amplifier Click to enlarge the picture
Contents of the user manual for the VOX AC30HW2X Hand-Wired 2x12 Combo Amplifier
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
 |
User manual for the VOX AC30HW2X Hand-Wired 2x12 Combo Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|

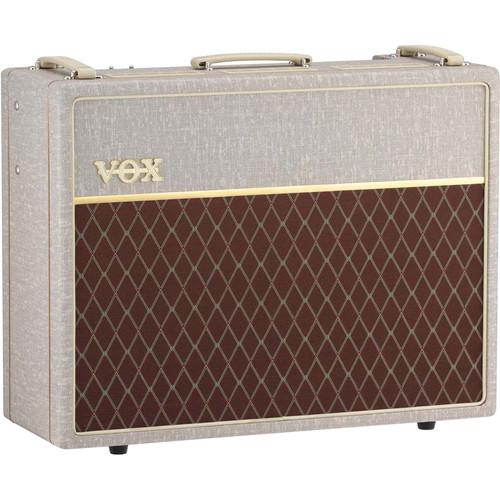

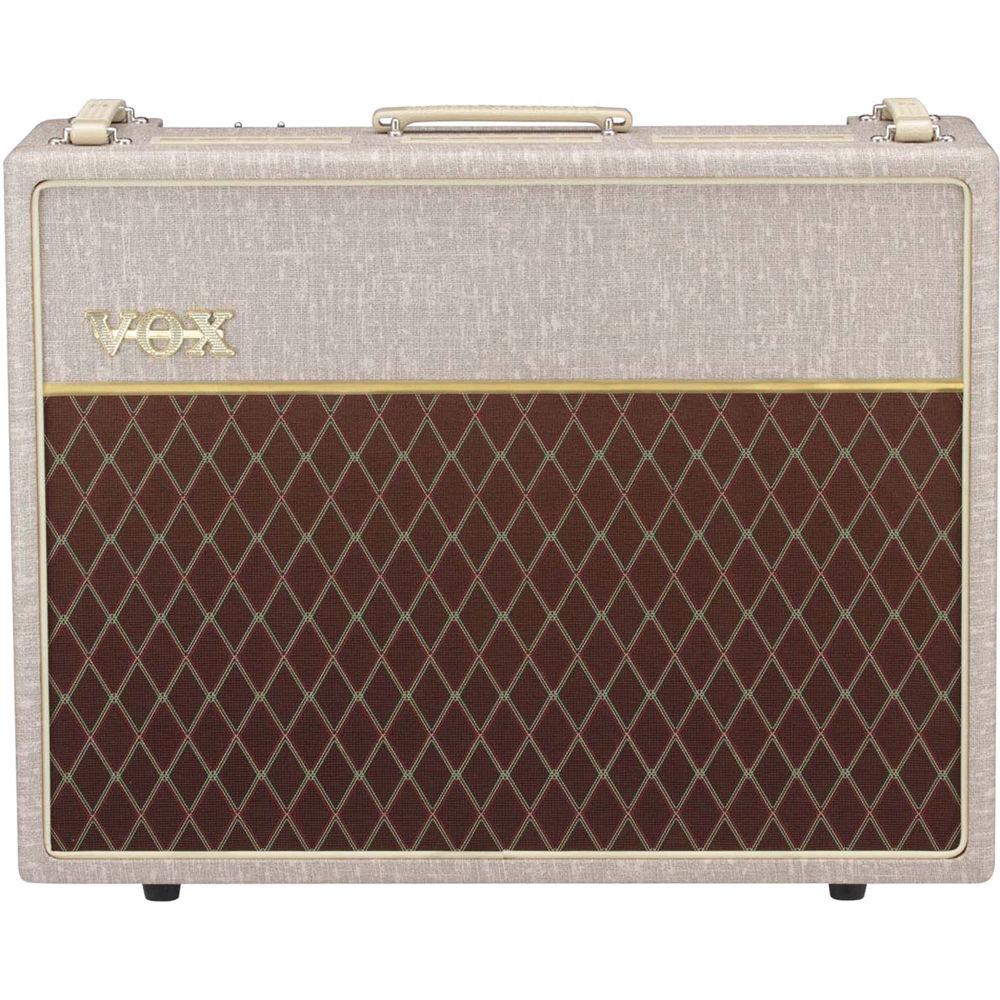

Product description Designed to impart that classic VOX tube tone upon your electric guitar, the AC30HW2X is a 30W RMS combo amplifier sporting two 12" Celestion Alnico Blue speakers. The unit boasts two independent channels and a full complement of tubes. Each channel provides both high and low input jacks, giving you a total of four ways of plugging into the amp. Also, every element of the turret board has been hand-wired to ensure the most efficient signal path.
You can control the high-end frequency content of the power-amp stage with the Tone Cut knob; however, for further fine-tuning of EQ, plug into the Top Boost channel, which offers Bass, Treble, and a Hot/Cool switch—a handy feature that partially bypasses the tone controls to provide more gain and a purer signal path. As this Hot/Cool switch can be toggled via an independent footswitch, this feature can be utilized to give you some more juice for lead parts and soloing.

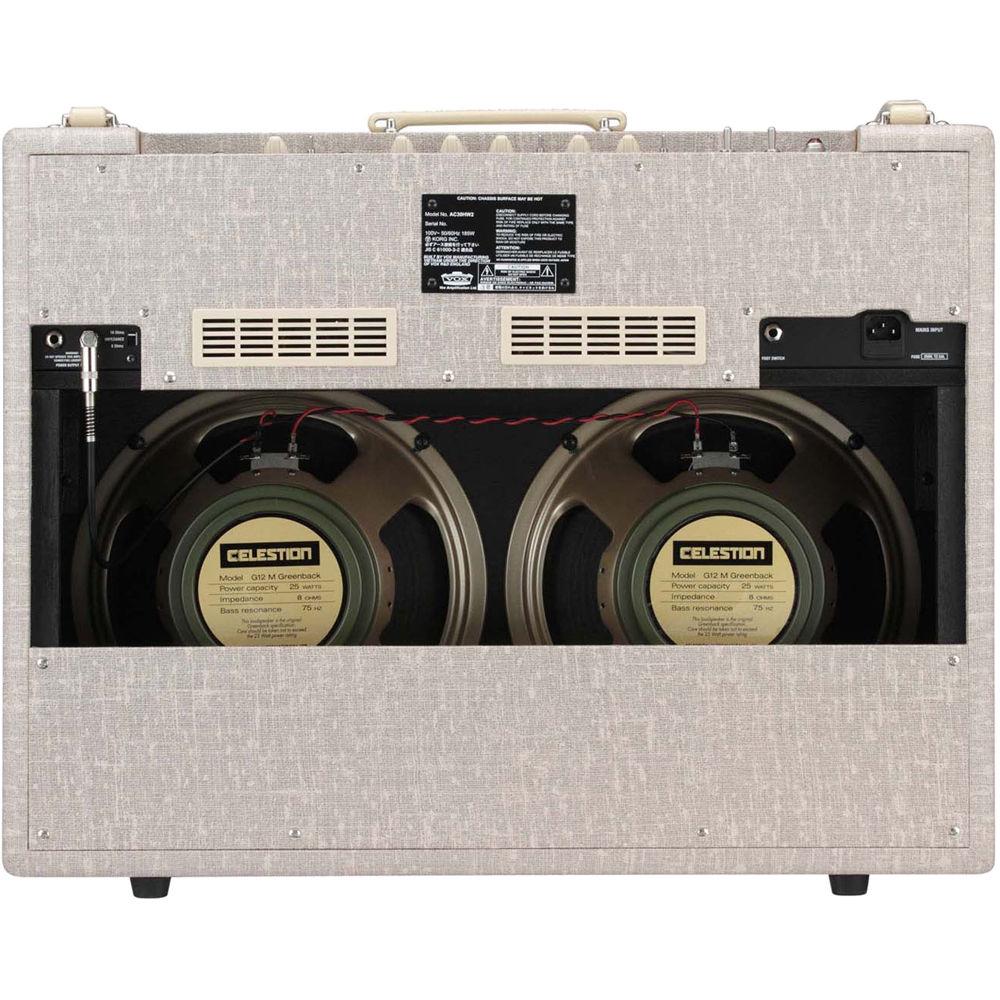

Turn your attention to the back of the amplifier and you'll see two external speaker output jacks wired for 16 Ohms, though, depending on the speaker configuration you're using, they can be switched to 8 Ohms as well. You'll also notice a footswitch input which allows you to control various features of the amp with the tap of your toes. The footswitch, a power cable, and a dust cover are included with your purchase. In the Box VOX AC30HW2X Hand-Wired 2x12 Combo Amplifier (Celestion Alnico Blue Speakers) Power Cable VFS1 Footswitch Dust Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AC30HW2X Hand-Wired 2x12 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AC30HW2X Specs | | | Amplifier Type | Tube | | Output Power | 30 W RMS | | Channels | 2 | | Tube Types | 3 x Preamp 12AX7/ECC83
4 x Power EL84/6BQ5
1 x Rectifier 5AR4/GZ34 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | No | | Master Volume | Yes | | Inputs | 2 x 1/4" Hi Instrument
2 x 1/4" Low Instrument
1 x 1/4" Mono Footswitch | | Outputs | 2 x 1/4" Mono External Speaker | | Tone Section | Channel 1: Preamp Volume
Channel 2: Bass, Channel Volume, Treble | | | | Configuration | 2 x 12" Speaker(s) | | Cabinet Type | Straight Open Mono | | Power Rating | 30 W RMS | | Input Impedance | 8/16 ohms Mono | | | | Dimensions (WxHxD) | 27.8 x 21.7 x 10.2" / 705.0 x 550.0 x 260.0 mm Combo | | Weight | 70.55 lb / 32 kg Combo | | | | Package Weight | 83.5 lb | | Box Dimensions (LxWxH) | 31.75 x 26.0 x 16.0" |
