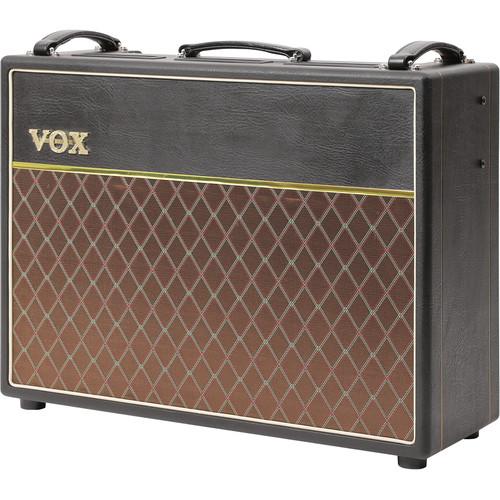

User Manual for VOX AC30HW60 60th Anniversary AC30 Handwired 30W 2x12" Tube Guitar Amp Click to enlarge the picture
Contents of the user manual for the VOX AC30HW60 60th Anniversary AC30 Handwired
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
 |
User manual for the VOX AC30HW60 60th Anniversary AC30 Handwired contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|
Product description The VOX AC30HW60 is a 60th anniversary recreation of the 1964 VOX AC30/6 tube amplifier for guitarists seeking the legendary tone of a wildly-popular classic combo amp for recording and performing on stage. The three-channel 30W RMS amp was handcrafted and handwired in the United Kingdom.11 tubes, including four EL84 power tubes, custom-wound transformers, and the revered Top Boost circuit deliver the unmistakable VOX tone. Two 12” Celestion Alnico Silver speakers, brought back exclusively for VOX’s 60th anniversary, contribute to the authentic vintage tone. Three 1/4" power outputs are provided for connection to external speakers. Each of the channels features high and low 1/4" inputs. Bass, Treble, and Cut tone controls allow you to refine your tone. The adjustable vibrato can be switched on or off via the included footswitch.The Baltic birch ply cabinet features the signature VOX tolex covering and diamond cloth face. A custom amp cover is included to protect the AC30HW60 from dust and scratches. - Faithful to the original 1964 VOX AC30/6, the 60th Anniversary AC30 amp is equipped with a Top Boost circuit, diamond cloth, and a split-baffle design
- The all-tube design features 11 tubes, including five 12AX7s, a 12AU7, four EL84s, and a GZ34

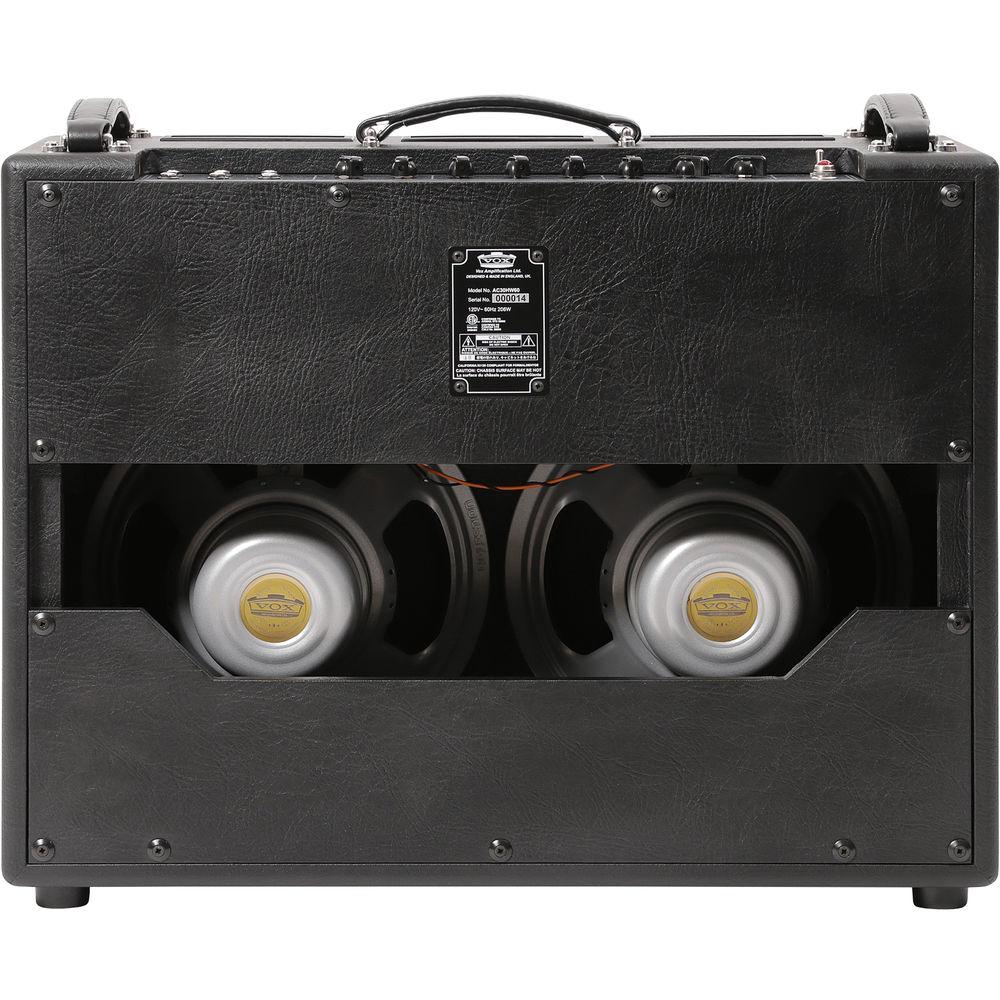

- Two 12" Celestion Alnico Silver speakers
- Three channels (Normal, Vib-Trem, and Brilliant) deliver tube tone and VOX vibrato

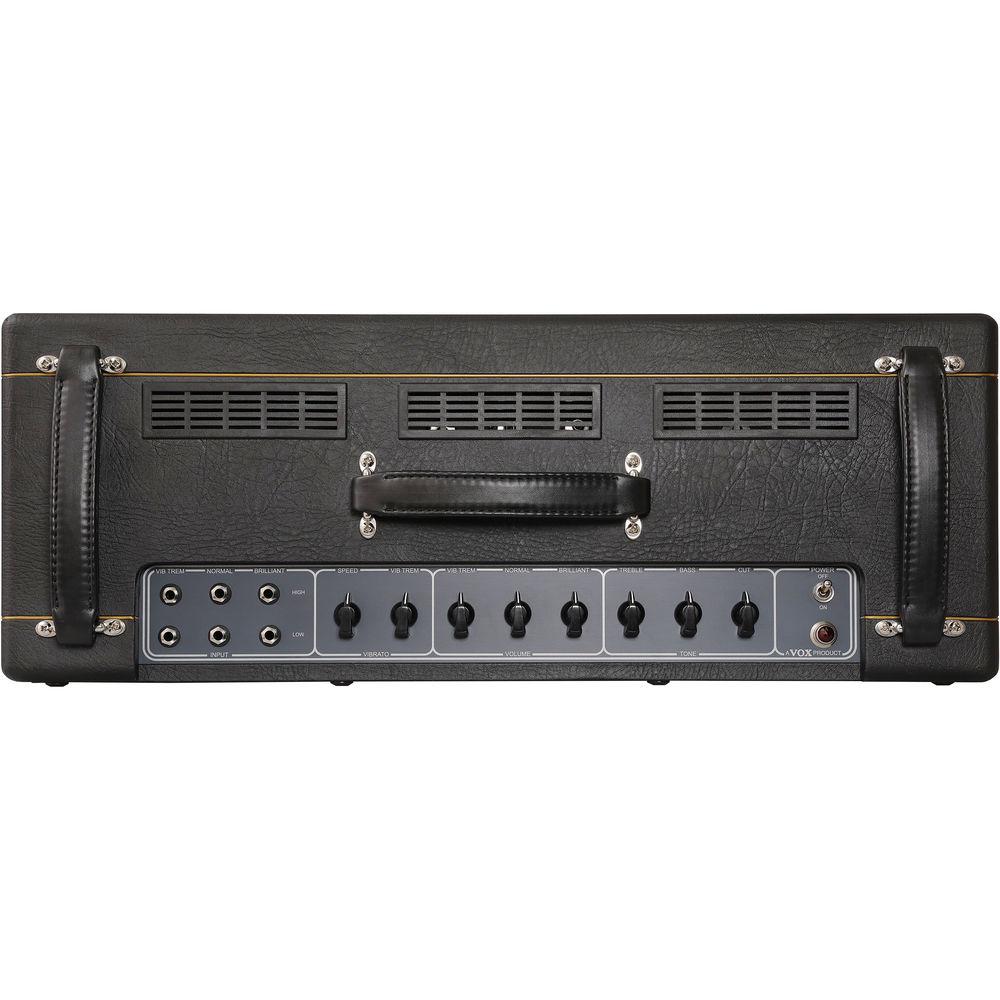

- Tone controls include Bass, Treble, and Cut
- High and Low 1/4" inputs for each channel
- Multiple power outputs for external speakers
- Handcrafted and handwired in the United Kingdom
- Includes footswitch for convenience
In the Box VOX AC30HW60 60th Anniversary AC30 Handwired 30W 2x12" Tube Guitar Amp Power Cord Footswitch Dust Cover Limited 1-Year Warranty for Amplifier Limited 90-Day Warranty for Tubes and Footswitch Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AC30HW60 60th Anniversary AC30 Handwired 30W 2x12" Tube Guitar Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AC30HW60 Specs | | | Amplifier Type | Tube | | Output Power | 30 W RMS | | Channels | 3 | | Tube Types | 5 x Preamp 12AX7/ECC83
1 x Preamp 12AU7/ECC82
4 x Power EL84/6BQ5
1 x Rectifier 5AR4/GZ34 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | No | | Built-In Effects | Vibrato | | Master Volume | No | | Inputs | 3 x 1/4" Hi Instrument
3 x 1/4" Low Instrument
1 x 1/4" Mono Footswitch | | Outputs | 3 x 1/4" Mono External Speaker | | Tone Section | Bass, Treble Tone section features additional Cut control | | | | Configuration | 2 x 12" Speaker(s) | | Cabinet Type | Straight Semi-Open Mono | | Power Rating | 30 W RMS | | Input Impedance | 8 ohms Mono | | Construction Material | Baltic Birch | | Covering | Tolex | | | | Dimensions (WxHxD) | 27.7 x 22.6 x 10.4" / 703.0 x 575.0 x 263.0 mm Combo | | Weight | 73.85 lb / 33.50 kg Combo |
