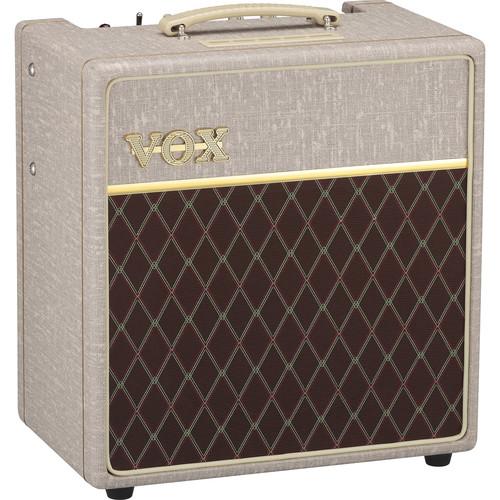

User Manual for VOX AC4HW1 Hand-Wired 4W RMS 1x12 Combo Amplifier Click to enlarge the picture
Contents of the user manual for the VOX AC4HW1 Hand-Wired 4W RMS 1x12
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
|
User manual for the VOX AC4HW1 Hand-Wired 4W RMS 1x12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|
Product description Designed to impart that classic VOX tube tone upon your electric guitar, the AC4HW1 is a 4W RMS combo amplifier sporting a 12" Celestion G12M Greenback speaker. The unit boasts tube-driven preamp and power-amp stages, as well as two input jacks—high and low. Also, each element of the turret board has been hand-wired to ensure the most efficient signal path.
For EQ, the AC4HW1 offers controls for Bass, Treble, and a Hot/Cool switch—a handy feature which partially bypasses the tone controls to provide more gain and a purer signal path. As this Hot/Cool switch can be toggled via an independent footswitch, this feature can be utilized to give you some more juice for lead parts and soloing.
Turn your attention to the back of the amplifier and you'll see an external output jack wired for 16 Ohms. You'll also notice a footswitch input which allows you to control the Hot/Cool switch with the tap of your toes. The footswitch, a power cable, and a dust cover are included with your purchase. In the Box VOX AC4HW1 Hand-Wired 4W RMS 1x12 Combo Amplifier Power Cable VFS1 Footswitch Dust Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AC4HW1 Hand-Wired 4W RMS 1x12 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AC4HW1 Specs | | | Amplifier Type | Tube | | Output Power | 4 W RMS | | Channels | 1 | | Tube Types | 2 x Preamp 12AX7/ECC83
1 x Power EL84/6BQ5 | | Output Impedance | 16 Ohms Mono | | Effects Loop | No | | Master Volume | Yes | | Inputs | 1 x 1/4" Hi Instrument
1 x 1/4" Low Instrument
1 x 1/4" Mono Footswitch | | Outputs | 1 x 1/4" Mono External Speaker | | Tone Section | Channel 1: Bass, Gain, Treble | | | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 4 W RMS | | Input Impedance | 16 ohms Mono | | | | Dimensions (WxHxD) | 15.9 x 17.7 x 10.2" / 405.0 x 450.0 x 260.0 mm Combo | | Weight | 29.76 lb / 13.5 kg Combo |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
