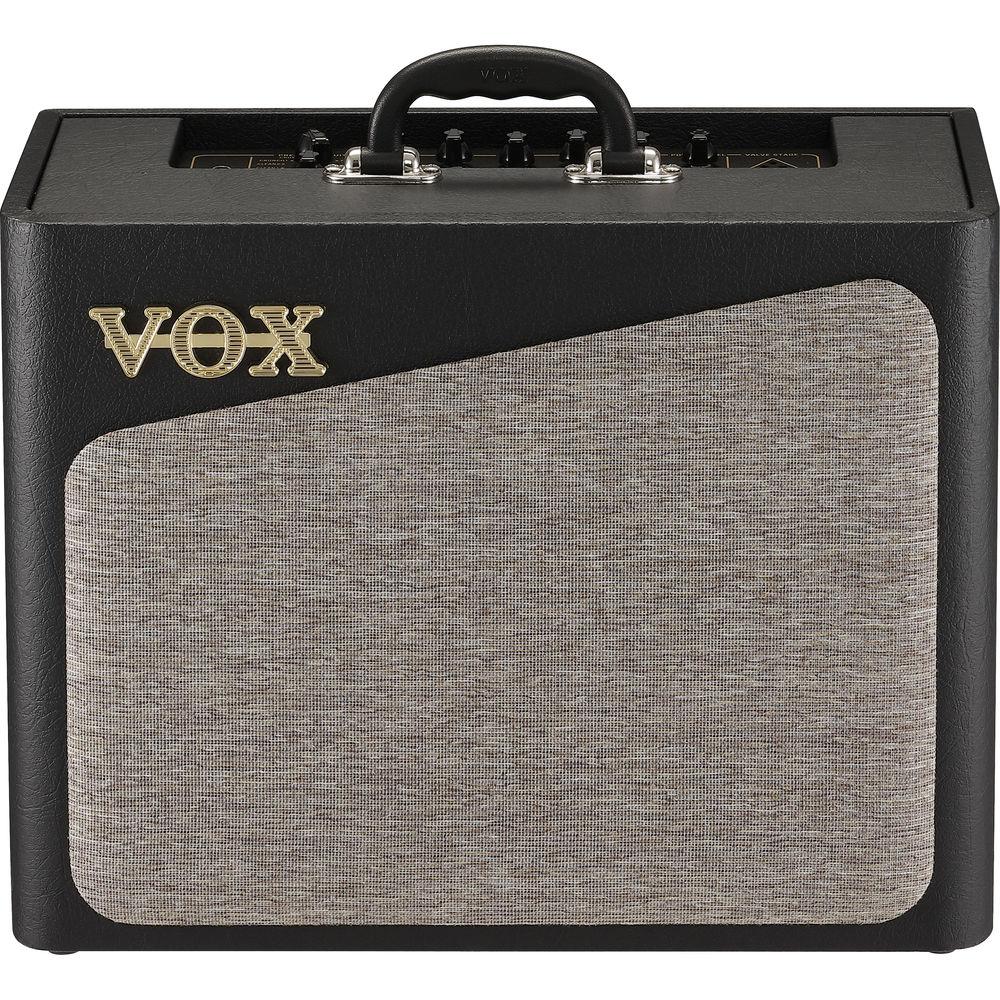

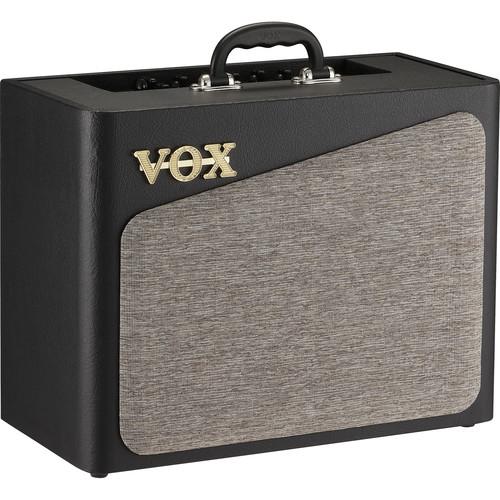

Product description The AV15 from VOX is a single-channel, tube, analog modeling guitar amplifier designed to provide a variety of analog amp tones for guitarists playing live and recording in the studio. It features an 8" speaker and delivers 15W RMS at 5 Ohms.The preamp section offers eight different amp simulations ranging from smooth and clean to thick and distorted. It has switchable Fat and Bright circuits. Tailor your sound via controls for bass, middle, treble, gain, and volume. The power amp section incorporates a 12AX7 tube. Switches are provided for different voices and damping settings.Three independent, analog-voiced, digital effects (chorus, delay, and reverb) are available. Each effect features adjustable parameters and an on/off switch.Connect a smartphone, MP3 player, or laptop to the 3.5mm (1/8”) stereo aux input, then play along with your favorite tracks. Plug in headphones via the 3.5mm stereo headphone jack to practice without disturbing neighbors. - Configuration
-
- 15W RMS at 5 Ohms
- One channel
- Cabinet
-
- Single 8" speaker
- The speaker is installed from the front so that the sound will emanate from a projecting position, creating a wider sound field
- Left and right edges are significantly rounded, allowing the sound to project widely
- The speaker is mounted asymmetrically to prevent internal standing waves and deliver a flatter frequency response
- By mounting the speaker on the cabinet frame, the entire cabinet receives the vibration of the speaker and creates a resonance appropriate for the amp
- The proprietary bass-reflex structure ensures a natural sound balance
- A horizontal sound post unifies the vibrations of the rear and the baffle
- Tube Circuit
-
- Bright and Fat switches for preamp stage
- 12AX7 tube in power amp
- Power amp Bias switch provides modern and vintage voices
- Power amp Reactor switch offers two damping settings, flat and tight or dynamic and loose
- Eight All-Analog Preamp Circuits
-
- Clean 1: Clean 2x12 combo amplifier simulation with large amounts of headroom, smooth high-end, and thick low-end
- Clean 2: 4x10 combo amplifier simulation with thick, strong overdrive
- Crunch 1: VOX AC15 EF86 channel simulation with many variations of crunch
- Crunch 2: Simulation of post-1964 era VOX AC30 Top Boost with bell-chime clean and dynamic overdrive
- OD 1: Simulation that embodies classic rock tones of the '70s
- OD 2: Simulation representative of hard rock overdrive of the '80s
- H.Gain 1: Simulation of high-gain amplifier circa 1990s, ideal for anything from a heavy riff to a thick lead solo
- H.Gain 2: Highest gain, suitable for 7-string or drop tuning
- Analog-Voiced Digital Effects
-
- Independently selectable chorus, delay, and reverb
- Adjustable effects output level
- Variable chorus speed
- Adjustable delay and reverb time

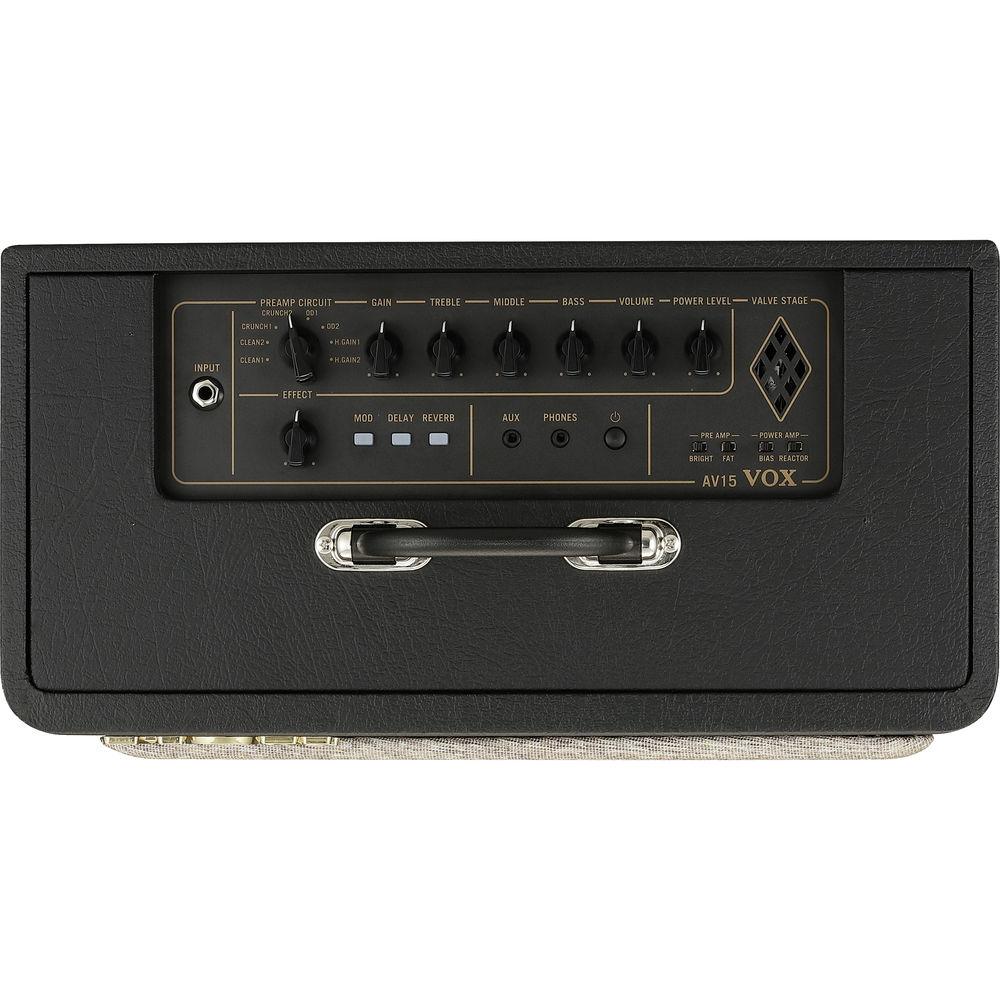

- Additional Controls
-
- Gain and volume controls
- Bass, middle, and treble controls
- Variable master volume
- Additional Features
-
- 3.5mm (1/8") stereo aux input
- 3.5mm (1/8") stereo headphone output powered by a cabinet simulator
In the Box VOX AV15 - 15W 1x8" Analog Modeling Guitar Amplifier AC Adapter Limited 1-Year Warranty for Amp Limited 90-Day Warranty for Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AV15 - 15W 1x8" Analog Modeling Guitar Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AV15 Specs | | | Amplifier Type | Tube | | Output Power | 15 W RMS | | Channels | 1 | | Tube Types | 1 x Power 12AX7/ECC83 | | Output Impedance | 5 Ohms Mono | | Effects Loop | No | | Built-In Effects | Chorus, Delay, Digital Reverb | | Presets & Storage | None | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/8" Stereo Aux | | Outputs | 1 x 1/8" Stereo Headphone | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Treble | | EQ | None | | | | Speaker Inputs | None | | Speaker Through/Output | None | | Configuration | 1 x 8" Speaker(s) | | Cabinet Type | Straight Closed Mono Bass port in cabinet front | | Power Rating | 15 W RMS | | | | Dimensions (WxHxD) | 17.7 x 14.8 x 9.2" / 450.0 x 377.0 x 234.0 mm Combo | | Weight | 16.98 lb / 7.70 kg Combo | | | | Package Weight | 20.85 lb | | Box Dimensions (LxWxH) | 20.75 x 18.5 x 10.5" |
