Product description The AV60 from VOX is a tube, two-channel, analog guitar amplifier designed to provide a variety of analog amp tones for guitarists playing live and recording in the studio. It features a 12" speaker and delivers 60W RMS at 3 Ohms.The preamp section offers eight different preamp circuits, ranging from smooth and clean to thick and distorted. It utilizes a 12AX7 tube, and has switchable Fat and Bright circuits. Each channel has controls for bass, middle, treble, gain, and volume. The power amp section incorporates a 12AX7 tube. Switches are provided for different voices and damping settings.Three independent, analog-voiced, digital effects (chorus, delay, and reverb) are available. Each effect features adjustable parameters and an on/off switch. Integrate your stompboxes via the mono 1/4” effects loop. A dedicated 1/4” input is provided for connection to a VOX VFS2 or VFS5 footswitch (both available separately).Connect a smartphone, MP3 player, or laptop to the 3.5mm (1/8”) stereo aux input, then play along with your favorite tracks. Plug in headphones via the 3.5mm stereo headphone jack to practice without disturbing neighbors. - Configuration
-
- 60W RMS at 3 Ohms

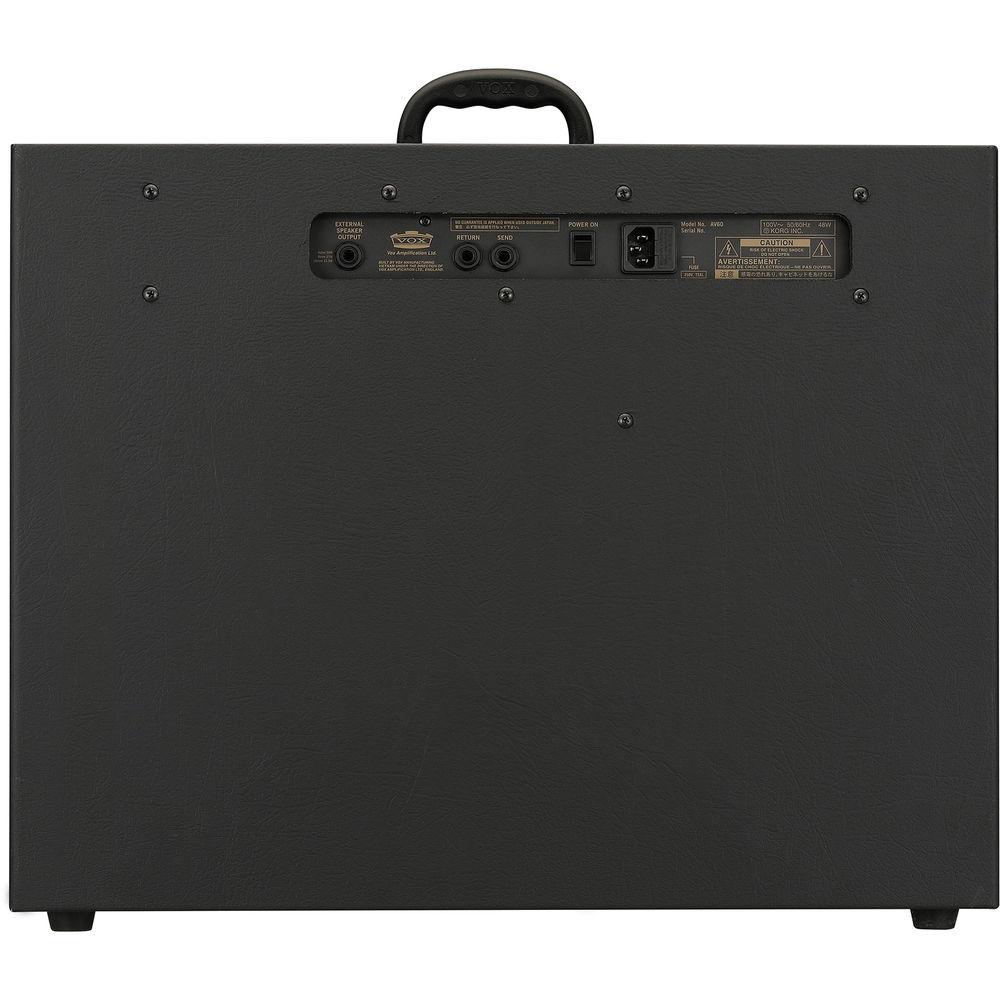

- External speaker output (4 Ohms)
- Two channels
- Mono effects loop

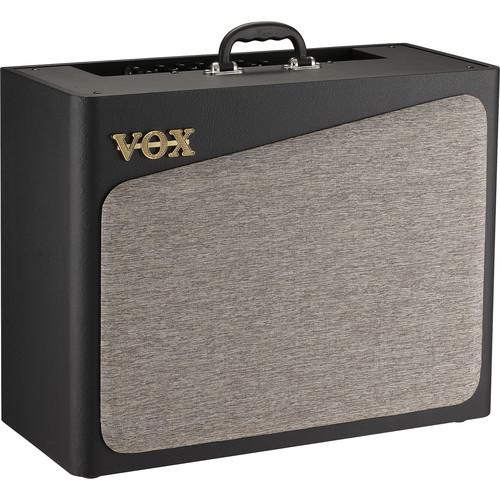

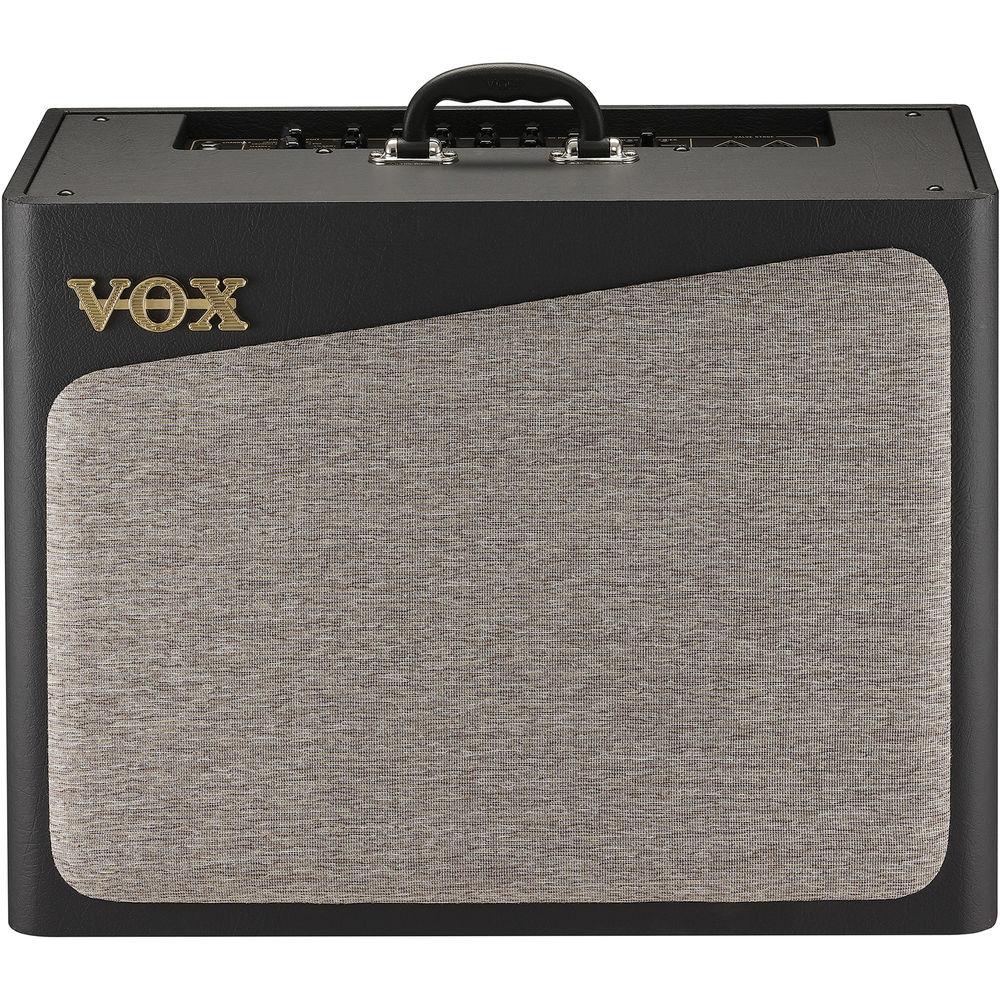

- Cabinet
-
- Single 12" speaker
- The speaker is installed from the front so that the sound will emanate from a projecting position, creating a wider sound field
- Left and right edges are significantly rounded, allowing the sound to project widely
- The speaker is mounted asymmetrically to prevent internal standing waves and deliver a flatter frequency response
- By mounting the speaker on the cabinet frame, the entire cabinet receives the vibration of the speaker and creates a resonance appropriate for the amp
- The proprietary bass-reflex structure ensures a natural sound balance
- A horizontal sound post unifies the vibrations of the rear and the baffle

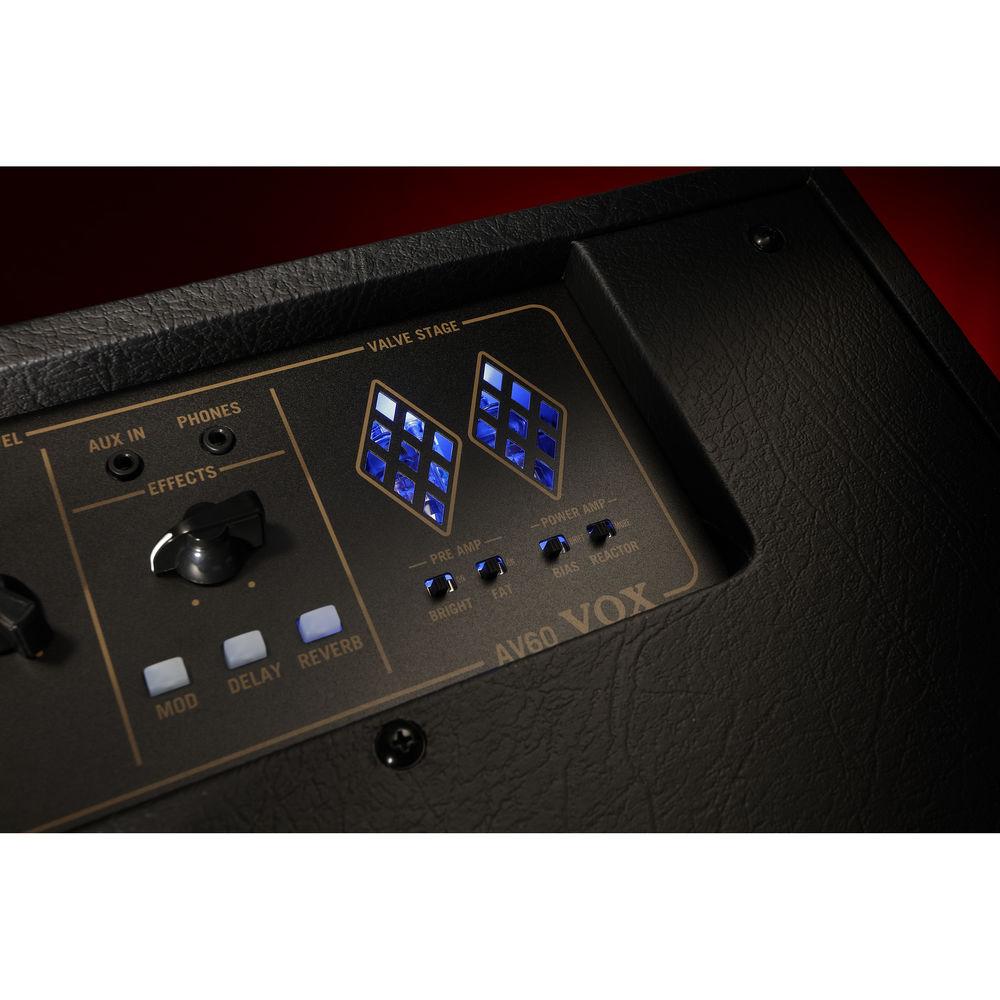

- Tube Circuits
-
- 12AX7 tube in preamp
- Bright and Fat switches for preamp stage
- 12AX7 tube in power amp
- Power amp Bias switch provides modern and vintage voices
- Power amp Reactor switch offers two damping settings, flat and tight or dynamic and loose
- Eight All-Analog Preamp Circuits
-
- Clean 1: Clean 2x12 combo amplifier reproduction with large amounts of headroom, smooth high-end, and thick low-end
- Clean 2: 4x10 combo amplifier reproduction with thick, strong overdrive
- Crunch 1: VOX AC15 EF86 channel simulation with many variations of crunch
- Crunch 2: Reproduction of post-1964 era VOX AC30 Top Boost with bell-chime clean and dynamic overdrive
- OD 1: Reproduction that embodies classic rock tones of the '70s
- OD 2: Reproduction representative of hard rock overdrive of the '80s
- H.Gain 1: Reproduction of high-gain amplifier circa 1990s, ideal for anything from a heavy riff to a thick lead solo
- H.Gain 2: Highest gain, suitable for 7-string or drop tuning
- Analog-Voiced Digital Effects
-
- Independently selectable chorus, delay, and reverb
- Adjustable effects output level
- Variable chorus speed
- Adjustable delay and reverb time

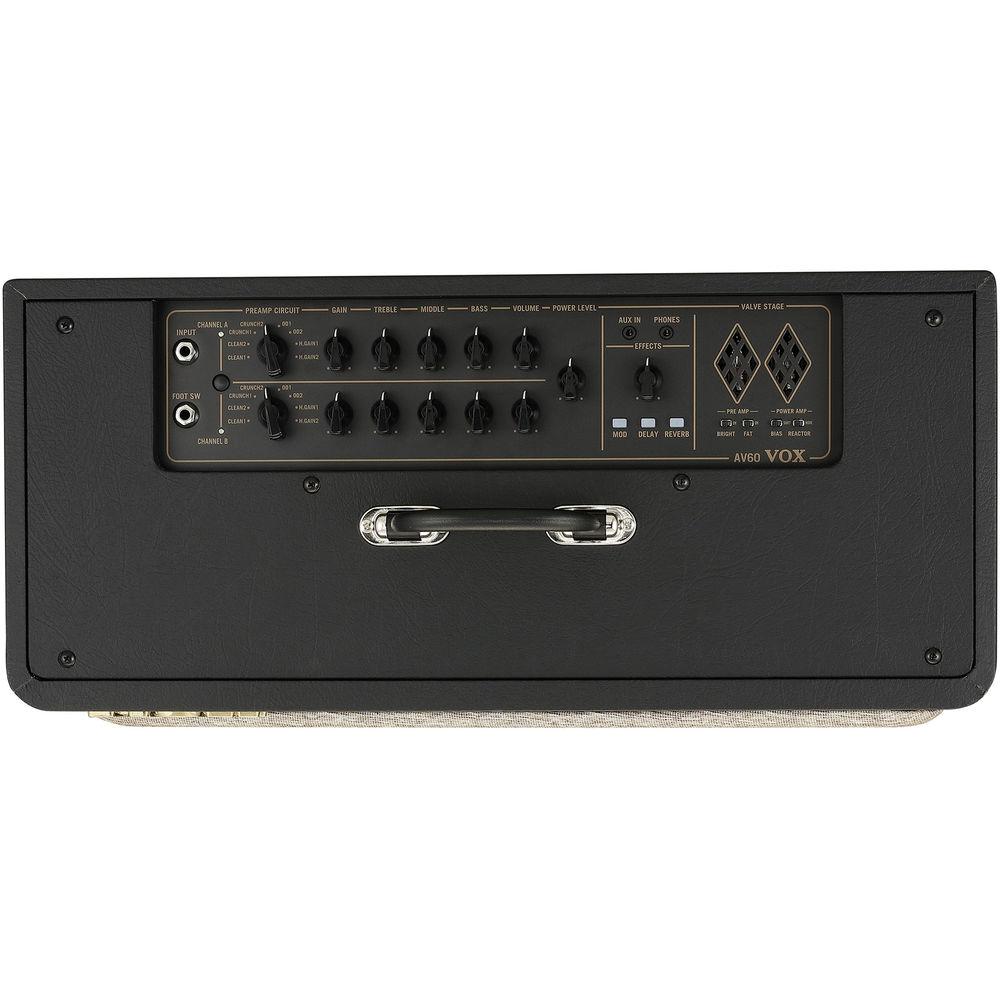

- Additional Controls
-
- Per-channel gain and volume controls
- Per-channel bass, middle, and treble controls
- Variable master volume
- Additional Features
-
- 3.5mm (1/8") stereo aux input
- 3.5mm (1/8") stereo headphone output
- Mono 1/4" effects loop
- 1/4" footswitch jack
In the Box VOX AV60 - 60W 1x12" Tube Guitar Amplifier with All Analog Preamp IEC Power Cable Limited 1-Year Warranty for Amplifier Limited 90-Day Warranty for Tubes Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX AV60 - 60W 1x12" Tube Guitar Amplifier with All Analog Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX AV60 Specs | | | Amplifier Type | Tube | | Output Power | 60 W RMS | | Channels | 2 | | Tube Types | 1 x Preamp 12AX7/ECC83
1 x Power 12AX7/ECC83 | | Output Impedance | 3 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | Chorus, Delay, Digital Reverb | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch
1 x 1/8" Stereo Aux | | Outputs | 1 x 1/4" Mono External Speaker
1 x 1/8" Stereo Headphone External Speaker Output: 4 Ohms | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Treble Bright and Fat switches for preamp section
Bias and Reactor switches for power amp section | | EQ | None | | | | Speaker Inputs | None | | Speaker Through/Output | None | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Closed Mono Bass port in cabinet front | | Power Rating | 60 W RMS | | | | Dimensions (WxHxD) | 23.2 x 19.3 x 10.7" / 590.0 x 491.0 x 272.0 mm Combo | | Weight | 36.6 lb / 16.60 kg Combo |
