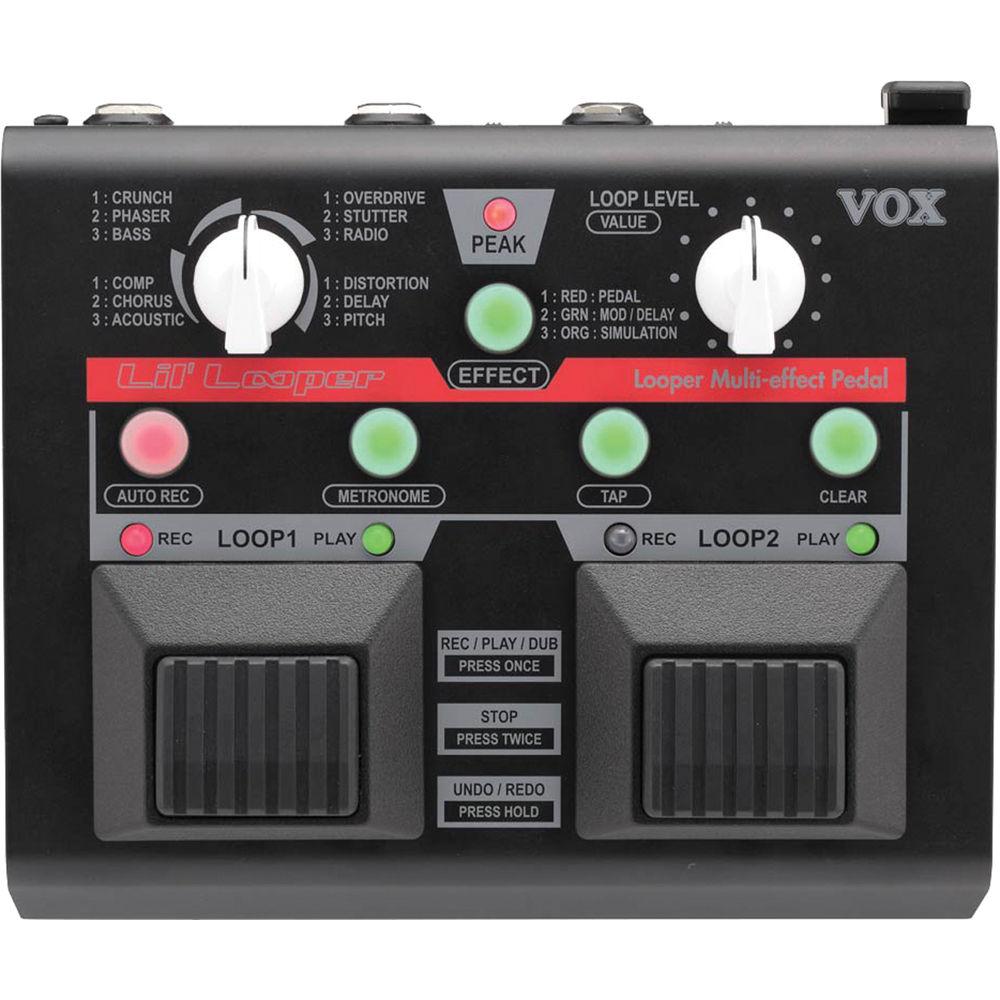

User Manual for VOX Lil Looper - Multi-Effect Pedal Click to enlarge the picture
Contents of the user manual for the VOX Lil Looper - Multi-Effect Pedal
- Product category: Effects Pedals VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Effects Pedals
 |
User manual for the VOX Lil Looper - Multi-Effect Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|

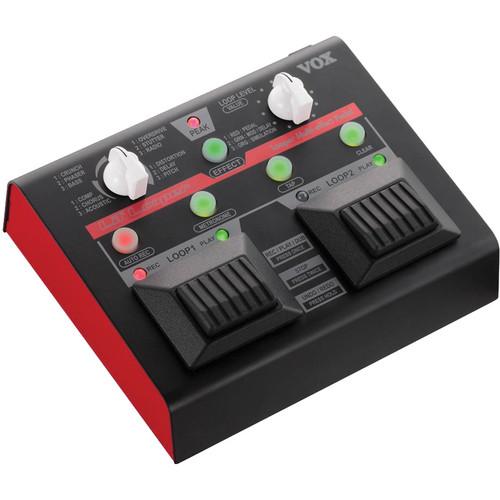

Product description The Lil' Looper from VOX is a looper multi-effects pedal ideal for guitar or for vocal/microphone performances. The floor pedal combines two independent loops with a dozen onboard effects, while a switchable balanced microphone input allows for processing any analog audio source, including vocals.
The loops can be recorded separately with different chord patterns or phrases of differing length. The Loop Quantize feature precisely matches phrases to the same time signature and tempo. In addition to the standard effects (distortion, compressor, phaser, and chorus), the unit offers effects that simulate the sound of an acoustic guitar or bass.
The unit is compact, lightweight, and operated via six AA batteries. With solid footswitches and a stereo mini output for headphone use, the pedal is easy to transport and ideal not only for the stage, but also for playing loops at home, or even for practicing. - Intuitive dual pedal design
- Record for a total of ninety seconds on two independent loops
- Add infinite layers with sound on sound recording capability
- Loop Quantize: Creates phrases that automatically loop on the beat or sync two loops to the same tempo
- Built-in metronome/rhythm guide
- Headphone output with metronome only mode
- Switch between guitar input and balanced microphone (1/4") input
- Powered via six AA batteries or an AC power adapter (not included)
- Optional VFS-2 dual footswitch can turn effects on/off, stops loops, or erase a phrase
In the Box VOX Lil Looper - Multi-Effect Pedal 6 x AA Batteries (For Verifying Operation) One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX Lil Looper - Multi-Effect Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX Lil Looper Specs | Sampling Frequency | 44.1 kHz | | Effects | 12 | | Effect Types | Comp
Crunch
Overdrive
Distortion | | Modulation | Chorus
Phaser
Mod Delay
Stutter | | Simulations | Acoustic
Bass
Radio

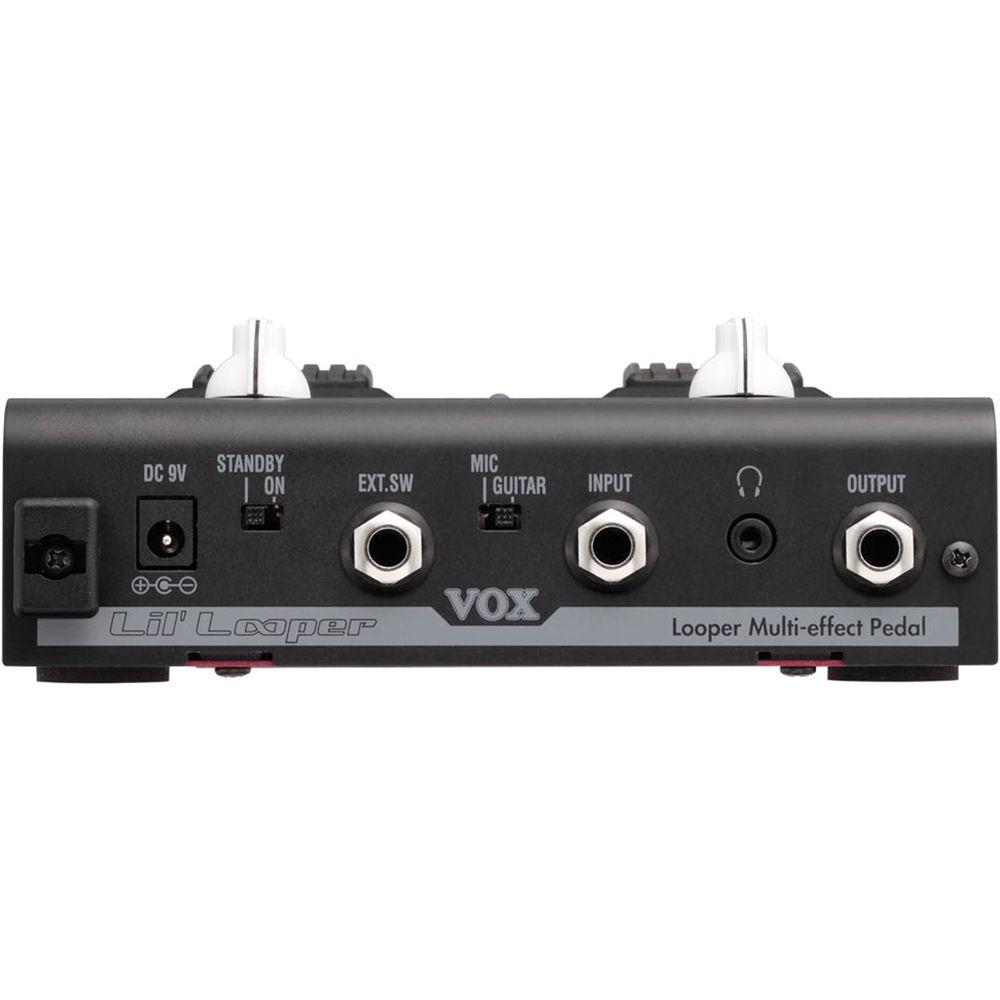

Pitch | | Recording Time | 90 seconds total | | Loops | 2 | | Connections | 1 x 1/4" TRS In (guitar and microphone)
1 x 1/4" TS Out
1x 1/8" TRS stereo mini Headphone
1 x 1/4" TRS External Switch (switch not included) | | Maximum Input Level | Guitar: +7 dBu (typical)
Microphone: -34 dBu (typical) | | Dynamic Range | >94 dB | | Power Requirements | 6 x AA Alkaline batteries
9 VDC power adapter (not included)
175 mA power consumption | | Battery Life | 7 hours approximately | | Dimensions (WxDxH) | 6.5 x 5.7 x 2.4" (165 x 144 x 62 mm) | | Weight | 1.6 lb (0.7 kg) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 7.1 x 6.8 x 2.9" |
