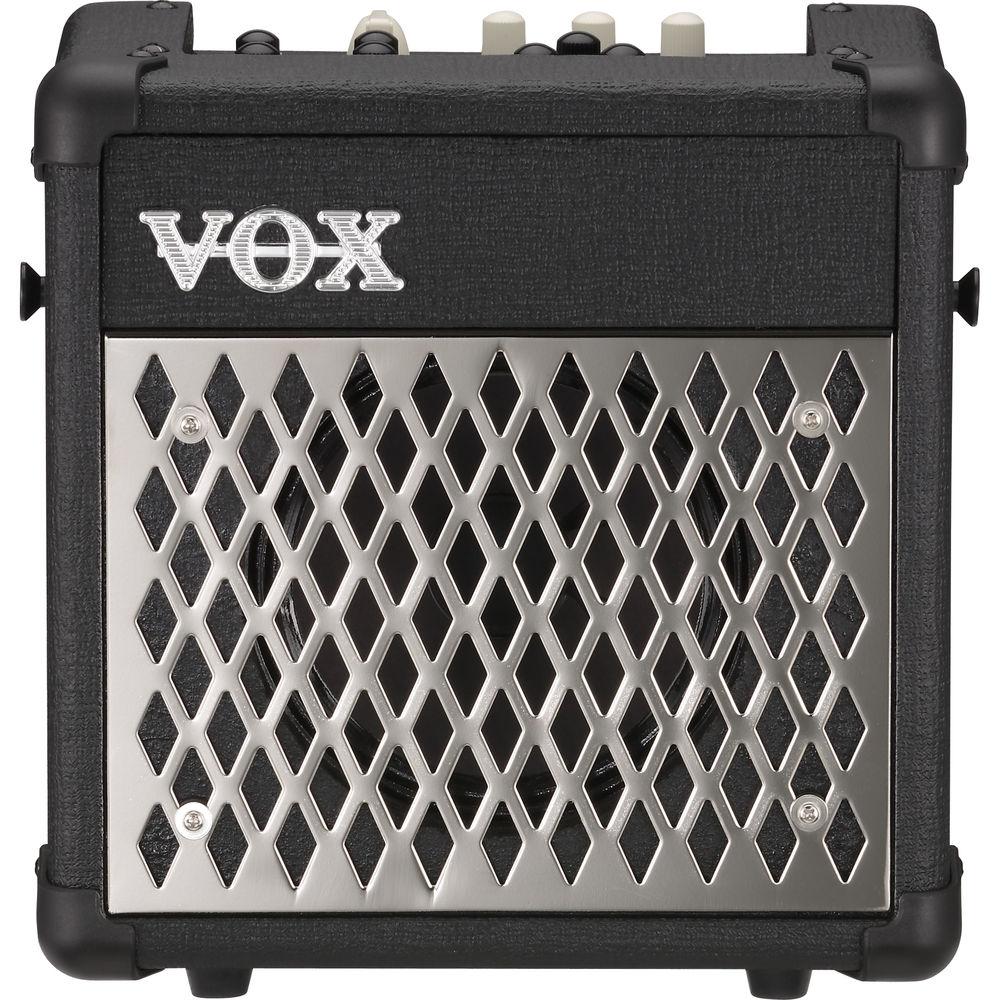

Product description The black VOX MINI5 Rhythm is a portable guitar amplifier with built-in amp modeling, effects, a tuner, and 99 rhythm patterns along with which you can play. It also features VOX's Bassilator circuit which allows for an enhanced low-frequency response.
Featuring a 6.5" speaker, the MINI5 Rhythm can be powered with the included power supply or with six AA batteries for playing on the go. In addition to its instrument input, the amp is also equipped with an aux input for connecting an MP3 player or other portable device to jam along with, as well as a headphone jack for silent practice. Furthermore, there is a dedicated mic input with its own volume, reverb, and delay controls for playing with a singer.

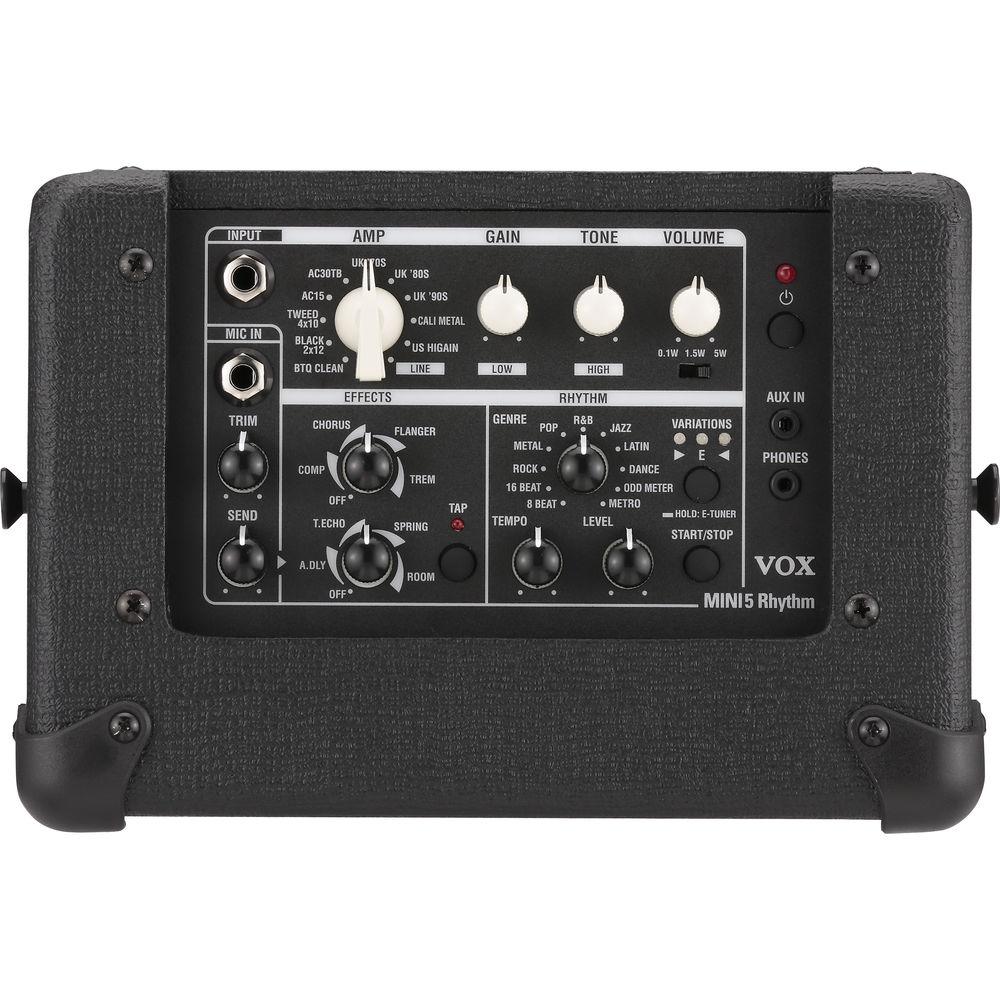

The amplifier's tones are based on VOX's proprietary Valvetronix modeling technology. With 11 amp models to select from, the MINI5 Rhythm provides you with a variety of tonal choices. Also, a selection of built-in effects such as Compressor, Chorus, Flanger, Tremolo, Analog Delay, Tape Echo, Spring Reverb, and Room Reverb, give you the ability to customize your tone further.The MINI5 Rhythm includes various rhythm patterns and metronome patterns broken down into 10 genres for a total of 99 types. You can easily retrieve the patterns with the Genre selector and Variations button, allowing you to find the perfect accompaniment to jam along with. - 11 Amplifier Models
- BTQ CLEAN, BLACK 2x12, TWEED 4x10, AC15, AC30TB, UK '70S, UK '80S, UK '90S, CALI METAL, US HIGAIN, LINE
- 8 Effects
-
- EFFECTS KNOB 1 Compressor/Modulation: Compressor, Chorus, Flanger, Tremolo
- EFFECTS KNOB 2 Delay/Reverb: Analog Delay, Tape Echo, Spring Reverb, Room Reverb
- For Guitars or Keyboards
- Rhythm and metronome patterns broken down into 10 genres for a total of 99 types
- Dual Power Options
- Use the included AC adapter, or use six AA batteries for up to 10 hours of playing time
- Strap Included
- Convenient carrying strap is included for on-the-go mobility
In the Box VOX MINI5 Rhythm Modeling Guitar Amplifier (Black) AC Adapter Carrying Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX MINI5 Rhythm Modeling Guitar Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX MINI5R Specs | Presets | Number of Amp Models: 11 | | Effects | 8 | | Rhythm Patterns | 99 | | Tempo | 40 - 240 bpm | | Tuner | E1 - E6 / 41.2 - 1318.5 Hz | | Input/Output | 1/4" / 6.3 mm input jack
1/4" / 6.3 mm mic in jack
1/8" / 3.5 mm aux in jack
1/8" / 3.5 mm phones jack | | Amplifier Power | Maximum approx. 5 W RMS @ 4 ohms | | Speaker | 6.5" / 16.5 cm, 4 ohms | | Signal Processing | A/D conversion = 24-bit
D/A conversion = 24-bit
Sampling frequency = 44.1 kHz | | Power Supply | 6 x AA-size / LR6 alkaline batteries or the included AC adapter | | Battery Life | Maximum 19.5 hours at 0.1 W
Maximum 17 hours at 1.5 W
Maximum 12 hours at 5 W | | Current Consumption | 160 mA | | Dimensions | 10.59 x 7.05 x 10.51" / 269 x 179 x 267 mm | | Weight | 7.72 lb / 3.5 kg | | | | Package Weight | 10.1 lb | | Box Dimensions (LxWxH) | 13.9 x 11.0 x 7.6" |
