User Manual for VOX MV50 AC 50W Amplifier Head with Nutube Preamp Technology Click to enlarge the picture
Contents of the user manual for the VOX MV50 AC 50W Amplifier Head
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
 |
User manual for the VOX MV50 AC 50W Amplifier Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|

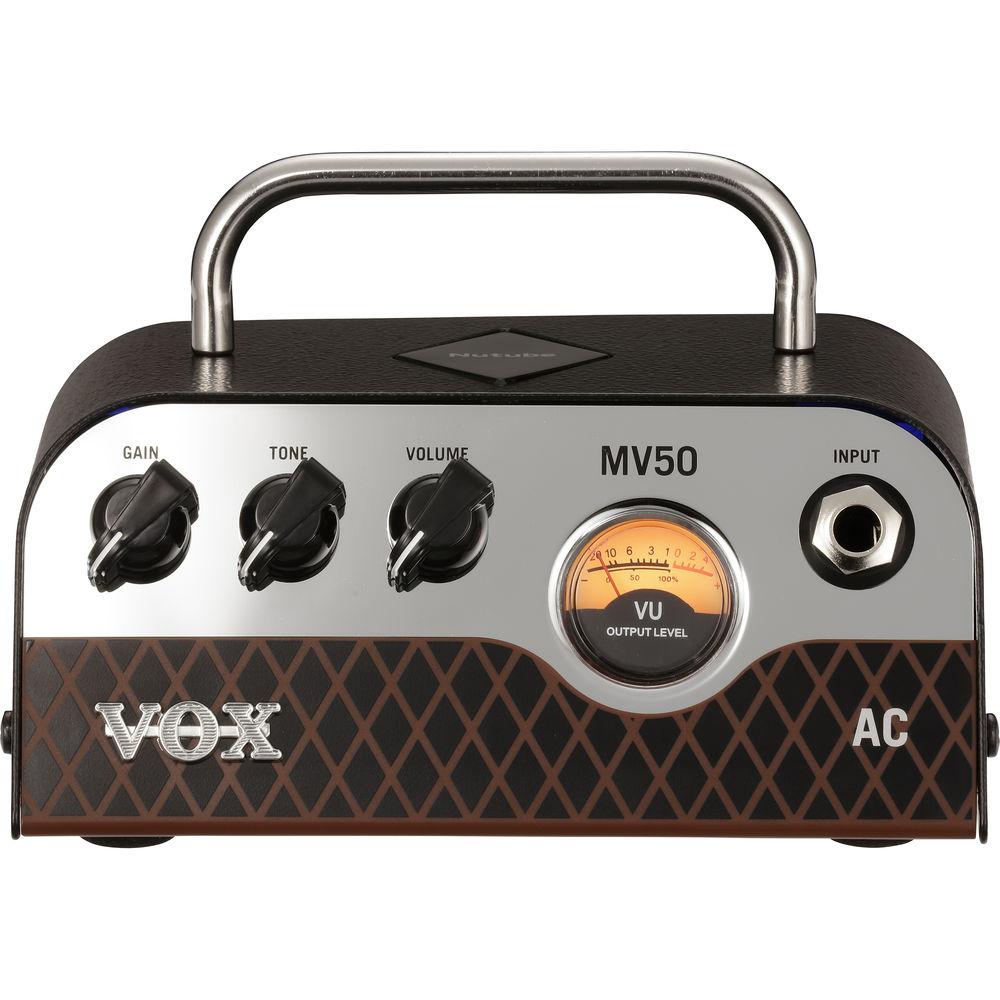

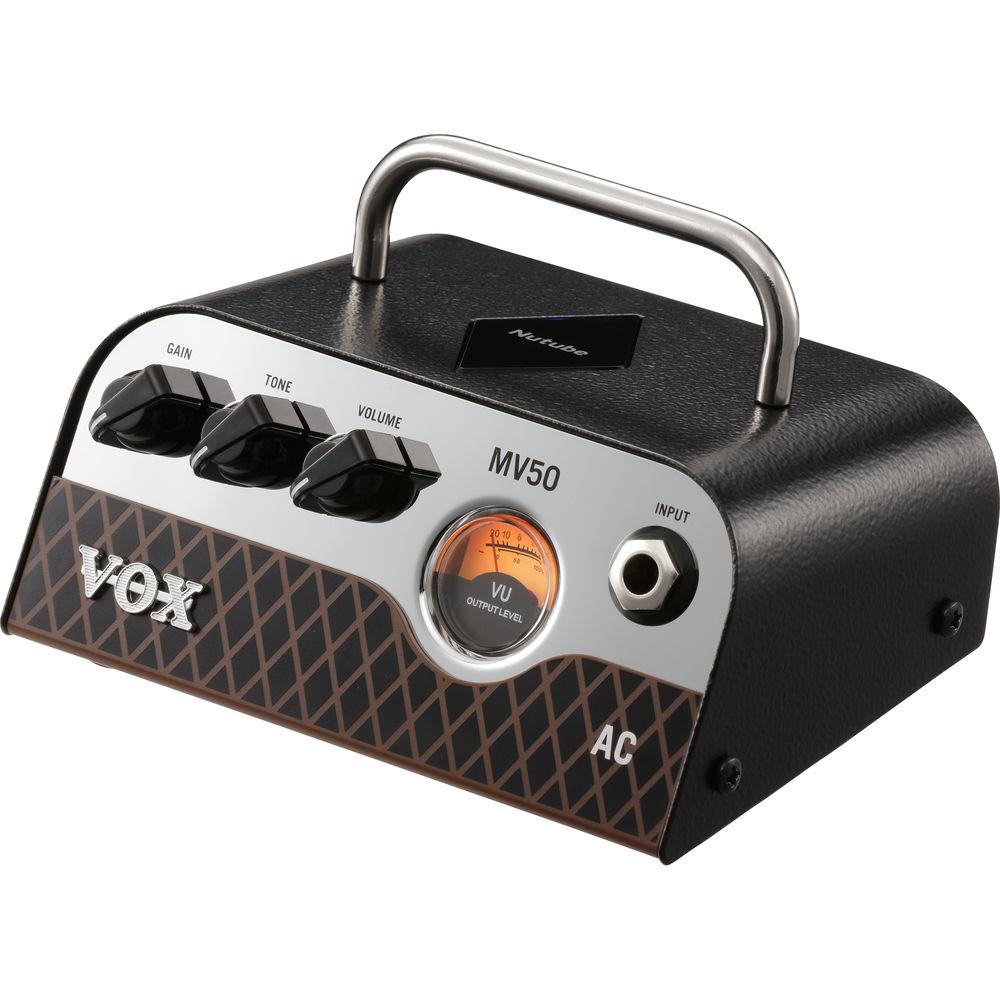

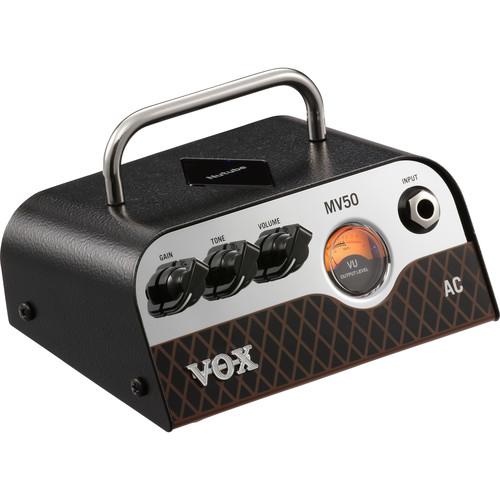

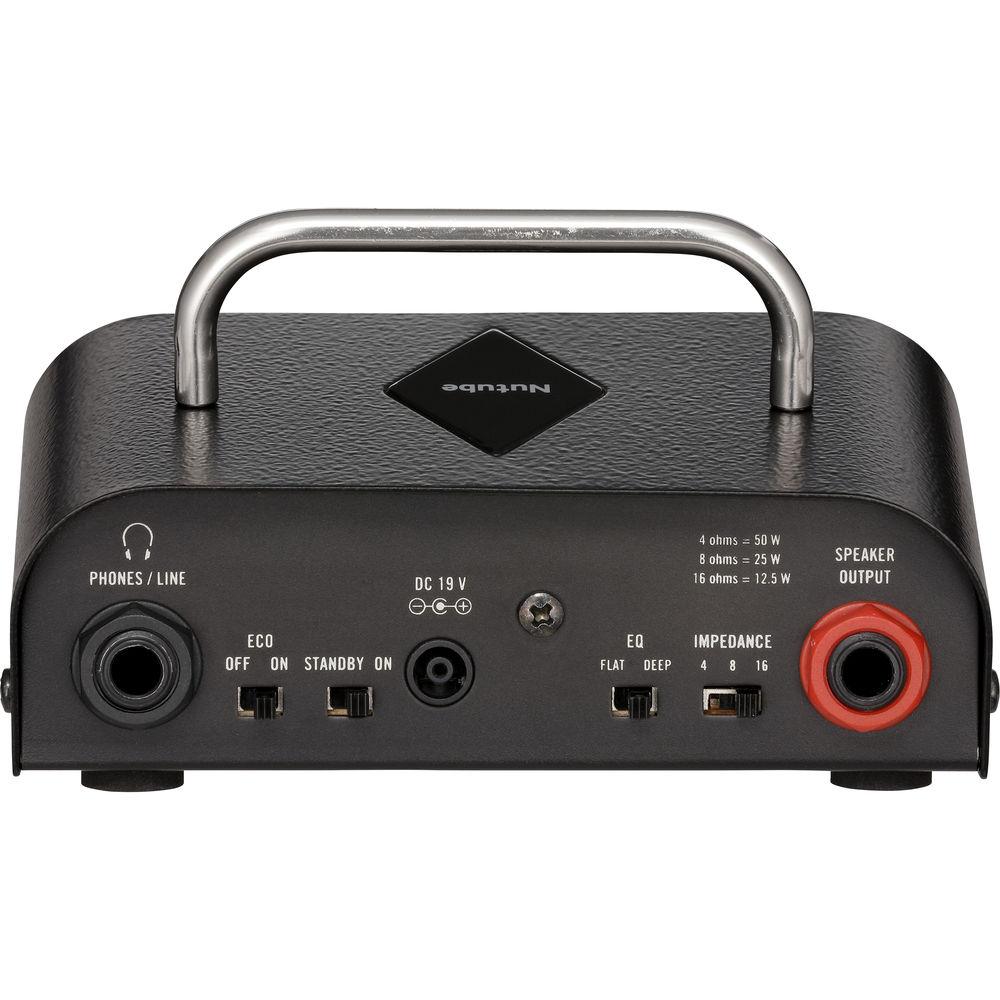

Product description Nutubes for Old Tones: A VOX Box that RocksCompactly! Read More The VOX MV50 AC has been designed to take the classic sound of a VOX tube amplifier and shrink its form factor down to a miniaturized size. Measuring only 5.3 x 3.0 x 3.9”, this amplifier head provides 50W of power and is capable of driving cabinets at four, eight, and 16 Ohms. The amplifier accomplishes this feat thanks in no small part to an all-analog preamp circuit utilizing Nutube technology, as well as analog components which reproduce the character of traditional VOX tube amplifiers. A class D power amp complements the preamp, and taken as a whole, the unit delivers the warm clean tone and adaptable overdrive you’ve come to expect from the traditional AC line.The MV50 AC provides one 1/4" guitar input, one 1/4" speaker output, and a 1/4" headphone/line output. Gain, tone, and volume controls are provided to tweak the amp's tone. A switch on the back of the amplifier allows you to raise or lower the resistance to sculpt your tone and interface with compatible cabinets.To suit a wide variety of cabinets, an EQ switch on the rear of the amp head has been provided, giving you two tone-shaping options. DEEP mode puts the emphasis on the low-frequency range and is particularly useful with smaller cabinets; FLAT mode, on the other hand, allows you to take full advantage of a larger speaker’s inherent tonal characteristics. The 1/4" headphone/line output utilizes a cabinet simulation circuit to offer you the full sound of an amplifier/head combo when routing signal to headphones, DIs, recording interfaces, mixers, PAs, and more. - Nutube Technology Explained
- Looking more like a chip than a conventional valve, the Nutube is a vacuum tube utilizing technology from vacuum fluorescent displays. As with conventional vacuum tubes, the Nutube is constructed with an anode, grid, and filament, and operates as a complete triode tube. Furthermore, it generates the response as well as the same rich harmonic characteristics of conventional vacuum tubes. Its miniature size reduces power consumption over conventional tubes, and its construction is said to offer up to 30,000 hours of continuous operating life.
In the Box VOX MV50 AC 50W Amplifier Head with Nutube Preamp Technology Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX MV50 AC 50W Amplifier Head with Nutube Preamp Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX MV50AC Specs | | | Amplifier Type | Tube | | Output Power | 50 W RMS | | Channels | 1 | | Tube Types | 1 x Preamp Nutube | | Output Impedance | 4/8/16 Ohms Mono | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument | | Outputs | 1 x 1/4" Mono Headphone
1 x 1/4" Mono External Speaker | | Tone Section | Channel 1: Gain, Tone | | | | Dimensions (WxHxD) | 5.3 x 3.0 x 3.9" / 135.0 x 75.0 x 100.0 mm Amplifier | | Weight | 1.19 lb / 540 g Amplifier | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 9.8 x 7.9 x 3.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to VOX MV50 AC 50W Amplifier Head with Nutube Preamp Technology
| Subject: head phone line out on MV50 AC | | Date: 22.07.2022 09:54:38 | Name: pierre theron | | Can I use the head phone line out to plug into another valve amp to facilitate a valve power amp from the MV 50 pre amp? | | Post reply |
| Subject: head phone line out on MV50 AC | | Date: 22.07.2022 09:54:38 | Name: pierre theron | | Can I use the head phone line out to plug into another valve amp to facilitate a valve power amp from the MV 50 pre amp? | | Post reply |
