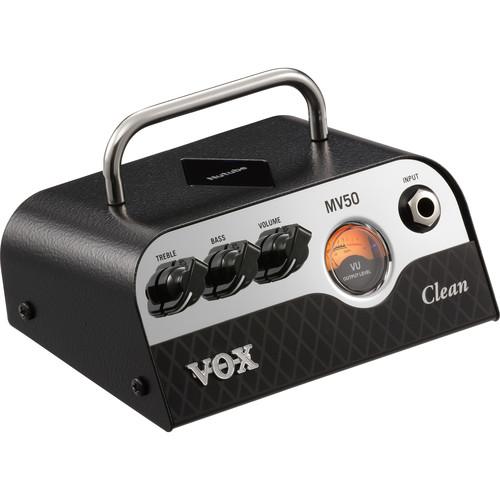

User Manual for VOX MV50 Clean 50W Amplifier Head with Nutube Preamp Technology Click to enlarge the picture
Contents of the user manual for the VOX MV50 Clean 50W Amplifier Head
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
 |
User manual for the VOX MV50 Clean 50W Amplifier Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|

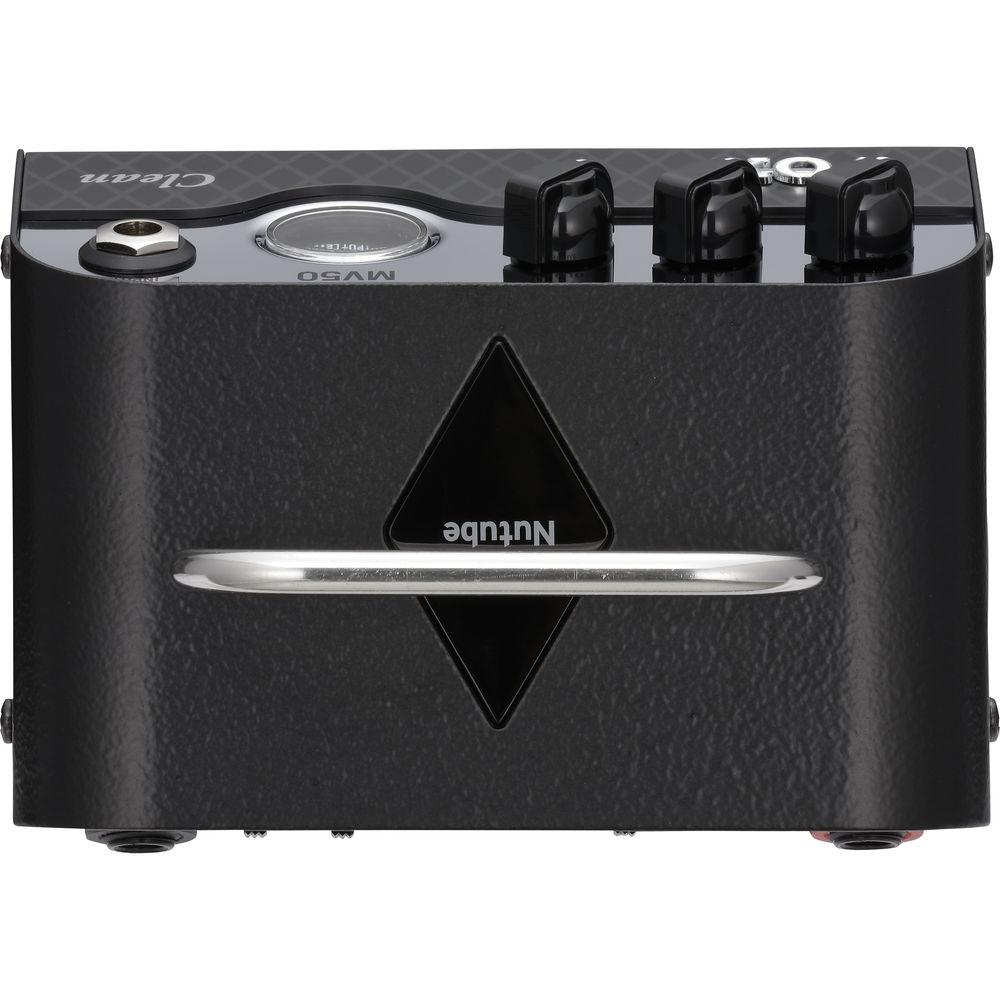

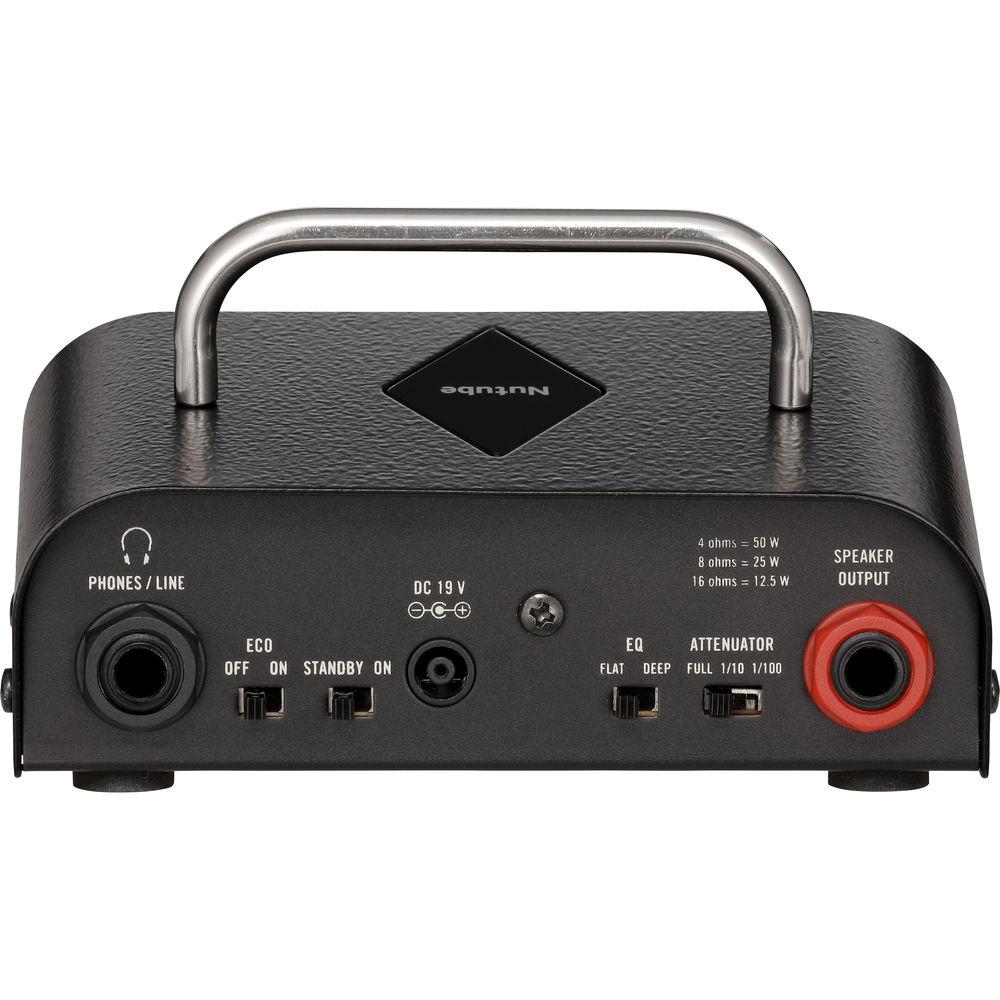

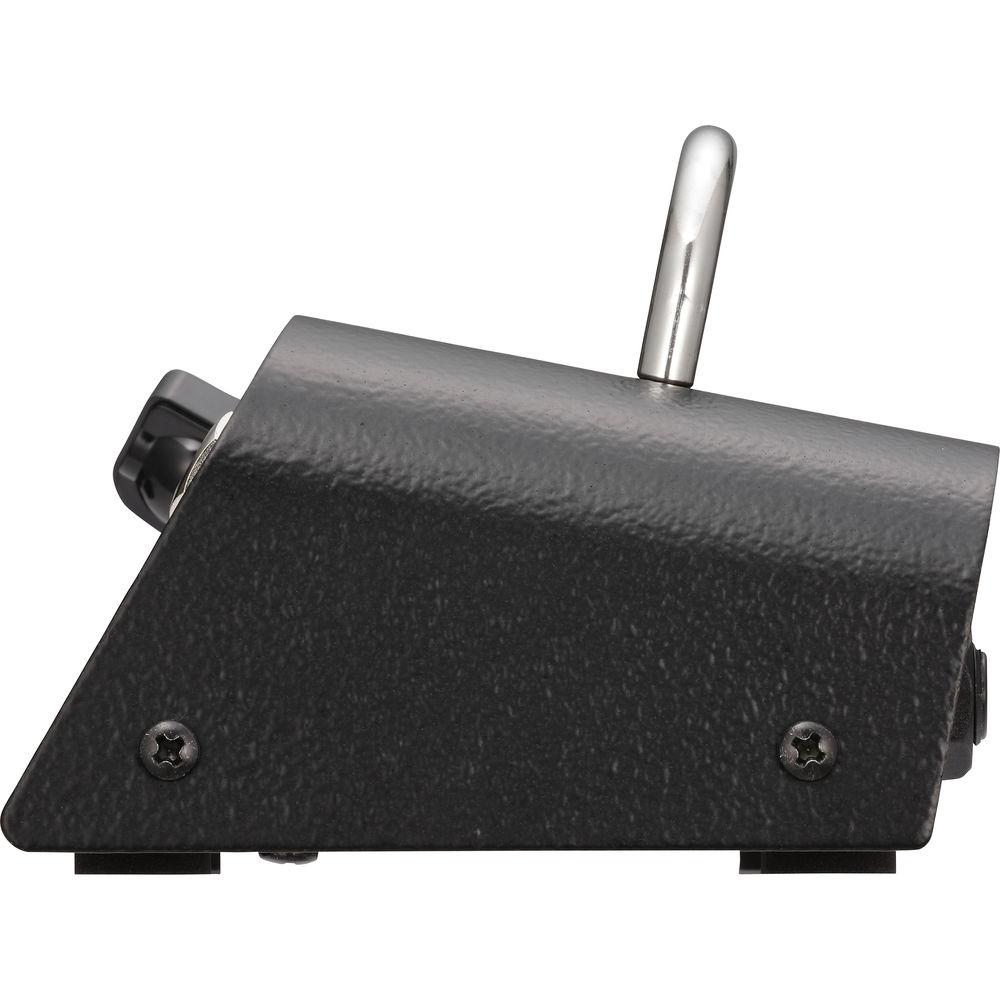

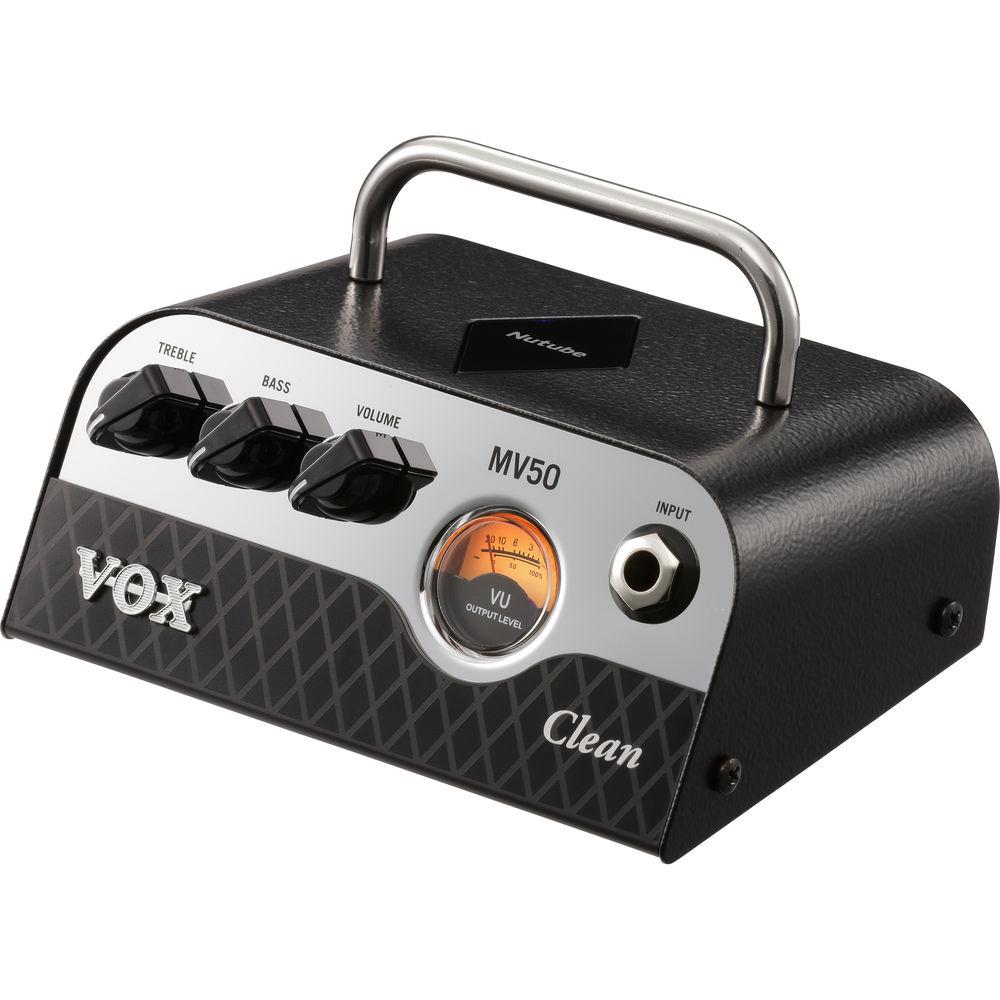

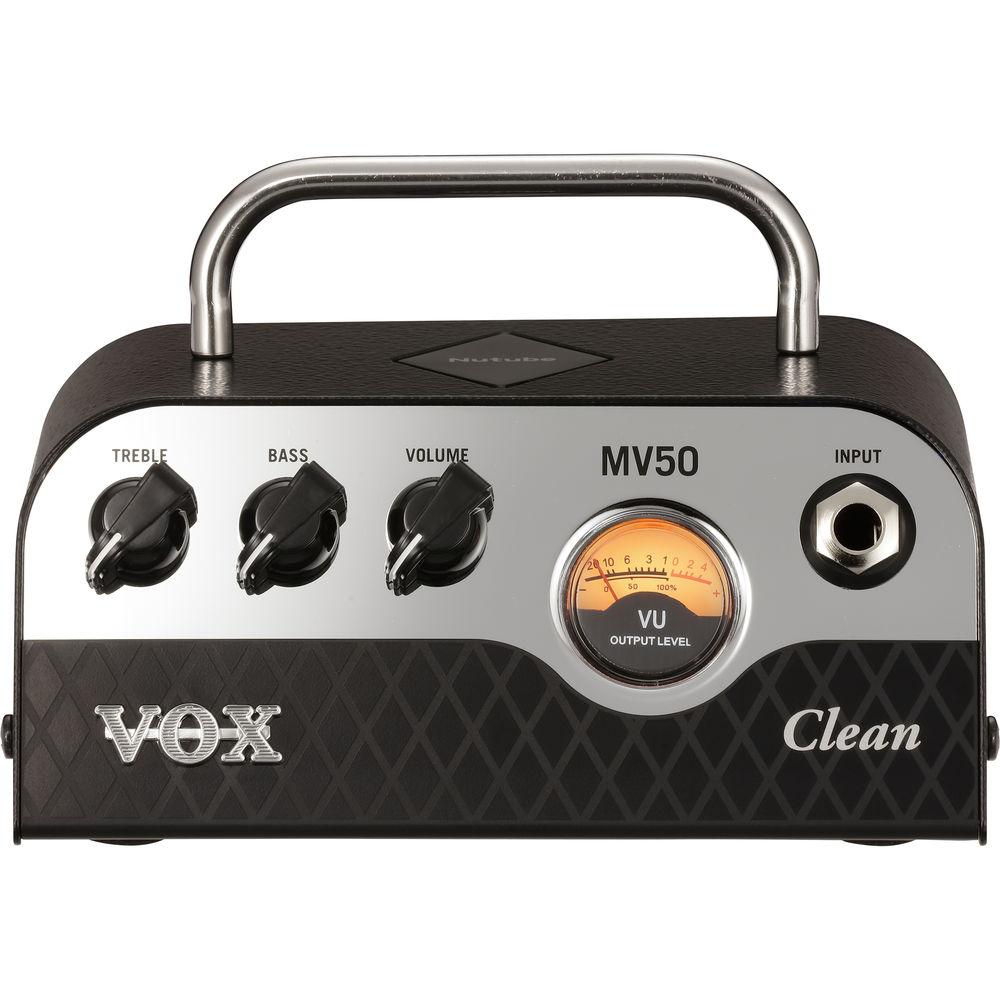

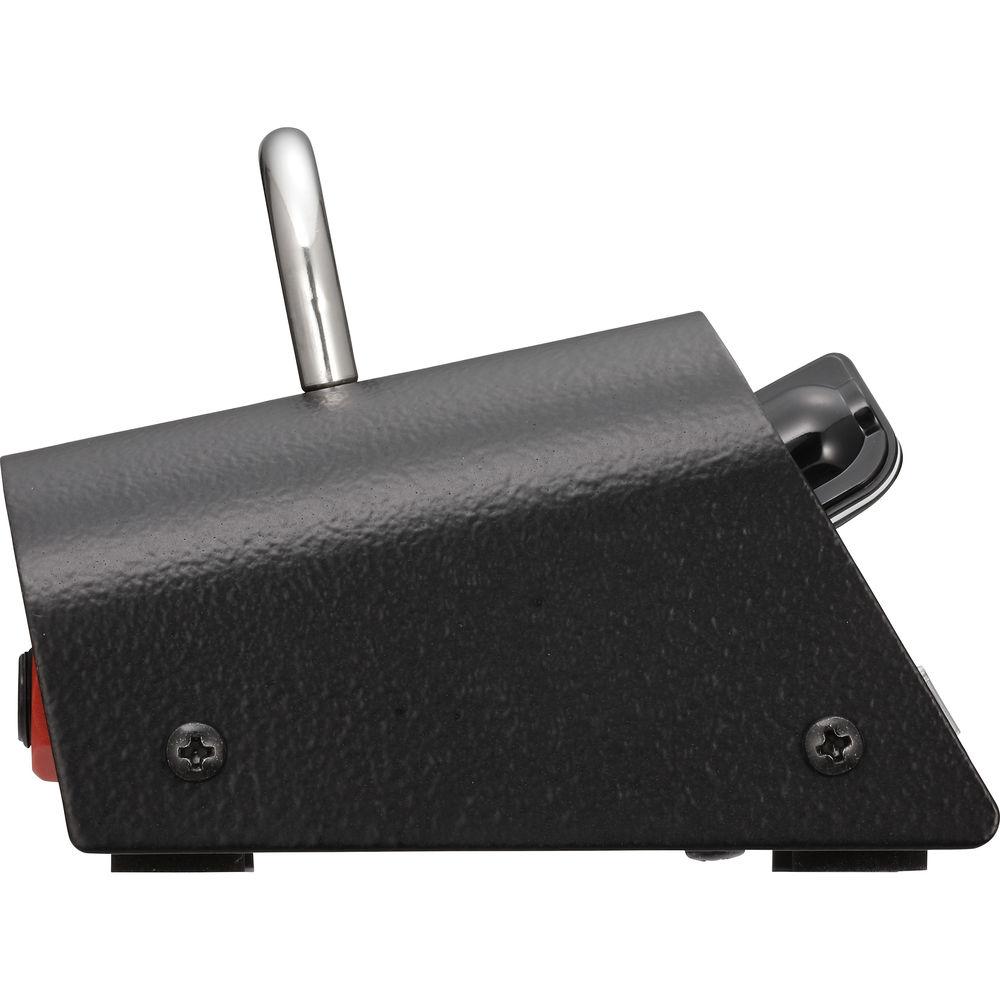

Product description Nutubes for Old Tones: A VOX Box that RocksCompactly! Read More Designed to offer classic tube sound in a miniaturized form factor, the MV50 Clean amplifier head from VOX measures 5.3 x 3.0 x 3.9”, providing 50W of power, and is capable of driving cabinets at four, eight, and 16 Ohms. The amplifier accomplishes this feat thanks in no small part to an all-analog preamp circuit utilizing Nutube technology, as well as analog components which can reproduce the character of traditional American tube amplifiers, delivering warm, natural-sounding clean tones and plenty of headroom. A class D power amp complements the preamp, giving the MV50 the ability to produce enough volume for any situation and respond to the nuances of your guitar, as well as the dynamics of your playing technique. In addition to delivering warm and sparkling clean tones, when driven to its hilt and played aggressively, the MV50 will respond with pleasing and subtle overdrive. The MV50 Clean provides one 1/4" guitar input, one 1/4" speaker output, and a 1/4" headphone/line output. Volume, bass, and treble controls are provided to tweak the amp's tone and output. A switch on the back of the amplifier allows you to attenuate the output power in three stages. With this switch, you can use full power or lower the output level by 10 or 20 dB. A VU meter is also included to display the amp's output level. To suit a wide variety of cabinets, an EQ switch on the rear of the amp head has been provided, giving you two tone-shaping options. Deep mode puts the emphasis on the low frequency range and is particularly useful with smaller cabinets; Flat mode, on the other hand, allows you to take full advantage of a larger speaker’s inherent tonal characteristics. The 1/4" headphone/line output utilizes a cabinet simulation circuit to offer you the full sound of an amplifier/head combo when routing signal to headphones, DIs, recording interfaces, mixers, PAs, and more. In the Box VOX MV50 Clean 50W Amplifier Head with Nutube Preamp Technology Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX MV50 Clean 50W Amplifier Head with Nutube Preamp Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX MV50CL Specs | | | Amplifier Type | Tube | | Output Power | 50 W RMS | | Channels | 1 | | Tube Types | 1 x Preamp Nutube | | Output Impedance | 4/8/16 Ohms Mono | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument | | Outputs | 1 x 1/4" Mono External Speaker
1 x 1/4" Mono Headphone | | Tone Section | Channel 1: Bass, Treble | | | | Dimensions (WxHxD) | 5.3 x 3.0 x 3.9" / 135.0 x 75.0 x 100.0 mm Amplifier | | Weight | 1.19 lb / 540 g Amplifier | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 9.8 x 7.9 x 3.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
