Product description The MV50 Rock Set from Vox is an amplifier head and speaker cabinet bundle designed to provide sounds inspired by high-gain British amps in a small and portable package for guitarists gigging, practicing, and recording. It includes the Vox MV50 Rock 50W amplifier head and the Vox BC108 1x8" speaker cabinet.

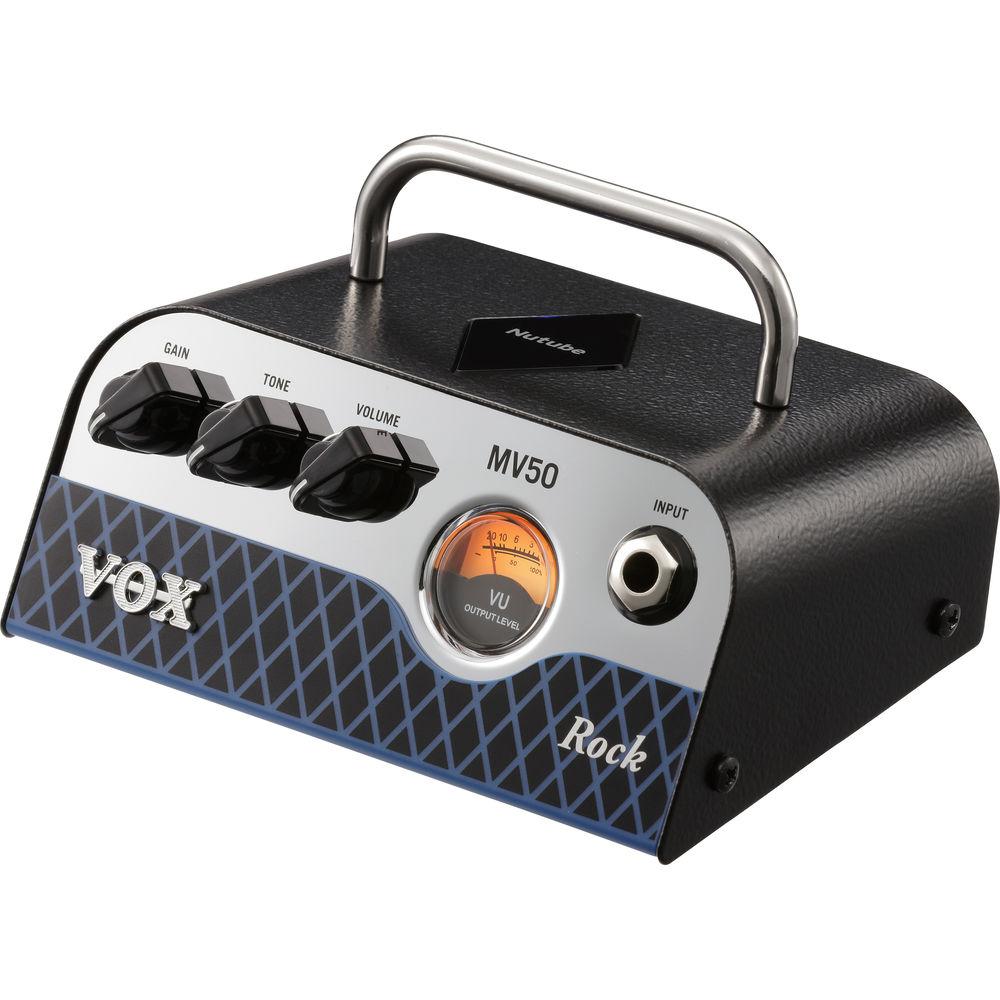

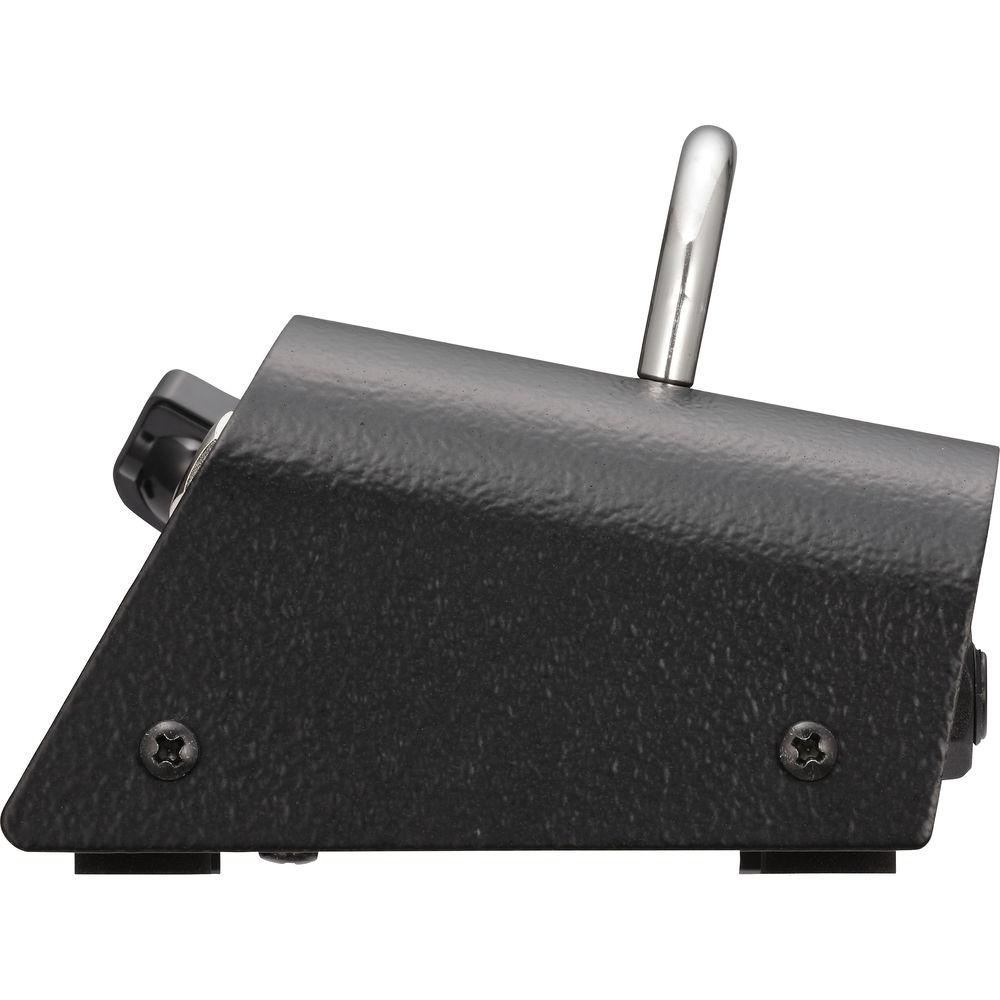

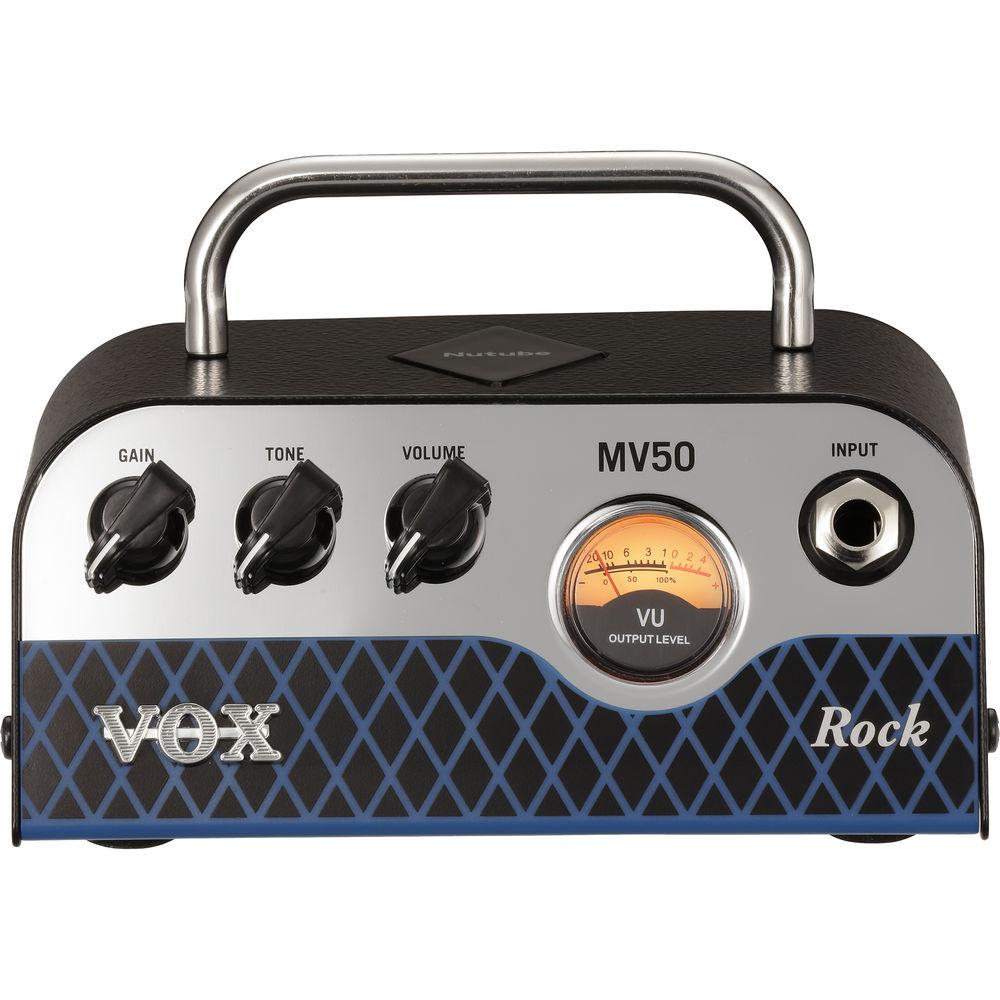

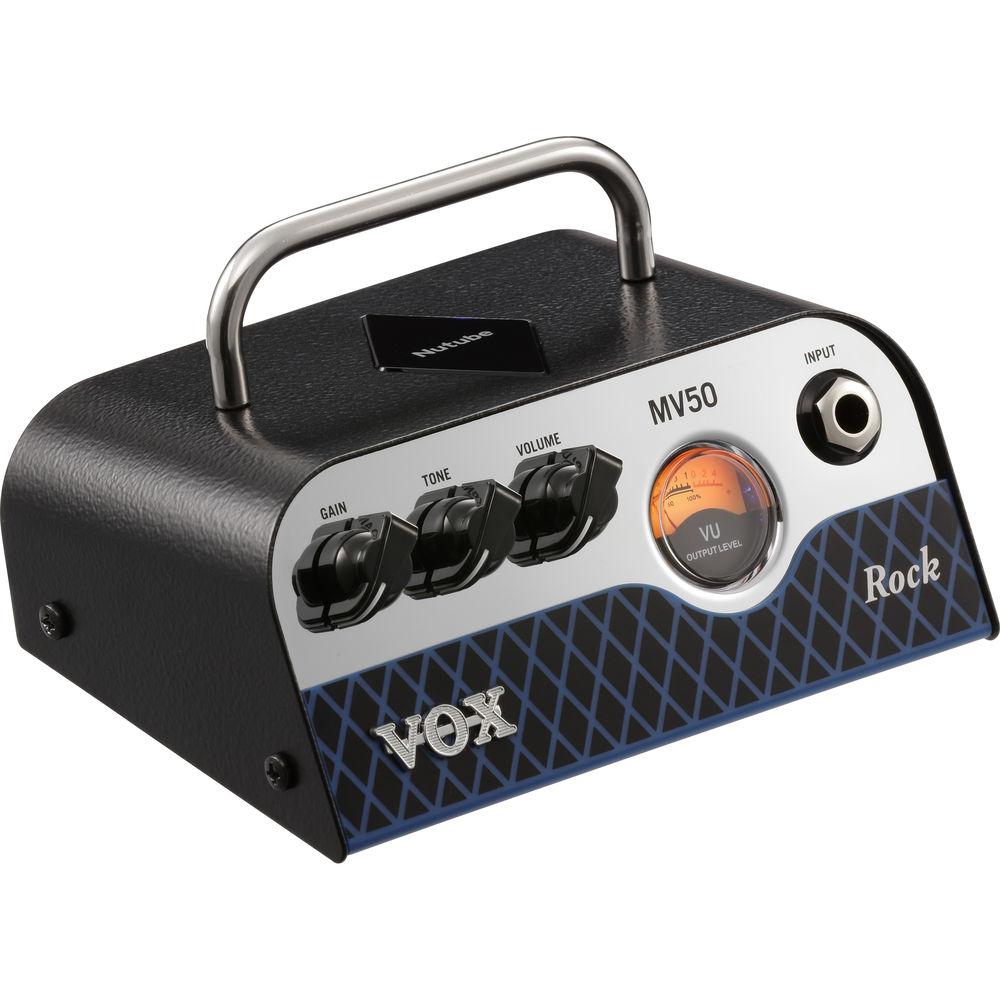

The 50W amp head features a Class D power amp, headphone output, and an EQ switch to suit different cabinets. Its Nutube vacuum tube delivers analog tube tones in a compact unit. Connect the amp head to the BC108 speaker cabinet with the supplied speaker cable. The 8" speaker handles 25W RMS at 8 Ohms. The semi-open design is optimized to produce tight response in the bass range. - MV50 Rock 50W Amplifier Head with Nutube Preamp Technology The VOX MV50 Rock is a miniature amplifier head which engenders the classic sound of a high-gain British tube amplifier. Measuring only 5.3 x 3.0 x 3.9”, this amplifier head provides 50W of power and is capable of driving cabinets at four, eight, and 16 Ohms. The amplifier accomplishes this feat thanks in no small part to an all-analog preamp circuit utilizing Nutube technology, as well as analog components which reproduce the dynamic character of a traditional British tube amplifier. A class D power amp complements the preamp, giving the MV50 the ability to produce enough volume for any situation and respond to the nuances of your guitar, as well as the dynamics of your playing technique. In addition to delivering warm and natural clean tones, when driven to its hilt and played aggressively, the MV50 will respond with the pleasing overdrive, grit, and harmonics you'd expect from a British amp. It's quite suitable for driving riffs and soloing. The MV50 Rock provides one 1/4" guitar input, one 1/4" speaker output, and a 1/4" headphone/line output. Gain, tone, and volume controls are provided to tweak the amp's sound and output. A VU-style meter shows the output levels at any given time, while an impedance switch on the back of the amplifier allows you to raise or lower the resistance to interface with compatible cabinets. To suit a wide variety of speaker cabinets, an EQ switch on the rear of the amp head has been provided, giving you two tone-shaping options. Deep mode puts the emphasis on the low frequency range and is particularly useful with smaller cabinets; Flat mode, on the other hand, allows you to take full advantage of a larger speaker’s inherent tonal characteristics. The 1/4" headphone/line output utilizes a cabinet simulation circuit to offer you the full sound of an amplifier/head combo when routing signal to headphones, DIs, recording interfaces, mixers, PAs, and more.
- Nutube Technology Explained
- Looking more like a chip than a conventional valve, the Nutube is a vacuum tube utilizing technology from vacuum fluorescent displays. As with conventional vacuum tubes, the Nutube is constructed with an anode, grid, and filament, and operates as a complete triode tube. Furthermore, it generates the response as well as the same rich harmonic characteristics of conventional vacuum tubes. Its miniature size reduces power consumption over conventional tubes, and its construction is said to offer up to 30,000 hours of continuous operating life.

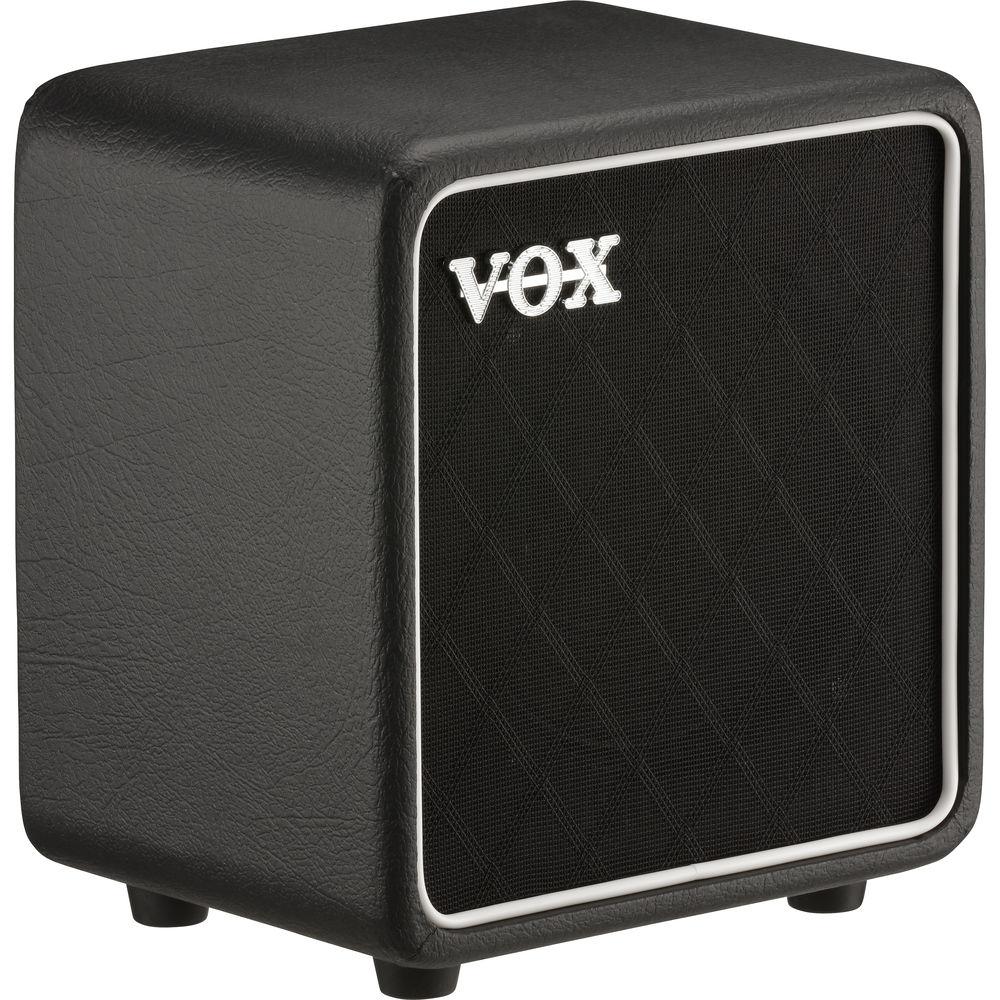

- BC108 1x8 Speaker Cabinet for MV50 Amplifier Head Intended for use with the MV50 amplifier head, the VOX BC108 is a 1x8” speaker cabinet capable of handling 25W at 8 Ohms. At 8.6 lb, it’s rather portable, and features a semi-open back structure to facilitate a more focused sound, especially in the bass range of the frequency spectrum. Even though it is compact and portable, at 25W it can offer enough volume for practicing at home or gigging in small venues such as coffee shops.On the rear of the cab you’ll find two 1/4" speaker jacks, both of which can be used as an input. Daisy-chaining this cab to another BC108 is possible by making use of whichever 1/4" jack is not currently employed. In this case, you can run one 1/4" speaker cable from the MV50—or other compatible amp—to the cabinet, and run another cable from the BC108 to your secondary speaker. The output impedance will reduce to 4 Ohms when set up in such a manner.
In the Box Bundle Items MV50 Rock 50W Amplifier Head with Nutube Preamp Technology sxfuvbrufqtwzrwvdyuttqdvryetcddtdx BC108 1x8 Speaker Cabinet for MV50 Amplifier Head Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX MV50 Rock Set Amplifier Head and Speaker Cabinet Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MV50 Rock 50W Amplifier Head with Nutube Preamp Technology
| | | Amplifier Type | Tube | | Output Power | 50 W RMS | | Channels | 1 | | Tube Types | 1 x Preamp Nutube | | Output Impedance | 4/8/16 Ohms Mono | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument | | Outputs | 1 x 1/4" Mono External Speaker
1 x 1/4" Mono Headphone | | Tone Section | Channel 1: Gain, Tone | | | | Dimensions (WxHxD) | 5.3 x 3.0 x 3.9" / 135.0 x 75.0 x 100.0 mm Amplifier | | Weight | 1.19 lb / 540 g Amplifier | | | | Box Dimensions (LxWxH) | 9.8 x 7.9 x 3.4" | - BC108 1x8 Speaker Cabinet for MV50 Amplifier Head
| | | Speaker Inputs | 2 x 1/4" | | Configuration | 1 x 8" Speaker(s) | | Cabinet Type | Straight Semi-Open Mono | | Power Rating | 25 W RMS | | Input Impedance | 8 ohms Mono | | | | Dimensions (WxHxD) | 10.2 x 11.2 x 7.9" / 260.0 x 285.0 x 200.0 mm Cabinet | | Weight | 8.6 lb / 3.90 kg Cabinet | | | | Box Dimensions (LxWxH) | 13.3 x 12.4 x 9.9" |
