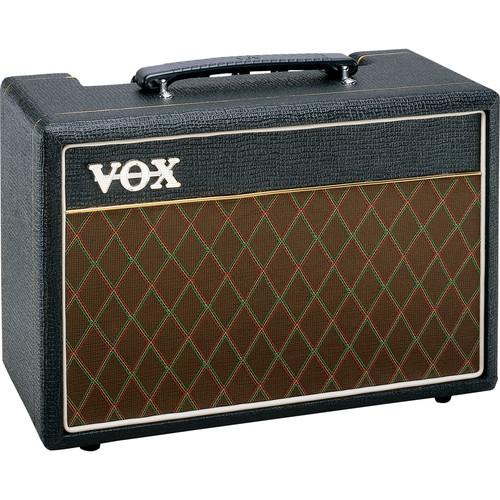

User Manual for VOX Pathfinder 10 - 10W 1x6.5 Combo Amplifier Click to enlarge the picture
Contents of the user manual for the VOX Pathfinder 10 - 10W 1x6.5
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
|
User manual for the VOX Pathfinder 10 - 10W 1x6.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|
Product description Providing classic VOX tone in a compact combo enclosure, the Pathfinder 10 is a 10W RMS amplifier designed for guitars. It features a 1 x 6.5" VOX Bulldog speaker capable of handling 8 Ohms, as well as two distinct timbres: clean, and overdrive. Its gain control adjusts the level in the preamp stages, while its volume control dictates the over-all level of the amplifier itself. Therefore, in clean mode, you could crank the gain and keep the volume low to generate a fat, distorted sound at lower volumes. Bass and treble controls offer further tonal shaping.
In addition to its cabinet, the Pathfinder also offers a 1/4" line out / headphone jack. Connecting this output mutes the primary speaker, so if you have a pair of headphones with a 1/4" inch connection point, you can route the amp's sound into your ears and give your neighbors some much needed peace and quiet. Likewise, you can use this jack to plug straight into a PA, mixer, or digital interface to apply some much-desired Vox tone to your DI signal. In the Box VOX Pathfinder 10 - 10W 1x6.5 Combo Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX Pathfinder 10 - 10W 1x6.5 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX V9106 Specs | | | Amplifier Type | Solid-State | | Output Power | 10 W RMS | | Channels | 2 | | Output Impedance | 8 Ohms Mono | | Built-In Effects | Distortion/Overdrive | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument | | Outputs | 1 x 1/4" Mono Line Level | | Tone Section | Channel 1: Bass, Gain, Treble
Channel 2: Bass, Gain, Treble | | | | Configuration | 1 x 6.5" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 10 W RMS | | Input Impedance | 8 ohms Mono | | | | Dimensions (WxHxD) | 15.0 x 10.2 x 6.7" / 380.0 x 260.0 x 170.0 mm Combo | | Weight | 10.58 lb / 4.8 kg Combo | | | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 16.1 x 12.0 x 7.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to VOX Pathfinder 10 - 10W 1x6.5 Combo Amplifier
| Subject: Outro uso | | Date: 14.05.2023 15:16:56 | Name: Arthur Ribeiro de Alvarenga | | Tenho um violão elétrico Fender. Não penso em usar o amplificador com nenhum dos recursos para guitarra, mas como simples amplificador 'leve' para o violão. Os recursos de grave e agudo tenho no próprio violão, não precisaria de outros. E, também, não pretendo usar os 10W de potência, mas se puder usar 2W já estaria de bom tamanho. Há alguma possibilidade disso funcionar? Sinal do violão é muito baixo? Ou muito alto? Há algo que possa fazer? | | Post reply |
