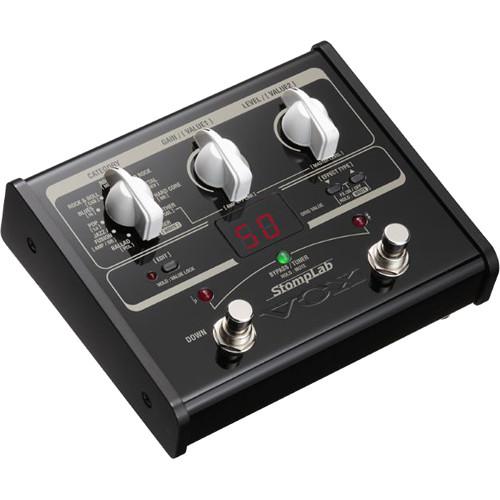

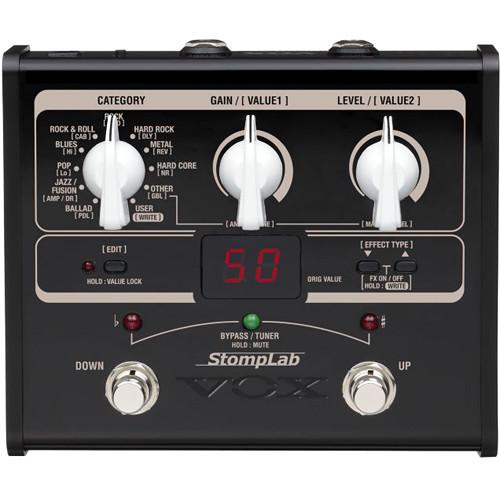

Product description The StompLab IG from Vox is a modeling effects processor designed for electric guitar. Featuring 120 presets (100 stock, 20 user-assignable), this unit emulates amps, cabinets, EQs, modulations, delays, and reverbs. The presets are categorized by genre into ten separate banks, with each bank containing ten different combinations of amps, pedals, and various effects. You can program the user presets with the edit button, which converts the category, gain, and value knobs into controllable commands over all of the pedal's built-in parameters—parameters which can you can save and recall whenever you need them.
On the stage, you can twist the StompLab's knobs for gain and effect manipulation. The unit can be routed to an amplifier or directly into a mixer or PA (in mono or stereo); the choice is yours. As an additional feature, this pedal offers a tuner with a six-octave range and an adjustable point of reference: You can assign that all-important "A" to any frequency between 438 and 445 Hz, so if you need to tune to European orchestras for some reason, such a feat wouldn't be a problem. - Modulation
- Nine different modulation types, including chorus, filtron, tremolo, phaser, flanger, pitch-shift, and rotary
- Pedal Types
- Eight different pedal emulations, including compressor, wah, octavizer, acoustic, uni-vibe, tone, and ring-mod
- Amp and Drive Combinations
- 44 individual amplifiers modeled, as well as 18 different drive settings
- Cabinets
- 12 cabinets modeled, including Tweed (1x8", 1x12", 4x10"), Black (2x10", 2x12") and more
- Delays and Reverbs
- Two different delay settings with up to four repeats of feedback apiece, as well as three distinct styles of reverb
In the Box VOX StompLab IG Modeling Guitar Effect Processor Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX StompLab IG Modeling Guitar Effect Processor Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

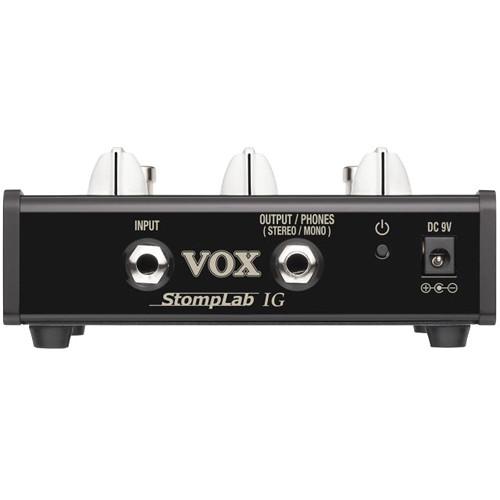

Technical parametersVOX SL1G Specs | | | Pedal Type | 8 | | Amp Models | 62 x Amp/Drive | | Cabinet Models | 12 | | Modulation Type | 9 | | Delay | 8 x types | | Reverb | 3 x types | | Noise Reduction | 1 x type | | Expression Pedal | No | | Number of Programs | 120 (20 user / 100 preset) | | | | Audio I/O | 1 x 1/4" mono input
1 x 1/4" stereo output / phones | | Signal Processing | A/D Conversion: 24-bit
D/A Conversion: 24-bit | | | | Detection Range | A0 to E6 | | Calibration | A = 438 Hz to 445 Hz | | | | Power Supply | 4 x AA batteries, alkaline
9 VDC AC adaptor (available separately) | | Battery Life (approx.) | 7.5 hours (using 4 x AA alkaline batteries) | | Dimensions (W x D x H) | 5.7 x 4.9 x 2.2" / 145 x 125 x 57 mm | | Weight | 1.3 lb / 590 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.7 x 5.8 x 2.7" |
