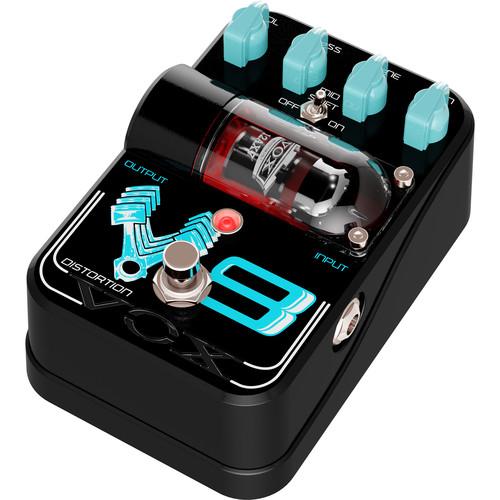

User Manual for VOX Tone Garage V8 Tube Distortion Pedal Click to enlarge the picture
Contents of the user manual for the VOX Tone Garage V8 Tube Distortion
- Product category: Effects Pedals VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Effects Pedals
|
User manual for the VOX Tone Garage V8 Tube Distortion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|
Product description The Tone Garage V8 from Vox is an analog distortion pedal designed to provide real tube distortion and straightforward controls for guitarists. It features all-analog circuitry and an ECC83/12AX7 tube, making it ideal for driving a solid-state amplifier or digital effects system.The V8 is a high-voltage pedal designed to function like a tube amplifier. Its Hi-Volt technology delivers 200V to the 12AX7 tube, while the discrete circuitry operates at 20V. Adjust the Gain to dial in the desired amount of tube distortion, then use the equalization controls to enhance the tone. Bass and Tone knobs control low and high frequencies. The Mid Shift toggle switch changes the midrange EQ before the tube stage. Leave the switch off for a crunchy tone with bite. Turn the switch on for a smooth lead sound. Compensate for level changes via the Volume control.The V8 features a durable die-cast metal housing and sturdy true bypass switch. The LED indicates pedal on/off status. The pedal can be powered by six AA batteries or one 9 VDC power supply. Six AA alkaline batteries are included. -
- Discrete, all-analog circuitry operates at high voltage
- ECC83 / 12AX7 tube
- 1/4" input and output
- Gain and volume controls for distortion and output level
- Equalization via Bass, Mid Shift, and Tone controls
- True bypass with LED indicator
- Die-cast metal body
- Powered by six AA batteries or 9 VDC power supply
- Includes six AA alkaline batteries
- Battery life up to seven hours (approximately)
In the Box VOX Tone Garage V8 Tube Distortion Pedal 6 x AA Alkaline Batteries Limited 1-Year Warranty for Pedal Limited 90-Day Warranty for Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX Tone Garage V8 Tube Distortion Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX TG1V8DS Specs | Pedal Type | Distortion | | Inputs | 1 x 1/4" TS | | Outputs | 1 x 1/4" TS | | Impedance | 1 MOhm (input)
2.2 kOhms (output) | | Vacuum Tube | ECC83 / 12AX7 | | Operating Voltage | Tube: 200 V | | Current Consumption | 240 mA | | Bypass Switch | True bypass | | Power Requirements | 9 VDC power supply or 6 x AA batteries | | Battery Life | 7 hours (approximately) | | Enclosure Material | Die-cast metal | | Dimensions (W x D x H) | 3.4 x 5.2 x 2.5" / 87 x 132 x 63 mm (including rubber feet) | | Weight | 14.8 oz / 420 g (excluding batteries) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
