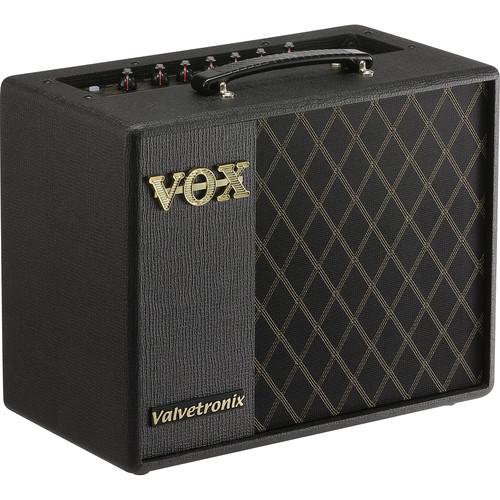

User Manual for VOX Valvetronix VT20X Hybrid Modeling 1x8 Combo Guitar Amplifier Click to enlarge the picture
Contents of the user manual for the VOX Valvetronix VT20X Hybrid Modeling 1x8
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
|
User manual for the VOX Valvetronix VT20X Hybrid Modeling 1x8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|
Product description Delivering 20W RMS at 5 Ohms, the Valvetronix VT20X from VOX is a hybrid modeling combo guitar amplifier offering a 1x8" cabinet and a whole host of tonal options under the hood. With its tube preamp circuit, solid-state power amp, and VET digital modeling capabilities, you can closely approximate the sound of many classic VOX amplifiers—and crank up some authentic tube grit to boot.
The amplifier features an analog-to-digital component, meaning you can connect it to a computer or iOS device directly via USB and tweak the sounds of each amp model through the Editor/Librarian software. In addition to all the programmable, savable sounds that the VT20X has to offer, there are dedicated gain, volume, and EQ knobs to tweak the onboard sound even further, while a power level knob allows you to adjust the wattage of the built-in power amp section.
Furthermore, individual tube controls—such as a BIAS SHIFT button, to change the character of distortion, and a CLASS button, to modify how the power amp section reacts to the onboard tubes—provide multiple tonal possibilities. With footswitches (available separately), you can control many parameters with the tap of your foot. - Multiple Emulated Amp Models
- Deluxe CL, Tweed 4x10, Vox Ac30, Boutique OD, Vox AC30TB, Brit 800, Brit or MkII, Dual Rectifier, Boutique CL, Brit 1959, Boutique Metal, and more via the included software
- Effects
- Compression, chorus, overdrive, distortion, flanger, phaser, tremolo, delay, reverb (room, spring, hall, plate,) noise reduction
- Analog to Digital Capabilities
- Analog to digital conversion at 24-bit, digital to analog conversion at 24-bit
- Other Notable Features
-
- Simultaneously use four effects at once
- Preset banks within each amp model emulate tones of classic guitarists
- Customize, save, and backup amps and effects with included, downloadable Editor/Librarian software (compatible with Windows, Mac, or iOS)
- Built-in tuner
- 3.5mm auxiliary input for connecting external audio player
In the Box VOX Valvetronix VT20X Hybrid Modeling 1x8 Combo Guitar Amplifier Limited 1-Year Warranty AC Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX Valvetronix VT20X Hybrid Modeling 1x8 Combo Guitar Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX VT20X Specs | | | Amplifier Type | Modeling | | Output Power | 20 W RMS | | Channels | 1 | | Tube Types | 1 x Preamp 12AX7/ECC83 | | Output Impedance | 5 Ohms Mono | | Effects Loop | No | | Built-In Effects | Chorus, Delay, Digital Reverb, Distortion/Overdrive, Flanger, Phaser, Spring Reverb, Tremolo | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Footswitch
1 x 1/8" Stereo Aux | | Outputs | 1 x 1/8" Mono Headphone
1 x USB Series Emulated Speaker | | Tone Section | Channel 1: Bass, Gain, Mid, Treble
Channel 2: Bass, Gain, Mid, Treble
Channel 3: Bass, Gain, Mid, Treble
Channel 4: Bass, Gain, Mid, Treble | | | | Configuration | 1 x 8" Speaker(s) | | Cabinet Type | Straight Half-Open Mono | | Power Rating | 20 W RMS | | Input Impedance | 5 ohms Mono | | | | Dimensions (WxHxD) | 16.1 x 13.7 x 8.9" / 410.0 x 347.0 x 225.0 mm Combo | | Weight | 16.09 lb / 7.3 kg Combo | | | | Package Weight | 19.75 lb | | Box Dimensions (LxWxH) | 19.6 x 16.8 x 9.8" |
