User Manual for VOX VX50AG 50W Acoustic Combo Amplifier with Mic Channel Click to enlarge the picture
Contents of the user manual for the VOX VX50AG 50W Acoustic Combo Amplifier
- Product category: Guitar Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Guitar Amplifiers
 |
User manual for the VOX VX50AG 50W Acoustic Combo Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|

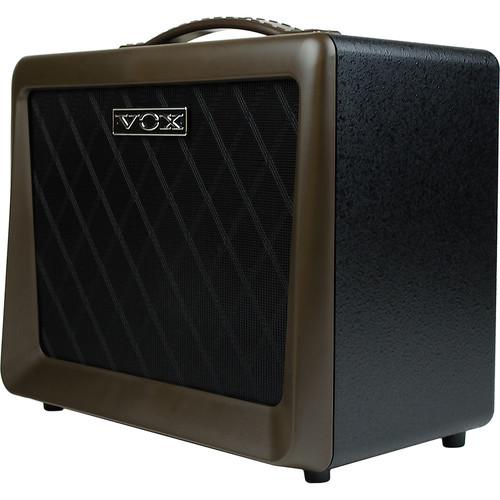

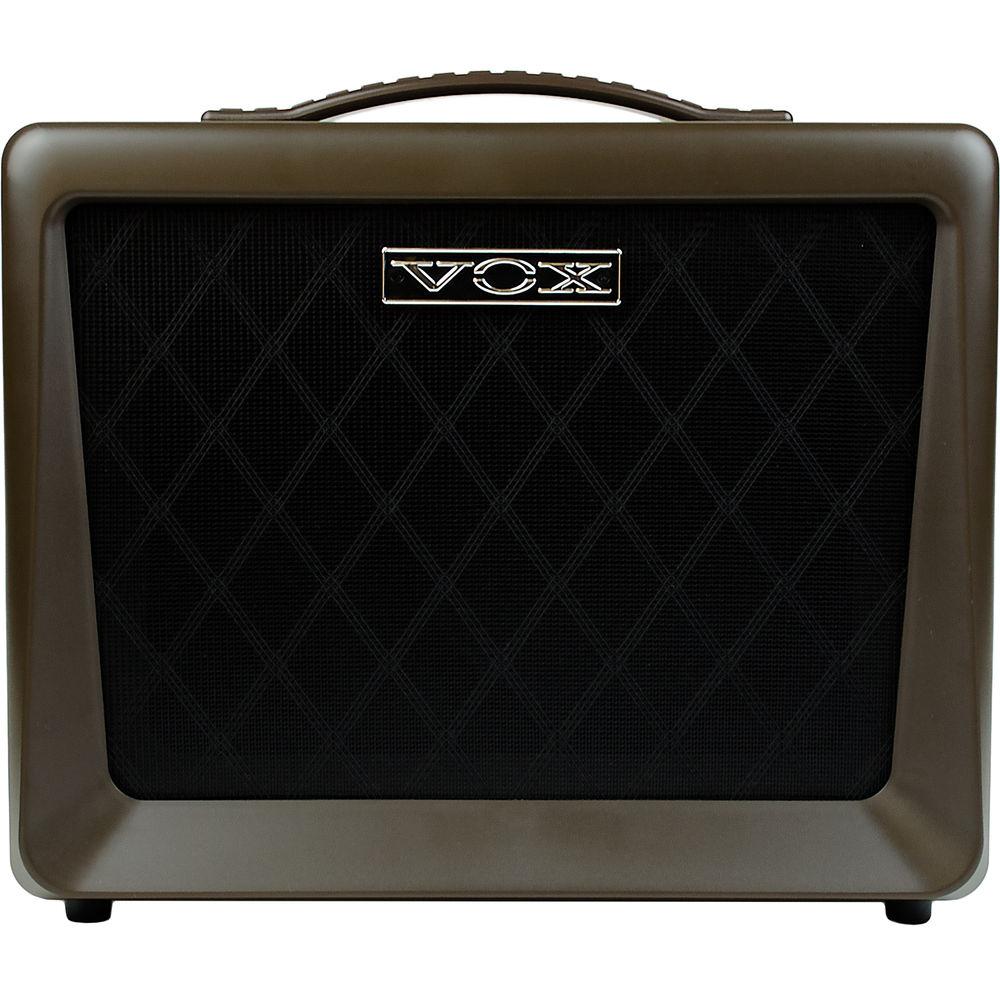

Product description Designed for acoustic guitarists who also sing, the VOX VX50AG is a 50W combo amplifier with two-channel operation. One channel is for your guitar and sports a tone section with bass, middle, and treble controls. The other channel is for your microphone, with an XLR input, controls for bass and treble, and a 15V phantom power switch. A phase switch is on hand to fight feedback. Onboard effects such as reverb, chorus, and a combination of both are provided.The VX50AG makes use of VOX's Nutube technology, which gives you the warm tone of tubes at the relatively lightweight of just over 9 lb. The 8" speaker is a coaxial design, giving you a tweeter for an extended high-frequency response. Utilizing a proprietary bass reflex structure, the combo amp achieves a rich and hefty low end.

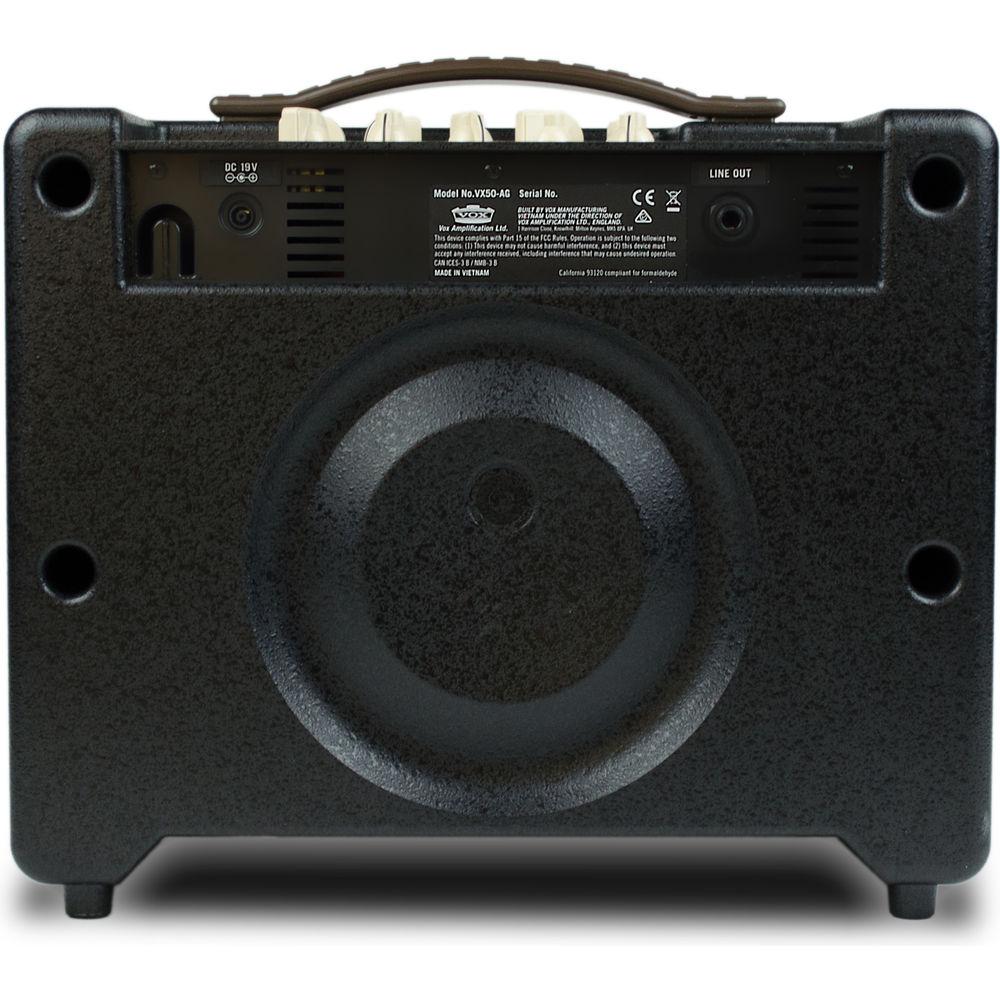

Conventional instrument and mic inputs are provided, but you'll also find a 3.5mm auxiliary input for media players such as phones, tablets, and more. A 1/4" line output lets you route sound directly to PA systems or recording devices. For silent practice, plug your headphones into the 3.5mm headphone jack. An AC adapter is included. - Lightweight ABS Design
- In spite of its high 50W output power, the 9 lb body and compact design ensure ease in transportation. The one-piece ABS chassis ensures high durability and great sound quality.
- Nutube Design
- Looking more like a chip than a conventional valve, the Nutube is a vacuum tube utilizing technology from vacuum fluorescent displays. As with conventional vacuum tubes, the Nutube is constructed with an anode, grid, and filament, and operates as a complete triode tube. Furthermore, it generates the response as well as the same rich harmonic characteristics of conventional vacuum tubes. Its miniature size reduces power consumption over conventional tubes, and its construction is said to offer up to 30,000 hours of continuous operating life.
- 8" Coaxial Speaker
- The two-way coaxial speaker features a powerful 8" speaker and a tweeter. From a rich low range to clear highs, the output is transparent and sonorous, providing excellent imaging to better suit the nuances of acoustic guitar and voice.
- Bass Reflex Structure
- A proprietary bass reflex structure has been implemented and tuned for the acoustic guitar's inherent properties. The chassis uses ABS polymer for its weight, durability, and acoustical properties. In addition, wood is used for the baffle, achieving excellent resonance.

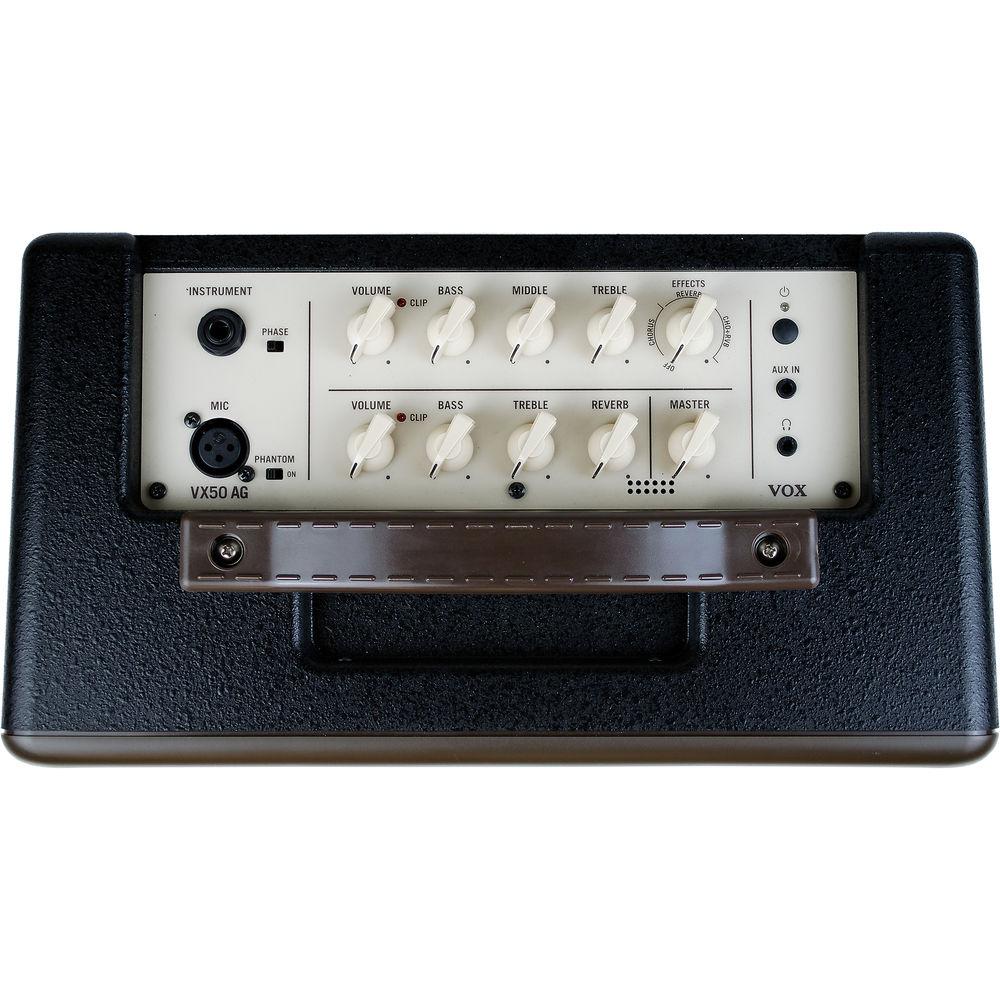

- Per-Channel EQ
- The Instrument channel provides a three-band EQ with bass, middle, and treble controls. This gives you the means to shape the range of an acoustic guitar's sound, from delicate tones to powerful strokes. The Mic channel provides an independent two-band EQ with bass and treble. Independent effects are also provided for each channel: the Instrument channel features high-quality chorus, reverb, and chorus+reverb, while the Mic channel offers reverb.
- Built-In Limiter
- The power amp section has a built-in limiter, so you're ensured of clean and undistorted sound even if the master control is raised too far.
In the Box VOX VX50AG 50W Acoustic Combo Amplifier with Mic Channel AC Adapter Limited 1-Year Warranty Limited 90-Day Warranty on Tube & AC Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX VX50AG 50W Acoustic Combo Amplifier with Mic Channel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX VX50AG Specs | | | Amplifier Type | Tube | | Output Power | 50 W RMS | | Channels | 2 | | Tube Types | 1 x Preamp Nutube | | Effects Loop | No | | Built-In Effects | Chorus, Digital Reverb Instrument channel has chorus and reverb. Mic channel has reverb. | | Master Volume | Yes | | Inputs | 1 x XLR Mono Mic / Line Level
1 x 1/4" Mono Instrument
1 x 1/8" Stereo Aux | | Outputs | 1 x 1/4" Mono Line Level
1 x 1/8" Stereo Headphone | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Treble
Channel 2: Bass, Channel Volume, Treble | | | | Speaker Inputs | None | | Speaker Through/Output | None | | Configuration | 1 x 8" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 50 W RMS | | | | Dimensions (WxHxD) | 13.9 x 8.2 x 12.3" / 354.0 x 208.0 x 313.0 mm Combo | | Weight | 9.04 lb / 4.1 kg Combo |
