User Manual for VOX VX50BA 50W Combo Amplifier for Electric Basses Click to enlarge the picture
Contents of the user manual for the VOX VX50BA 50W Combo Amplifier for
- Product category: Bass Amplifiers VOX
- Brand: VOX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VOX Bass Amplifiers
 |
User manual for the VOX VX50BA 50W Combo Amplifier for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VOX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VOX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VOX product will considerably shorten its lifespan!
|
Product description Designed for electric bass players, the VOX VX50BA is a 50W combo amplifier. It sports a single channel with gain and volume controls, as well as a drive and compression circuit which can be combined for interesting tones. The amp offers a four-band EQ with bass, low-mid, high-mid, and treble knobs.
The VX50BA makes use of VOX's Nutube technology, which gives you the warm tone of tubes at the relatively lightweight of just over 9 lb. The 8" speaker is housed in a chassis that utilizes a proprietary bass reflex structure to preserve rich and hefty low end.

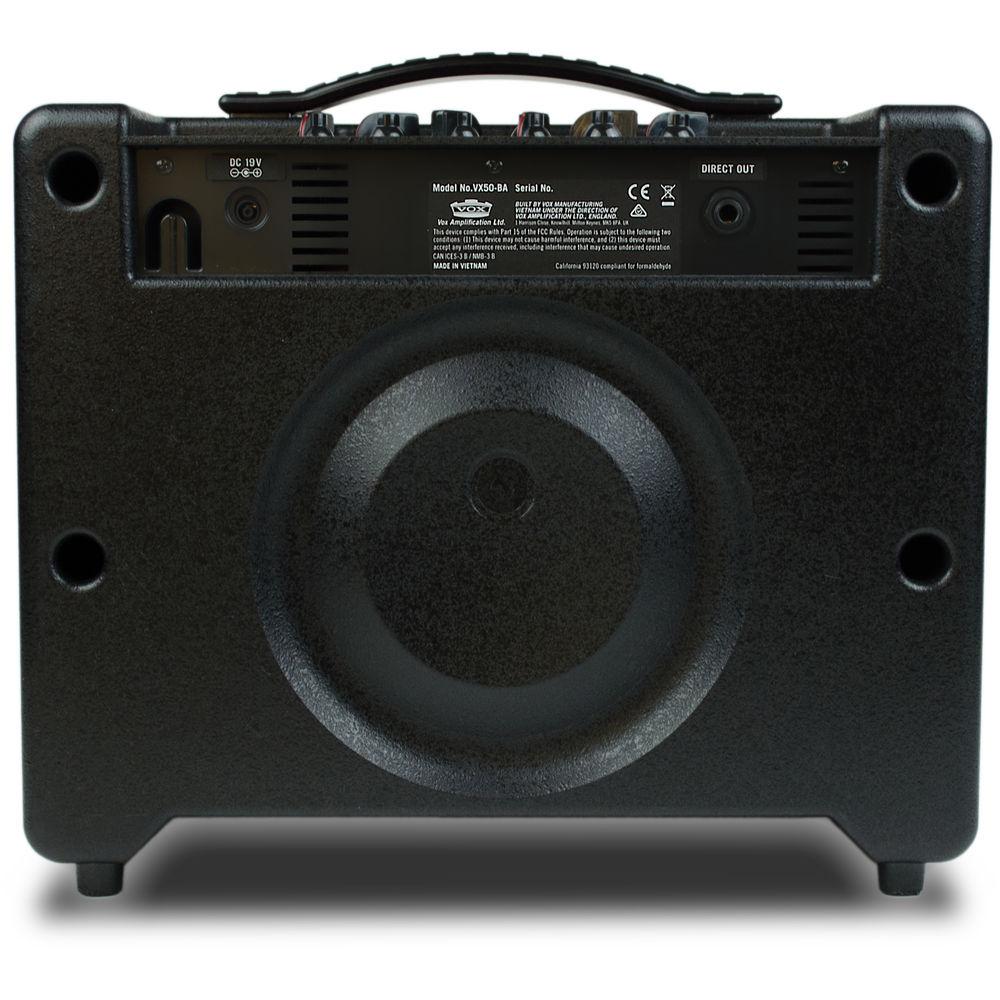

A 1/4" instrument input is provided, though you'll also find a 3.5mm auxiliary input for media players such as phones, tablets, and more. A 1/4" line output lets you route sound directly to PA systems or recording devices. For silent practice, plug your headphones into the 3.5mm headphone jack. An AC adapter is included. - Lightweight ABS Design
- In spite of its high 50W output power, the 9 lb body and compact design ensure ease in transportation. The one-piece ABS chassis ensures high durability and great sound quality.
- Nutube Design
- Looking more like a chip than a conventional valve, the Nutube is a vacuum tube utilizing technology from vacuum fluorescent displays. As with conventional vacuum tubes, the Nutube is constructed with an anode, grid, and filament, and operates as a complete triode tube. Furthermore, it generates the response as well as the same rich harmonic characteristics of conventional vacuum tubes. Its miniature size reduces power consumption over conventional tubes, and its construction is said to offer up to 30,000 hours of continuous operating life.
- Bass Reflex Structure
- A proprietary bass reflex structure has been implemented and tuned for the bass guitar's inherent properties. The chassis uses ABS polymer for its weight, durability, and acoustical properties. In addition, wood is used for the baffle, achieving excellent resonance.

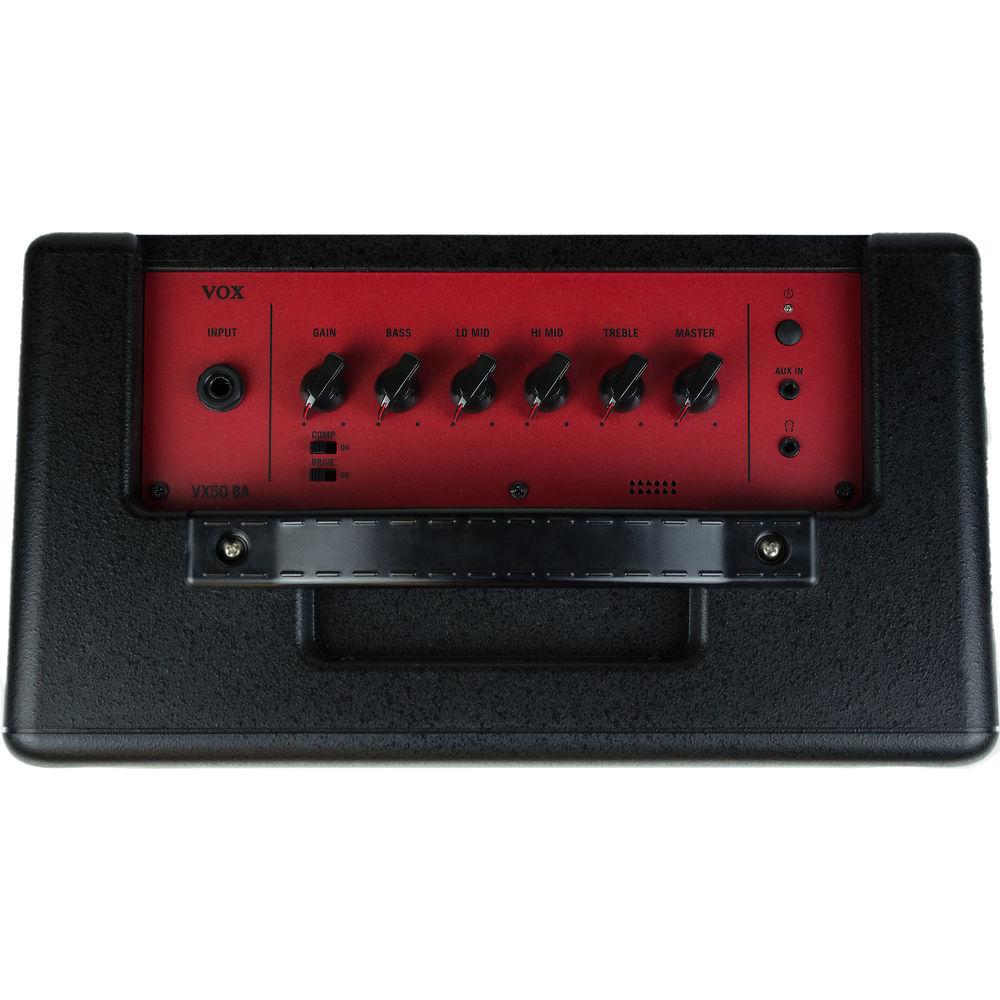

- 4-Band EQ
- The amp is equipped with bass, low-mid, high-mid, and treble controls. This provides the detailed sound-shaping control needed for bass.
- Compressor and Overdrive Switches
- The Comp switch engages the compressor circuit, giving you a sound with compression and sustain. You'll enjoy the consistent dynamics, and the tight and stable sound. The Drive switch applies overdrive, delivering a punchy sound that ranges from mild overdrive to full-on saturation. If both the Drive and Comp switch are engaged, the overdrive sound is mixed with the low range of the compressed clean sound, giving you a timbre that is distorted yet preserves the bass.
In the Box VOX VX50BA 50W Combo Amplifier for Electric Basses AC Adapter Limited 1-Year Warranty Limited 90-Day Warranty on Tube & AC Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the VOX VX50BA 50W Combo Amplifier for Electric Basses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVOX VX50BA Specs | | | Amplifier Type | Tube | | Output Power | 50 W RMS | | Channels | 1 | | Tube Types | 1 x Preamp Nutube | | Effects Loop | No | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/8" Stereo Aux | | Outputs | 1 x 1/4" Mono Line Level
1 x 1/8" Stereo Headphone | | Tone Section | Channel 1: Bass, Gain, Mid, Treble 2 x midrange controls | | | | Speaker Inputs | None | | Speaker Through/Output | None | | Configuration | 1 x 8" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 50 W RMS | | | | Dimensions (WxHxD) | 13.9 x 8.2 x 12.3" / 354.0 x 208.0 x 313.0 mm Combo | | Weight | 9.92 lb / 4.5 kg Combo |
