User Manual for VSN Mobil V.360 HD Full Room Panoramic VR Video Conference Kit Click to enlarge the picture
Contents of the user manual for the VSN Mobil V.360 HD Full Room
- Product category: Sports & Action Cameras VSN Mobil
- Brand: VSN Mobil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VSN Mobil Sports & Action Cameras
 |
User manual for the VSN Mobil V.360 HD Full Room contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VSN Mobil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VSN Mobil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VSN Mobil product will considerably shorten its lifespan!
|

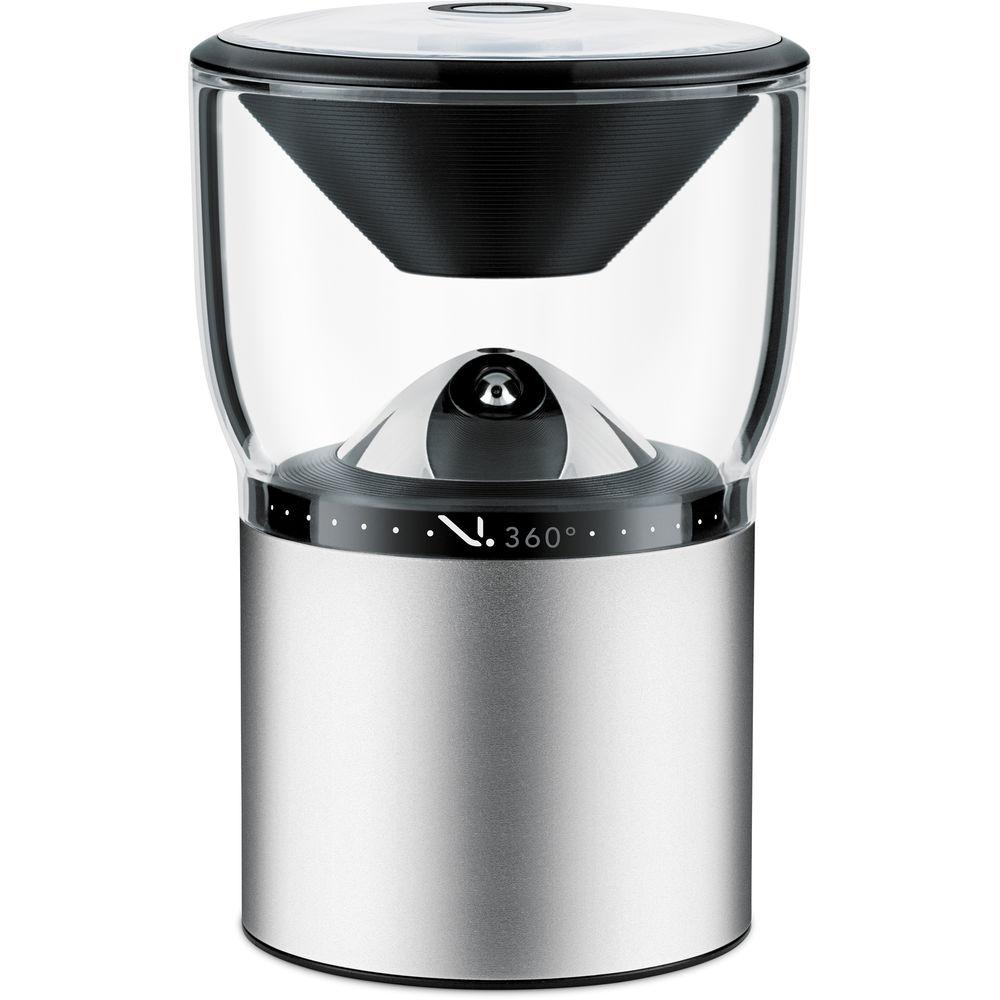

Product description Designed to be used with your existing conference calling solution (Skype, FaceTime, Hangouts, etc.), the V.360° HD Full Room Panoramic VR Video Conference Kit from VSN Mobil is a 360° camera system that can capture everyone in the room at once. The V.360°'s cylindrical output delivers full 360°, 6480 x 1080 panoramic images that can be output to your computer for real-time broadcasting over the calling software. To output to your computer, a Magewell HDMI to USB 3.0 Capture Dongle and micro-HDMI to HDMI cable are included. Also included in this kit is the V.360 Desktop Dock, an aluminum base that enables tabletop mounting while providing pass-through access to the camera's USB and HDMI ports. The Dock comes with a USB cable and wall charger to provide continuous power to the camera. - V.360 Panoramic VR Sports Video Camera Take photos and videos which encompass a full 360° field-of-view using the VSN Mobil V.360° Panoramic VR Sports Video Camera . Enclosed in the aluminum cylindrical body of the V.360° is a Qualcomm Snapdragon 800 processor which handles the capture and de-warping of your 6480 x 1080 images for seamless panoramic photos and videos. Sensors on the camera include a barometer, accelerometer, GPS, and altimeter. These sensors can add relevant information to your recordings.
You can mount the V.360° using the integrated standard 1/4"-20 thread. If you have three-prong GoPro-compatible action camera mounts, the V.360° is compatible with those as well using an included adapter. With that combination, you can mount the camera to virtually any surface. Since the camera is shockproof, dustproof, and waterproof up to three feet for 30 minutes, you can bring it along on aquatic, rocky, or sandy adventures. A silicone cover is included to add further durability as well as reduce high-speed wind noise.
Use the included Bluetooth remote to control the V.360°. It has one button to take a photo, and one button to record video. For more advanced options, the V.360° can also be controlled by your Apple or Android smartphone using the V.360° Companion mobile app. The camera can act as a Wi-Fi hotspot so you and your friends can view recorded footage or control the camera. The mobile app can also be used to make quick edits of recorded footage for immediate sharing. - Key Features
-
- Capture 360° video and photos
- 6480 x 1080 Maximum video resolution at up to 24 fps with 60° vertical field of view
- Panoramic 7MP 360° photos
- Shockproof and dustproof (IP67)
- Waterproof up to three feet for 30 minutes (IP67)
- GPS, barometer, altimeter, and accelerometer
- Time-lapse recording
- Dual microphones for stereo audio recording
- Surveillance mode with built-in motion and audio detection sensors
- 2610mAh Lithium-ion battery provides up to two hours of continuous recording
- Bluetooth remote control included
- Smartphone app for remote control and sharing
- Wi-Fi hotspot functionality
- USB 3.0 for file transfer
- Records to microSDHC/microSDXC memory cards up to 128GB

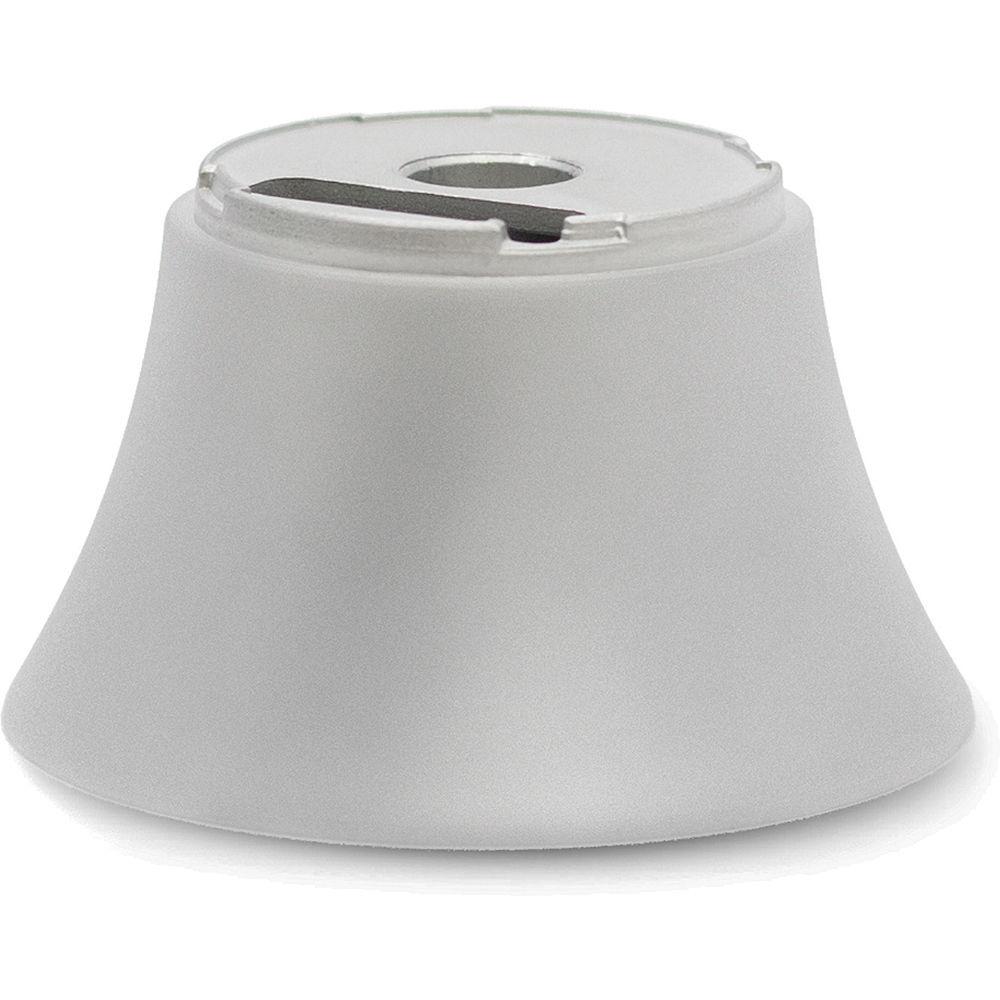

UPC: 854092005203 - V.360 Desktop Docking Station The V.360 Desktop Docking Station, from VSN Mobil, features an aluminum mounting external base, USB 3.0 cable, and wall charger that allows you to provide continuous power to your V.360 camera, making it ideal for applications such as home monitoring and video conferencing. Plugging the V.360 into the wall adapter also charges the internal battery. With the camera connected to the dock, you can fully access the V.360's functions to view the camera's live feed, record videos, or capture photos with no impact on the camera's battery life. Because the docking station provides pass-through access to the camera's USB port, you can still transfer stored content to your computer via the USB 3.0 cable when not connected to the wall adapter. The dock also allows access to the V.360's HDMI port, letting you playback videos or view photos directly onto a connected HDTV or monitor.

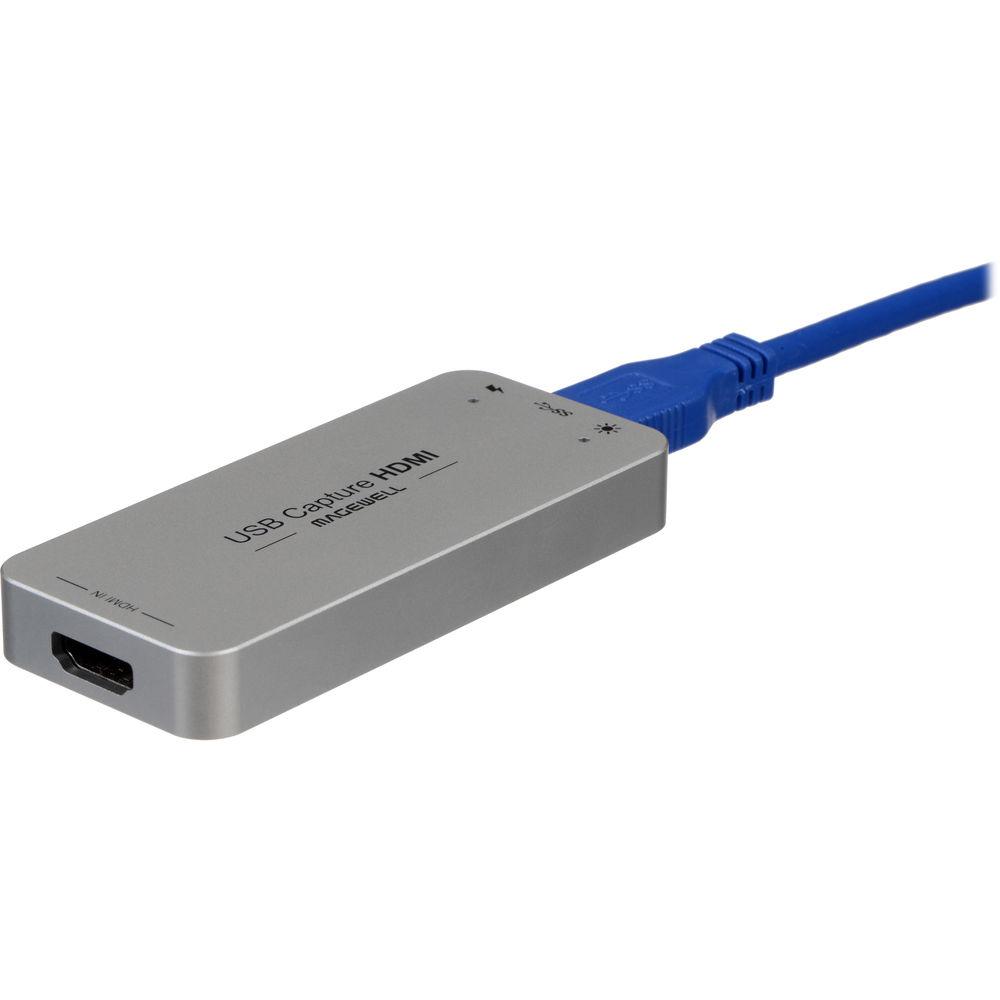

- USB Capture HDMI Gen 2 Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions of up to 1920 x 1200 at 60p. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up or down-covert the input signal to the set resolution. It can also perform frame-rate conversion and de-interlacing in real-time with its own hardware, taking the processing load off of your computer's CPU. Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.
- No drivers needed for Windows, Mac, or Linux
- Automatically determines input video format and converts it to the specified output size and frame rate
- Automatically converts input audio formats to 48 KHz PCM stereo audio
- 64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied

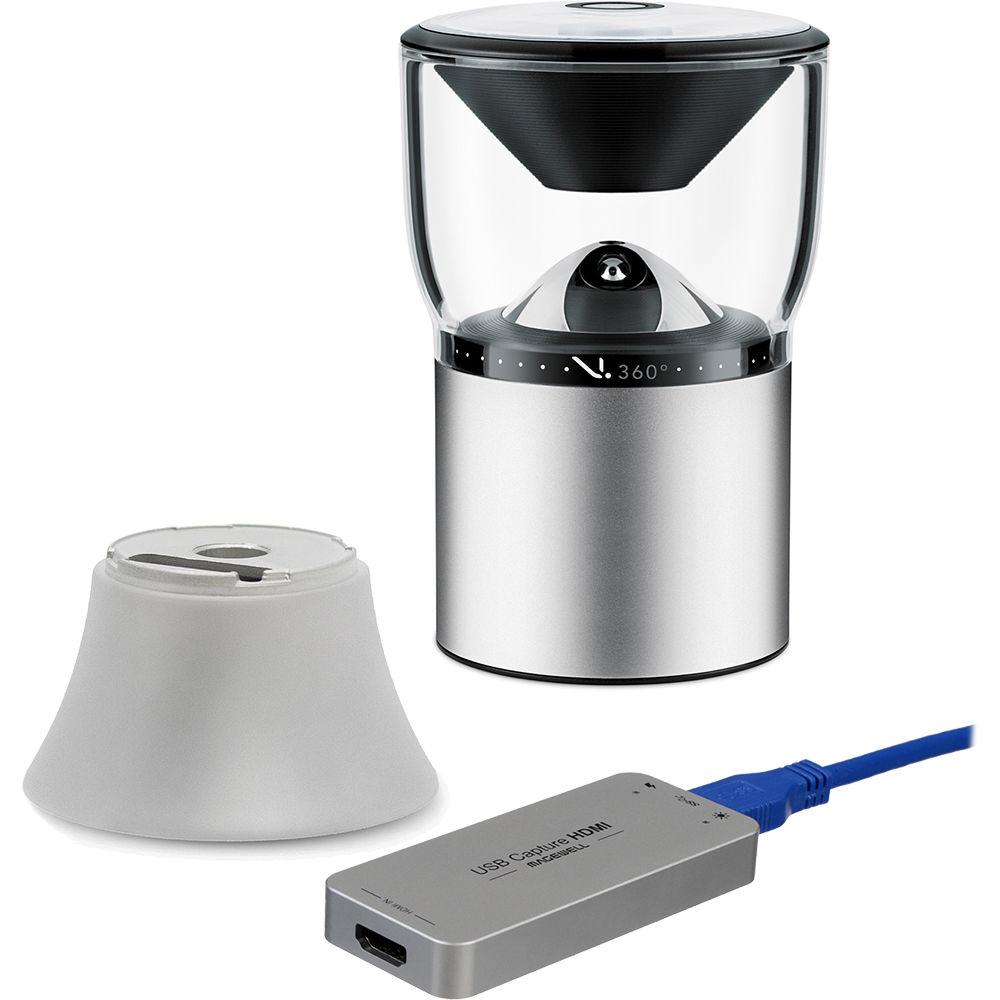

In the Box Bundle Items V.360 Panoramic VR Sports Video Camera wqsxccxxezttewsabyeze V.360 Desktop Docking Station wqsxccxxezttewsabyeze USB Capture HDMI Gen 2
Also Includes Quick start Guide PDF 126.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the VSN Mobil V.360 HD Full Room Panoramic VR Video Conference Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - V.360 Panoramic VR Sports Video Camera
| | | Sensor | 1-Chip 1/2.3" | | Sensor Resolution | 16 MP | | | | Maximum Aperture | f/3 | | Lens Elements | 6 | | Angle of View | 360° (horizontal)
60° (vertical) | | | | System | NTSC | | Recording Media | x microSD/HC/XC (128 GB Maximum) | | Video Format | 6480 x 1080p at 24 fps
3840 x 640p at 30 fps
2880 x 480p at 30 fps
1920 x 320p at 30 fps | | Still Image Resolution | JPEG: 7 Megapixel, 6480 x 1080 | | Channels | 2.0-Channel Stereo | | | | Waterproof Depth Rating | 3.2' / 1.0 m (Camera) 30 min. maximum submersion time. | | IP Rating | IP67 | | Built-In Mic | Yes | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x USB 3.0
1 x HDMI (Unspecified) 1.4 | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 2610 mAh
Max Runtime: 2 Hours per Charge | | Charging Method | USB | | Charging Time | 2 Hours | | Dimensions (W x H x D) | 2.2 x 4.0 x 2.2" / 56.0 x 102.7 x 56.0 mm | | Weight | 8.82 oz / 250 g | | | | Box Dimensions (LxWxH) | 5.669 x 5.512 x 3.858" | - V.360 Desktop Docking Station
| | | Box Dimensions (LxWxH) | 4.8 x 3.8 x 2.0" | - USB Capture HDMI Gen 2
| Host Interface | USB 3.0, 300-350MB/s throughput
USB 2.0 40MB/s throughput | | HDMI Input | HDMI 1.4a standard, and support up to 1080p/60Hz 8-bit, (RGB, YUV) | | Output Resolutions | Resolutions: 640×480 / 720×480 / 720×576 / 768×576 / 800×600 / 1024×768 / 1280×720 / 1280×800 / 1280×960 / 1280×1024 / 1368×768 / 1440×900 / 1600×1200 / 1680×1050 / 1920×1080 / 1920×1200 / 640×360 / 856×480 / 960×540 / 1024×576
Frame-rate: 25/29.97/30/50/59.94/60 fps | | Sampling Rate | HDMI: 165 MHz | | USB Standard | Meets the standards of UVC (USB video class) and UAC（USB audio class） | | Color Space | YUY2, RGB24
Hardware adjustable | | Scaling | Hardware based | | Image Adjustment | Brightness, contrast, hue, saturation | | Operating System | Windows 7 (x86 and x64 version)
Windows Server 2008 R2
Windows 8
Windows 8.1
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above) | | Software Compatibility | Windows Media Encoder (Windows) Adobe Flash Media Live Encoder(Windows, OS X) Real Producer Plus(Windows)
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X) | | APIs | DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux) | | Onboard Memory | 64MB DDR2, 16 bits at 300 MHz | | Upgradeable Firmware | Yes | | Power Consumption | <= 2.5W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Relative Humidity | 5 - 90% | | Dimensions | 3.3 x 1.7 x 0.5" / 84 x 43 x 13 mm | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 7.3 x 4.2 x 0.9" |
