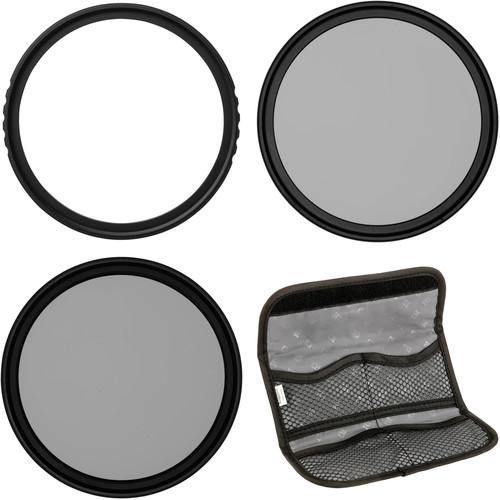

User Manual for Vu Filters 55mm Sion UV, Circular Polarizer, and Variable Neutral Density Filter Kit

• Product category: Filter Kits Vu Filters
• Brand: Vu Filters
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vu Filters Filter Kits

Product description

• Vu Filters 55mm Sion UV Filter The 55mm Sion UV Filter from Vu Filters is a general use, clear filter designed to absorb ultraviolet light and reduce the bluish cast of daylight. Aside from the reduction of unwanted blue casts, no additional coloration or contrast is created, and adjustments to exposure are not required while using this filter. To prevent internal ghosting and reflections, each glass surface is multi-coated. These coatings offer greater protection to the filter substrate, further enhance its ability to limit UV, and help to ensure color fidelity. The Flat Wave Overcoat associated with this Sion UV filter provides an additional layer over the multi-coatings, resulting in an improved beading effect to repel water for greater cleaning efficiency.

  Sion UV filters are constructed from Schott glass with a black rim. Set within an aluminum-alloy filter ring that is durable while remaining lightweight, the glass provides increased clarity as well as color fidelity while the black rim further ensures that reflections do not occur along the filter's edge. The filter ring is also weather-sealed, which contributes to this Sion UV filter's ability provide general protection for a lens at all times. Such filters help to reduce dust and moisture from reaching your front lens element and provide additional protection in case of drops or situations where scratching could occur.
  • Absorbs UV light and reduces bluish cast of daylight.
  • Does not require adjustments to exposure while in use.
  • Creates no additional coloration or contrast.
  • Multi-coated to further limit UV, prevent internal ghosting and reflections, as well as to ensure color fidelity.
  • Flat Wave Overcoat repels water with an improved beading effect for more efficient cleaning.
  • Constructed from Schott glass for optical clarity.
  • Black rimmed glass further ensures that reflections do not occur along the filter's edge.
  • Aluminum-alloy filter ring is durable while remaining lightweight.
  • Side knurling provides a more textured grip when mounting or removing it from a lens.
  • 55mm front filter threads allow for use with other filters.
  • Weather-sealed general protection filter reduces dust, moisture, and scratches from reaching lens elements.
  • Plastic case for storage and transport.
• Vu Filters 55mm Sion Slim Circular Polarizer Filter The 55mm Sion Slim Circular Polarizer Filter from Vu Filters helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  Sion Slim circular polarizer filters are multi-coated, have approximately a greater than 85% average light transmission, and are constructed from Schott glass with a black rim. Set within aluminum-alloy filter rings that are durable while remaining lightweight, the glass elements provide increased clarity as well as color fidelity, while their black rims further ensure that reflections do not occur along the filter's edge. The Flat Wave Overcoat associated with this Sion Slim circular polarizer filter provides an additional layer over the multi-coatings, resulting in an improved beading effect to repel water for greater cleaning efficiency.

  This 55mm Sion Slim Circular Polarizer Filter's ring assembly is 3.4mm thick, to help maximize vignetting prevention. It can be rotated in order to adjust the intensity of the polarization effect, and features side knurling to provide a more textured grip for mounting or removing the filter from a lens.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Multi-coated to prevent internal ghosting and reflections as well as to ensure color fidelity.
  • Flat Wave Overcoat repels water with an improved beading effect for more efficient cleaning.
  • Greater than 85% average light transmission.
  • 2 to 2.8x filter factor reduces exposure by 1 to 1.5 stops.
  • Constructed from Schott glass for optical clarity.
  • Black rimmed glass further ensures that reflections do not occur along the filter's edge.
  • Slim, 3.4mm-thick, aluminum-alloy filter ring assembly helps to maximize vignetting prevention, while remaining lightweight.
  • Filter ring assembly can be rotated to adjust the intensity of the polarization effect.
  • Side knurling to provide a more textured grip when mounting or removing it from a lens.
  • 55mm front filter threads allow for use with other filters.
  • Plastic filter case for storage and transport.
• Vu Filters 55mm Sion Variable Neutral Density Filter The 55mm Sion Variable Neutral Density Filter from Vu Filters is a solid variable neutral density filter that provides an exposure reduction of 1 to 5 stops. The 0.3 to 1.5 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. The degree of density is easily controlled by rotating the front filter ring, helping you to predetermine the additional exposure length required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. For easier, repeatable control over density settings, the front ring is also visually demarcated with dots that represent different density values.

  This Sion variable neutral density filter is constructed from Schott glass for increased optical clarity and color fidelity. To prevent internal ghosting and reflections, each glass surface includes eight layers of anti-reflection coating. This multicoating also offers greater protection to the filter substrate and helps it to stay clean for longer than with uncoated filters. The Flat Wave Overcoat associated with this Sion solid neutral density filter provides an additional layer over the multicoatings on the front side of the filter, resulting in an improved beading effect to repel water for greater cleaning efficiency.
  • Variable neutral density filter allows you to dial in differing amounts of density scene to scene.
  • 0.3 to 1.5 (1 to 5 stops) density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a reduction of 1 to 5 stops, this filter allows you to control depth of field and convey movement more easily.
  • Offers increased flexibility to use specific ISO settings or ISO films under bright ambient light.
  • Provides increased exposure flexibility while using cinema or video cameras within a designated film frame rate.
  • Each glass surface includes eight layers of anti-reflection coating to prevent internal ghosting and reflections.
  • Flat Wave Overcoat repels water with an improved beading effect for more efficient cleaning.
  • Constructed from Schott glass for optical clarity.
  • Aluminum-alloy filter ring is durable while remaining lightweight.
• Ruggard Four Pocket Filter Pouch (Up to 67mm) The black Four Pocket Filter Pouch from Ruggard holds four filters with a diameter of up to 67mm inside four mesh slip pockets. For security, the padded pouch neatly folds and features a touch-fastened closure at the edge. A white, business card sized paper inside a clear filter ID sleeve at the back of the pouch allows you to mark and identify the filters you have inside. Note: Designed to fit filters of average thickness. When used with certain thicker filters (e.g. circular polarizers, graduated ND, etc.) the pouch might not close fully. UPC: 847628571372

• 55mm Sion UV Filter vwurfzavfd
• Filter Case
• Limited 5-Year Warranty

• 55mm Sion Slim Circular Polarizer Filter

• 55mm Sion Variable Neutral Density Filter

• Ruggard - Four Pocket Filter Pouch (Up to 67mm)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Vu Filters 55mm Sion UV Filter

  Filter Type	UV
  Shape	Circle
  Circular Size	55 mm
  Front Accessory Thread / Bayonet	55 mm
  Filter Material	Glass
  Ring Material	Aluminum
  Knurling	None
  Coatings	Multi-Coating

  Box Dimensions (LxWxH)	3.386 x 3.386 x 0.394"

• Vu Filters 55mm Sion Slim Circular Polarizer Filter

  Filter Type	Circular Polarizer
  Filter Factor	2 - 2.8 (1 - 1.5 Stop)
  Shape	Circle
  Circular Size	55 mm
  Rotating	Yes
  Front Accessory Thread / Bayonet	55 mm
  Filter Thickness	0.13" / 3.4 mm
  Physical Feature	Slim
  Filter Material	Glass
  Coatings	Multi-Coating

  Box Dimensions (LxWxH)	3.386 x 3.386 x 0.551"

• Vu Filters 55mm Sion Variable Neutral Density Filter

  Filter Type	Variable ND
  Density	0.3 (1 Stop) to 1.5 (5 Stops)
  Shape	Circle
  Circular Size	55 mm
  Front Accessory Thread / Bayonet	55 mm
  Filter Material	Glass
  Coatings	Multi-Coating

  Box Dimensions (LxWxH)	3.4 x 3.4 x 0.5"

• Ruggard Four Pocket Filter Pouch (Up to 67mm)

  Filter Capacity	4 x 67mm
  Type of Closure	Hook-and-Loop
  Exterior Material	Nylon
  Exterior Dimensions	8.0 x 3.8" / 20.3 x 9.5 cm
  Weight	1.3 oz / 36.9 g

  Box Dimensions (LxWxH)	7.8 x 3.4 x 0.7"
