Vulta Volcano Multi-Spectrum LED Flashlight

Search your instruction manual in PDF to download

User Manual for Vulta Volcano Multi-Spectrum LED Flashlight

Click to enlarge the picture
Vulta Volcano Multi-Spectrum LED Flashlight Contents of the user manual for the Vulta Volcano Multi-Spectrum LED Flashlight
  • Product category: Handheld Flashlights Vulta
  • Brand: Vulta
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vulta Handheld Flashlights

Vulta Volcano Multi-Spectrum LED Flashlight Vulta Volcano Multi-Spectrum LED Flashlight Vulta Volcano Multi-Spectrum LED Flashlight Vulta Volcano Multi-Spectrum LED Flashlight Vulta Volcano Multi-Spectrum LED Flashlight Vulta Volcano Multi-Spectrum LED Flashlight Vulta Volcano Multi-Spectrum LED Flashlight Vulta Volcano Multi-Spectrum LED Flashlight Vulta Volcano Multi-Spectrum LED Flashlight
User manual for the Vulta Volcano Multi-Spectrum LED Flashlight contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vulta product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vulta user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vulta product will considerably shorten its lifespan!



Product description

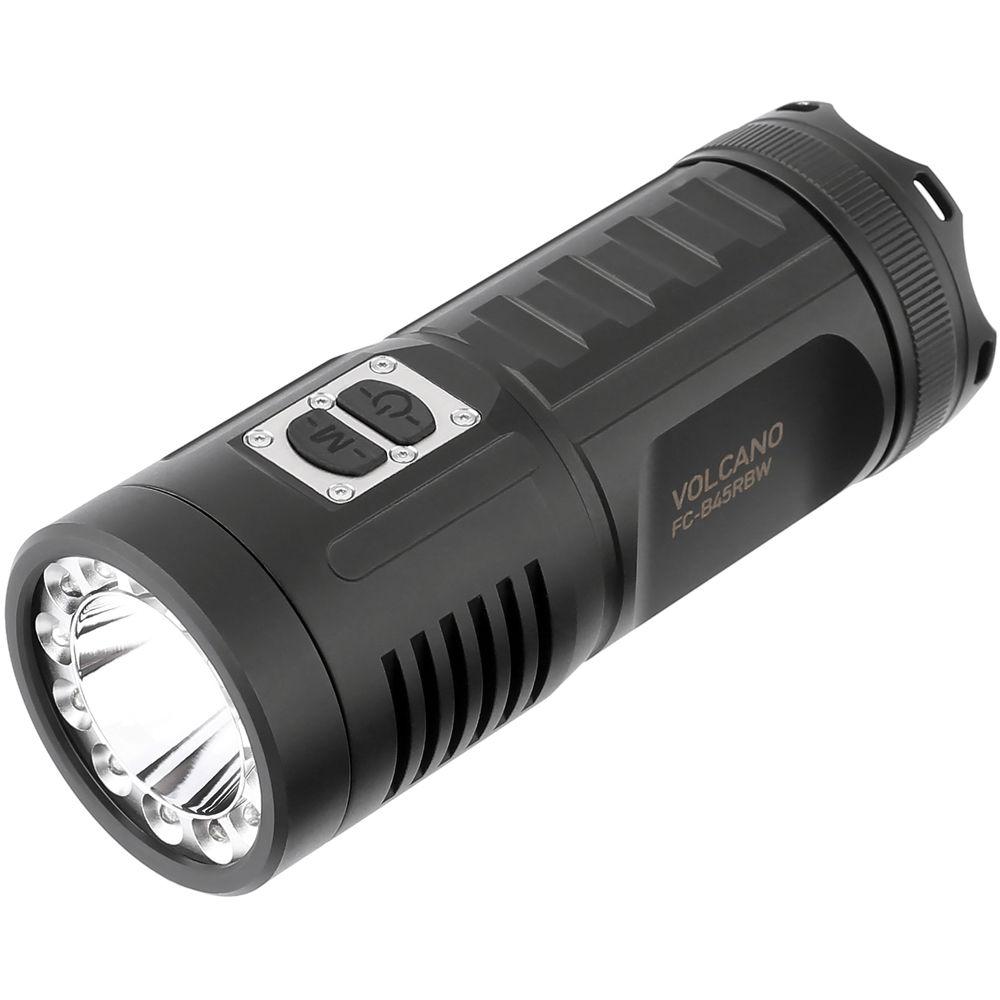

Vulta's powerful, versatile, and compact Volcano Multi-Spectrum LED Flashlight is loaded with features and easy to use. This illuminator uses a white CREE XM-L2 LED to produce five outputs from an energy-saving 1 lumen minimum output to a darkness-piercing 880-lumen turbo. In addition to the white emitter, there is an array of six red, and six blue alternating secondary LEDs set around the main reflector that provide colored light to perform tasks without interfering with night-adjusted vision. Adding to the Volcano's versatility are two 880-lumen strobes and two colored strobe modes that can be used for everything from directing traffic to sending a distress signal.Complementing the multiple light outputs is a housing that is built to withstand years of use. Its aluminum alloy body has a scratch and corrosion-resistant Type III hard anodized finish, with a scratch-resistant tempered reflector window that has a anti-reflection coating to maximize light transmission. The light is impact resistant to 6.6' and IPX8-rated making it fully submersible. Heat diffusing fins built into the head provide passive overheat protection, while heat-management circuitry automatically steps down the output intensity to prevent damage to the light. Rounding out the safety features is reverse-polarity protection so the light will not be affected if the batteries are installed incorrectly.
    Performance
    • Min: 1 lumen
    • Low: 60 lumen
    • Med: 200 lumen
    • High: 500 lumen
    • Turbo: 880 lumen
    • Red: 28 lumen
    • Blue: 20 lumen
    • One primary white CREE XM-L2 LED emitter

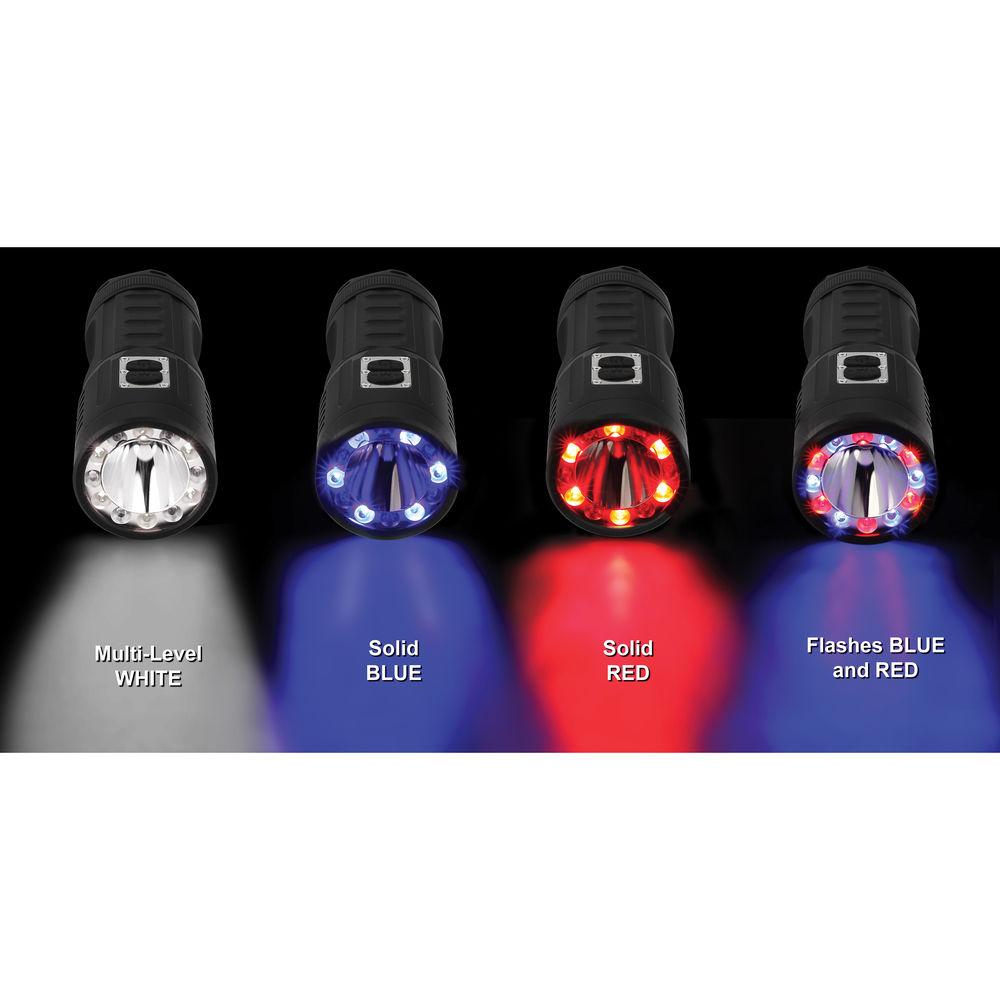

    • Six each red and blue alternating secondary LEDs arrayed around primary reflector
    • Smooth deep reflector maximizes throw while producing a smooth beam without holes or hotspots
    • Red light used for reading and tasks without affecting night adjusted vision
    • Blue light shows fluid/blood trails for tracking
    • Multiple strobe modes: SOS distress mode, signal beacon, alternating red/blue, alternating red/blue with white light pulse
    • Overheat protection circuitry automatically steps power output down to avoid damage to the light
    Switching
    • Location: Body

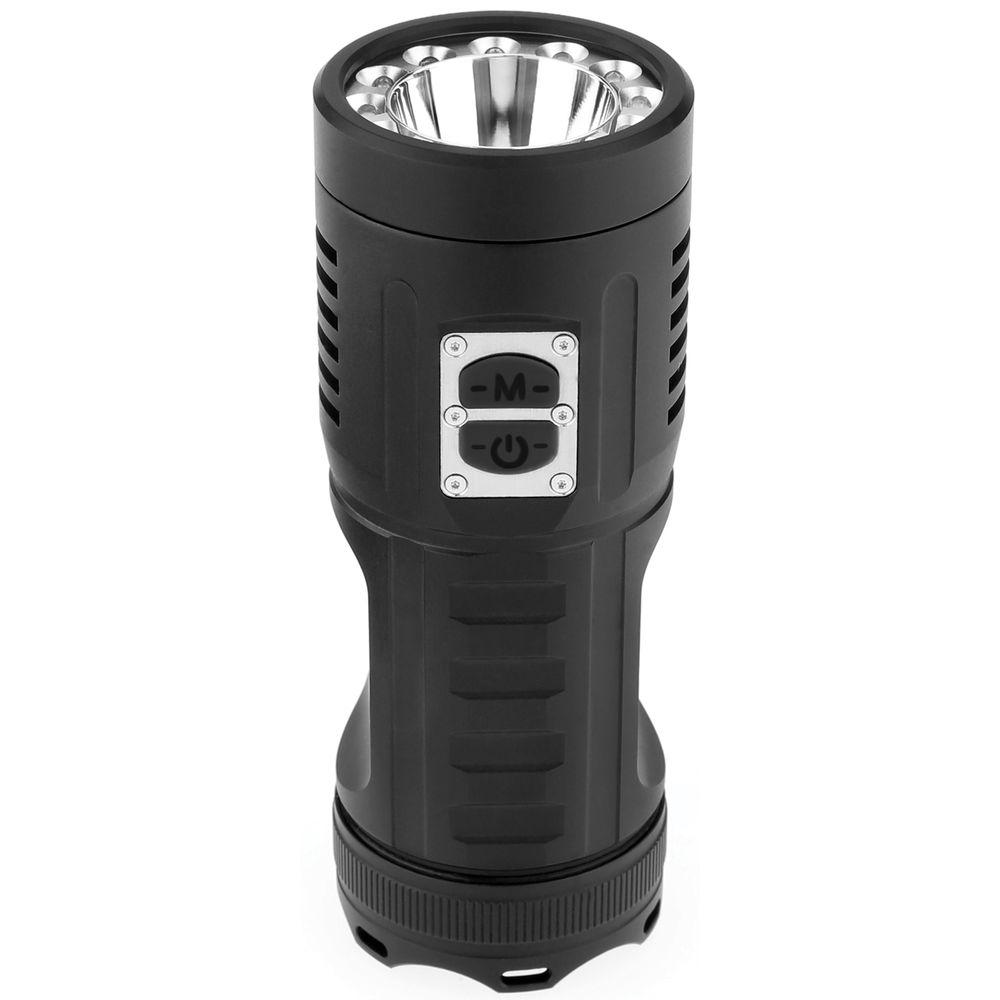

    • Type: Dual pushbutton
    • Constant-on mode only
    • Rear power button controls on/off
    • Forward mode button controls normal, colored, and strobe outputs
    • Lockout feature prevents accidental activation
    • Intelligent last-mode memory switch
    Construction
    • Lightweight and durable aluminum alloy housing
    • Scratch and corrosion-resistant Type III hard anodized finish
    • Anti-reflection coated scratch-resistant tempered glass window
    • IPX8-rated submersible, impact resistant to 6.6'
    • Heat dissipating fins on head

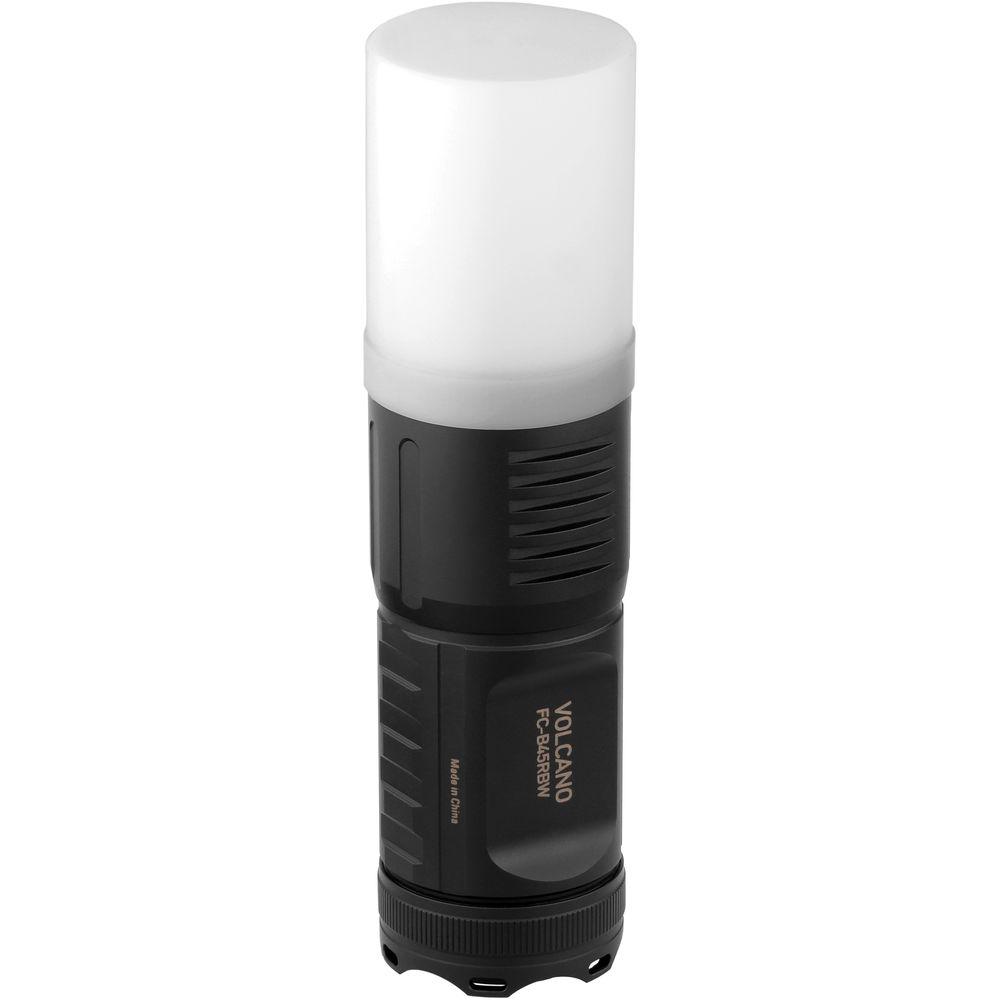

    • Flat tailcap to stand flashlight, use with included diffuser for lighting areas
    • Reverse-polarity protection prevents damage to light if batteries are installed incorrectly
UPC: 847628581821 In the Box Vulta Volcano Multi-Spectrum LED Flashlight (White, Red, Blue)
  • Lanyard
  • White Diffuser
  • 2 x Spare O-Ring

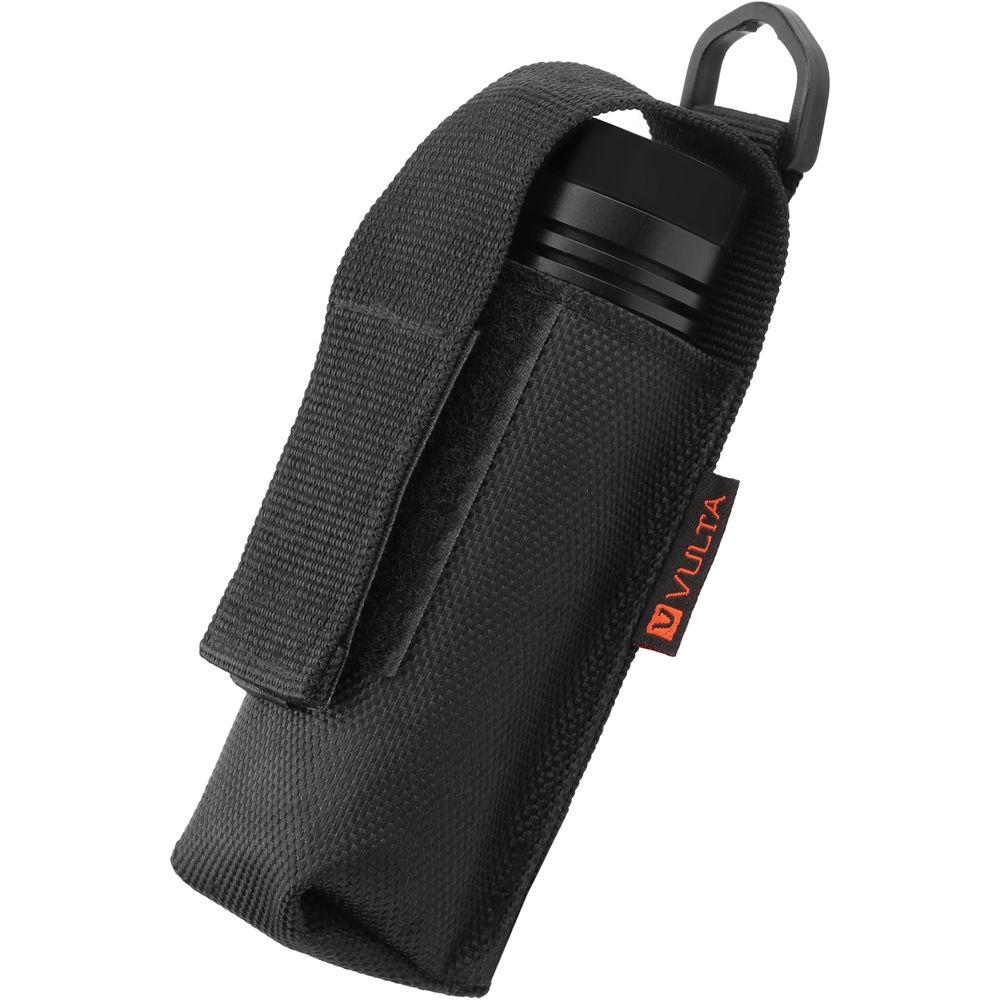

  • Nylon Holster
  • Limited Two-Year Warranty
  • User Manual PDF 649.5kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Vulta Volcano Multi-Spectrum LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Vulta FC-B45RBW Specs

    Lumen Output High: 500 Lumens
    Medium: 200 Lumens
    Low: 60 Lumens
    Turbo: 880 Lumens
    Minimum: 1 Lumen
    Strobe: 880 Lumens
    Illumination Source 1 x White LED
    6 x Red LED
    Estimated Runtime Minimum: 450 Hours
    Low: 13 Hours
    Medium: 5 Hours
    High: 1.6 Hours
    Battery Type 4 x AA Alkaline, NiCd, NiMH
    Material of Construction Aluminum, Plastic
    Water Resistance Waterproof, IPX8
    Impact Resistance Yes, 6.6' / 2.0 m
    Bezel Diameter 1.6" / 40.6 mm
    Dimensions

    Rating

    60% users recommend this product to others. And what about you?
    Rating: 3.0 of 5

    This product has already been rated by 62 owners. Add your rating and experience with the product.
