User Manual for Vuze 4K 3D 360 Spherical VR Camera Click to enlarge the picture
Contents of the user manual for the Vuze 4K 3D 360 Spherical VR
- Product category: All 360 Video Cameras Vuze
- Brand: Vuze
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vuze All 360 Video Cameras
 |
User manual for the Vuze 4K 3D 360 Spherical VR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vuze product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vuze user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vuze product will considerably shorten its lifespan!
|
Product description Podcast: 3D Virtual Reality and the Vuze Camera Read More fffqardwtevbdxbqrwuxxyzc - Vuze Camera Product Movie

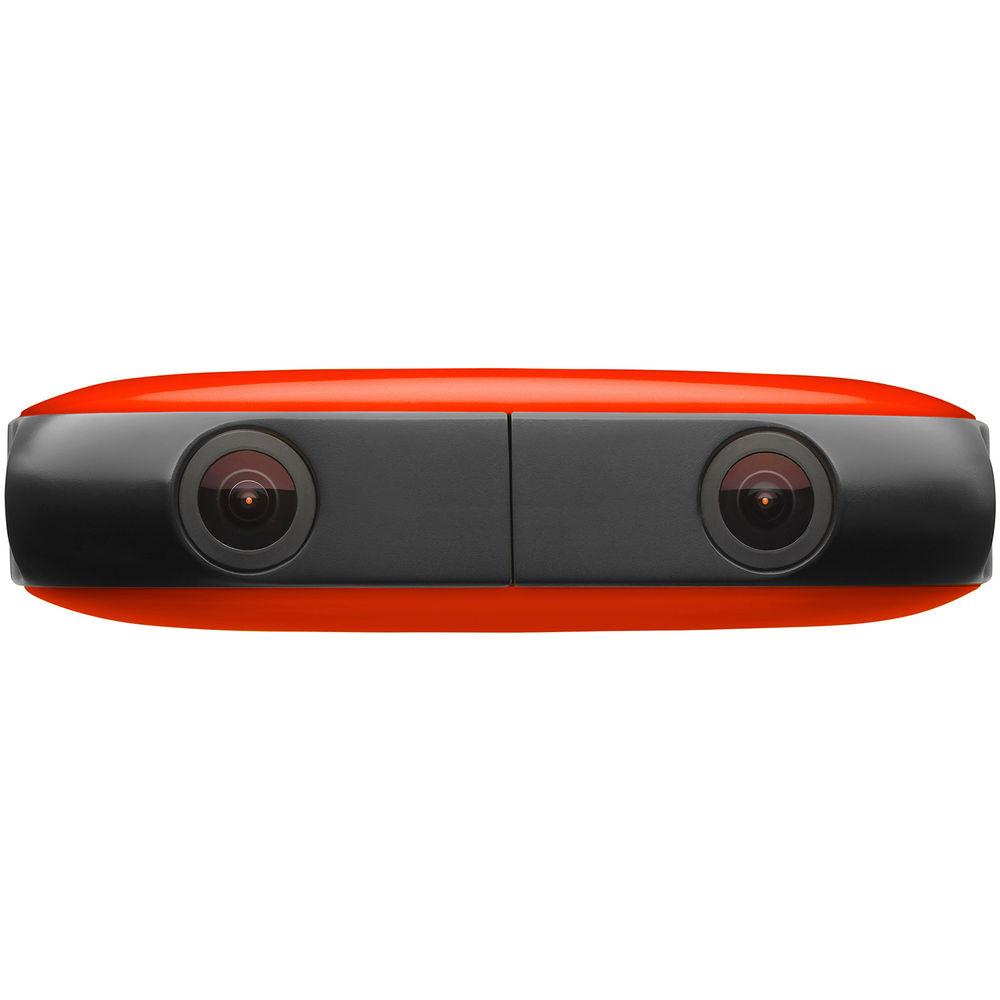

The Vuze 4K 3D 360 Spherical VR Camera, in red, features eight image sensors allowing you to record 360° spherical VR videos and photos in stereoscopic 3D, capturing one UHD 4K image for each eye. Then, you can watch it all with a VR headset (not included) or on 360 platforms like YouTube 360 for a full spherical VR experience. The camera captures audio via four on-board microphones.

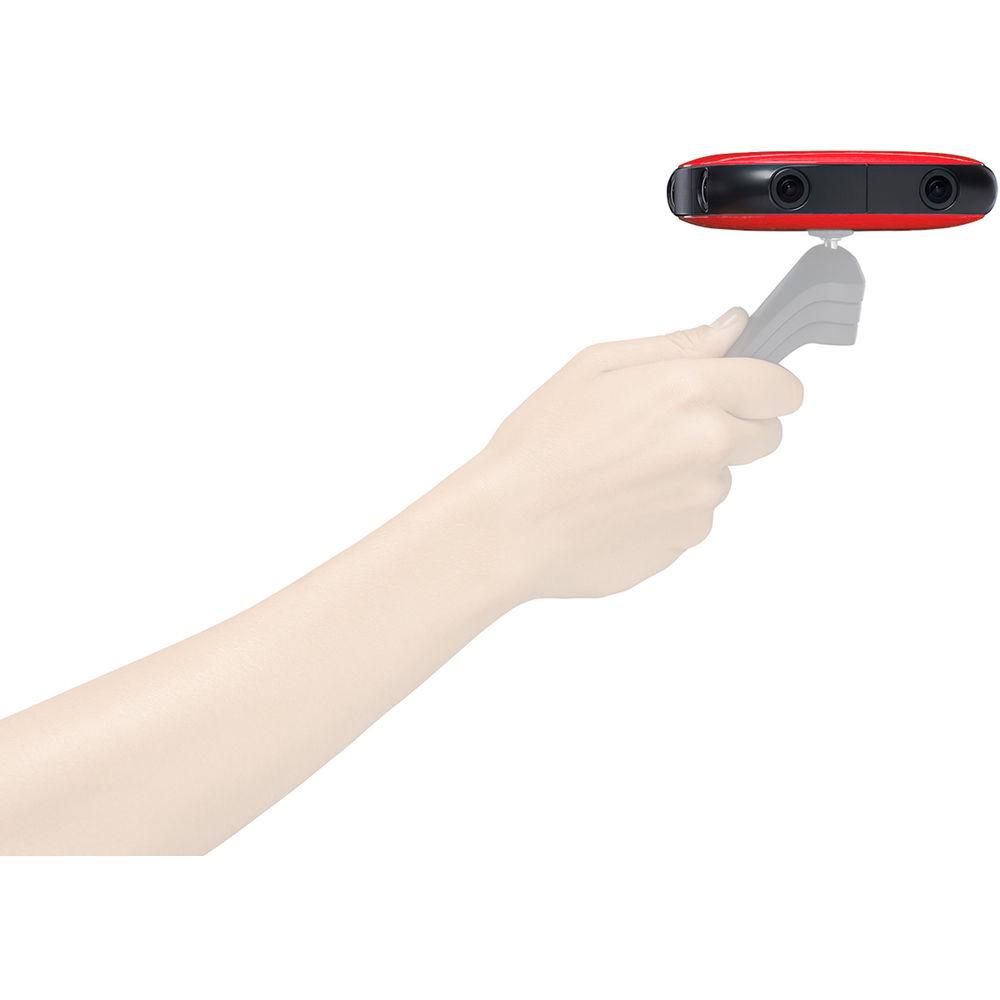

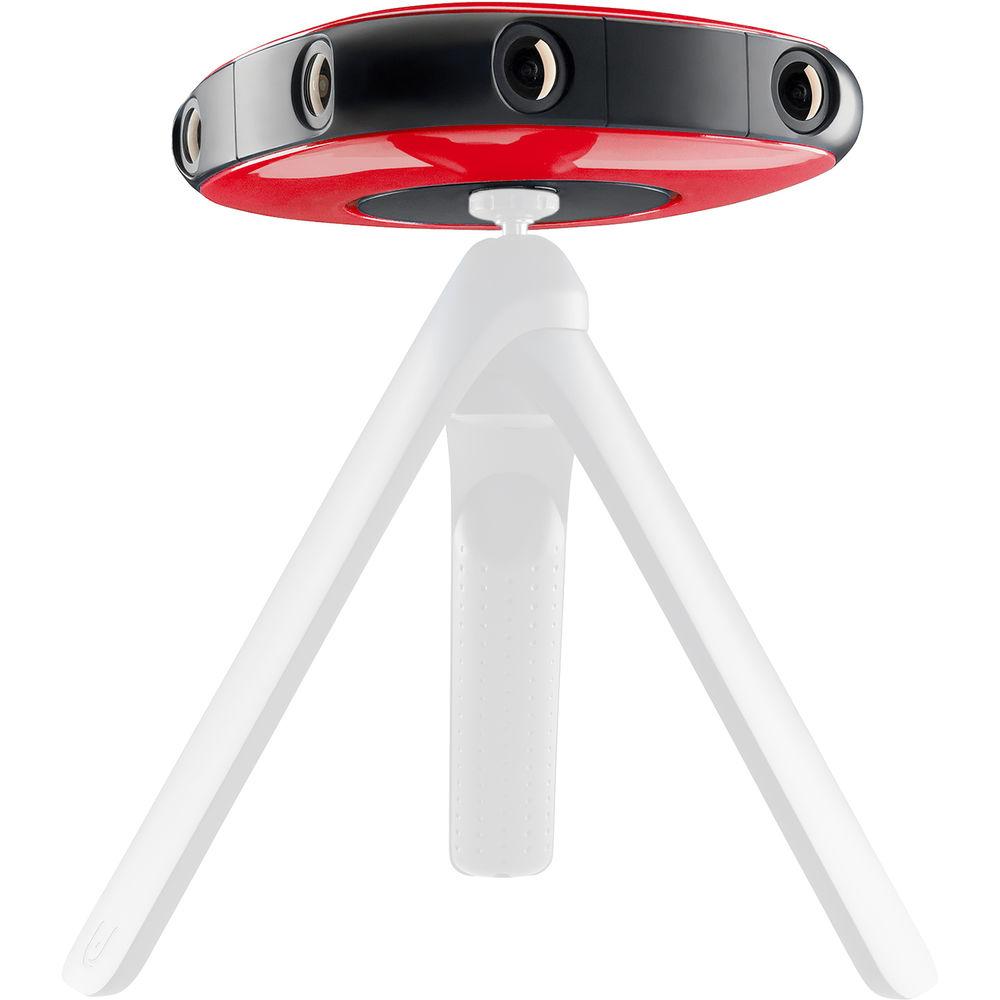

The Vuze is designed to be used mounted on mini tripods or monopods (sold separately), and it features a 1/4"-20 threaded mounting hole on the bottom for attaching to such support accessories.

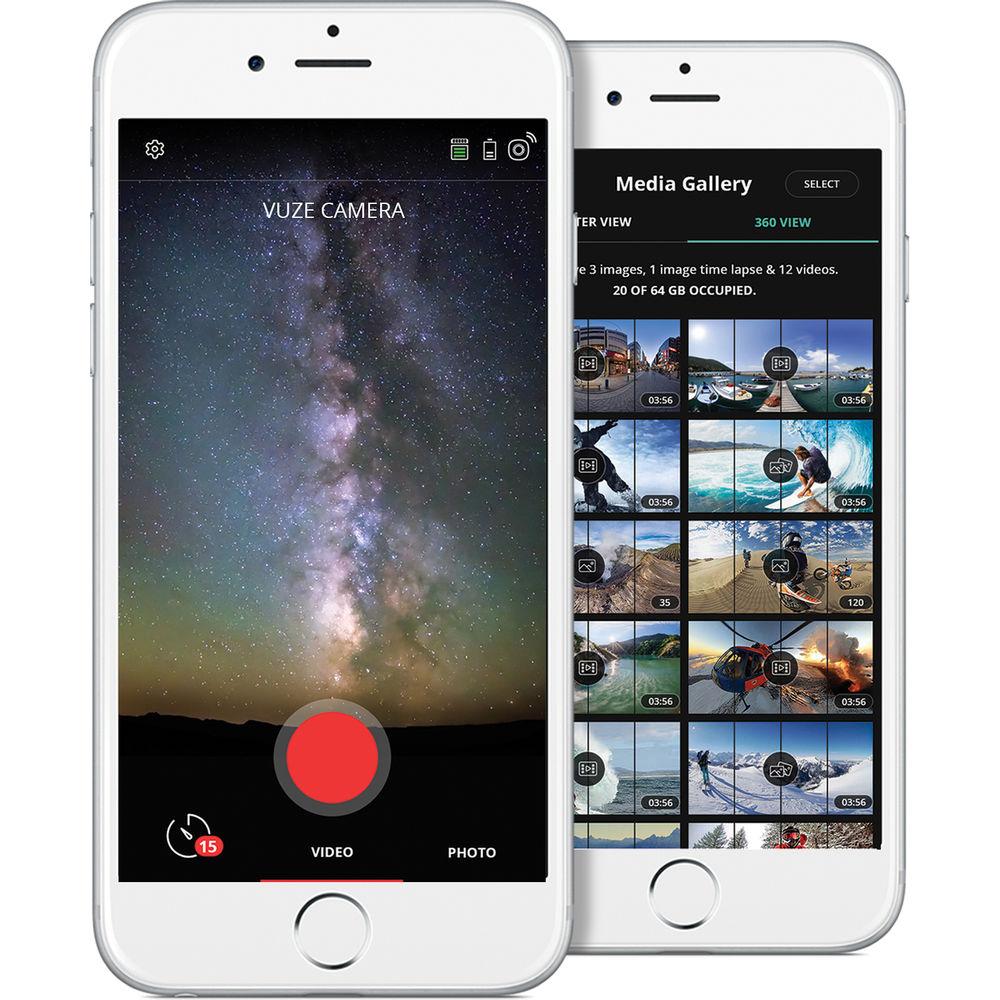

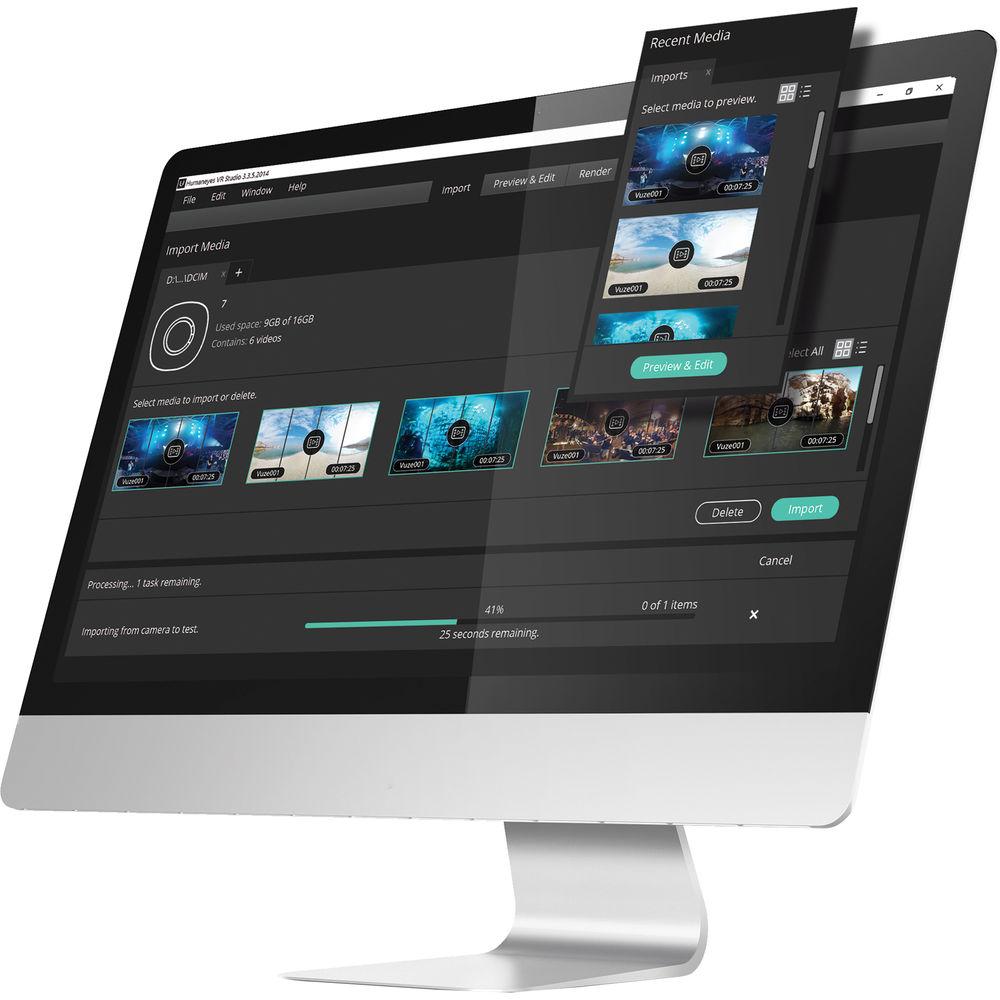

The compact camera comes with a proprietary stitching software (Mac/Win) called Vuze Studio that enables you to stitch the separate images together into a spherical format, and it also includes the Vuze Mobile App (Android/iOS), which can be used to remotely control the camera and manage files.
The camera records everything to a microSD card (sold separately), from which the files can conveniently be played back as well as shared. - Key Features
-
- Record 360° spherical VR videos and photos in stereoscopic 3D
- Features eight image sensors capable of capturing an Ultra HD 4K image for each eye
- Multiple IMUs (inertial measurement unit) for camera orientation control
- Four microphones record uncompressed 16-bit PCM audio
- 1/4"-20 threaded mounting hole for attaching to mini tripods and monopods
- Includes Vuze Studio proprietary stitching software (Mac/Win)
- Includes Vuze mobile control app (Android/iOS)
- microSD card slot (card not included)
- Lithium-ion battery with one hour runtime

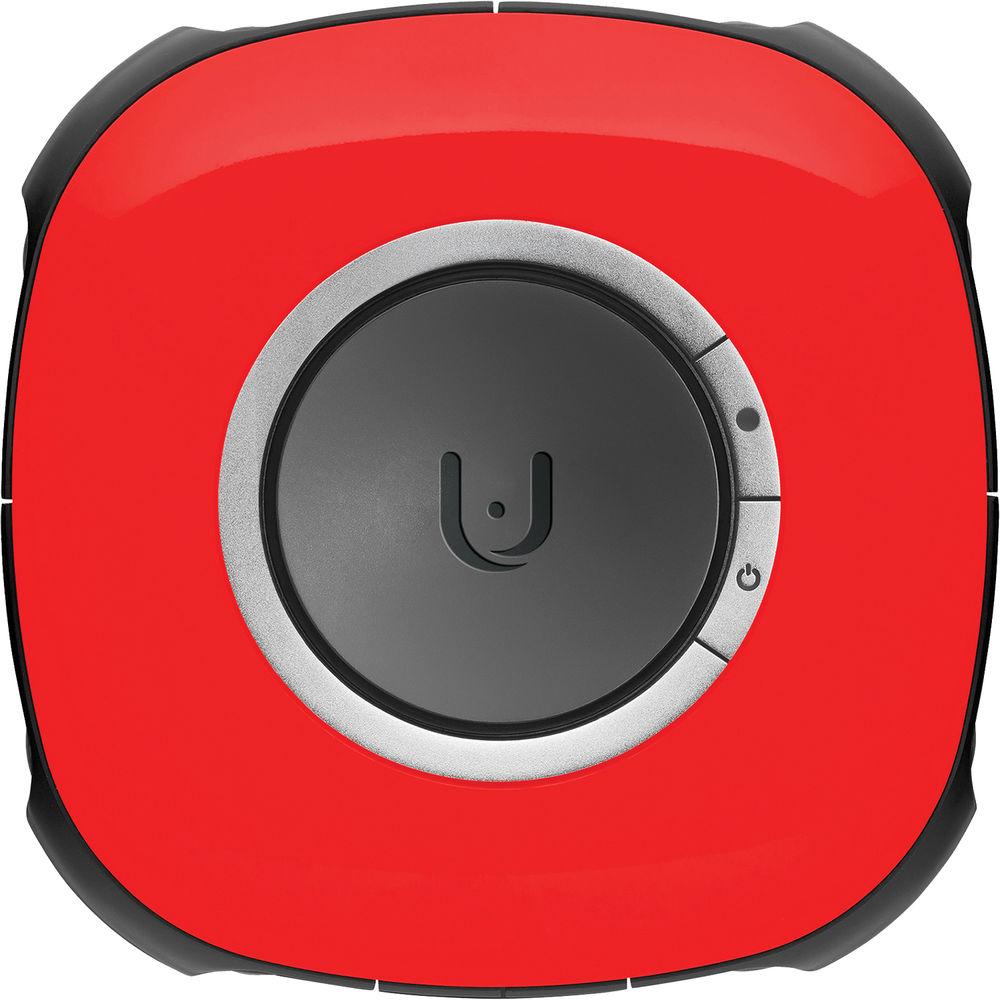

- Single-button operation
- LED indicators
- IP64 dust-tight and splash-proof
UPC: 634041992705 In the Box Vuze 4K 3D 360 Spherical VR Camera (Red) Small Handle Mini VR Glasses Hardshell Case Charger with USB Input USB Cable Charger Adapter Lens Cleaning Cloth Vuze Studio Stitching Software (Download) Vuze Mobile Control App (Download) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vuze 4K 3D 360 Spherical VR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVuze VUZE-1-RED Specs | Sensors | 8 x Sony Full HD imx408 image sensors | | Lenses | 8 | | Capture Resolution | Ultra HD 4K (3840 x 2160) at 30 fps per eye (from 4 sensors each) | | Video Field of View | 360 x 180° (full spherical) | | Video Compression | H.264 MP4 over under | | Processors | 2 x Ambarella A9 video processors | | IP Rating | IP64 (dust tight, splash proof) | | Wi-Fi | IEEE 802.11b/g/n; 2.4 GHz | | Microphones | 4 x MEMS microphones | | Audio Codec | Uncompressed 16-bit PCM | | Storage Expansion | microSD card slot | | Battery Type | Lithium-ion | | Battery Life | Up to 1 hour of recording | | Interface | 1 x Micro-USB 2.0 (for charging and data connection) | | Sensors | Accelerometer, Gyroscope, Compass | | Mount Type | 1/4"-20 threaded mounting hole on the bottom for mini tripods, monopods, etc. | | Software System Requirements | The included Vuze Studio software is capable of running on the following systems:
Minimal:
Windows 8.1/10, 64 bit
2 GB RAM GPU and DirectX 11 support
Mac OS 10.11 El Capitan
2 GB RAM GPU
Recommended:
Windows 10, 64 bit
Fast discrete GPU with 3 GB RAM (e.g. NVIDIA GeForce GTX 1070, AMD Radeon Fury)
The included Vuze Mobile App is compatible with Android and iOS | | Dimensions | 4.7 x 4.7 x 1.2" (12 x 12 x 3 cm) | | Weight | 0.9 lb (400 g) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 9.9 x 8.0 x 2.8" |
