Vuze Vuze 4K 3D 360 Spherical

Search your instruction manual in PDF to download

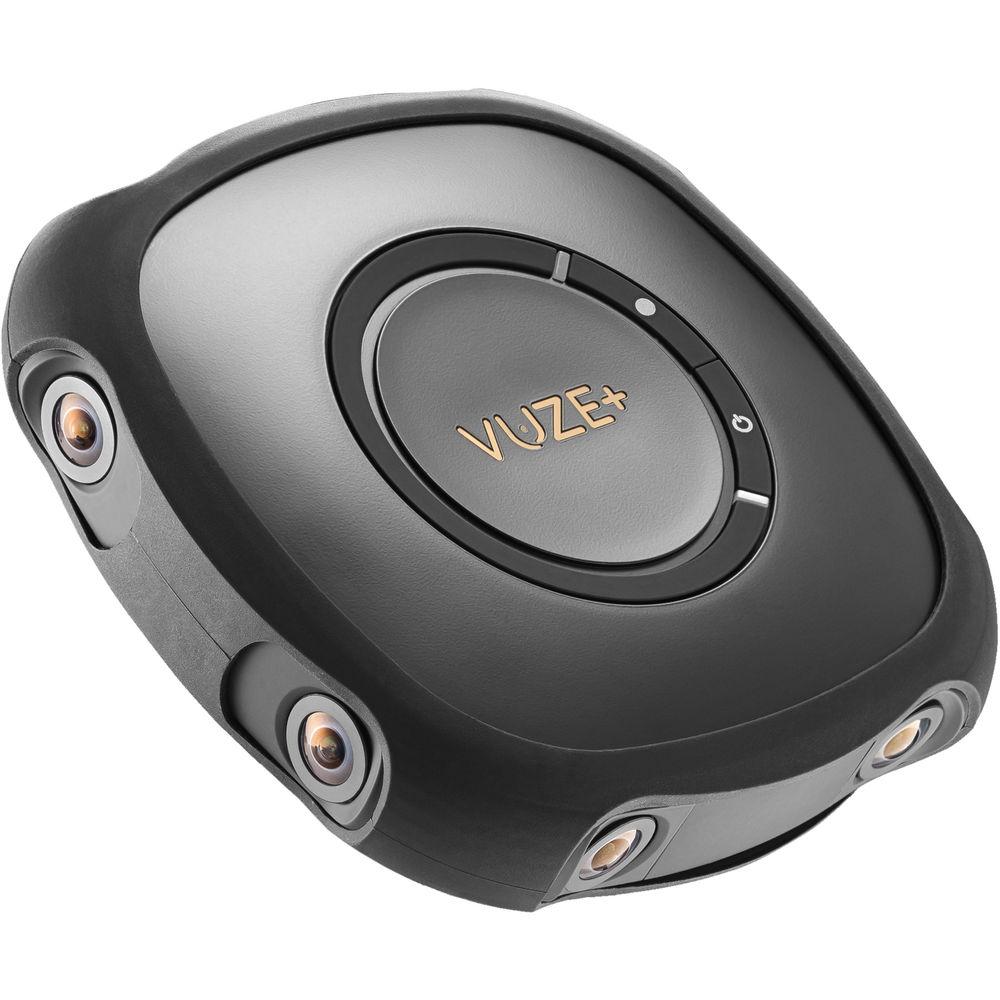

User Manual for Vuze Vuze 4K 3D 360 Spherical VR Camera

Click to enlarge the picture
Vuze Vuze 4K 3D 360 Spherical VR Camera Contents of the user manual for the Vuze Vuze 4K 3D 360 Spherical
  • Product category: All 360 Video Cameras Vuze
  • Brand: Vuze
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vuze All 360 Video Cameras

Vuze Vuze 4K 3D 360 Spherical VR Camera Vuze Vuze 4K 3D 360 Spherical VR Camera Vuze Vuze 4K 3D 360 Spherical VR Camera Vuze Vuze 4K 3D 360 Spherical VR Camera Vuze Vuze 4K 3D 360 Spherical VR Camera Vuze Vuze 4K 3D 360 Spherical VR Camera Vuze Vuze 4K 3D 360 Spherical VR Camera Vuze Vuze 4K 3D 360 Spherical VR Camera Vuze Vuze 4K 3D 360 Spherical VR Camera
User manual for the Vuze Vuze 4K 3D 360 Spherical contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vuze product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vuze user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vuze product will considerably shorten its lifespan!



Product description

Podcast: 3D Virtual Reality and the Vuze Camera Read More
  • 3D 360 VR skydiving experience with the Vuze camera
  • A day in the safari with the Vuze camera
  • Florida Boat Tour 3D
  • Real Estate Tour 3D
  • Vienna Compilation
  • First-Ever 3D VR Filmed in Space | One Strange Rock
  • The Making of Kungfuscius - VR Short Movie
Record and stream 2D and 3D spherical video content with the Vuze+ 4K 3D 360 Spherical VR Camera. Featuring eight camera units, each with a 2MP Sony sensor, the Vuze+ can generate and record UHD 4K 30 fps images for each eye in a VR environment, or UHD 4K 60 fps images for monoscopic viewing. H.264 video and JPEG still photos are saved to an installed microSD card (available separately).Where the Vuze+ separates itself from its predecessor is its ability to stream live. Connect a computer via USB for stitching and live streaming with Vuze LIVE. Video is stitched in real time by your computer for immediate online viewing. Essential applications included with the Vuze+ help with the capture and processing of your video. The Vuze Camera App is available for iOS and Android, and offers live preview, remote start/stop and photo capture, exposure adjustment, and media management. Vuze VR Studio offers automated and manual stitching, video editing facilities, horizon stabilization, color and exposure adjustments, and output encoding. Five licenses are included with the camera. The body of the camera itself is IP65 rated for protection against dust and water ingress, and it has a 1/4"-20 mounting thread for securing to a tripod or other grip equipment. Microphones are positioned strategically around the camera body to capture spatial audio to complement the spherical video. When operating out in the field, the internal battery can last for about an hour for untethered shooting.

Key Features

  • Record 360° spherical VR videos and photos in stereoscopic 3D
  • Features eight image sensors capable of capturing an Ultra HD 4K image for each eye
  • Broadcast live via USB connection to a computer
  • Multiple IMUs (inertial measurement unit) for camera orientation control
  • Four microphones record uncompressed 16-bit PCM spatial audio
  • Improved optics and audio rendering over previous model
  • 1/4"-20 threaded mounting hole for attaching to mini tripods and monopods
  • Includes Vuze Studio proprietary stitching software (Mac/Windows)
  • Includes Vuze mobile control app (Android/iOS)
  • Bluetooth connectivity
  • microSD card slot (card not included)
  • Lithium-ion battery with one-hour runtime
  • Single-button operation
  • LED indicators
  • IP65 water/dust ingress resistance rating
UPC: 634041992729 In the Box Vuze Vuze+ 4K 3D 360 Spherical VR Camera
  • Hard Case
  • Mini Handle
  • Mini VR Glasses
  • USB Cable
  • USB Power Adapter
  • Cleaning Cloth
  • Rubber Protective Cover
  • Limited 1-Year Warranty
  • CES 2018: Vuze+ 3D 360 4K VR Camera Live Broadcasting Spatial Audio New Optics Ronald Francis 01/09/2018 Table of Contents




    Upload User Manual

    Have you got an user manual for the Vuze Vuze 4K 3D 360 Spherical VR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Vuze VUZE+ Specs

    Stitching Resolution 4K
    Internal/External Stitching Internal and External Stitching
    Supported Spherical Projection Types Cubic, Equirectangular
    360 Stitched Video Format Internal 2D:
    3840 x 2160 at 60 fps (MP4 via H.264)
    Internal 3D:
    3840 x 2160 at 30 fps (MP4 via H.264)
    Still Image Resolution JPEG: 14.7 Megapixel, 3840 x 3840
    Number of Lenses 8
    Sensor 1-Chip 1/3.61" CMOS
    Sensor Resolution 2.2 MP
    Maximum Aperture f/2.4
    Lens Elements 7
    Minimum Focusing Distance 10.0" / 25.4 cm
    Angle of View 360°
    Recording Media x microSD (256 GB Maximum)
    Built-In Mic Yes
    Channels 4.0-Channel Surround
    Audio Format AAC
    Sampling Frequency AAC: 48.0 kHz
    Shutter Speed 1/1000 - 1 Second (Photo)
    Photo ISO Range 100 - 1600 (Auto)
    Video ISO Range 100 - 1600 (Auto)
    Status Display No
    IP Rating IP65
    Wi-Fi Yes, Wi-Fi 4
    Tripod Mount 1/4" - 20
    Inputs 1 x USB Micro-B (charging and data)
    Outputs None
    Microphone Input None
    Headphone Jack None
    Battery Rechargeable Lithium-Ion Battery Pack, 3.8 VDC, 3700 mAh
    Max Runtime: 2 Hours per Charge
    Charging Method USB
    Power Adapter 5 VDC
    Power Consumption Recording: 7 W
    Package Weight 2.85 lb
    Box Dimensions (LxWxH) 9.9 x 8.0 x 3.0"
