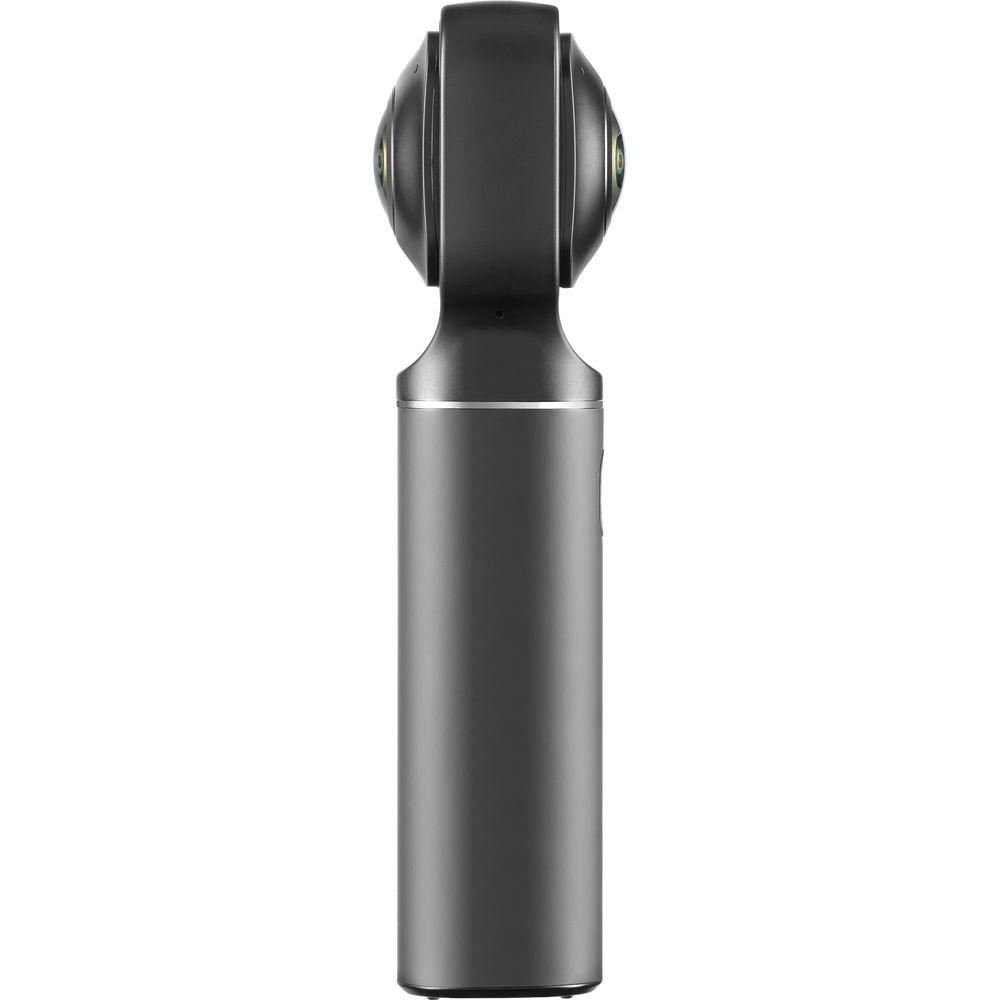

User Manual for Vuze XR 3D VR180° 2D 360° 5.7K Camera Click to enlarge the picture
Contents of the user manual for the Vuze XR 3D VR180° 2D 360°
- Product category: All 360 Video Cameras Vuze
- Brand: Vuze
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vuze All 360 Video Cameras
 |
User manual for the Vuze XR 3D VR180° 2D 360° contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vuze product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vuze user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vuze product will considerably shorten its lifespan!
|

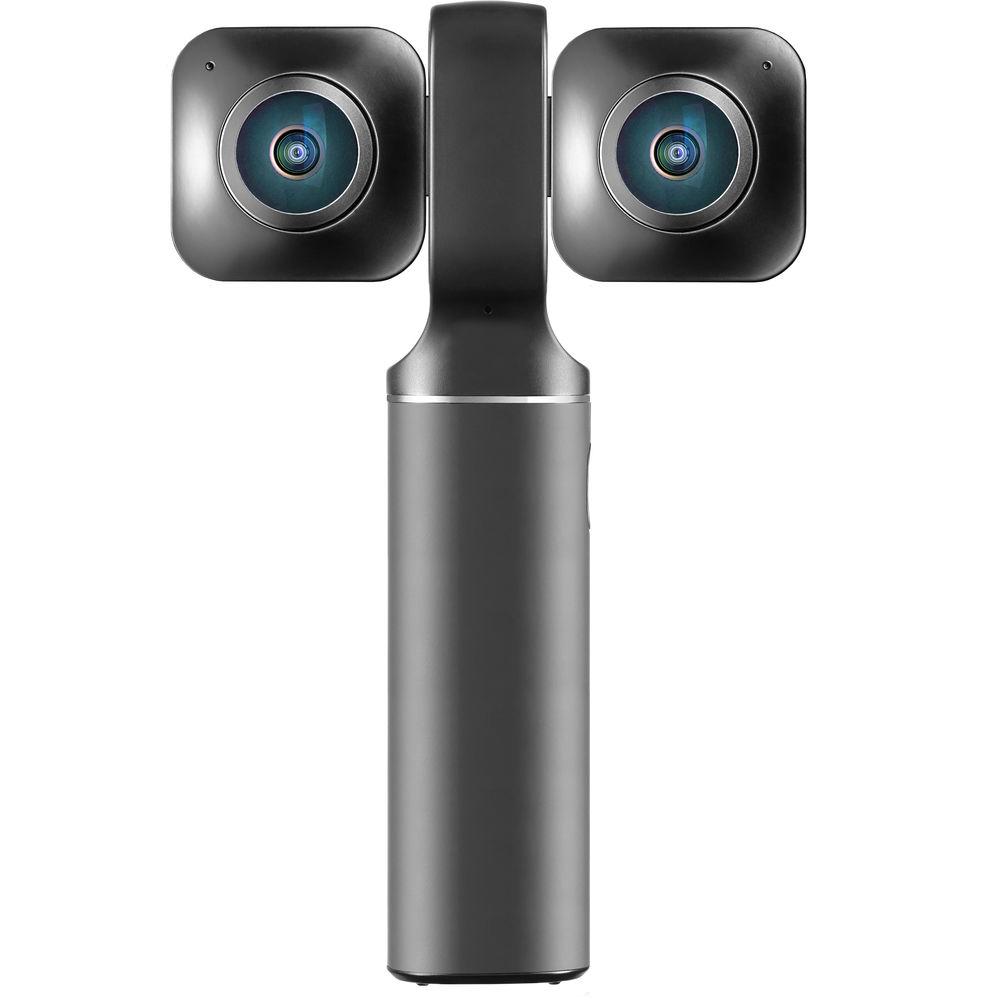

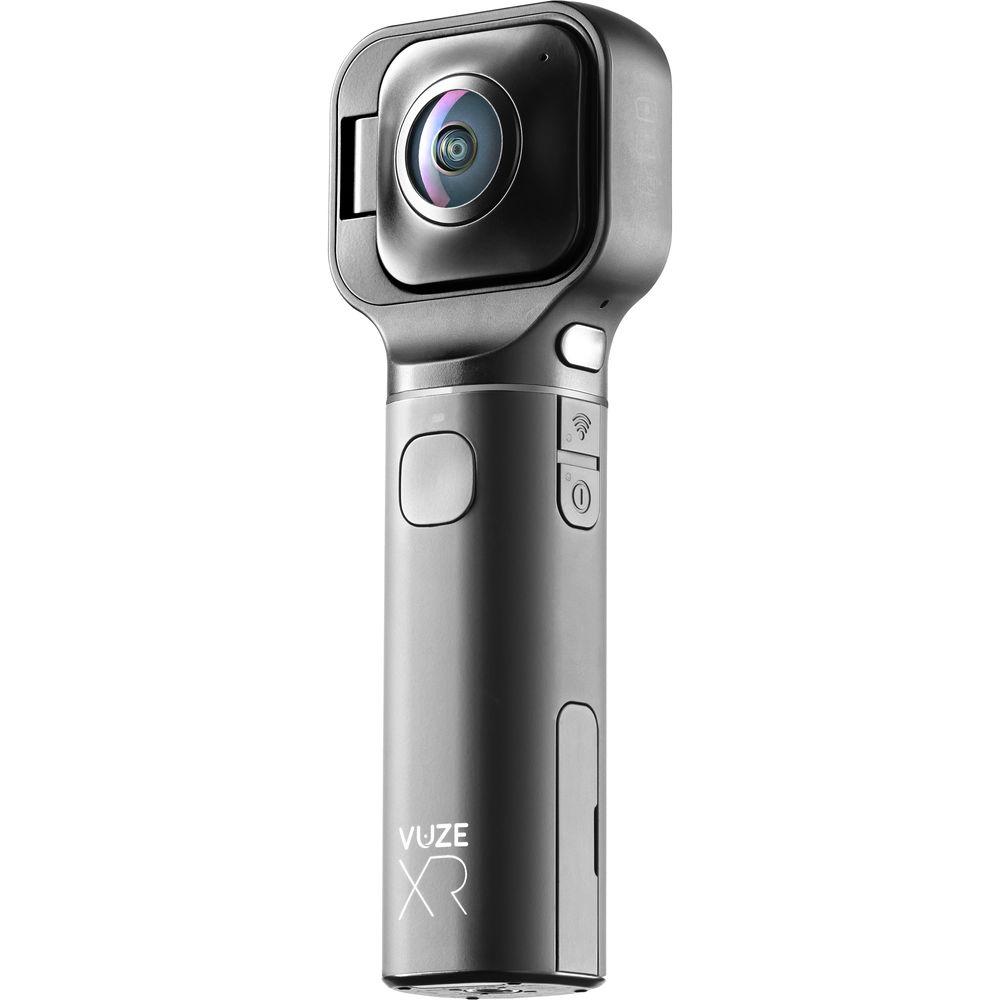

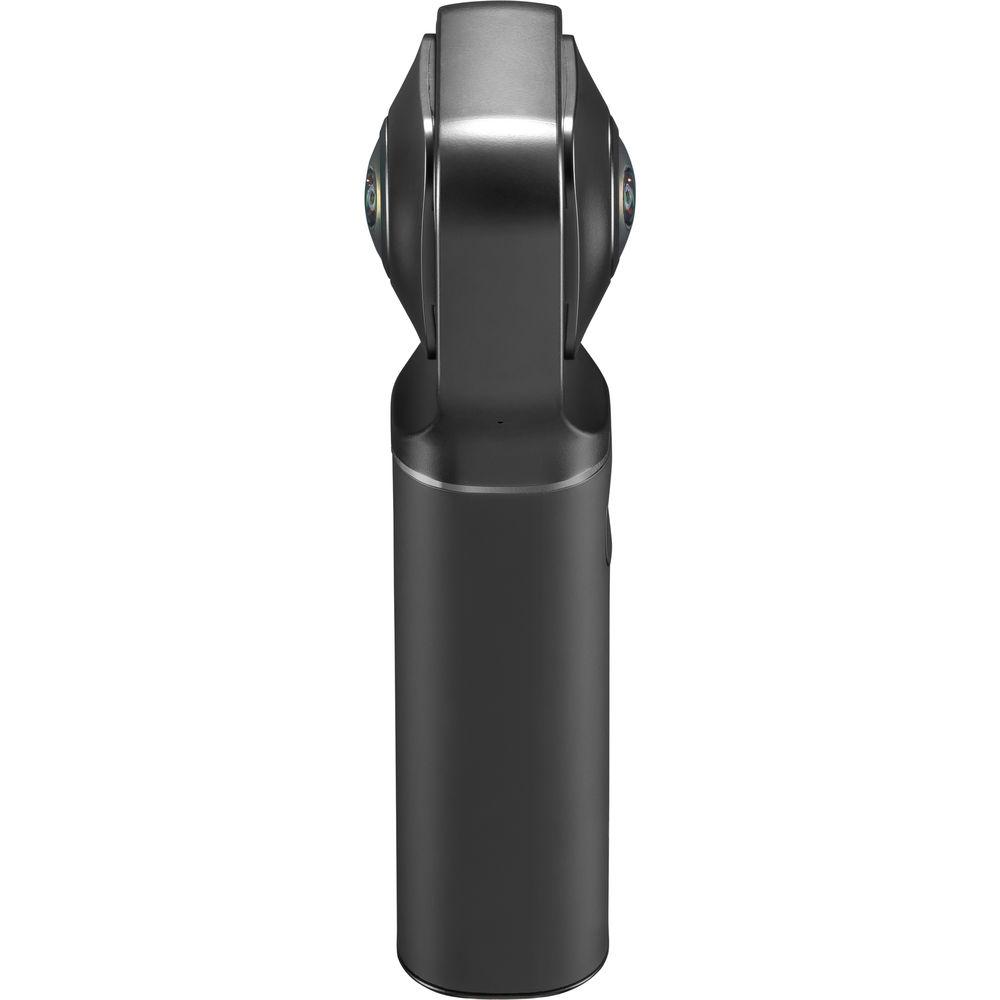

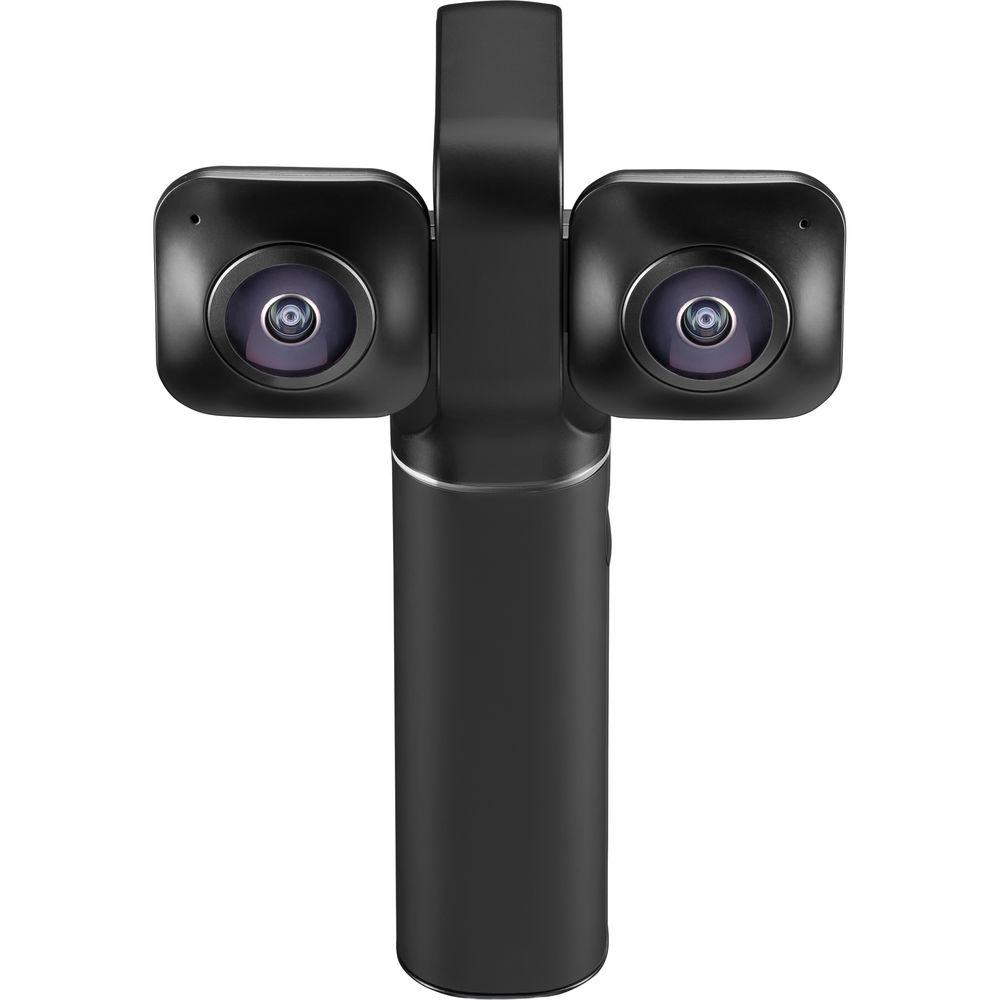

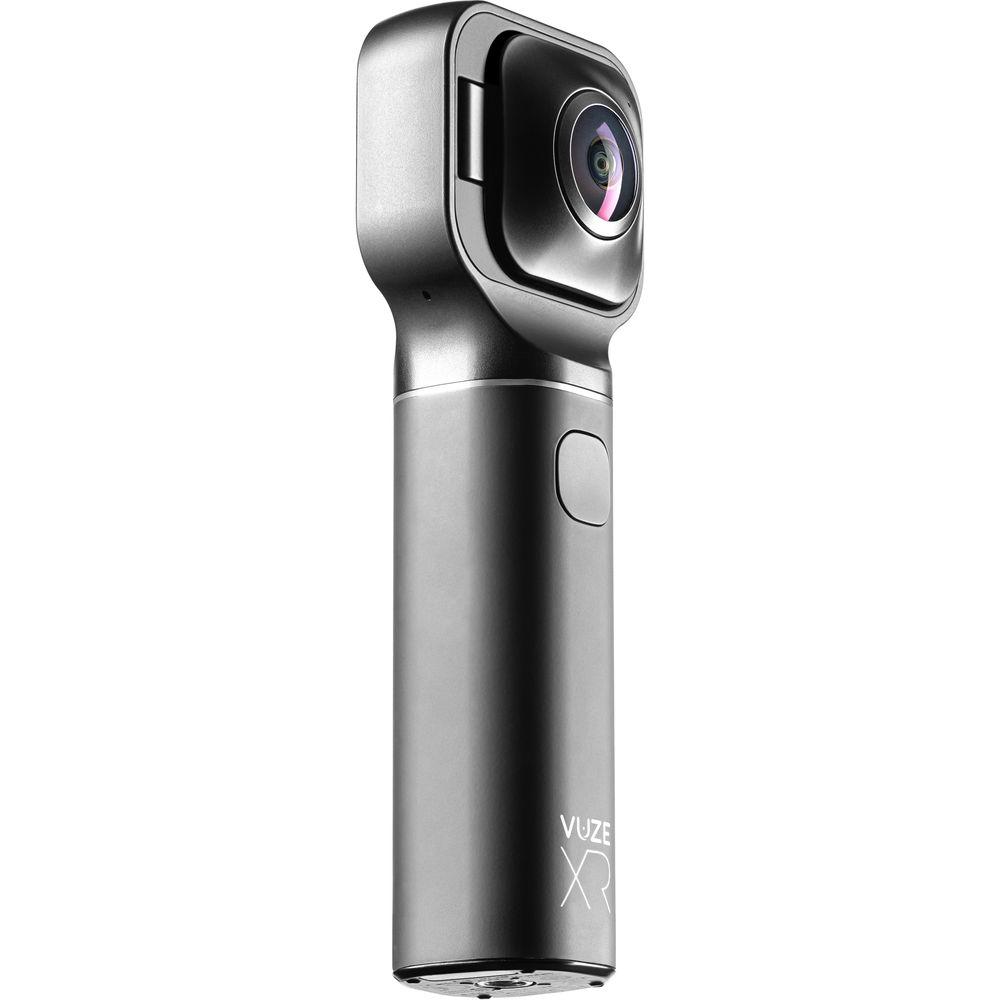

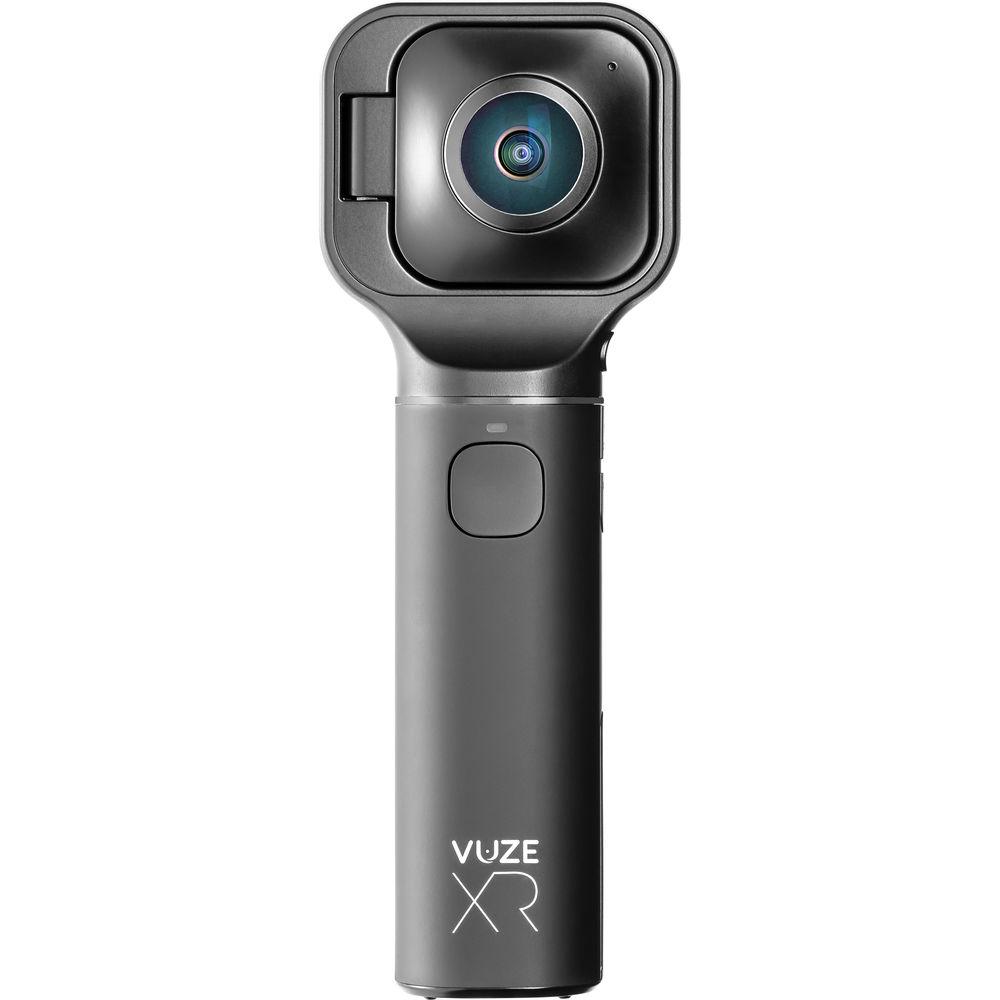

Product description - Vuze XR: VR180 & 360° 5.7K Camera - All creators invited
Capture the full experience and not just a scene with the black, dual-capture Vuze XR 3D VR180° / 2D 360° 5.7K Camera. The camera records H.264 MP4 video at resolutions up to 5.7K at 30 fps and takes 18MP photos at up to 5760 x 3260 resolution with an adjustable ISO from 100 to 1600. In-camera stitching can be performed with footage up to 4K at 60 fps, while 5.7K stitching is performed with desktop software.

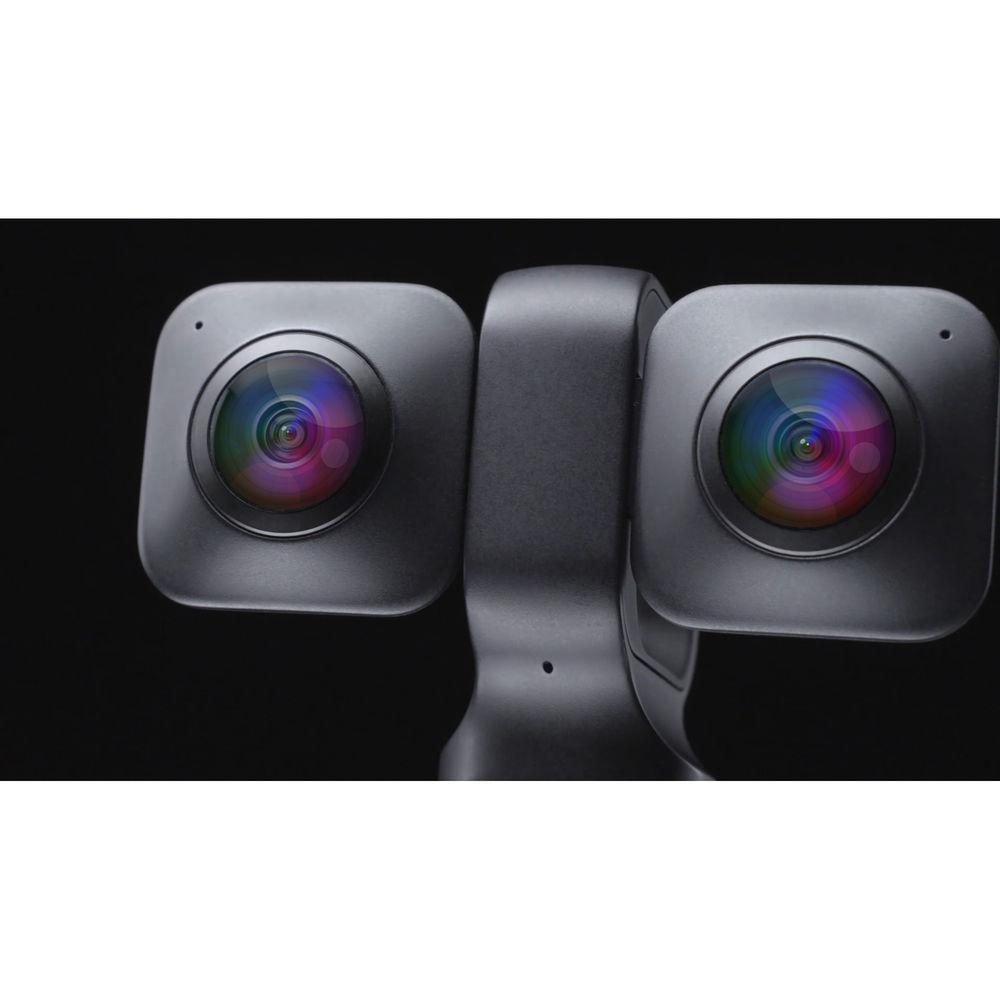

The Vuze XR is set up with two Sony 12MP CMOS sensors, an Ambarella H2 video processor, and two 210° f/2.4 fisheye lenses; one lens is set up in 3D VR180° mode and the other is set up in 2D 360° mode. The camera also features four 48Hz MEMS microphones that record to four AAC audio tracks to capture 360° surround sound.
The Vuze XR mobile app for iOS and Android remotely controls the camera over 2.4 or 5 GHz Wi-Fi, and allows you to edit, add post production effects like titling and filters, livestream, and share your videos and photos to social media sites such as HumanEyesZone, YouTube, and Facebook. The Vuze VR Studio desktop app for Mac and Windows allows basic stitching and editing of both 180° and 360° video, and can also stream and share to the internet.
The camera records to a removable, UHS-III-compatible microSD card and features a USB 3.0 Type-C port for charging and to transfer data. The built-in 1150mAh LiPo battery lasts approximately one hour. The Vuze XR can also be used underwater with a separately available, waterproof case. A camera hand strap, a protective pouch that can be used to clean the camera lenses, and a USB 3.0 Type-A to Type-C cable are included. - 3D VR180° and 2D 360° Camera
- The Vuze XR records H.264, MP4 video up to 5.7K at 30 fps and takes 18MP photos with up to 5760 x 3260 resolution. The ISO is adjustable from 100 to 1600.
- Hardware
- The camera features two Sony 12MP CMOS sensors, an Ambarella H2 video processor, and two 210° f/2.4 fisheye lenses. One lens is set up in 3D VR180° mode and the other is set up in 2D 360° mode.
- In-Camera and Desktop Stitching
- In-camera stitching can be performed with video up to 4K at 60 fps, while 5.7K stitching is performed with the Vuze XR Studio desktop software.
- Battery
- The built-in 1150mAh battery lasts approximately one hour.
- Storage and Ports

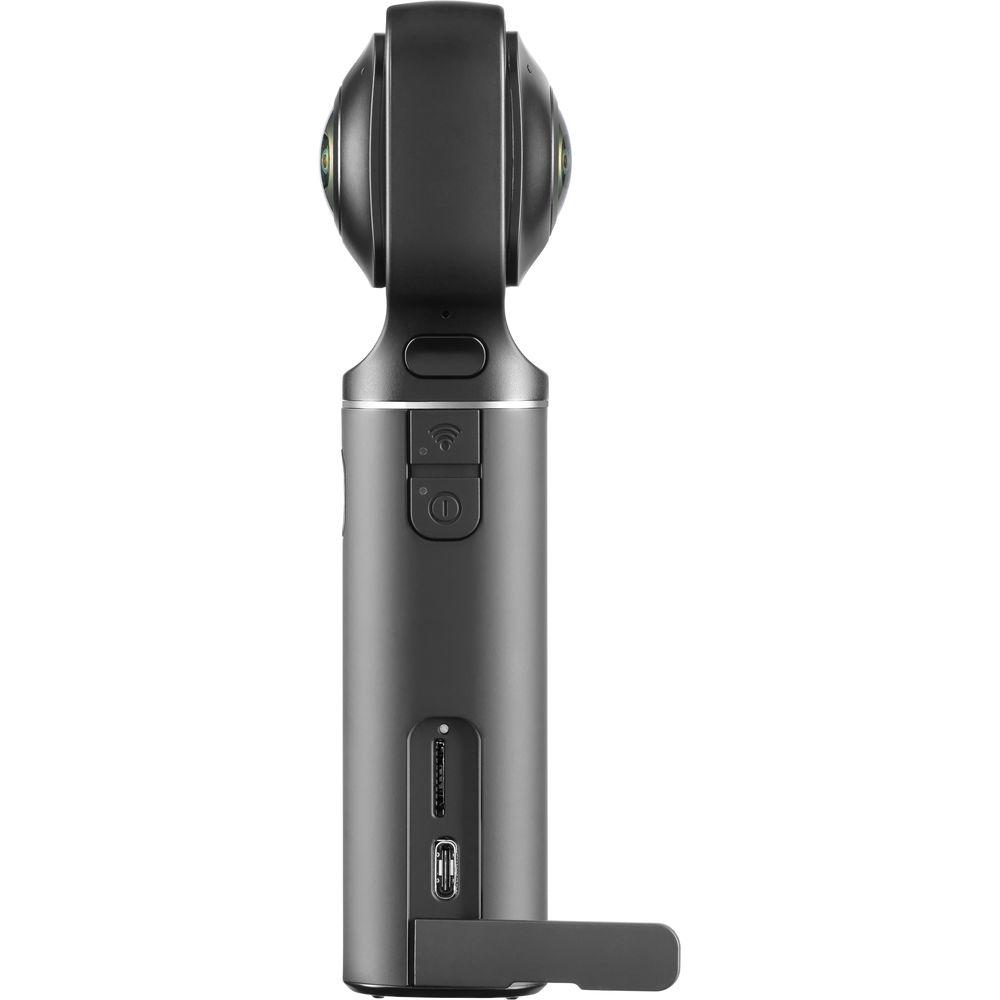

- The camera records to a UHS-III-compatible microSD card and can transfer data and charge the battery via a USB 3.0 Type-C port.
- Audio Support
- Four 48Hz MEMS microphones record to four AAC audio tracks to capture 360° surround sound.
- Wireless
- The camera is controlled by a smartphone app that connects to the camera via 2.4 GHz or 5 GHz 802.11a/b/g/n/ac Wi-Fi.
- Vuze XR Smartphone App
- The smartphone app allows you to edit, add post production effects like titling and filters, livestream, and share to social media sites such as HumanEyesZone, YouTube, and Facebook. The minimum requirements are Android 5 and iOS 11.
- Vuze XR Studio Desktop Software Requirements
- The Vuze VR Studio desktop app for Mac and Windows allows basic stitching and editing for both 180° and 360° 5.7K video, and can also stream and share to the internet. In order to run Vuze VR Studio software the following setup is advised:
Windows:
Minimum:
Windows 8.1, CPU with AVX support, 4GB RAM, Integrated or discrete GPU with 2GB RAM, DirectX 11, OpenCL 1.2, and the most recent drivers.
Recommended:
Windows 10, CPU with AVX support, 8 GB RAM or higher, Fast discrete GPU (NVIDIA, AMD) with 3GB RAM, DirectX 11, OpenCL 1.2, and the most recent drivers.
Mac:
macOS Sierra (12.0) or later, GPU supporting OpenCL 1.2 UPC: 634041992767 In the Box Vuze XR 3D VR180° / 2D 360° 5.7K Camera (Black) USB 3.0 Type-A to Type-C Cable Protective Pouch Carry Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vuze XR 3D VR180° 2D 360° 5.7K Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVuze XR Specs | | | Stitching Resolution | 5.7K | | Internal/External Stitching | Internal, External Stitching | | Still Image Resolution | JPEG: 18 Megapixel, 5760 x 3240 | | Number of Lenses | 2 | | | | Sensor | 1-Chip CMOS | | Sensor Resolution | 12 MP | | | | Maximum Aperture | f/2.4 | | Angle of View | Ultra Wide: 210° (fisheye) | | | | Recording Media | 1 x microSD/HC/XC | | Built-In Mic | Yes | | Channels | 4.0-Channel Surround | | Audio Format | AAC | | Sampling Frequency | AAC: 48.0 kHz | | | | Photo ISO Range | 100 - 1600 (Manual) | | Video ISO Range | 100 - 1600 (Manual) | | Burst Photo | None | | | | Waterproof Depth Rating | 98.0' / 30.0 m (Waterproof Housing) | | Wi-Fi | Yes, Wi-Fi 5 (802.11ac) | | | | Inputs | 1 x USB 3.0 Type-C charging and data | | Outputs | None | | Microphone Input | No | | Headphone Jack | No | | | | Battery | Rechargeable Lithium-Ion Polymer Battery Pack, 3.8 VDC, 1150 mAh
Max Runtime: 1 Hours per Charge | | Charging Method | USB | | Operating Temperature | 32 to 104°F / 0 to 40°C
Humidity: 0 to 95% | | Dimensions (W x H x D) | 6.0 x 2.2 x 1.5" / 152.0 x 56.0 x 39.0 mm | | Weight | 7.48 oz / 212 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 15.0 x 11.0 x 9.5" |
