User Manual for Wacom 13.3" MobileStudio Pro 13 Graphics Tablet Click to enlarge the picture
Contents of the user manual for the Wacom 13.3" MobileStudio Pro 13 Graphics
- Product category: Uncategorized Wacom
- Brand: Wacom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wacom Uncategorized
 |
User manual for the Wacom 13.3" MobileStudio Pro 13 Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wacom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wacom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wacom product will considerably shorten its lifespan!
|

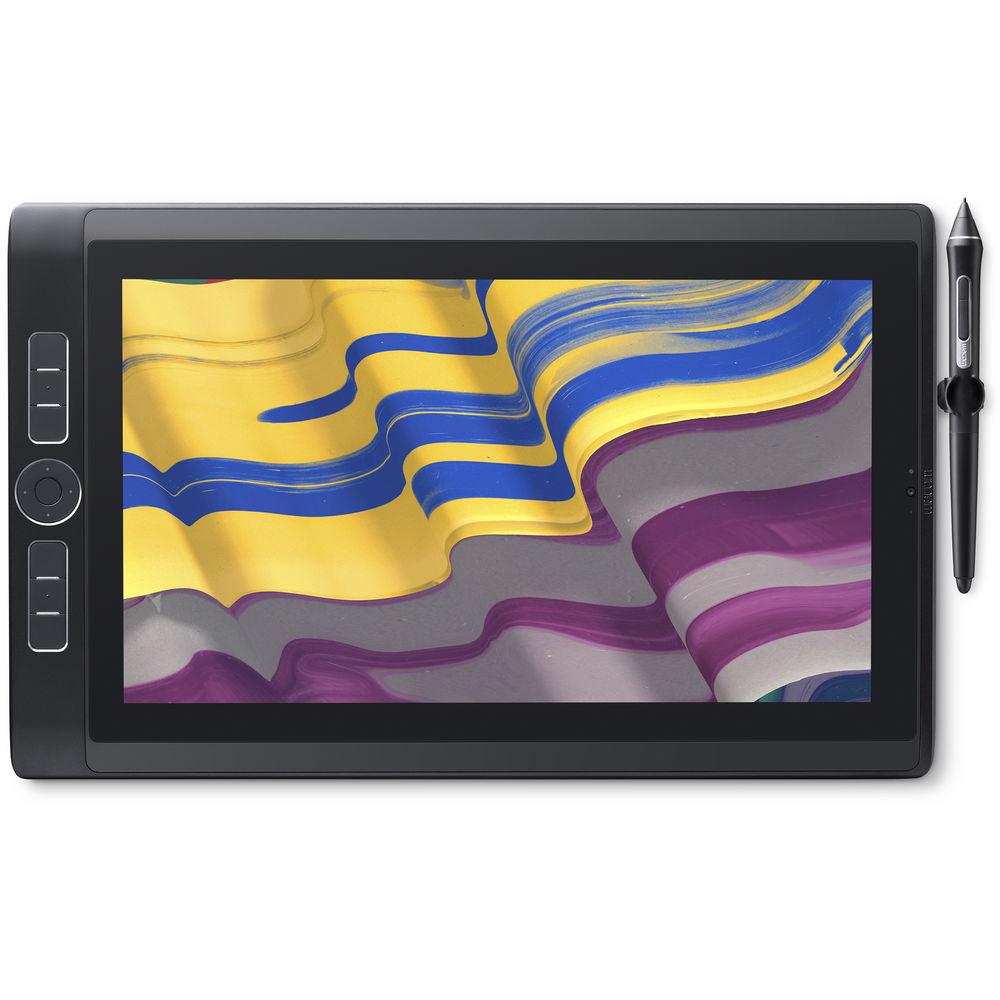

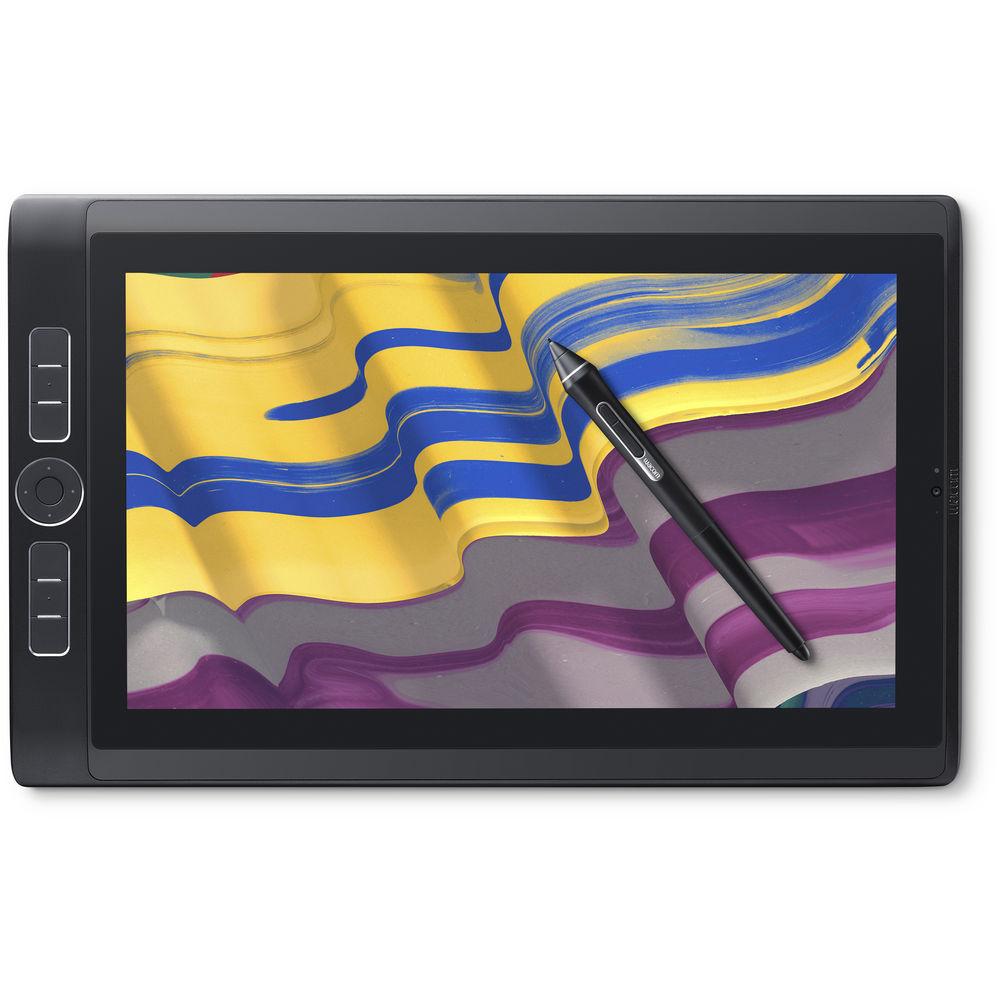

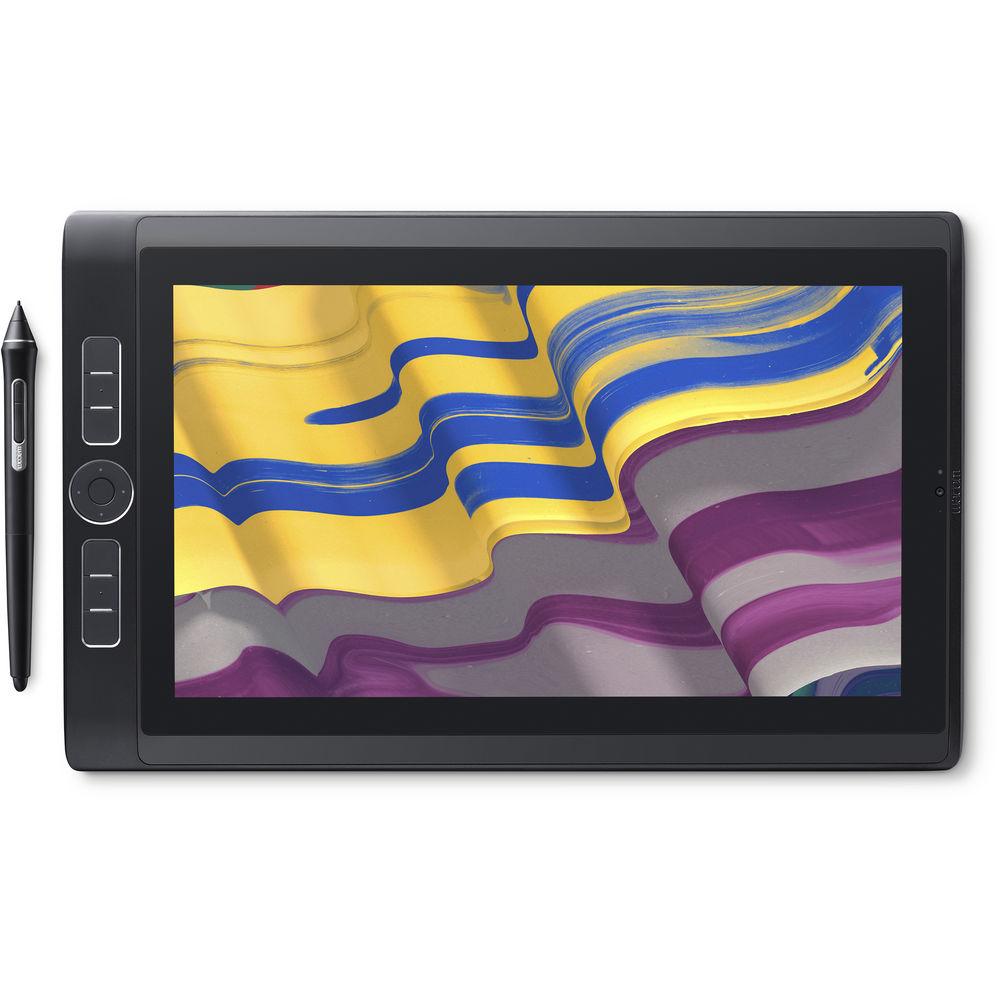

Product description The 13.3" MobileStudio Pro 13 Graphics Tablet from Wacom is not just your standard graphics tablet. Instead, it's a full-fledged Intel-powered tablet running Windows 10 Pro that's made for on-the-go professionals and creative users designing digital content. This tablet features a high-resolution WQHD 2560 x 1440 display, 80% CIE1931 coverage, integrated graphics, and more. The display also has an etched glass surface that simulates the resistance of pen on paper for a more lifelike feel. Furthermore, you'll be able to utilize touch gestures to easily zoom, rotate, and navigate through menus.
For your convenience, the MobileStudio Pro is equipped with multiple hotkeys and a Touch Ring to assist you with your work. After setting it up, you'll be able to program them as quick one-touch shortcuts to further speed up your workflow. Included with the MobileStudio Pro is the Wacom Pro Pen 2, a redesigned stylus with four times the pressure levels and accuracy of the original Pro Pen. Together, you'll be able to write, draw, and design with the precision and tools you need. Additionally, this select model is equipped with an Intel 3D RealSense camera that can be used to scan objects in real life and replicate it digitally. - Wacom Pro Pen 2

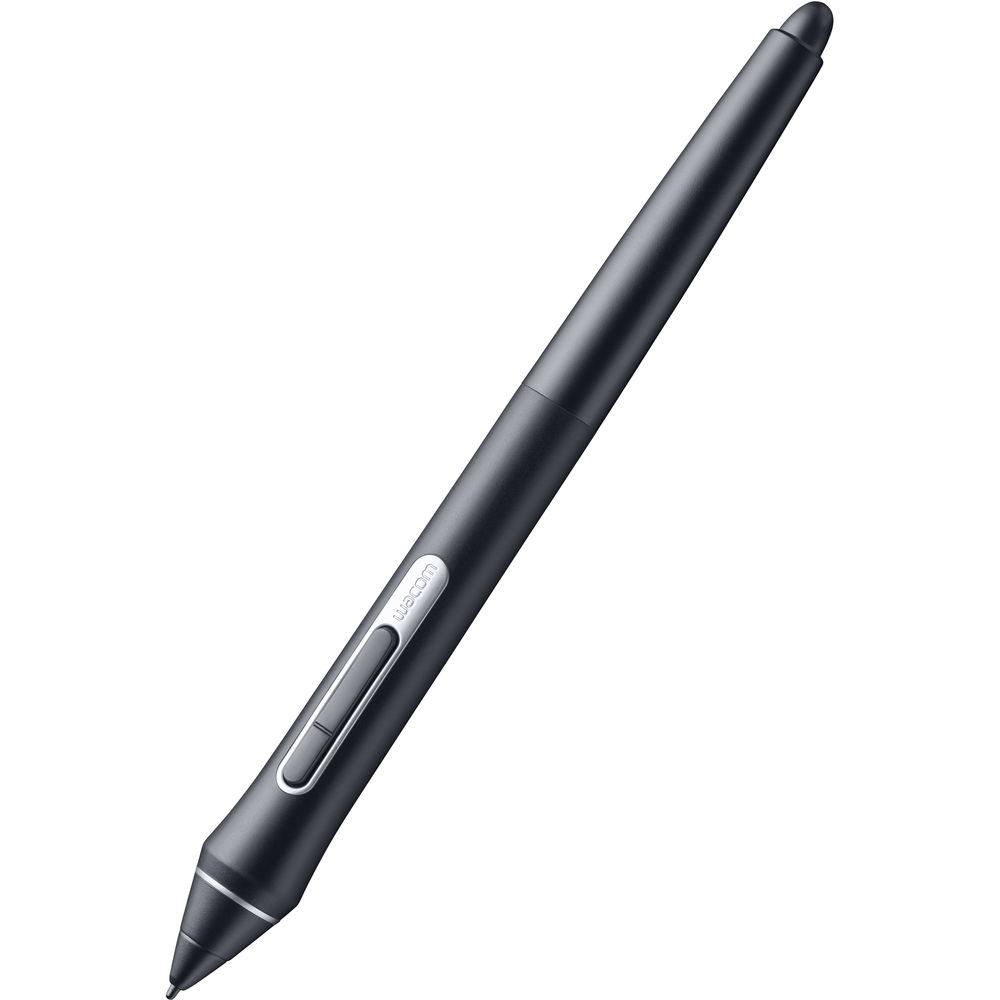

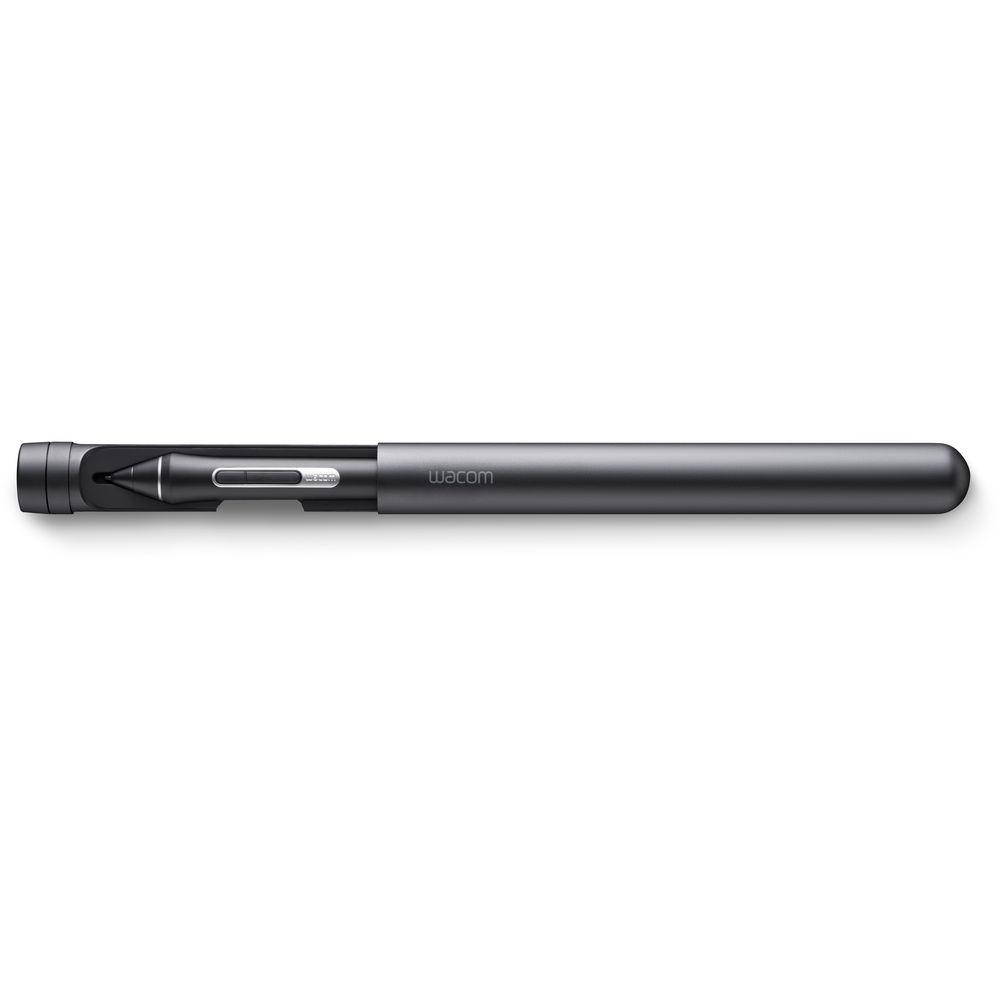

- The Pro Pen 2 has been designed to be more sensitive, accurate, and responsive. It is four times more pressure sensitive and accurate than its predecessor and features virtually no lag, natural tilt support, no parallax, and doesn't require any batteries or recharging.
- 3D Ready
- Equipped with an Intel 3D RealSense camera and the hardware to support it, the MobileStudio Pro can be used to capture real world objects and assist you with designing and sculpting 3D objects.
- High-Resolution and Immersive Colors
- The MobileStudio Pro 13 has a WQHD 2560 x 1440 display and a color accuracy of 96% of Adobe RGB. The etched glass surface also provides the perfect amount of resistance to simulate a pen and paper feel. It also supports multi-touch gestures for zooming and rotating your creations.
In the Box Wacom 13.3" MobileStudio Pro 13 Graphics Tablet Wacom Pro Pen 2 Pen Carrying Case Pen Holder 3 x Spare Nibs 4 x Color Rings Pen Nib Removal Tool Cleaning Cloth Power Cable & Adapter 1-Year of Artec 3D Software (Registration Required) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wacom 13.3" MobileStudio Pro 13 Graphics Tablet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | | | Panel Type | IPS | | Size | 13.3" | | Aspect Ratio | 16:9 | | Native Resolution | 2560 x 1440 | | Contrast Ratio | 800:1 | | Color Gamut | 80% CIE1931 | | Response Time | 25 ms | | Display Colors | 16.7 Million | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Active Area | 11.6 x 6.5" / 294.64 x 165.10 mm | | Number of Buttons | 6 | | Buttons Customizable | Yes | | Connectivity Ports | 3 x USB Type-C | | Connectivity Cable | USB Type-C | | Dimensions (W x H x D) | 14.4 x 9.0 x 0.7" / 365.8 x 228.6 x 17.8 mm | | | | Pressure Levels | 8192 | | Tilt | 60° | | Number of Switches | 2 | | Resolution | 5080 lpi | | Technology | Electromagnetic Resonance (EMR) | | | | Wireless Connectivity | 2.4 GHz RF, Bluetooth | | Bluetooth Protocol | Bluetooth | | Bluetooth | 4.1 | | Battery Type | Lithium-Ion Polymer | | Maximum Battery Life | 6 Hours | | Operating System Support | Windows | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3 to 5 A | | Power Consumption | <96 W | | Weight | 3.1 lb / 1.4 kg |
