User Manual for Wacom Cintiq 16 Creative Pen Display Click to enlarge the picture
Contents of the user manual for the Wacom Cintiq 16 Creative Pen Display
- Product category: Graphic Tablets & Digital Pens Wacom
- Brand: Wacom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wacom Graphic Tablets & Digital Pens
 |
User manual for the Wacom Cintiq 16 Creative Pen Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wacom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wacom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wacom product will considerably shorten its lifespan!
|

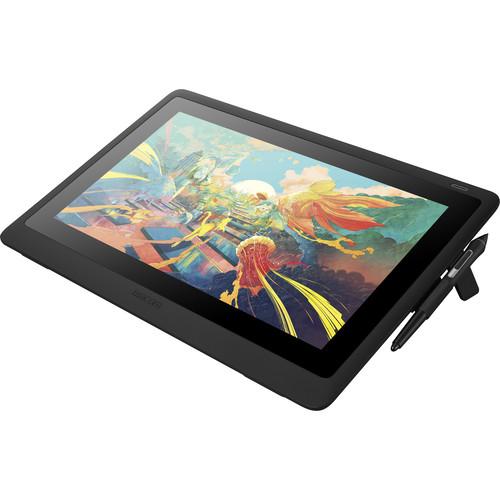

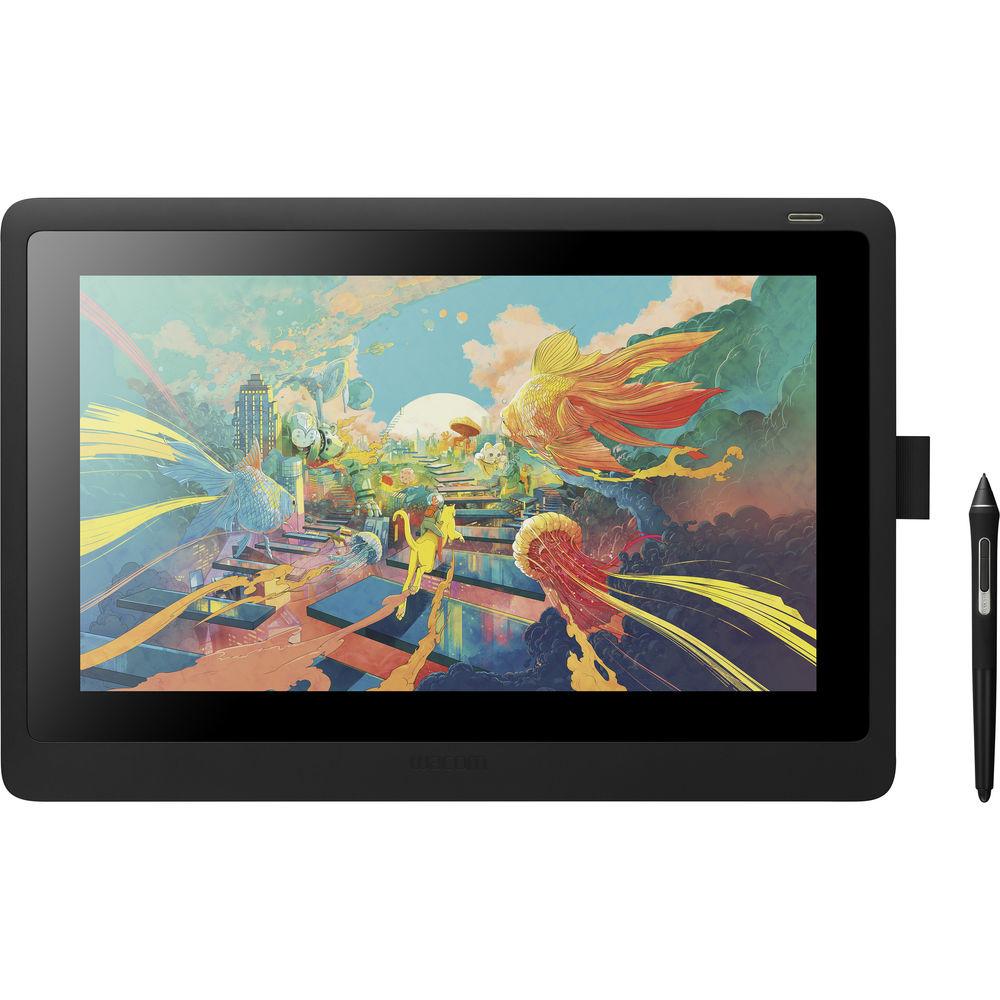

Product description CES 2019: Wacom Introduces Cintiq 16 Pen Display Read More The Cintiq 16 Creative Pen Display from Wacom is designed for casual artists and professionals alike who want a medium-sized drawing tablet. Measuring 15.6", its display has a 1920 x 1080 Full HD resolution for clear details as well as an anti-glare coating with reduced parallax to help minimize distractions and replicate a pen-to-paper-like feel. Specs-wise, its display has a 210 cd/m² brightness rating, a 1000:1 static contrast ratio, wide 176° viewing angles, and support for up to 16.7 million colors with 72% NTSC color coverage. For a more comfortable drawing experience, the Cintiq 16 has foldable built-in legs.
Apart from the tablet, the Cintiq 16 comes with a Wacom Pro Pen 2, a natural and precise stylus that has four times the pressure sensitivity (8192 pressure levels) and accuracy compared to its previous iteration. Furthermore, there's virtually no lag or batteries and recharging required. With tilt support, you'll be able to draw naturally as you would with a pencil or brush. For additional features and functionality, you can pick up an optional ExpressKey Remote to help boost your productivity. - Wacom Pro Pen 2
- The Wacom Pro Pen 2 is designed for graphical tablets and provides you with a smooth and responsive writing or drawing experience. It features 8192 levels of pressure sensitivity, 60° tilt recognition, two side buttons, and virtually lag-free tracking. It's also built with Electro Magnetic Resonance (EMR) technology for battery-free use. Aside from the Pro Pen 2, a set of accessories are included such as a pen holder, replacement nibs, and a nib removal tool.
- Display

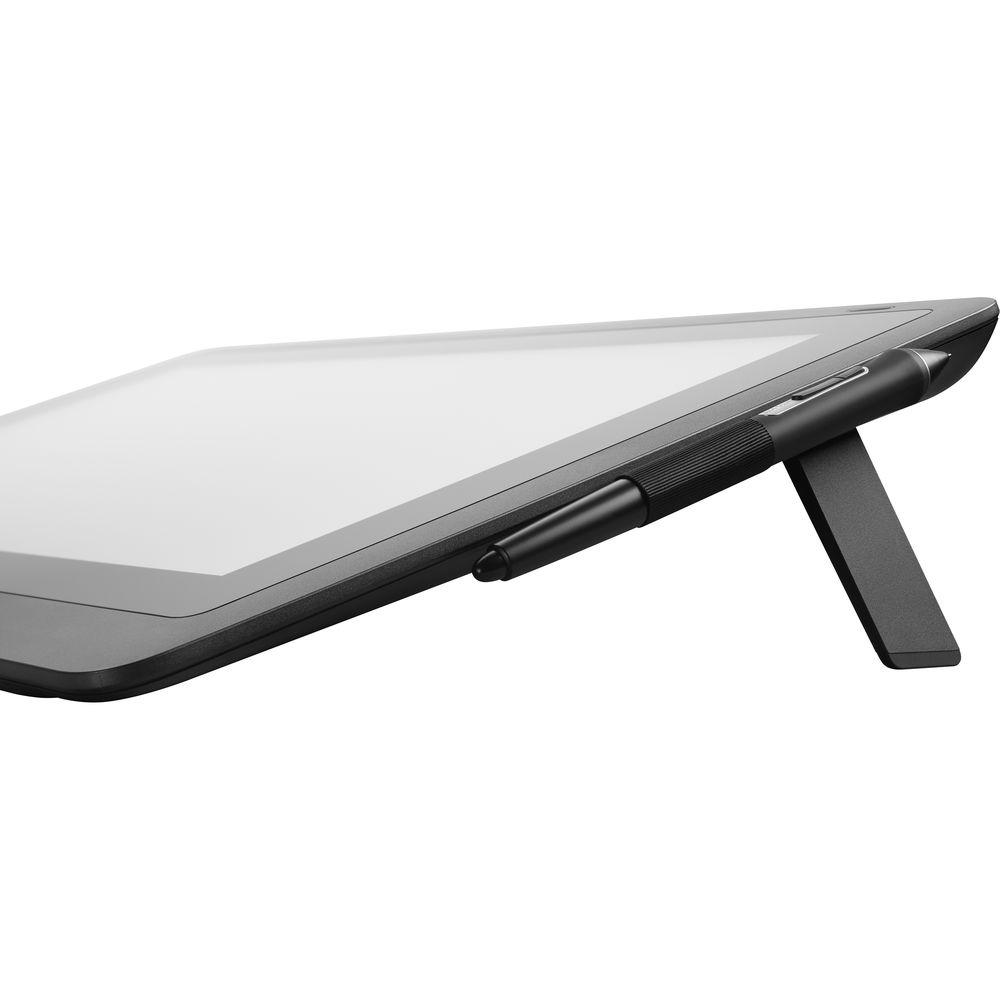

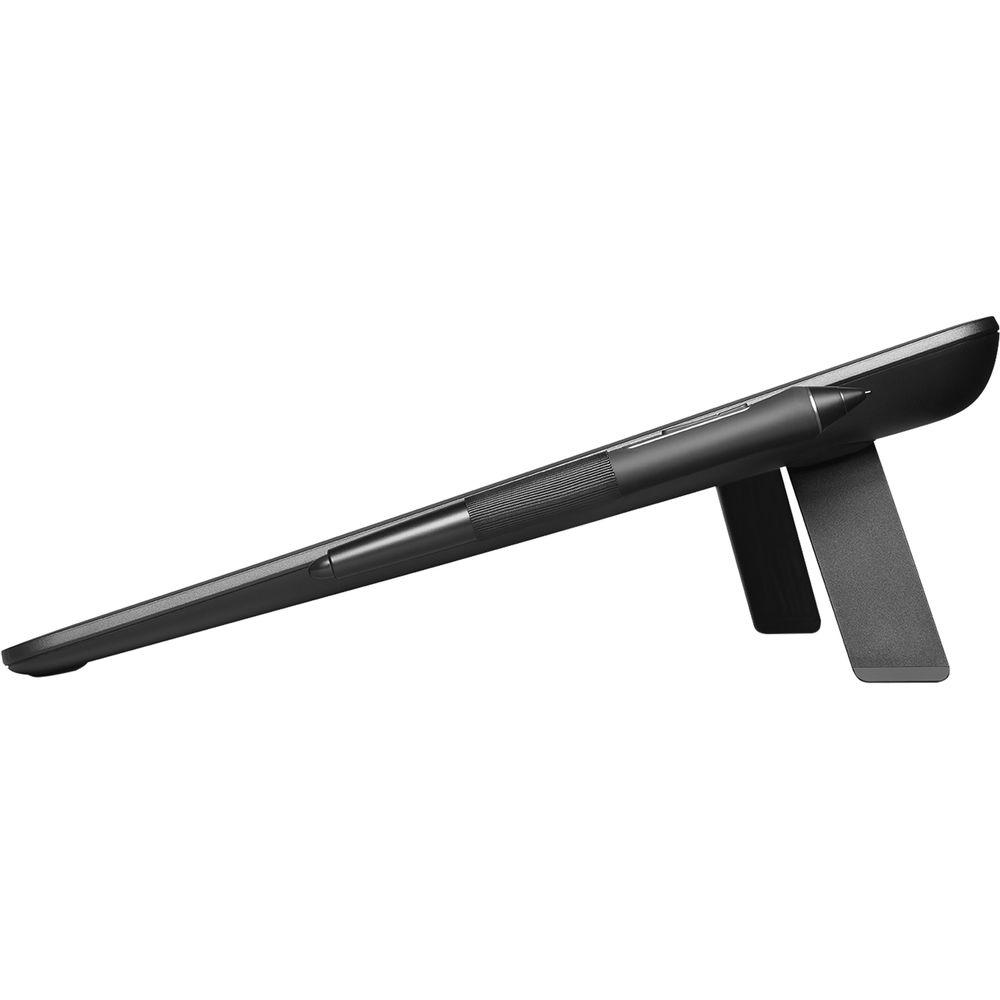

- The 15.6" display has a 1920 x 1080 Full HD resolution, an anti-glare coating to minimize reflections, and reduced parallax for a more pen-to-paper-like feel. For your convenience, the Cintiq 16 also has foldable built-in legs, so you can find your optimal working angle.

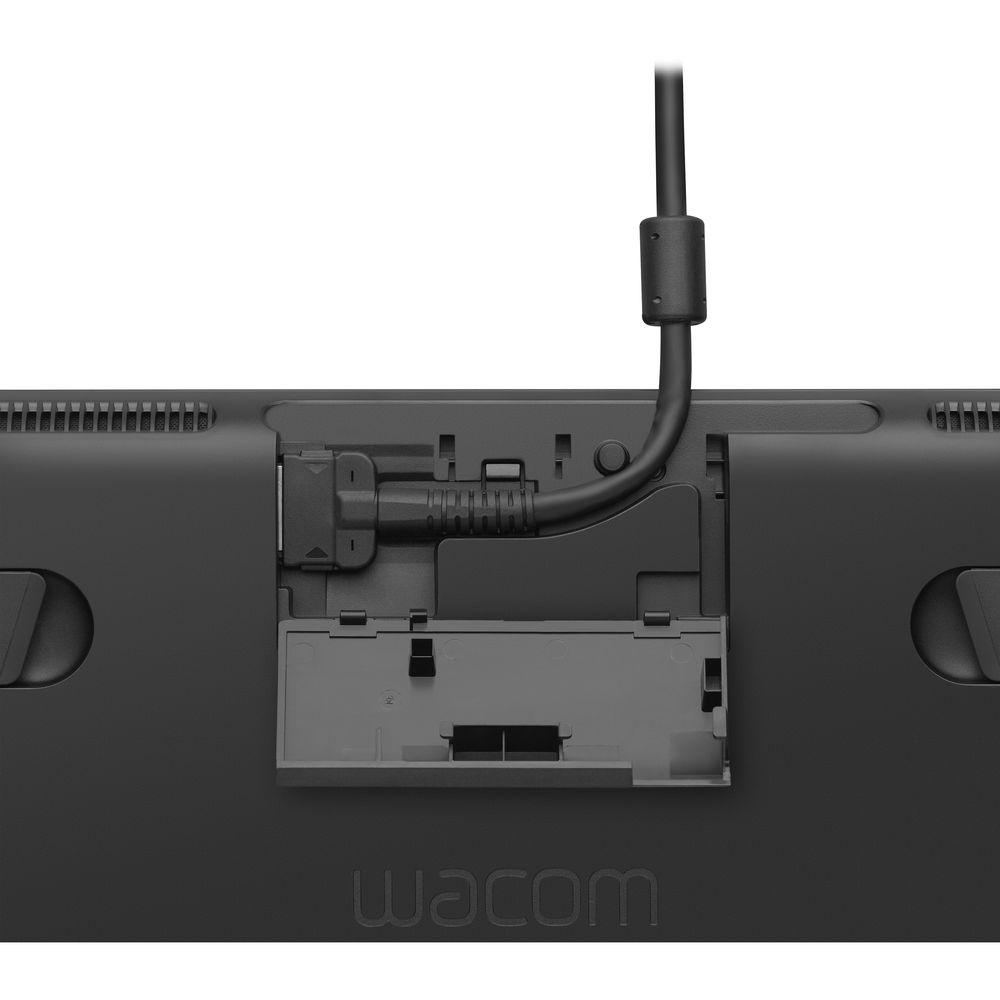

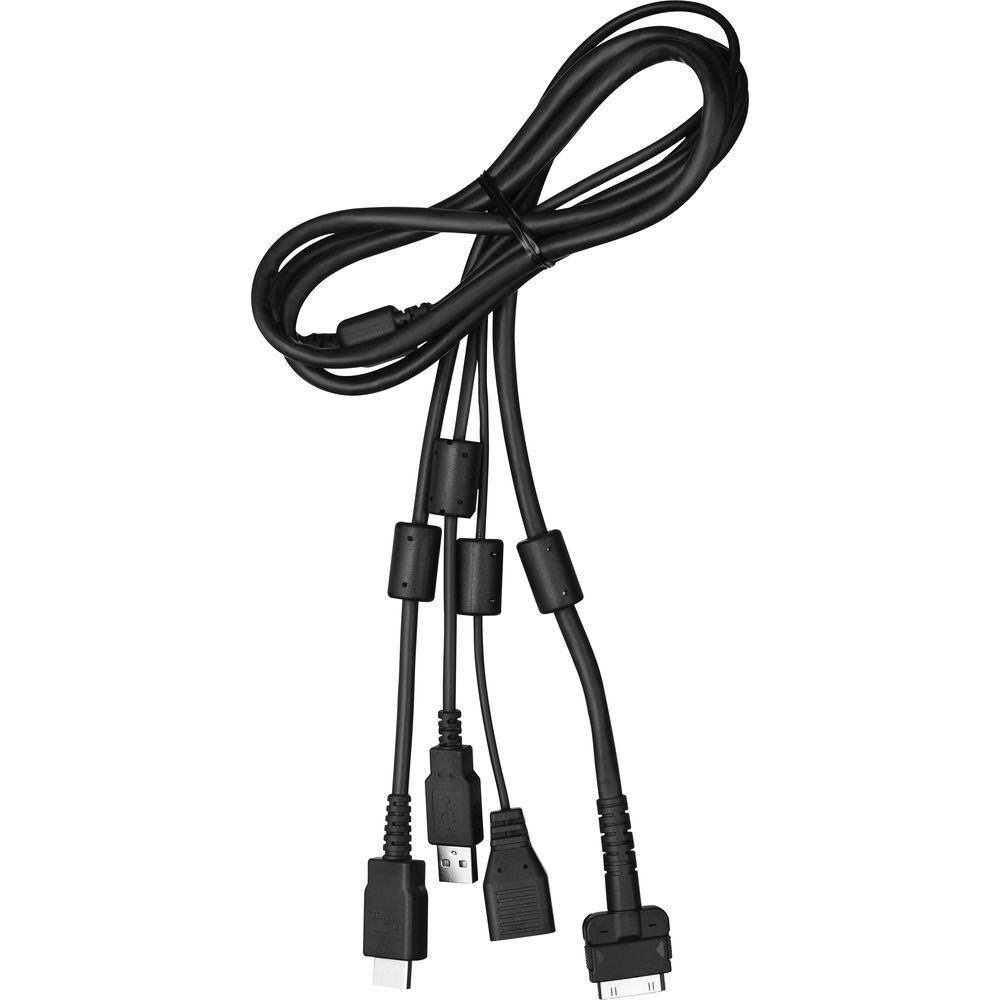

UPC: 753218986399 In the Box Wacom Cintiq 16 Creative Pen Display Wacom Pro Pen 2 Detachable Pen Holder 3 x Standard Replacement Nibs Nib Removal Tool 3-in-1 Cable Power Cable & Adapter Limited 1-Year Warranty (Japan, Asia Pacific, & China) Limited 2-Year Warranty (USA, Canada, Latin America, Europe, Middle East, & Africa) Table of Contents
|
Upload User Manual
Have you got an user manual for the Wacom Cintiq 16 Creative Pen Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWacom Cintiq 16HD Specs | | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Video Ports | 1 x HDMI | | Contrast Ratio | 1000:1 | | Color Gamut | 72% NTSC | | Brightness | 210 cd/m² | | Response Time | 25 ms | | Display Colors | 16.7 Million | | Viewing Angle | Horizontal: 176°
Vertical: 176° | | | | Active Area | 13.6 x 7.6" / 345.44 x 193.04 mm | | Connectivity Cable | USB Type-A | | Dimensions (W x H x D) | 16.6 x 11.2 x 1.0" / 421.6 x 284.5 x 25.4 mm | | | | Pressure Levels | 8192 | | Tilt | 60° | | Number of Switches | 2 | | Technology | Electromagnetic Resonance (EMR) | | | | Operating System Support | Windows, macOS/OS X | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 21.2 x 18.4 x 1.3" |
