User Manual for Wacom Cintiq Pro 24 Creative Pen Display Click to enlarge the picture
Contents of the user manual for the Wacom Cintiq Pro 24 Creative Pen
- Product category: Graphic Tablets & Digital Pens Wacom
- Brand: Wacom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wacom Graphic Tablets & Digital Pens
|
User manual for the Wacom Cintiq Pro 24 Creative Pen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wacom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wacom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wacom product will considerably shorten its lifespan!
|
Product description In the Field: Wacom Cintiq Pro 24 Pen Display Read More - The New Wacom Cintiq Pro 24 and Cintiq Pro 32 - Product Trailer

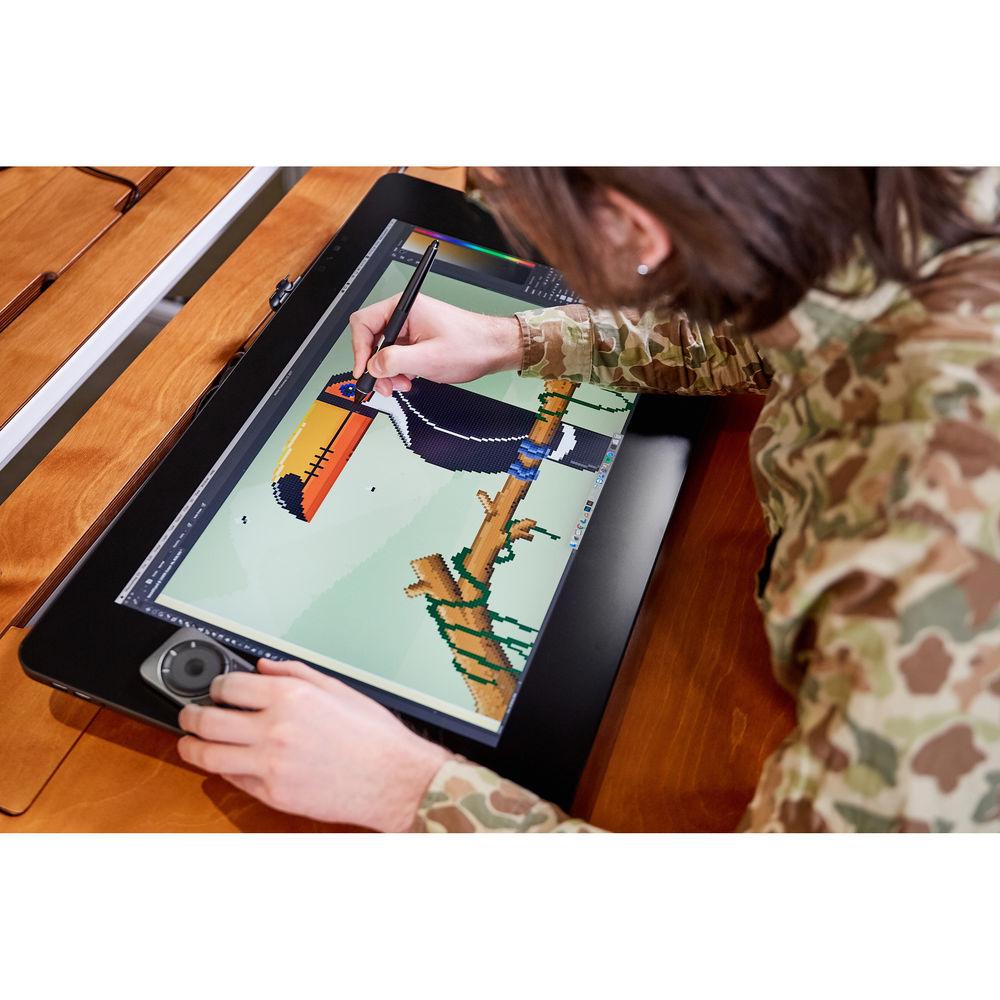

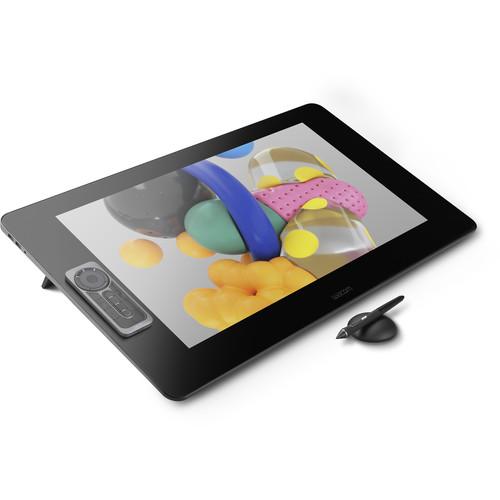

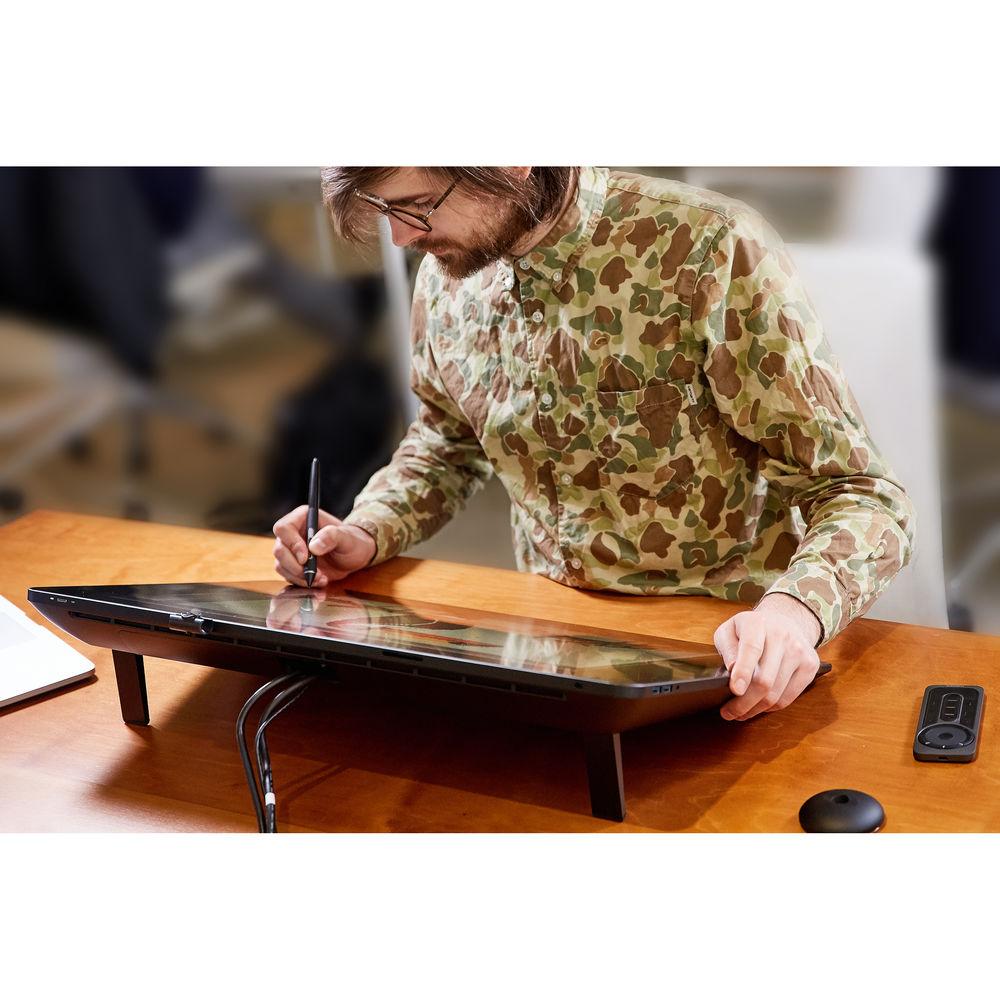

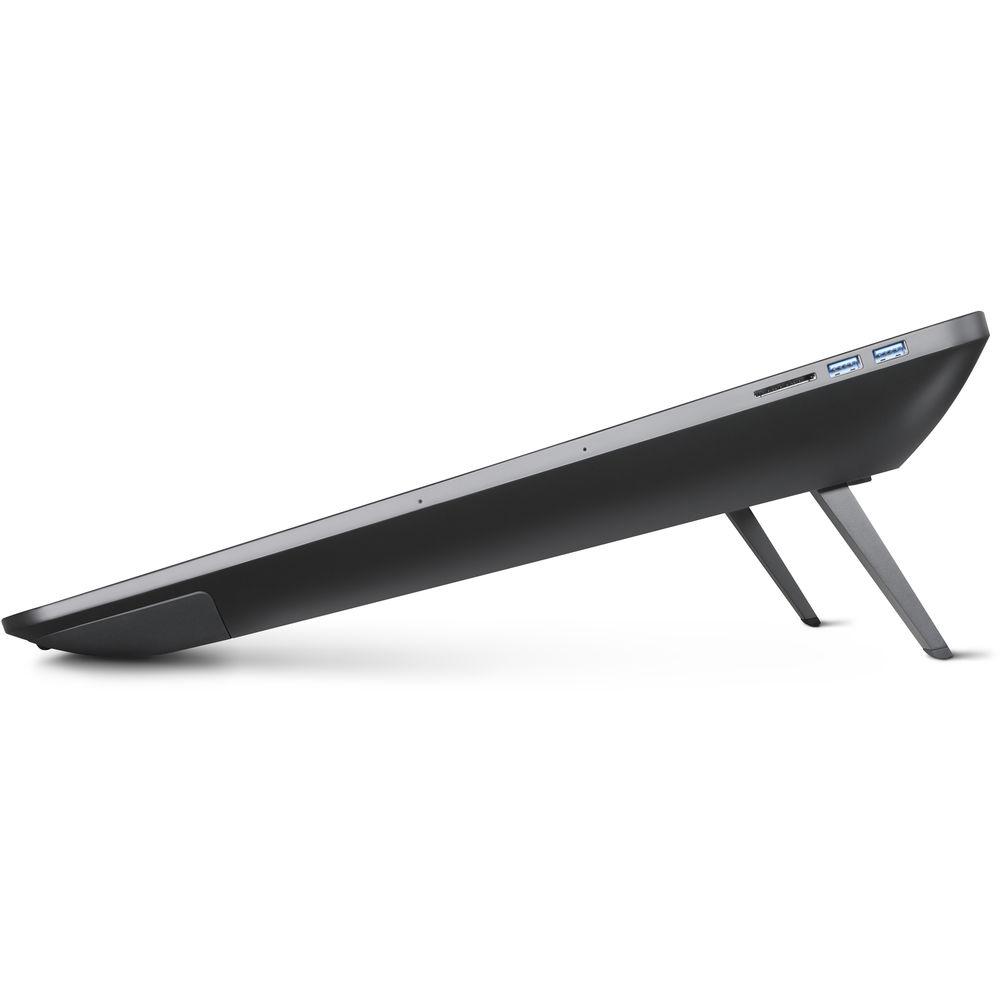

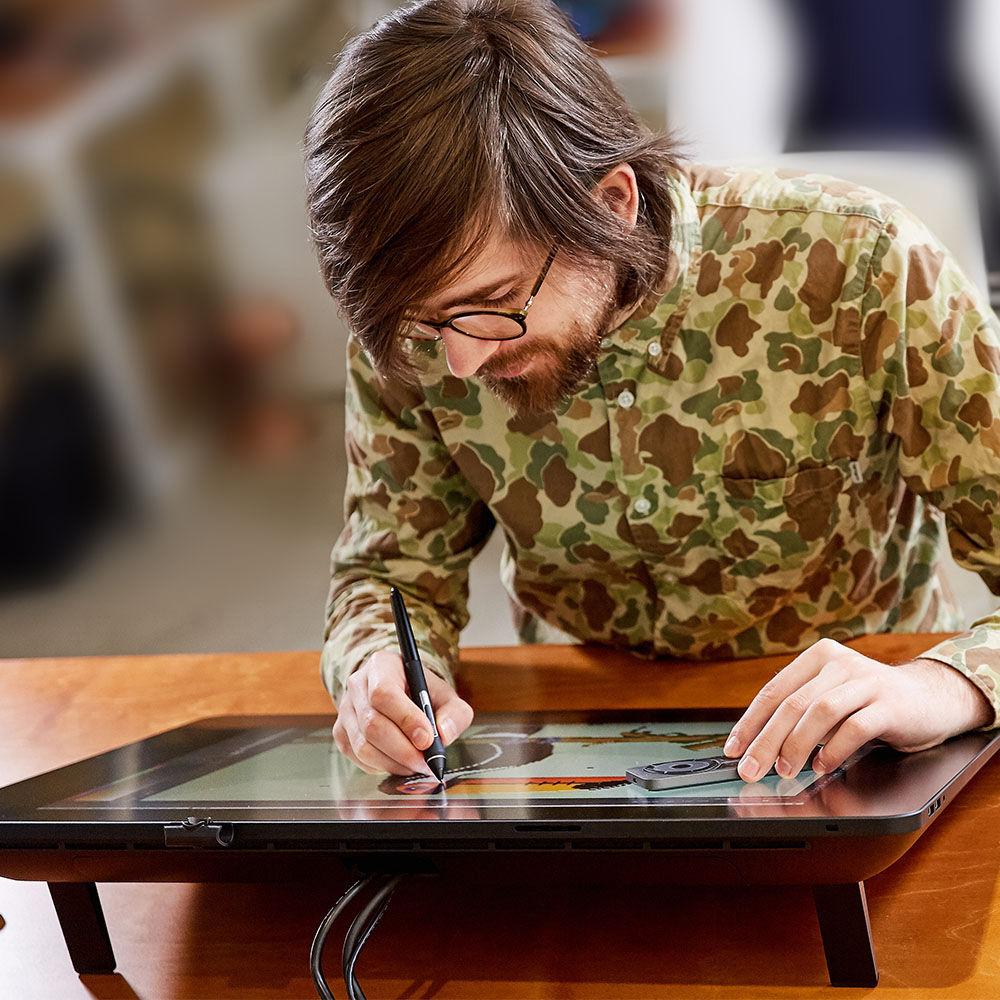

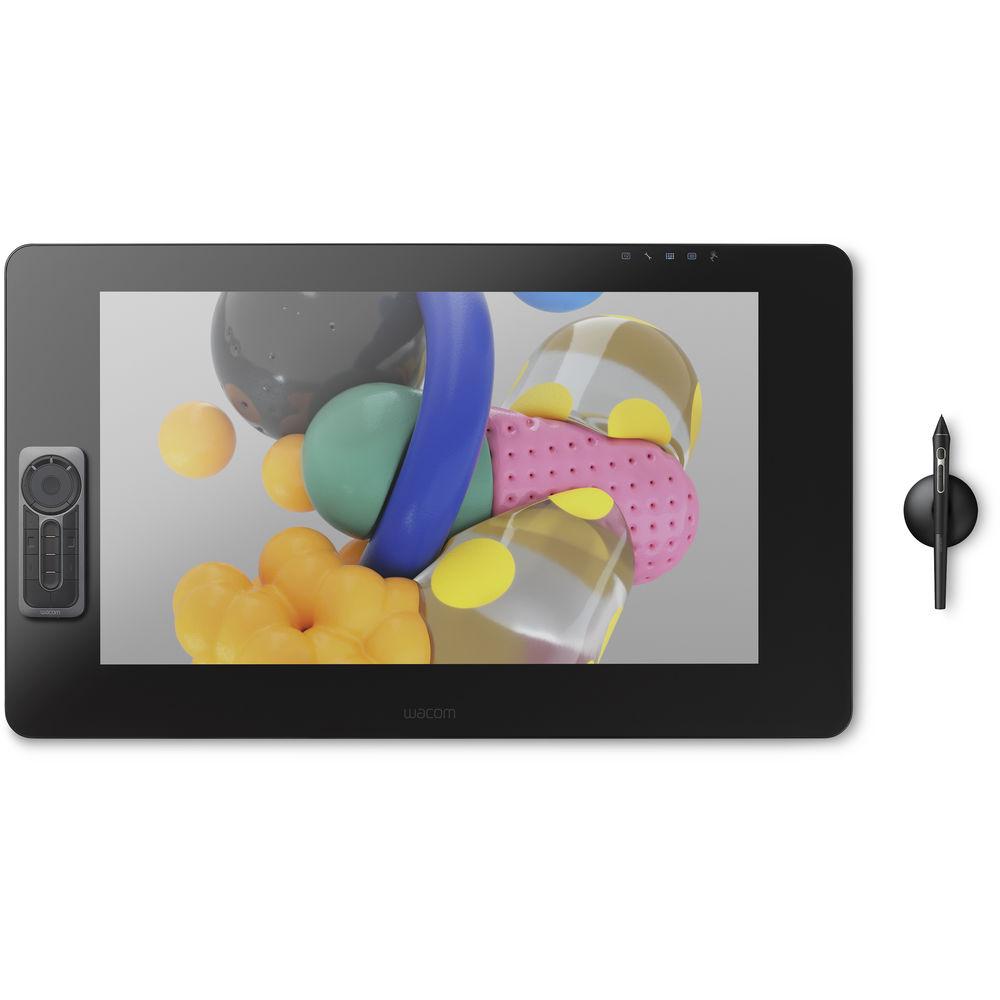

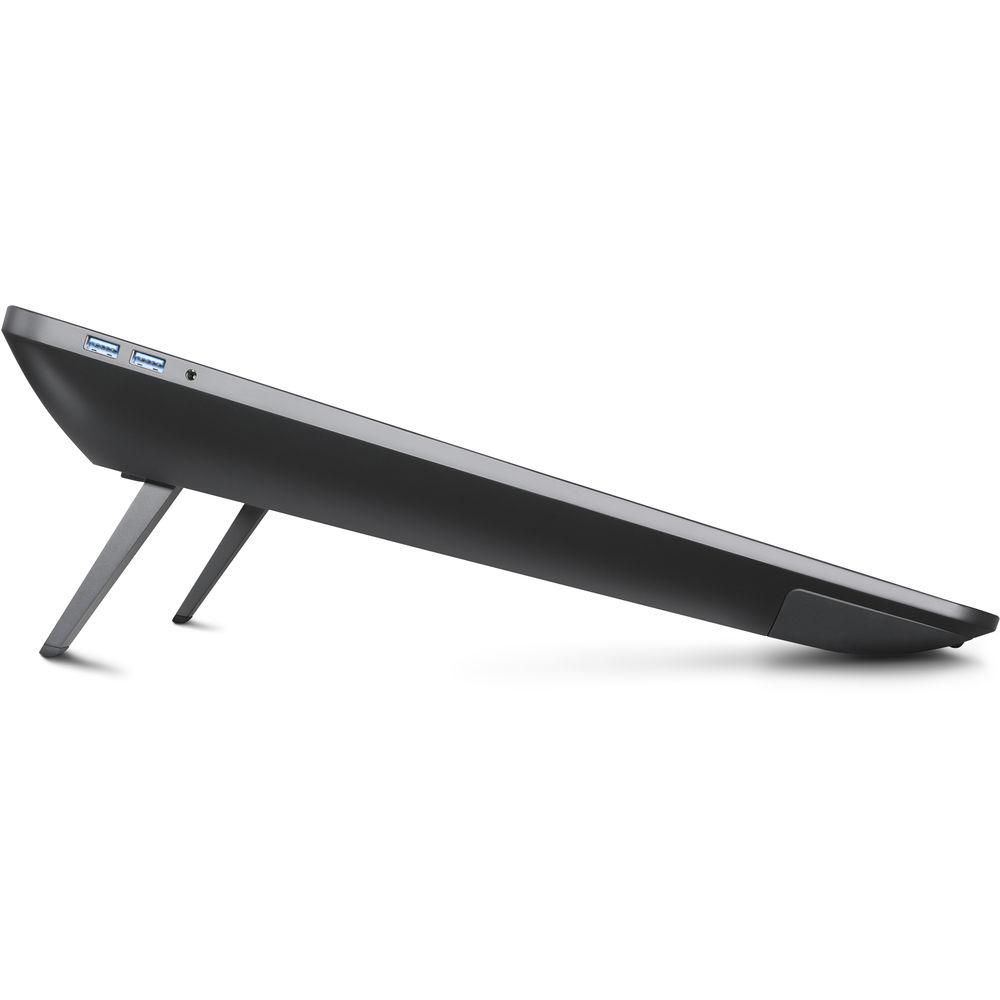

The Cintiq Pro 24 Creative Pen Display from Wacom is a drawing tablet featuring a 23.6" IPS display with a 3840 x 2160 4K resolution. For color accuracy, it covers 99% of the Adobe RGB color space and supports 1.07 billion colors, ideal for professionals handling color-sensitive work. Thanks to its etched glass screen, you can see and draw directly where you want to with minimal parallax for a pen-on-paper feel. Connect it to your system via USB Type-C, HDMI, or DisplayPort. On the back is a built-in stand that supports up to 20° to fit your viewing and drawing preference. Moreover, it comes with an ExpressKey remote and a Wacom Pro Pen 2 stylus to help you get started creating. - Wacom Cintiq Pro Engine

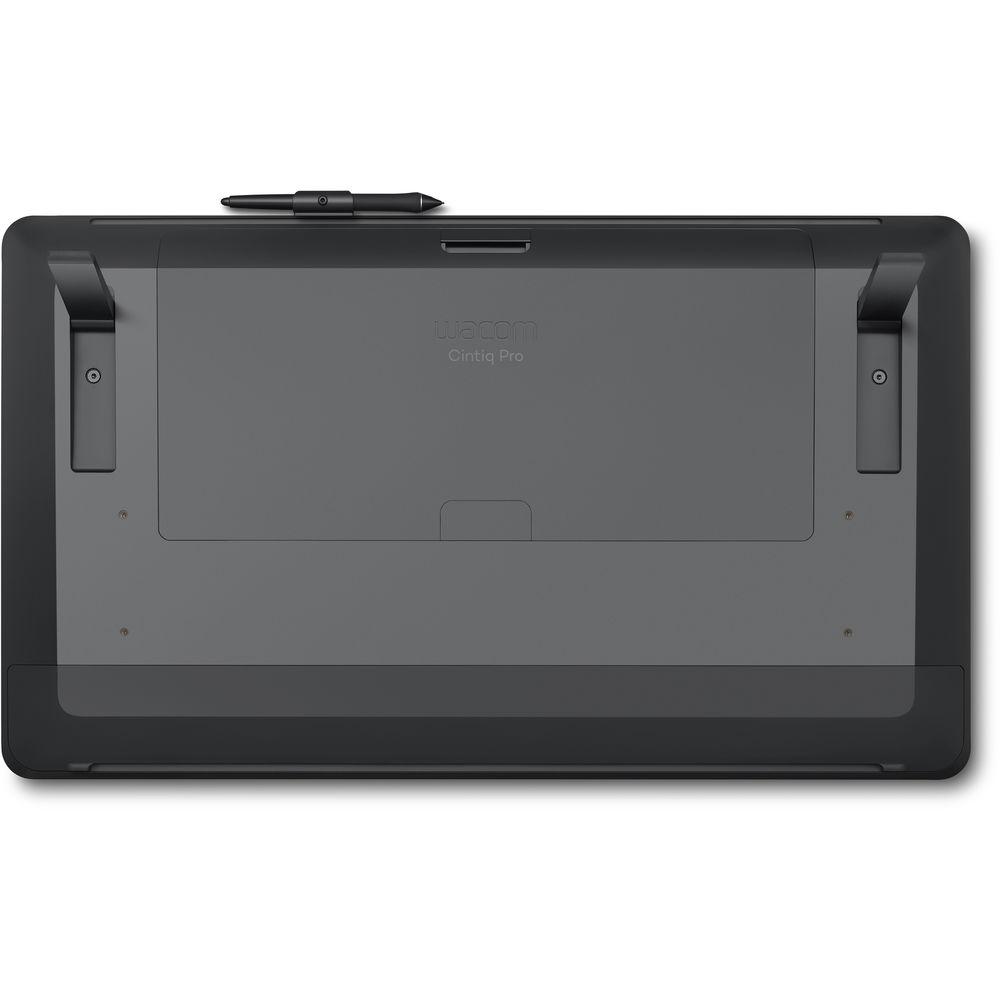

- Transform your Cintiq Pro into its own standalone creative pen computer with the optional Wacom Cintiq Pro Engine creative PC module. This module attaches into the back of your Cintiq Pro, eliminating cables and providing you with up to an Intel Xeon processor and NVIDIA Quadro graphics for a more convenient and powerful system.
- Wacom Pro Pen 2

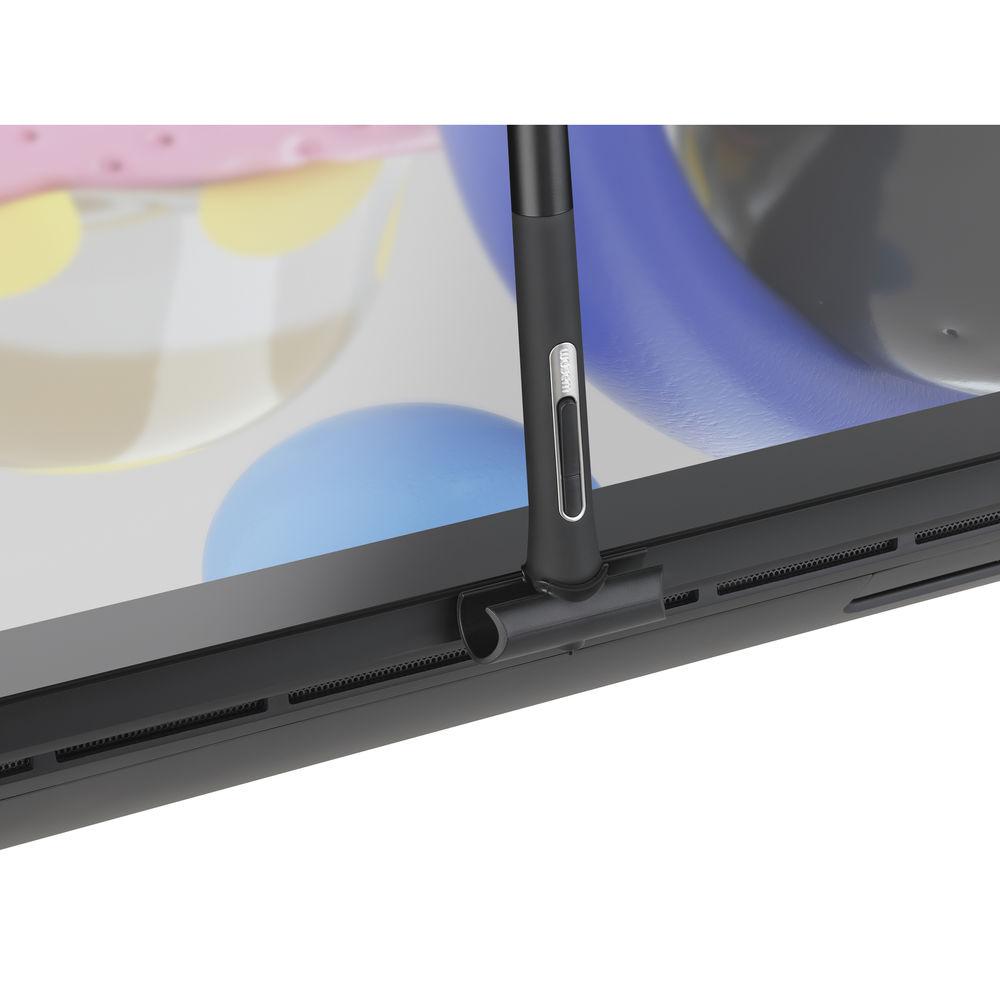

- The Wacom Pro Pen 2 provides you with a smooth and responsive writing or drawing experience. It features 8192 levels of pressure sensitivity, 40° of tilt support, no parallax, and virtually lag-free tracking. Moreover, it doesn't have any batteries so you won't have to charge it.
- ExpressKey Remote
- The included ExpressKey Remote has 17 custom application-specific keys and a finger-sensitive Touch Ring for access to time-saving shortcuts.
UPC: 753218986924 In the Box Wacom Cintiq Pro 24 Creative Pen Display Wacom Pro Pen 2 with 4-Color Pen Ring Set ExpressKeyremote USB Type-A RF Dongle Micro-USB Charger Cable Pen Stand 6 x Standard Replacement Tips 4 x Felt Replacement Tips Nib Removal Tool 180W AC Adapter Power Cable USB Type-A Cable USB Type-C Cable DisplayPort Cable HDMI Cable DisplayPort to mini DisplayPort Adapter Cleaning Cloth Limited 2-Year Warranty More info from Wacom Table of Contents
|
Upload User Manual
Have you got an user manual for the Wacom Cintiq Pro 24 Creative Pen Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWacom Cintiq Pro Specs | Panel Type | IPS | Size | 23.6" | Aspect Ratio | 16:9 | Native Resolution | 3840 x 2160 | Video Ports | 1 x USB Type-C 1 x HDMI 1 x DisplayPort | Contrast Ratio | 1000:1 | Color Gamut | 99% Adobe RGB | Brightness | 350 cd/m² | Response Time | 14 ms | Display Colors | 1.07 Billion | Viewing Angle | Horizontal: 176° (88/88) Vertical: 176° (88/88) | | Active Area | 20.55 x 11.57" / 522 x 294 mm | Number of Buttons | 17 | Buttons Customizable | Yes | Connectivity Ports | 6 x USB Type-A 1 x USB Type-C | Connectivity Cable | USB Type-C | Dimensions (W x H x D) | 26.7 x 15.5 x 1.9" / 677.0 x 394.0 x 47.0 mm | | Pressure Levels | 8192 | Tilt | 40° | Number of Switches | 4 | Resolution | 5080 lpi | Technology | Electromagnetic Resonance (EMR) | | Operating System Support | Windows, macOS/OS X | Adjustments | Tilt | Multi-Touch | No | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 50 to 60 A | Power Consumption | 100 W | Weight | 15.4 lb / 7.0 kg | | Package Weight | 28.0 lb | Box Dimensions (LxWxH) | 32.0 x 22.0 x 8.0" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
