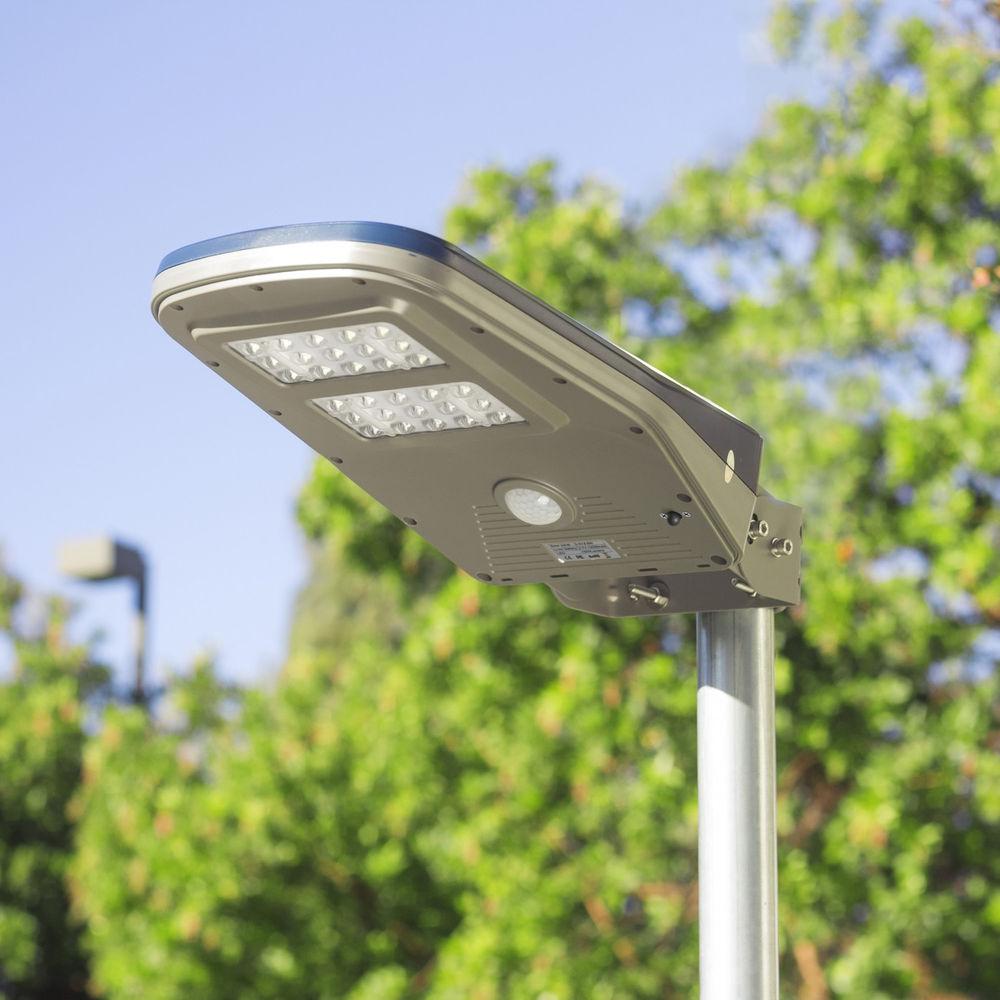

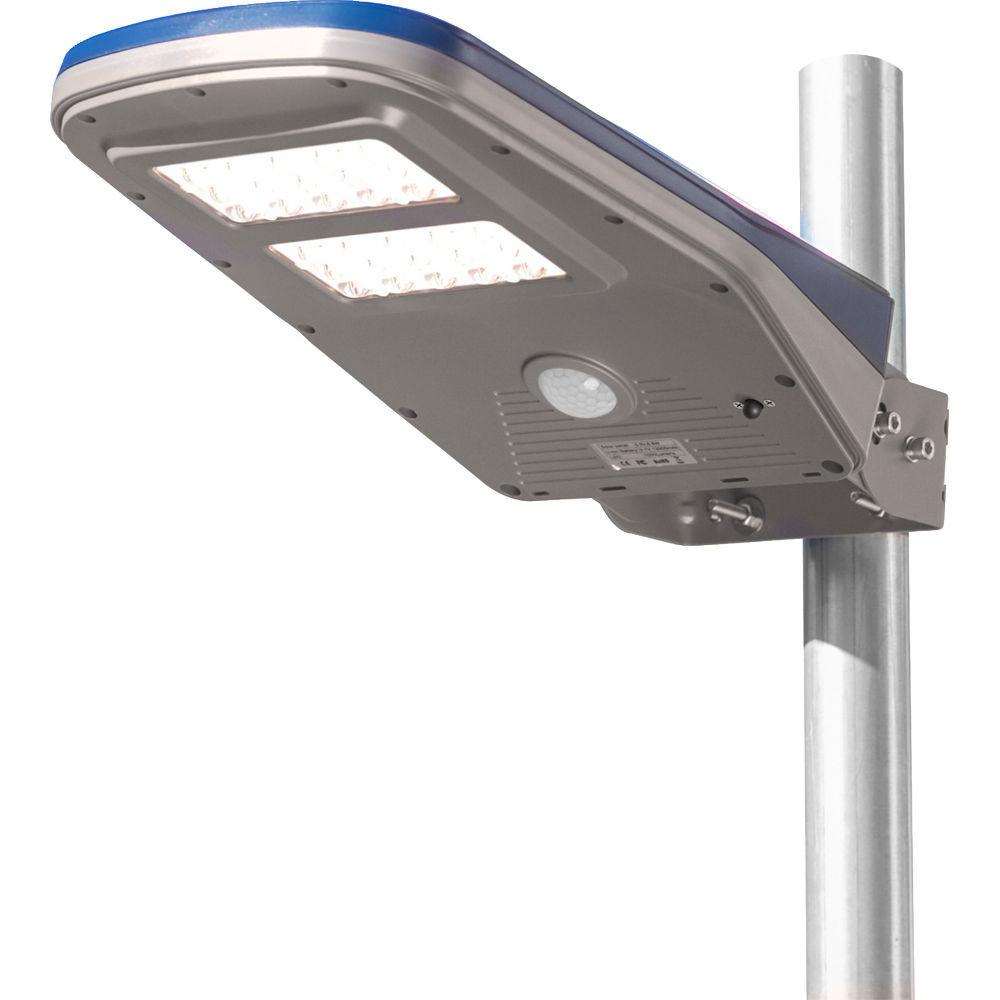

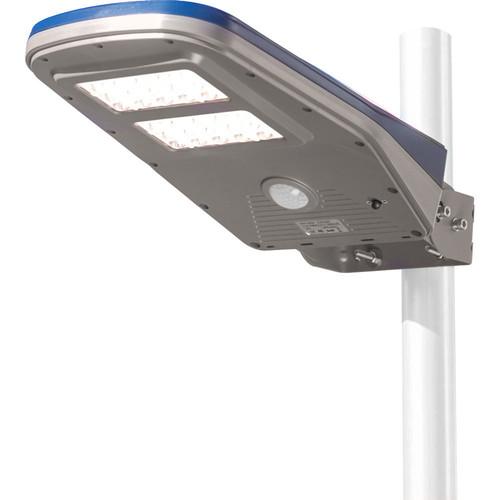

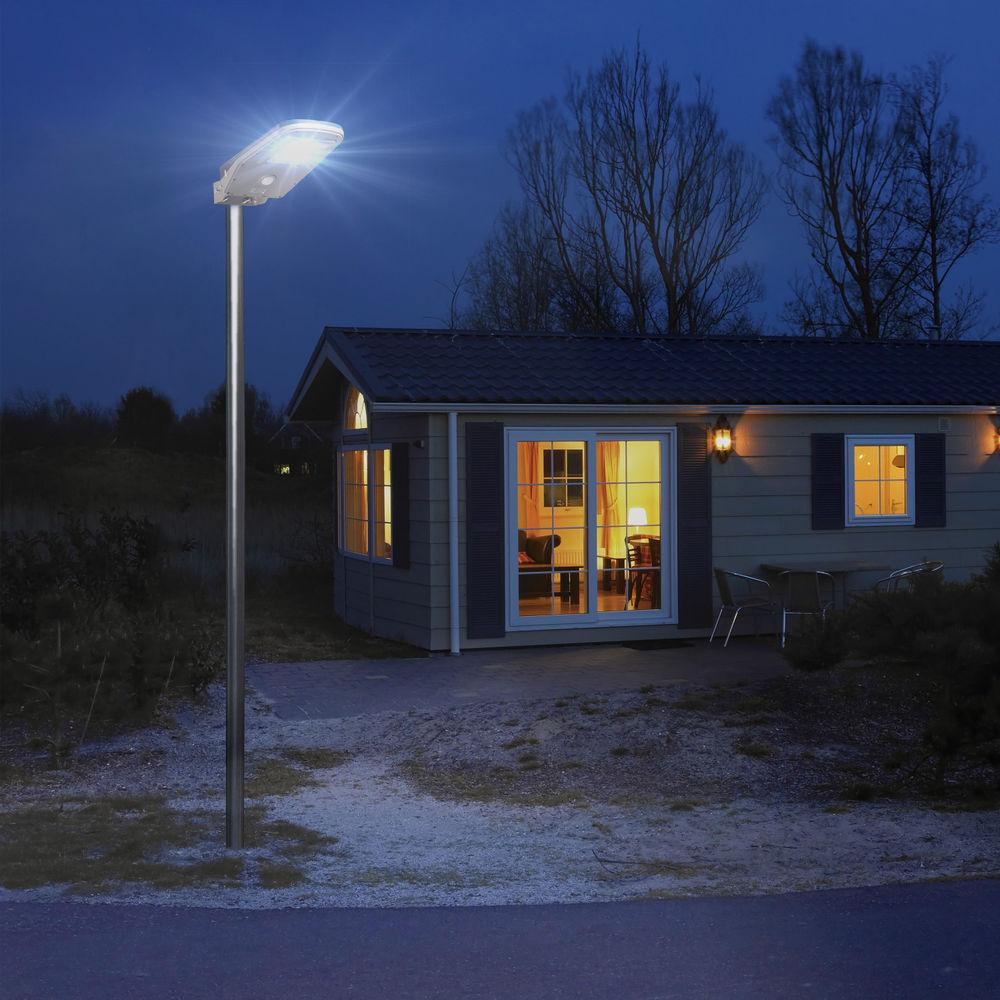

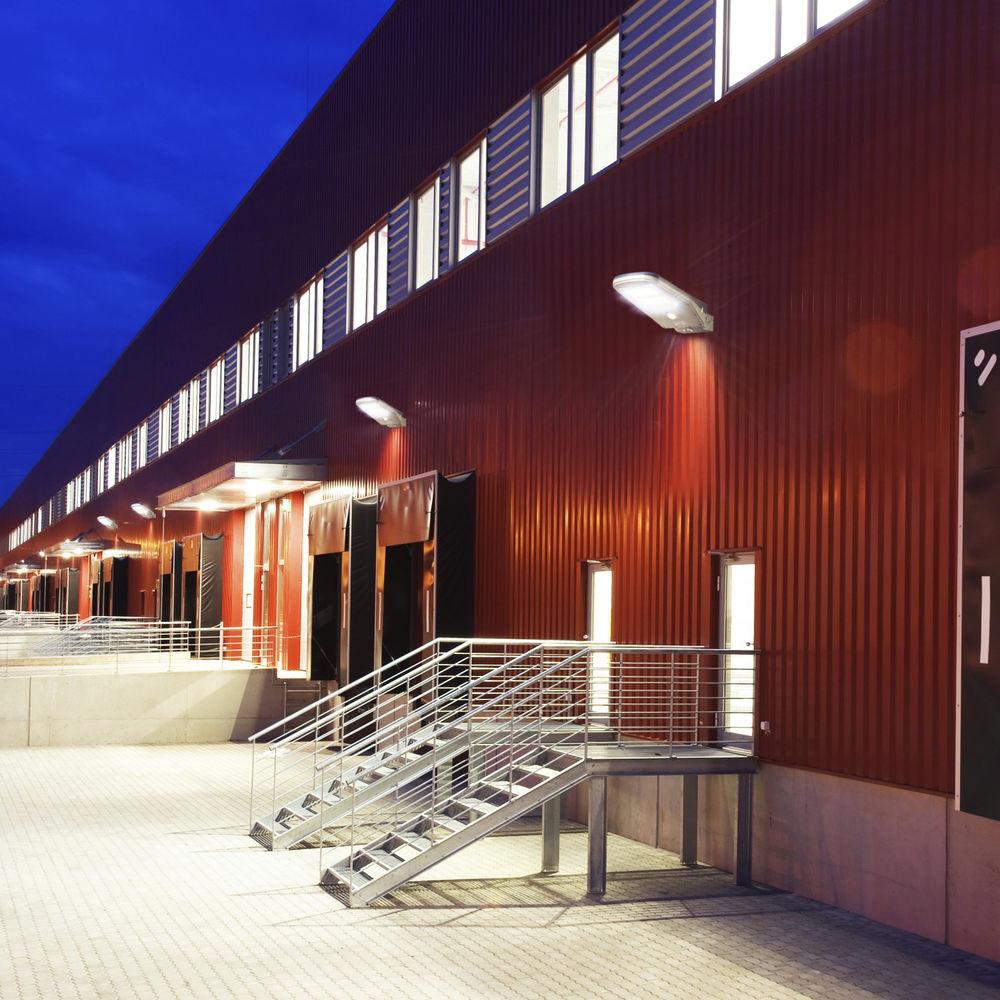

Product description Light your driveway, sidewalk, courtyard, or any open space using renewable solar energy with the 1000 Lumen Solar + LED Floodlight with Remote Control from Wagan Tech. Just like a streetlight, this 18" lamp turns on automatically at dusk and provides 100 or 300 lumens (your choice) of light in a wide, 120° beam. If anyone passes within range, a motion detector boosts the output to 1000 lumens; the output goes back down 30 seconds after motion ceases. The floodlight is designed to be mounted on a wall or a user-supplied pole. No electrical wiring is required, just a few basic tools for mounting.Should you want a temporarily brighter light, the remote control can be used to override the default settings for up to eight hours of 300, 600, or 1000-lumen light. The motion detector is turned off during this time. You can also use the remote to turn the light on or off.It takes 10 hours of full sunlight for the solar panel to charge the lamp's internal, 3.7V, 12Ah battery. That charge is enough to power the light for up to three nights. Naturally, the floodlight is designed to be weather-resistant and carries an IP65 waterproof and dustproof rating. Its housing is light but durable aluminum alloy. Its light source is an array of 30 Epistar LEDs with a color temperature of 6000K for a bright white beam. - Light Performance
-
- 100/300/600/1000 lumens
- 30 white Epistar LED array
- Auto on/off
- Choose 100 or 300 lumens as default setting
- Output increases to 1000 lumens when motion detector is triggered
- Output returns to 100 or 300 lumens 30 seconds after motion ceases

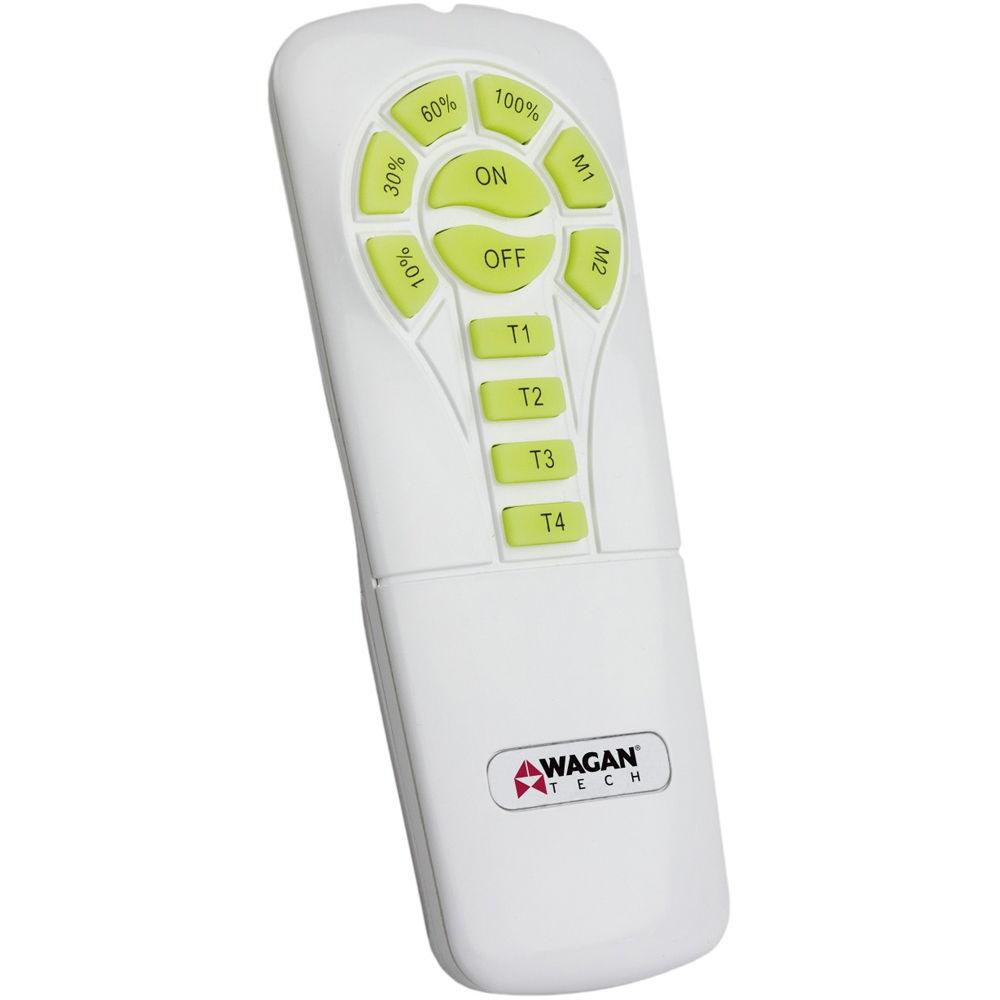

- Use remote control to override motion detection and set desired brightness
- Wide 120° beam spread
- Power Source
-

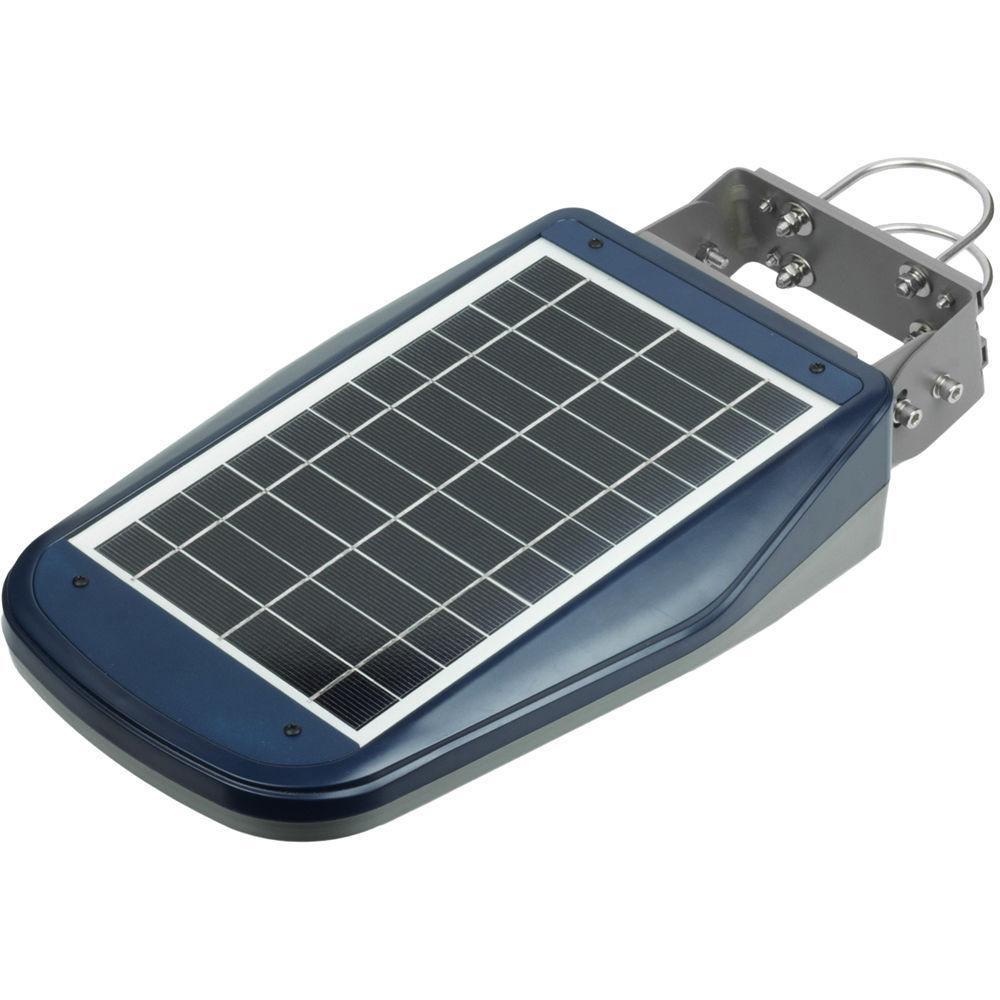

- Monocrystalline 6.5W solar panel
- Panel charges 3.7V, 12Ah lithium battery
- 10 hours charge time at full sun
- Up to three nights of run time on low power
- Overcharge and over-discharge protection
- Construction Details
-
- Aluminum alloy housing
- IP65-rated weather-resistant

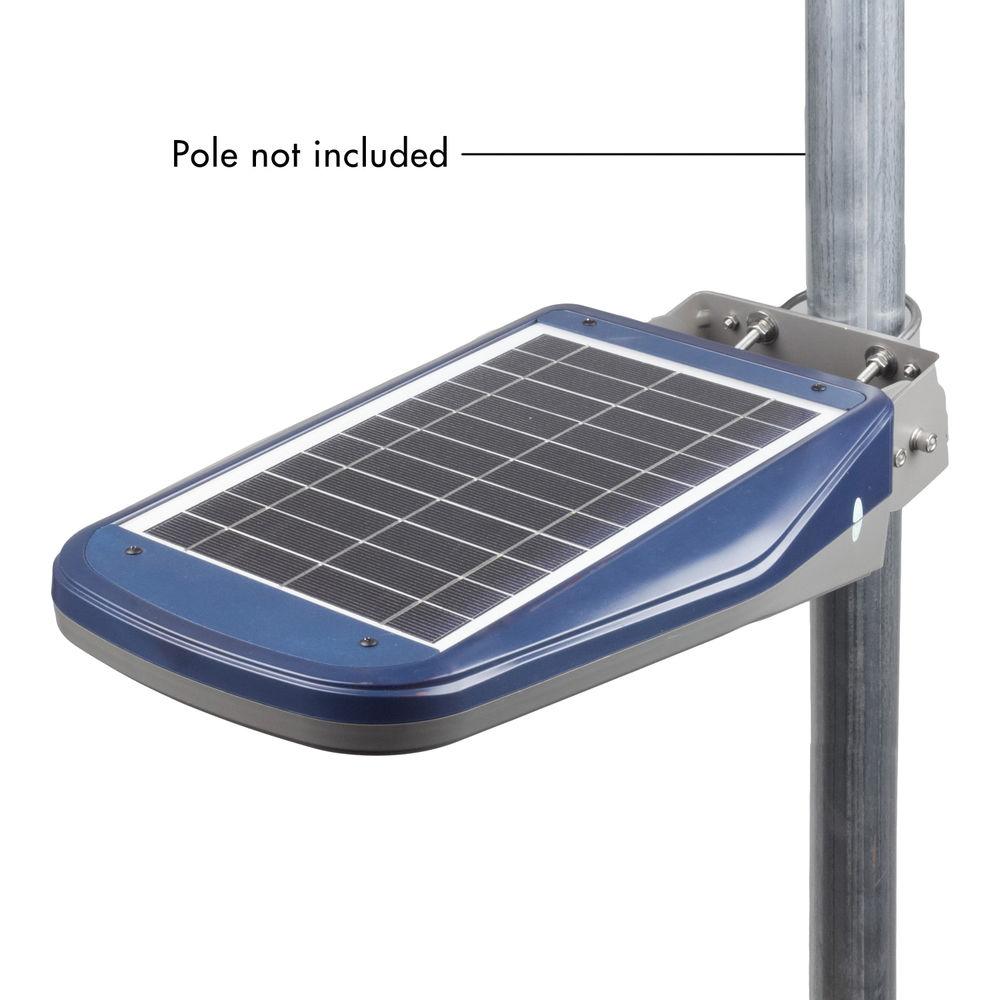

- Mounts on user-supplied pole or wall
- Installation height: 8-11' / 2.5-3.5 m
- No electrical wiring required
- Operating temperature -13°F to 149° / -25°C to 65°C
- Measures 18.0 x 9.7 x 3.4"
- Weight: 6.5 lb
UPC: 084367857620 In the Box WAGAN 1000 Lumen Solar + LED Floodlight with Remote Control Remote Control Mounting Hardware Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN 1000 Lumen Solar LED Floodlight with Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 8576-2 Specs | Illumination Source | 30 x Epistar white LEDs | | Output Range | 100/300/600/1000 lumens | | Beam Angle | 120° | | Battery | Rechargeable lithium | | Solar Charge | 6.5 W monocrystalline solar panel | | Charge Time | 10 h in full sun | | Runtime | 36 h | | Construction | Aluminum alloy, glass, steel | | Waterproofing | IP65-rated, dust- and water-resistant | | Dimensions | 18.0 x 9.7 x 3.4" / 45.7 x 24.6 x 8.6 cm | | Weight | 6.5 lb (2.9 kg) | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 22.0 x 12.0 x 5.0" |
