User Manual for WAGAN 3000-Lumen Solar LED Floodlight with Remote Control Click to enlarge the picture
Contents of the user manual for the WAGAN 3000-Lumen Solar LED Floodlight with
- Product category: Outdoor Area Lighting WAGAN
- Brand: WAGAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WAGAN Outdoor Area Lighting
 |
User manual for the WAGAN 3000-Lumen Solar LED Floodlight with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WAGAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!
|
Product description Light your driveway, sidewalk, courtyard, or any open space using renewable solar energy with the 3000-Lumen Solar LED Floodlight with Remote Control from Wagan Tech. Just like a streetlight, this 31" lamp turns on automatically at dusk and provides 300 or 900 lumens (your choice) of light in a wide, 120° beam. If anyone passes within range, a motion detector boosts the output to 3000 lumens; the output goes back down 30 seconds after the motion ceases. The floodlight is designed to be mounted on a wall or a user-supplied pole. No electrical wiring is required, just a few basic tools for mounting.The remote control can be used to override the default settings for up to 8 hours of continuous 300-, 900-, 1800-, or 3000-lumen light. The motion detector is turned off during this time. You can also use the remote to turn the light on or off.It takes 10 hours of full sunlight for the solar panel to charge the lamp's internal, 14.8V, 115.4Wh battery. That charge is enough to power the light for up to three nights. Naturally, the floodlight is designed to be weather-resistant and carries an IP65 waterproof and dustproof rating. Its housing is light but durable aluminum alloy. Its light source is an array of 40 LEDs with a color temperature of 6000K for a bright white beam. - Light Performance
-
- 300/900/1800/3000 lumens
- Forty white LEDs
- Auto on/off
- Choose 300 or 900 lumens as default setting
- Output increases to 3000 lumens when motion detector is triggered
- Output returns to 300 or 900 lumen 30 seconds after motion ceases
- Use remote control to override motion detection and set desired brightness in continuous or timer mode
- Wide 120° beam spread
- Power Source
-
- Monocrystalline 15W solar panel
- Panel charges 14.8V, 115.4Wh lithium battery
- 10 hours of charge time at full sun
- Up to three nights of run time on low power
- Overcharge and over-discharge protection
- Construction Details
-
- Aluminum alloy housing
- IP65-rated weather-resistant

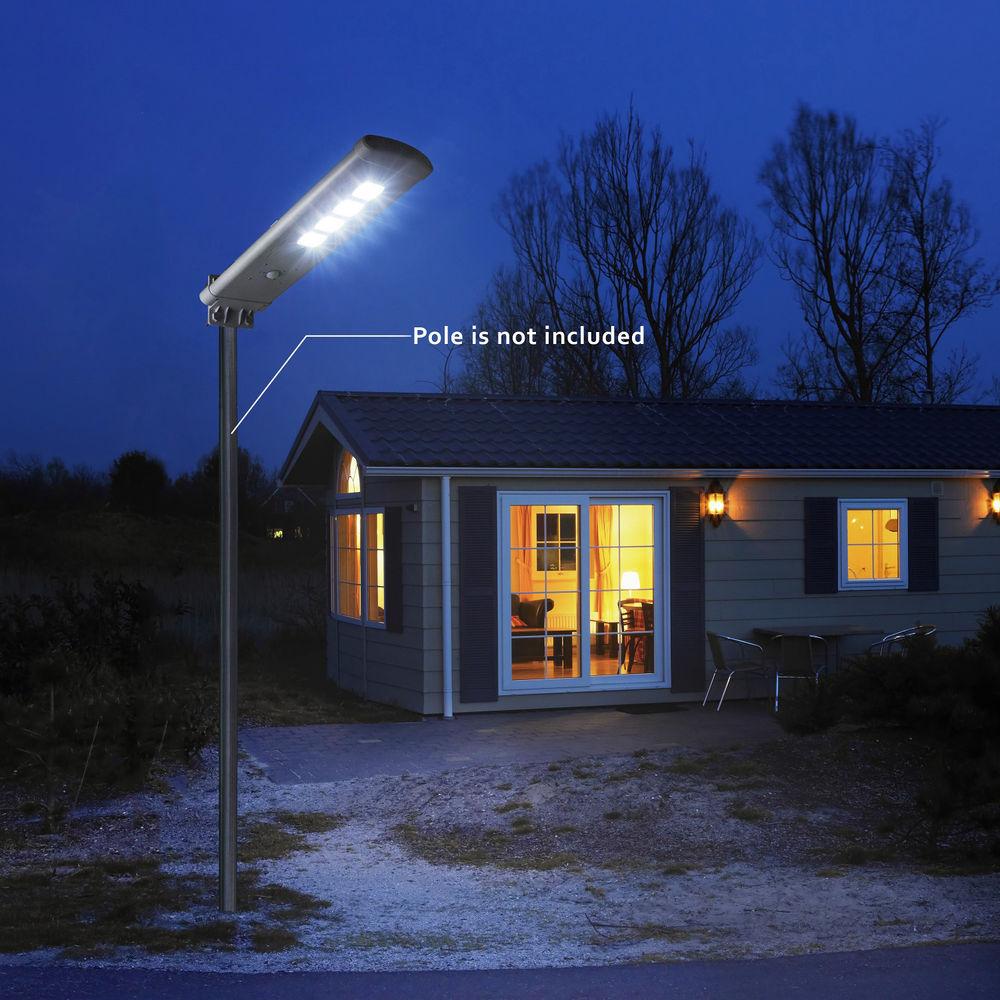

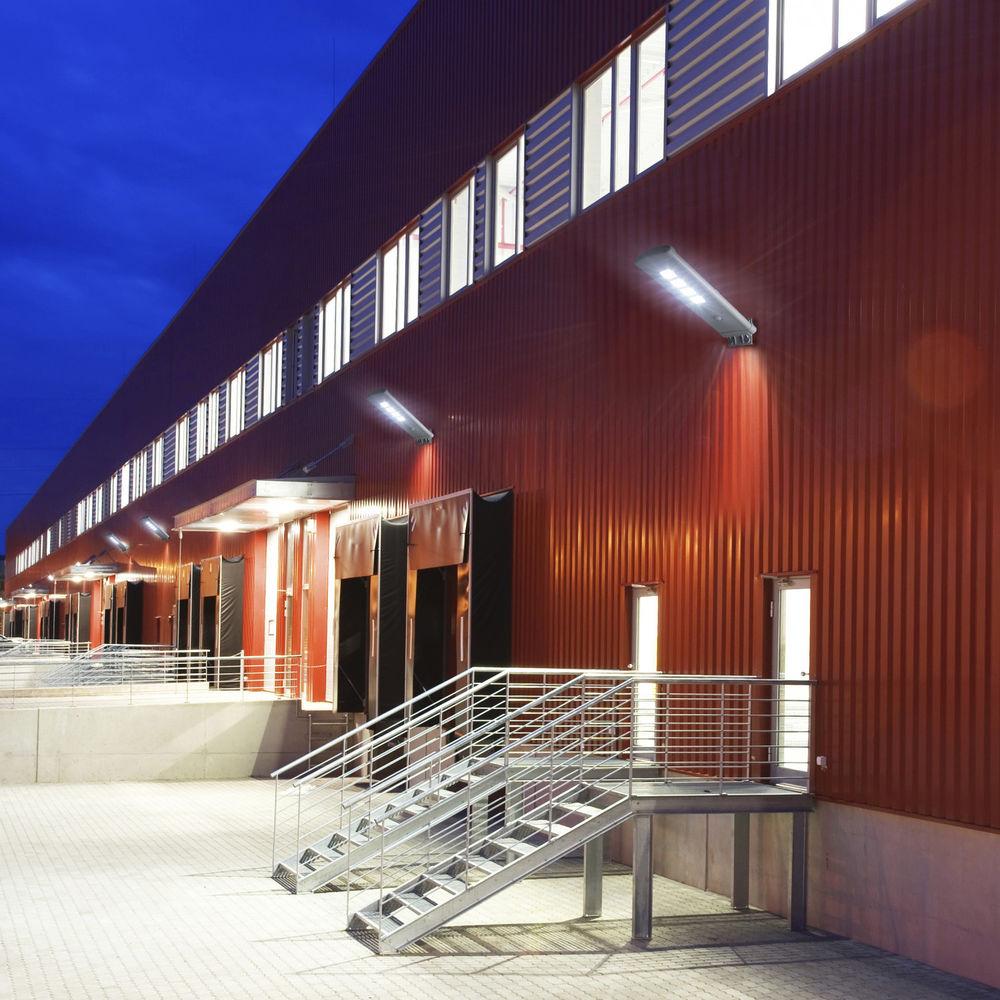

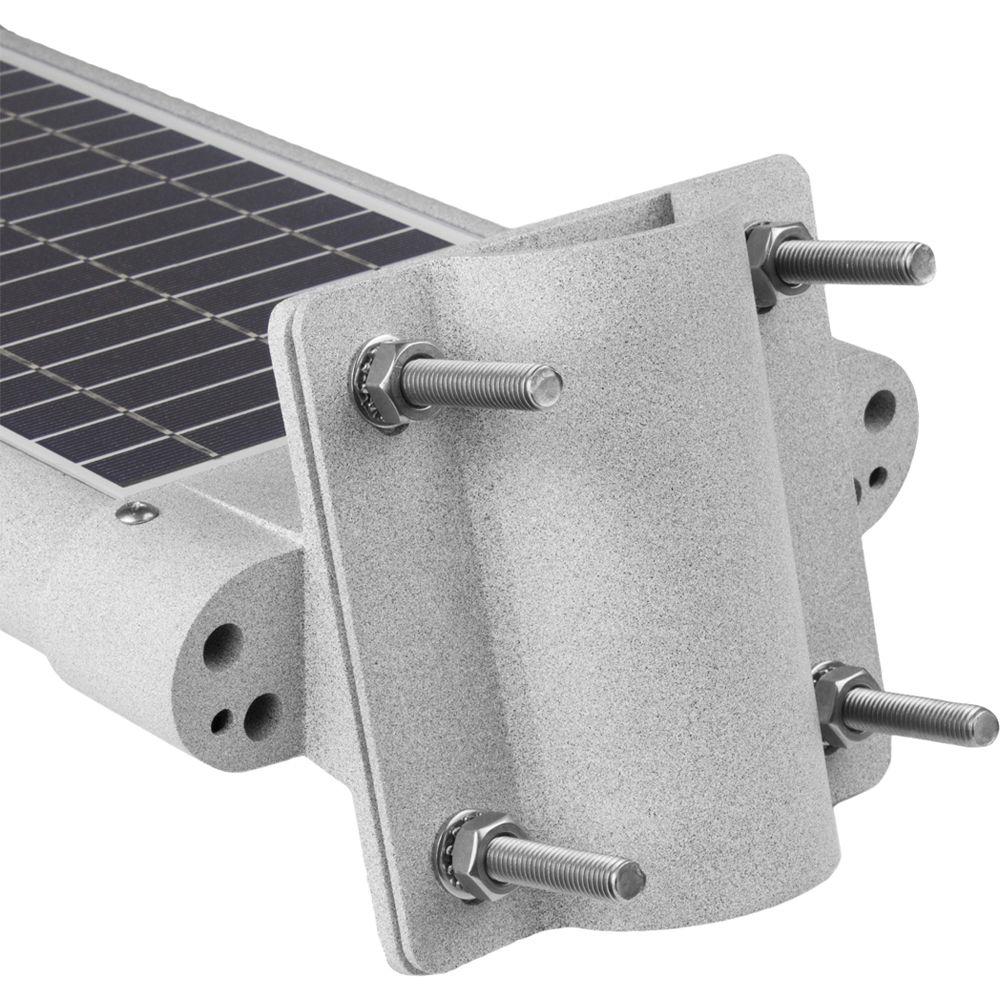

- Mounts on user-supplied pole or wall
- Install height: 13' / 4 m
- No electrical wiring required
- Operating temperature -13°F to 149° / -25°C to 65°C

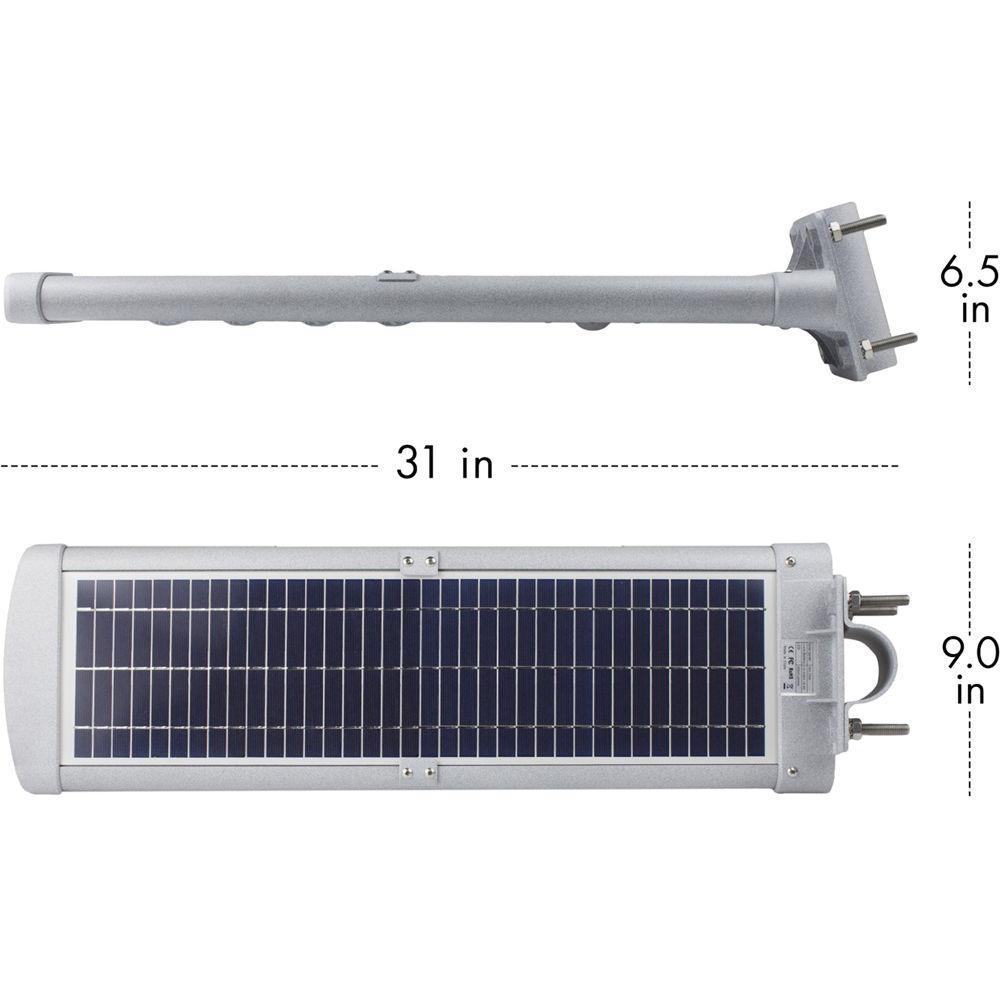

- Measures 31.0 x 9.0 x 6.5"
- Weight: 15.5 lb
UPC: 084367085801 In the Box WAGAN 3000-Lumen Solar LED Floodlight with Remote Control Remote Control Mounting Hardware Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN 3000-Lumen Solar LED Floodlight with Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 8580 Specs | Illumination Source | 40 x white LEDs | | Output Range | 300/900/1800/3000 lumens | | Battery | Rechargeable lithium 14.8 VDC, 115.4 Wh | | Solar Charge | 15 W monocrystalline solar panel | | Charge Time | 10 h in full sun | | Runtime | 36 h | | Construction | Aluminum alloy, ABS | | Waterproofing | IP65-rated, dust- and water-resistant | | Dimensions | 31 x 9 x 6.5" / 80.8 x 22.7 x 16.4 mm | | Weight | 15.5 lb / 7 kg | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 33.5 x 10.5 x 7.5" |
