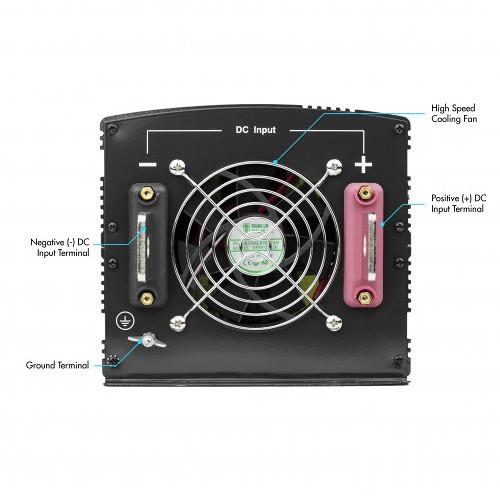

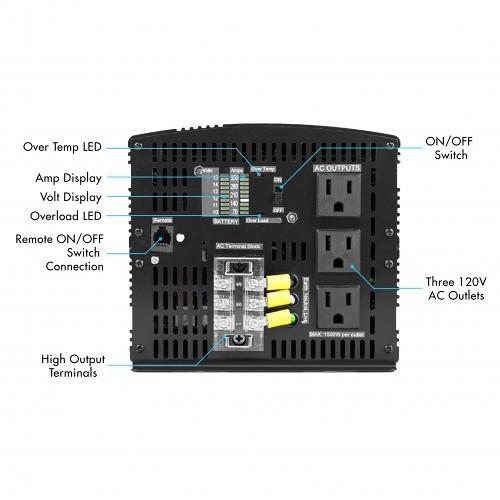

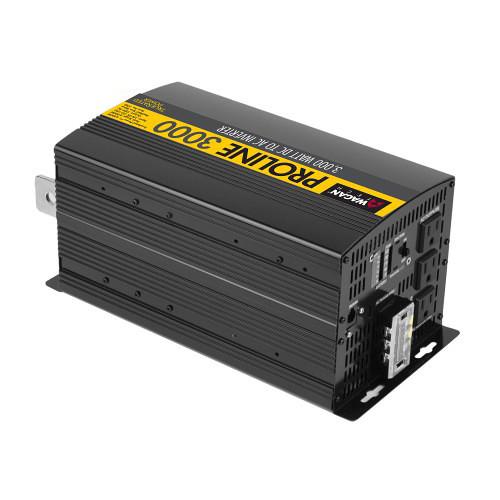

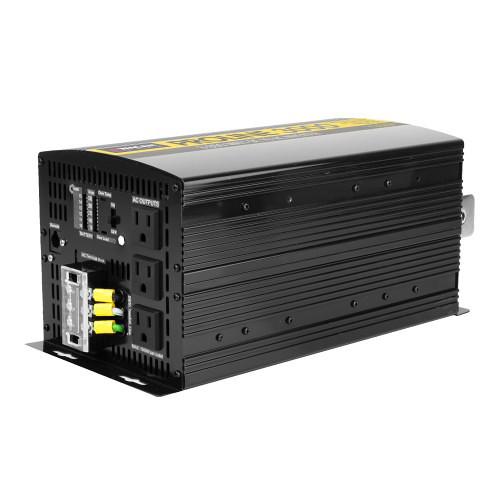

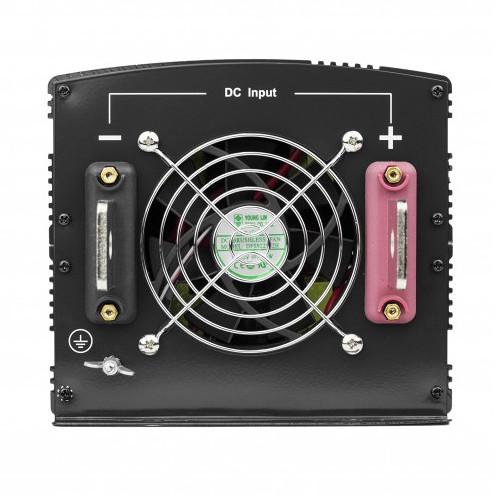

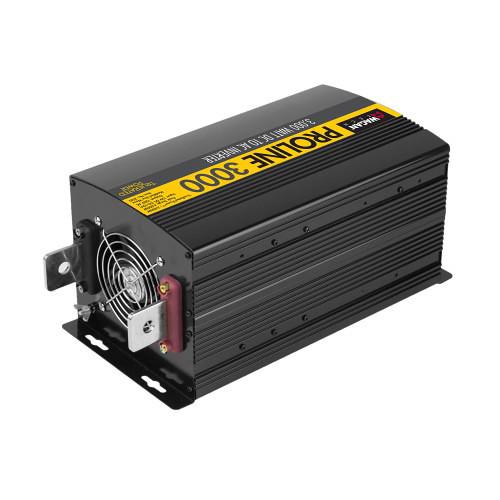

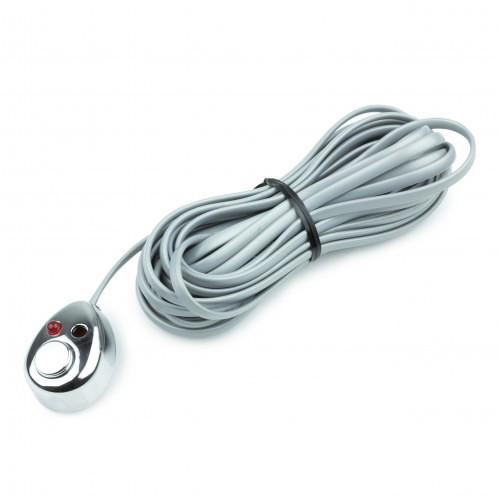

Product description For powering your mobile devices while on the go, this 3000W ProLine Power Inverter with Remote from WAGAN accepts 48 VDC input via a large two-prong connector. It provides 115 to 125 VAC at a frequency of 60 Hz via 3 standard three-prong sockets, matching typical US standards for both voltage and connection type. A wired remote is provided for convenient control over your power inverter. Designed with safety in mind, this product is made with several failsafes in the event a problem occurs. It will sound an alarm when the input voltage is at 42V or lower, and automatically shuts down when the voltage goes below 40V or above 60V. At the back, a ground terminal allows you to install an optional safety wire while a built-in high-speed fan helps cool the equipment. If the temperature is excessive or the inverter is overloaded, it will also shut down and a small LED indicator near the outlets will turn red. Finally, a non-replaceable internal fuse helps protect your gear in case the equipment short circuits. UPC: 843673742880 In the Box WAGAN 3000W ProLine Power Inverter with Remote (48V) Wired Remote Switch Cable Assembly Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN 3000W ProLine Power Inverter with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 3742-8 Specs | Power | Continuous: 3000 W
Surge: 6000 W | | Input Voltage | Ideal: 48 VAC
Lowest: 40 VAC
Highest: 60 VAC | | Output Voltage | 115-125 VAC at 60 Hz | | Output Waveform | Modified sine waveform | | Maximum Efficiency | 90% | | No Load Current Draw | On: < 1.0 A
Off: < 0.2 A | | Socket Type | 3 x US standard 3-prong | | Overload Protection | Automatic shutdown | | Fan | Temperature controlled, built-in | | Wired Remote | Yes | | Display | LED indicator | | Short Circuit Protection | Internal fuse | | Certifications | CE, RoHS | | Maximum Operating Temperature | 149°F / 65°C | | Dimensions (L x W x H) | 13.5 x 6.5 x 6" / 34.3 x 16.5 x 15.2 cm | | Weight | 8.8 lb / 4 kg | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 15.9 x 9.3 x 8.5" |
