User Manual for WAGAN 3000W ProLine Power Inverter with Remote Click to enlarge the picture
Contents of the user manual for the WAGAN 3000W ProLine Power Inverter with
- Product category: Power Inverters WAGAN
- Brand: WAGAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WAGAN Power Inverters
|
User manual for the WAGAN 3000W ProLine Power Inverter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WAGAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!
|

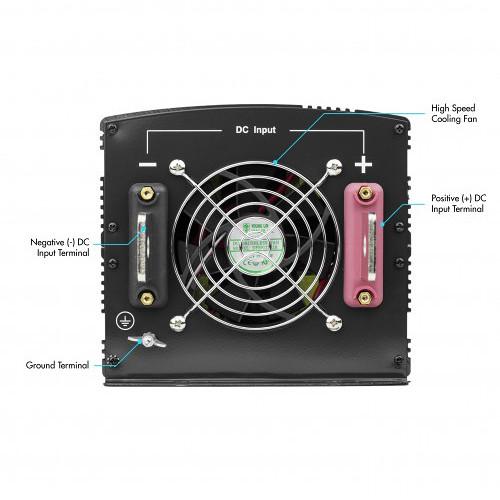

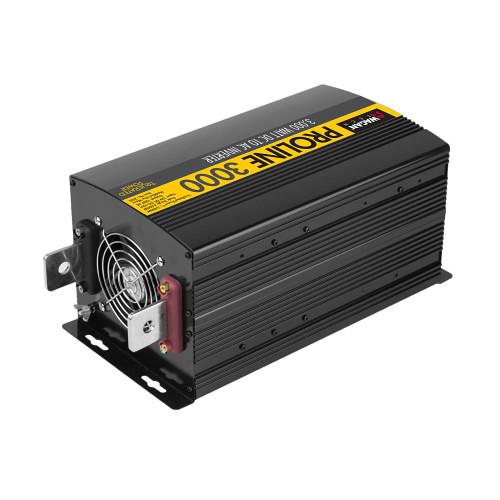

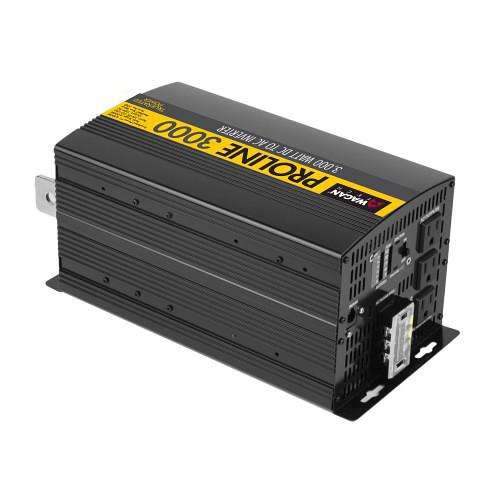

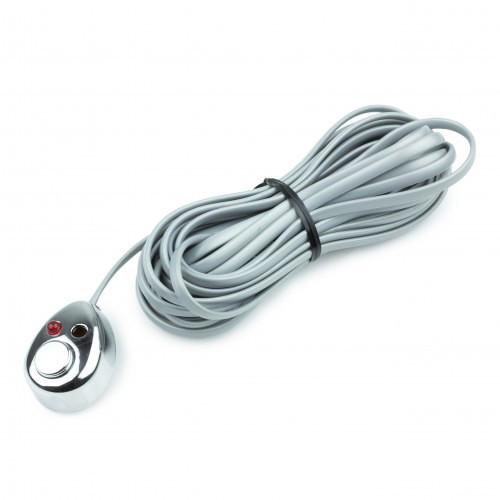

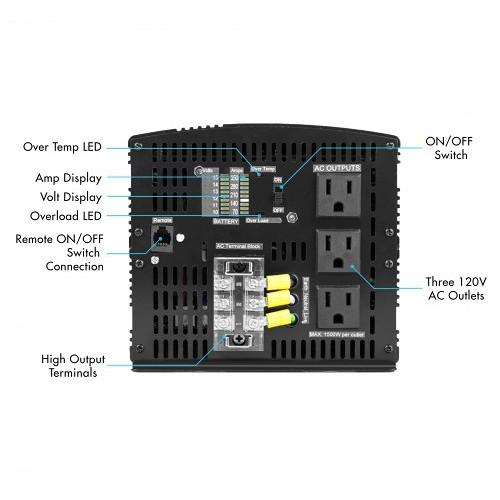

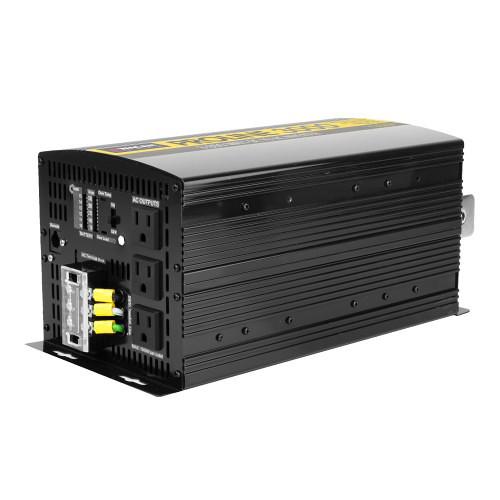

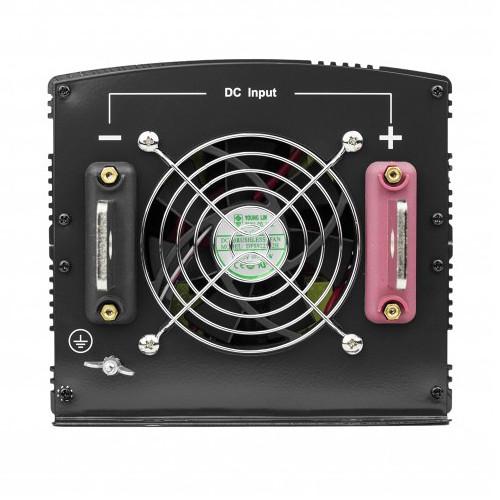

Product description For powering your mobile devices while on the go, this 3000W ProLine Power Inverter with Remote from WAGAN accepts 12 VDC input via a large two-prong connector. It provides 115 to 125 VAC at a frequency of 60 Hz via 3 standard three-prong sockets, matching typical US standards for both voltage and connection type. A wired remote is provided for convenient control over your power inverter. Designed with safety in mind, this product is made with several failsafes in the event a problem occurs. It will sound an alarm when the input voltage is at 10.5V or lower, and automatically shuts down when the voltage goes below 10V or above 15V. At the back, a ground terminal allows you to install an optional safety wire while a built-in high-speed fan helps cool the equipment. If the temperature is excessive or the inverter is overloaded, it will also shut down and a small LED indicator near the outlets will turn red. Finally, a non-replaceable internal fuse helps protect your gear in case the equipment short circuits. UPC: 084367037428 In the Box WAGAN 3000W ProLine Power Inverter with Remote (12V) Wired Remote Switch Cable Assembly Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN 3000W ProLine Power Inverter with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 3742 Specs Power | Continuous: 3000 W Surge: 6000 W | Input Voltage | Ideal: 12 VAC Lowest: 10 VAC Highest: 15 VAC | Output Voltage | 115-125 VAC at 60 Hz | Output Waveform | Modified sine waveform | Maximum Efficiency | 90% | No Load Current Draw | On: < 1.0 A Off: < 0.2 A | Socket Type | 3 x US standard 3-prong | Overload Protection | Automatic shutdown | Fan | Temperature controlled, built-in | Wired Remote | Yes | Display | LED indicator | Short Circuit Protection | Internal fuse | Certifications | CE, RoHS | Maximum Operating Temperature | 149°F / 65°C | Dimensions (L x W x H) | 13.5 x 6.5 x 6" / 34.3 x 16.5 x 15.2 cm | Weight | 8.8 lb / 4 kg | | Package Weight | 10.55 lb | Box Dimensions (LxWxH) | 15.8 x 9.5 x 8.4" |
