User Manual for WAGAN Elite 400W PRO Pure Sine Wave DC to AC Power Inverter Click to enlarge the picture
Contents of the user manual for the WAGAN Elite 400W PRO Pure Sine
- Product category: Power Inverters WAGAN
- Brand: WAGAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WAGAN Power Inverters
 |
User manual for the WAGAN Elite 400W PRO Pure Sine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WAGAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!
|
Product description The Elite 400W PRO Pure Sine Wave DC to AC Power Inverter by Wagan Tech allows you to power or charge most laptops, USB devices, and other electronics in your vehicle or boat with the same clean power you get from the AC wall outlets at home. Unlike inverters that produce modified sine wave power, the Elite 400W PRO converts DC power to pure sine wave AC, which allows your sensitive electronics, such as audio/video systems, computers, and communications equipment, to operate cooler, quieter, and more efficiently.Featuring two three-prong grounded AC outlets and one USB power port, the inverter runs on 12 VDC and continuously delivers 400W AC power at 120V, 60 Hz. The surge capability of 800W accommodates devices that draw higher wattage upon start-up or at certain points in their operation. Neutral to ground bond is provided for use in marine environments. Two power cables are provided—one that plugs into a vehicle cigarette lighter socket and another with alligator clips for attaching directly to battery terminals. The inverter warns you when your car's battery has been drawn down to 10.5V and will automatically shut off when the battery's remaining power reaches 9.5V. It also offers overload, overheat, short-circuit, and reverse polarity protection. - Converts 12 VDC to 120 VAC to run and charge household electronics in vehicle or boat
- TrueRated continuous 400W AC power, 800W surge power
- Pure sine wave power allows devices to run cleaner & cooler
- Plug into any 12V cigarette lighter socket or connect to battery with alligator clips
- Two 3-prong grounded AC outlets
- Neutral to ground bond for use in marine environments
- Automatically shuts down when DC battery voltage drops to 9.5V
- Overload, short-circuit, and reverse polarity protection
- Overheat protection: thermal cooling fan and auto shutdown
- Brackets for optional installation

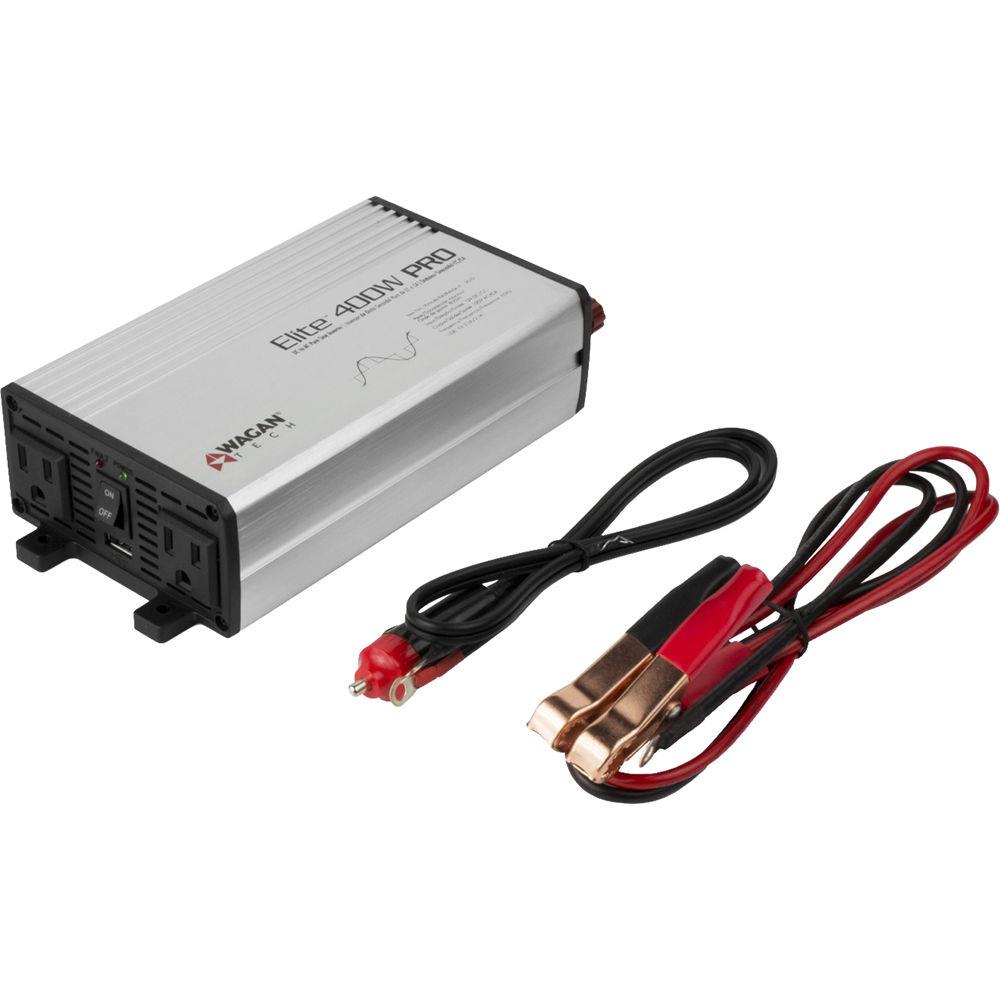

UPC: 084367026101 In the Box WAGAN Elite 400W PRO Pure Sine Wave DC to AC Power Inverter Cigarette Lighter Jack Power Cord Battery Terminal Clips Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN Elite 400W PRO Pure Sine Wave DC to AC Power Inverter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 2610 Specs | Input Voltage | 12 VDC | | Output Voltage | 120 VAC at 60 Hz | | Waveform | Output: pure sine wave | | Power | TrueRated continuous: 400 W
Surge: 800 W | | Efficiency | Maximum 90% | | Protection | Overload: auto shutdown
Reverse polarity: internal fuse
Short circuit: auto shutdown
Overheat: thermal cooling fan with automatic shutdown | | No Load Current Draw | Less than 0.4 A | | Total Harmonic Distortion | Less than 3% | | AC Outlets | 2 U.S. standard grounded | | USB Power Port | 2.1 A | | Battery Low Warning | Alarm: 10.5 ± 0.5 V
Shutdown: 9.5 ± 0.5 V | | Dimensions | 8 x 6 x 2" / 20.3 x 15.2 x 5.0 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
