User Manual for WAGAN iOnBoost Slim Lithium Jump Starter & Power Bank Click to enlarge the picture
Contents of the user manual for the WAGAN iOnBoost Slim Lithium Jump Starter
- Product category: Jump Starters & Air Compressors WAGAN
- Brand: WAGAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WAGAN Jump Starters & Air Compressors
 |
User manual for the WAGAN iOnBoost Slim Lithium Jump Starter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WAGAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!
|

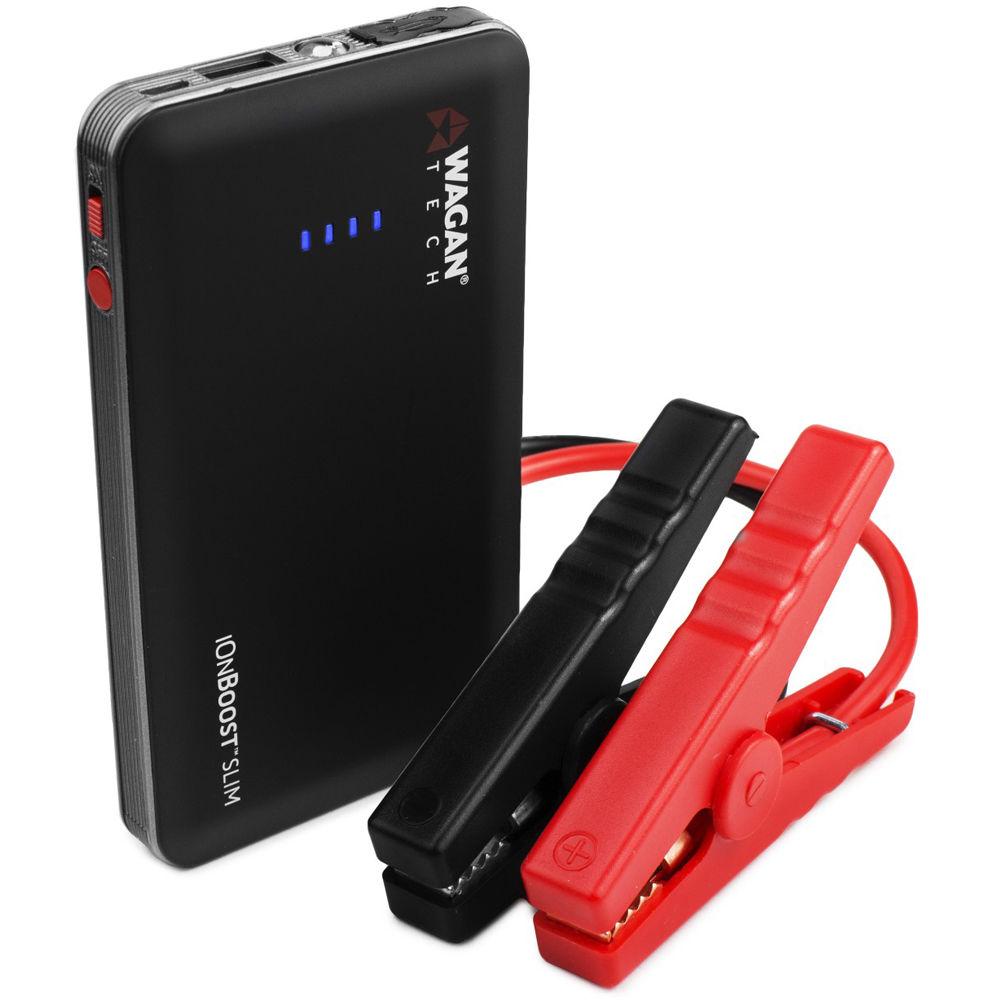

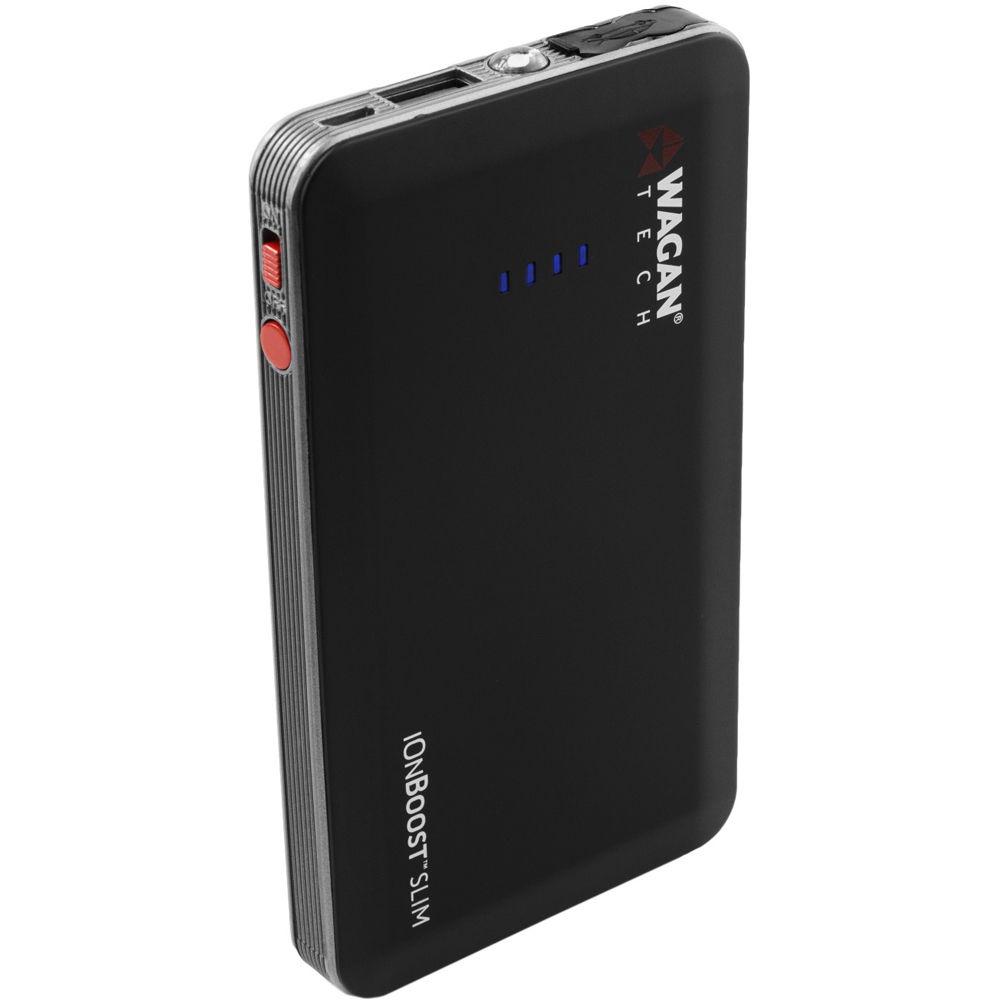

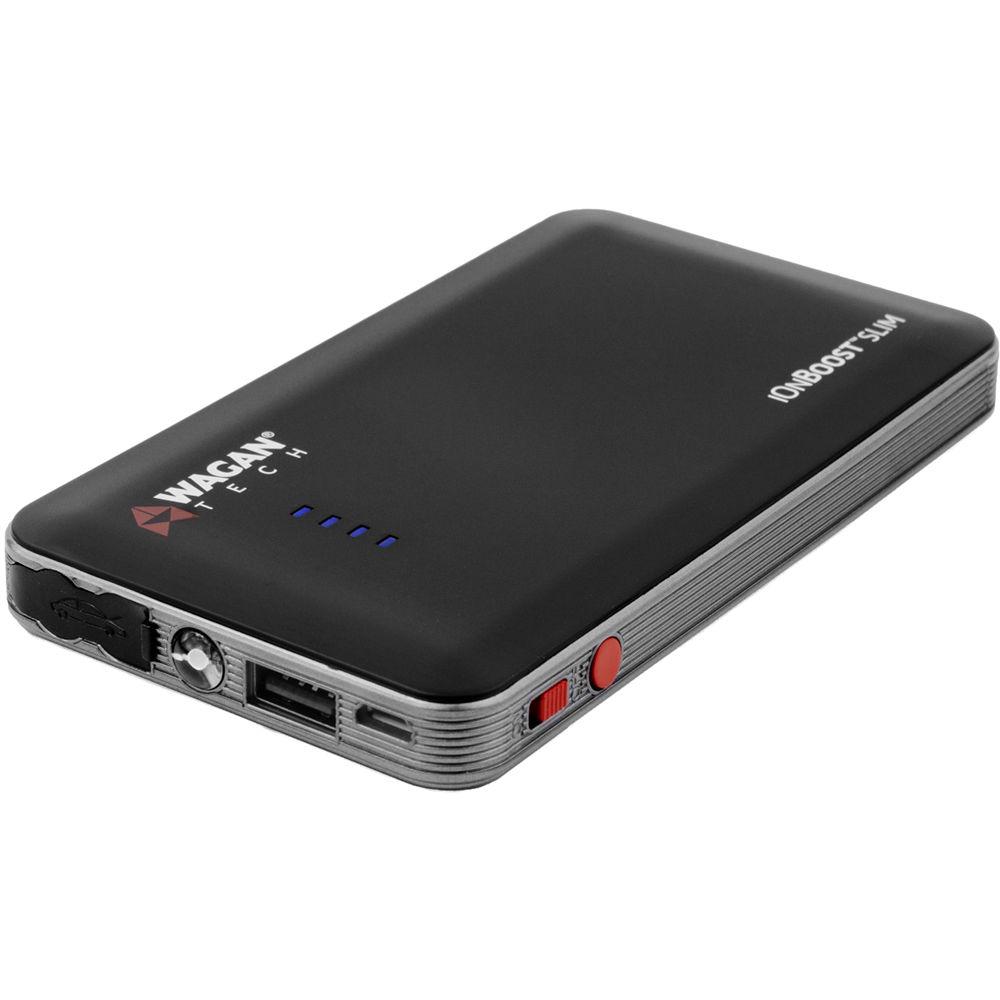

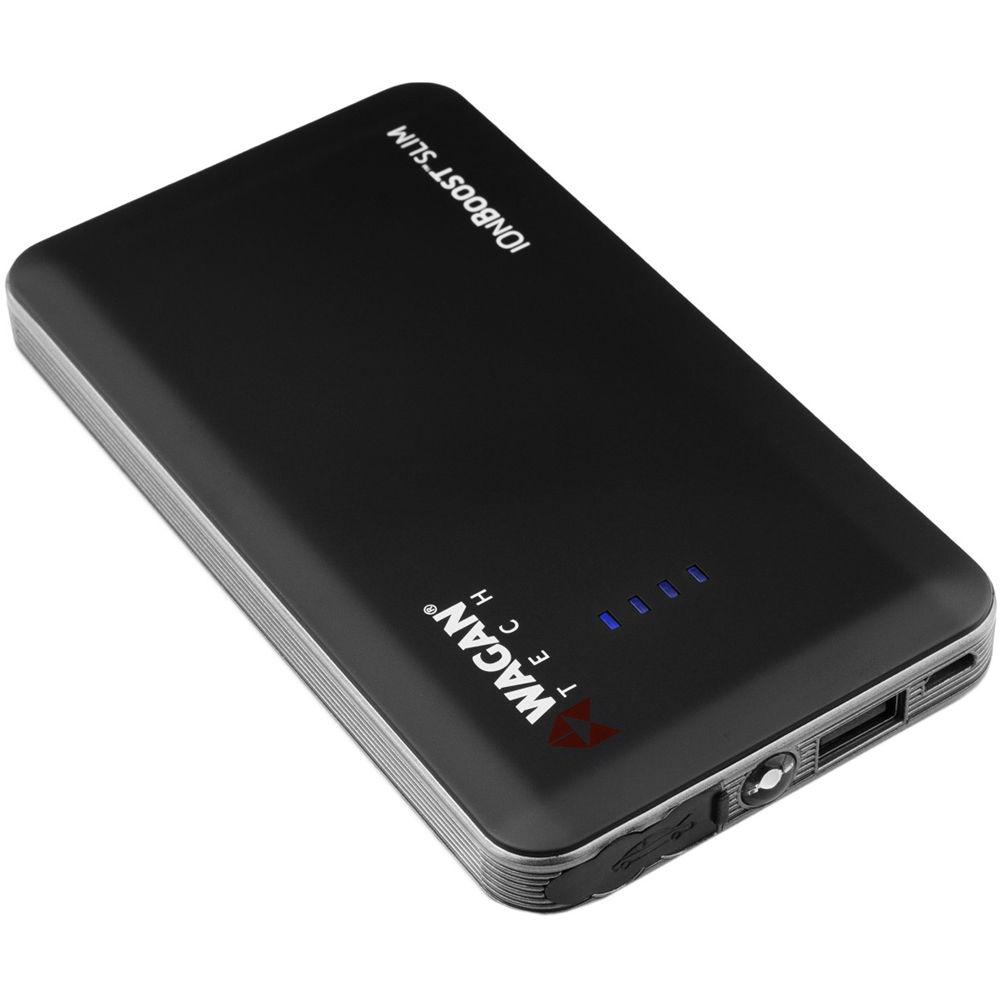

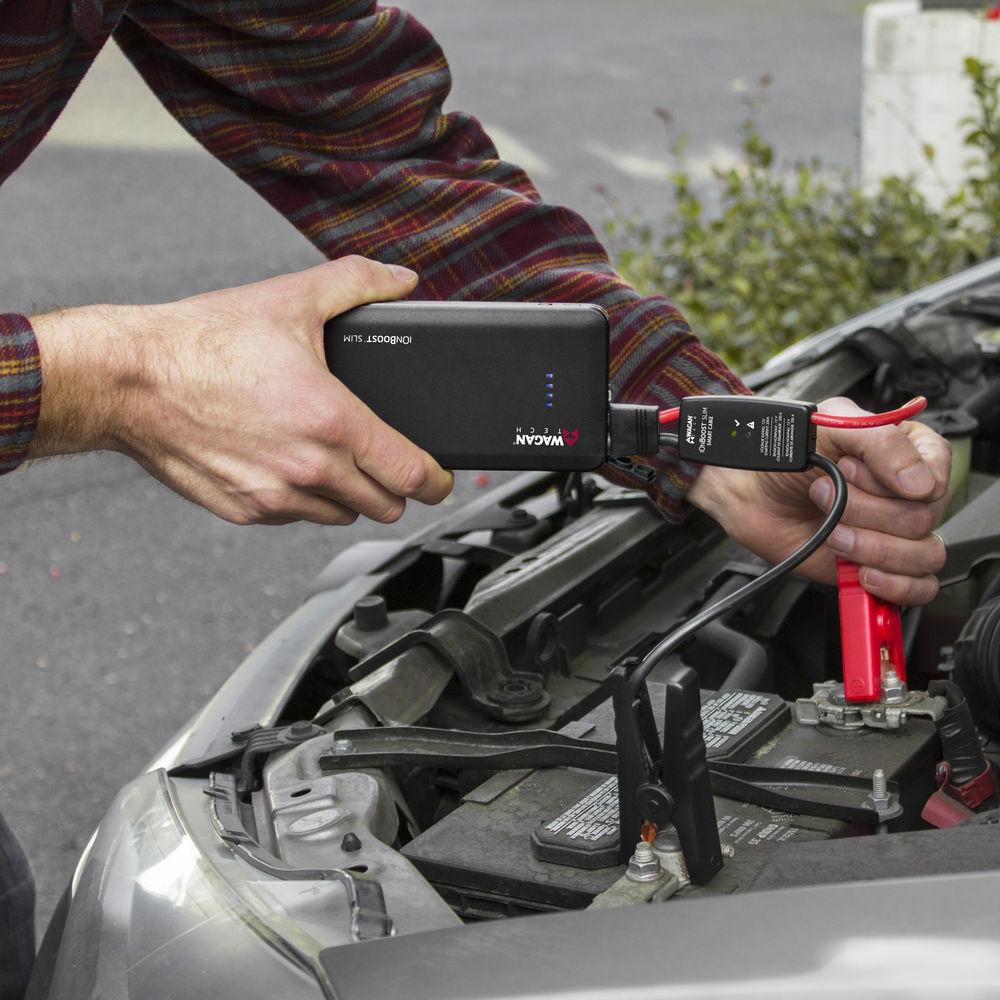

Product description Smaller than a cell phone but powerful enough to jump-start a car: the Wagan Tech iOnBoost Slim Lithium Jump Starter & Power Bank is a highly portable source of power that will keep your devices charged and can save the day in an emergency. Its 20Wh, 5400mAh battery can produce 300 peak amps and 200 cranking amps, enough to jump-start a 6-cylinder car, light truck, or motorcycle engine. Its 5V, 2A USB port can provide two recharges of most smartphones, and its LED flashlight offers on, strobe and SOS flash modes. The iOnBoost Slim itself recharges via micro-USB in about two hours.The unit offers over-voltage, overcharge, over-discharge, reverse polarity, and short circuit protection for safety and features battery status indicator lights. It comes with 8" smart jumper cables made of AWG 10 wire. You can use the iOnBoost Slim in temperatures ranging from -4°F-140°F (but don't store in temperatures below 32°F.) It measures 5.3 x 3.0 x 0.6" and weighs 1.3 pounds. - Battery
-
- Lithium-ion polymer
- Battery capacity: 20Wh, 5400mAh
- Charge time: 2 hours using 110 VAC
- 4-bar LED battery status indicator
- Over-voltage, over-charge, over-discharge, short circuit, and reverse polarity protection circuitry
- USB Output
-
- 5V, 2A
- Sufficient power when fully charged to recharge most smartphones twice
- Work Light
-

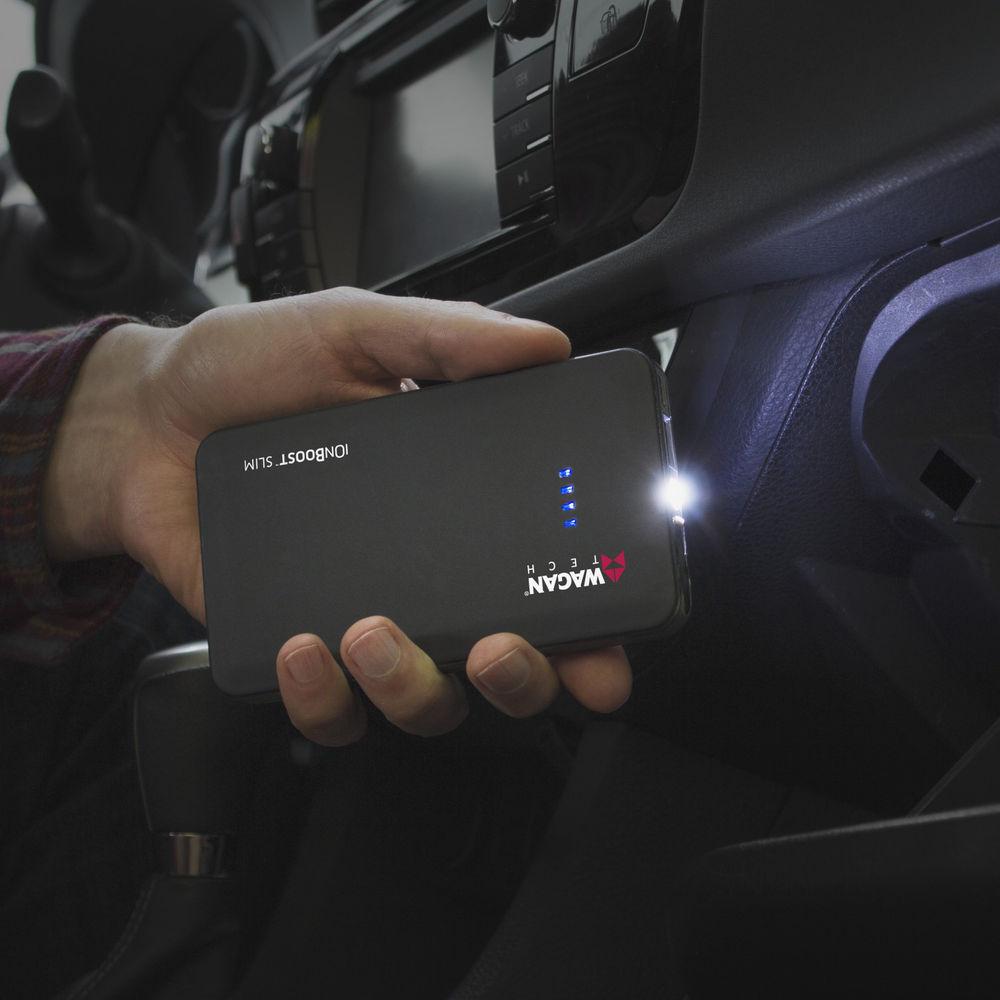

- White LED flashlight
- SOS mode automatically flashes the Morse Code distress signal
- Constant flashing signal mode
- Car Jumper
-
- One set jumper cables
- 10 AWG, 8" (20.3cm) long
- 200 cranking amps, 300 peak amps
- Smart cables prevent damage from accidental reverse polarity

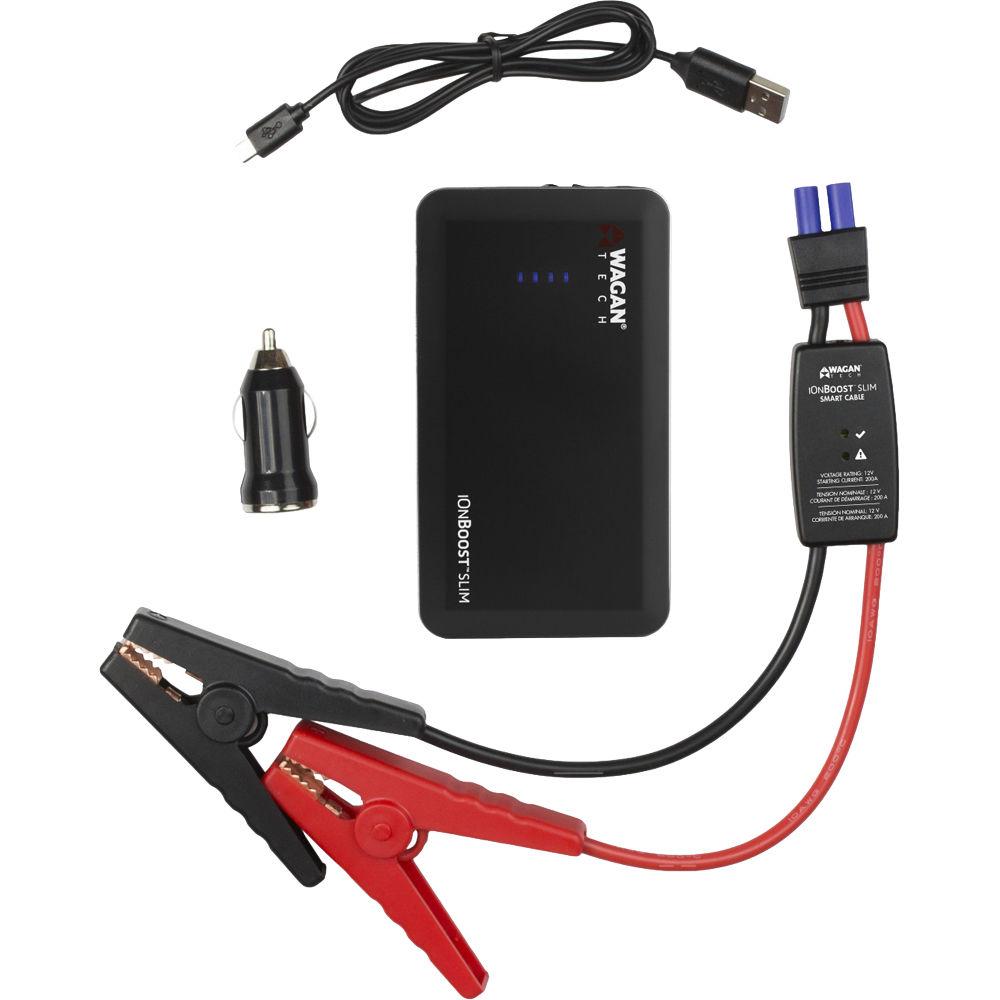

UPC: 084367075048 In the Box WAGAN iOnBoost Slim Lithium Jump Starter & Power Bank Smart Jumper Cable Set Micro-USB Charging Cable Car DC Power Socket Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN iOnBoost Slim Lithium Jump Starter & Power Bank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN iOnBoost Slim Specs | Battery Type | Lithium-ion polymer | | Capacity | 20 Wh | | Amps | Peak: 300 A

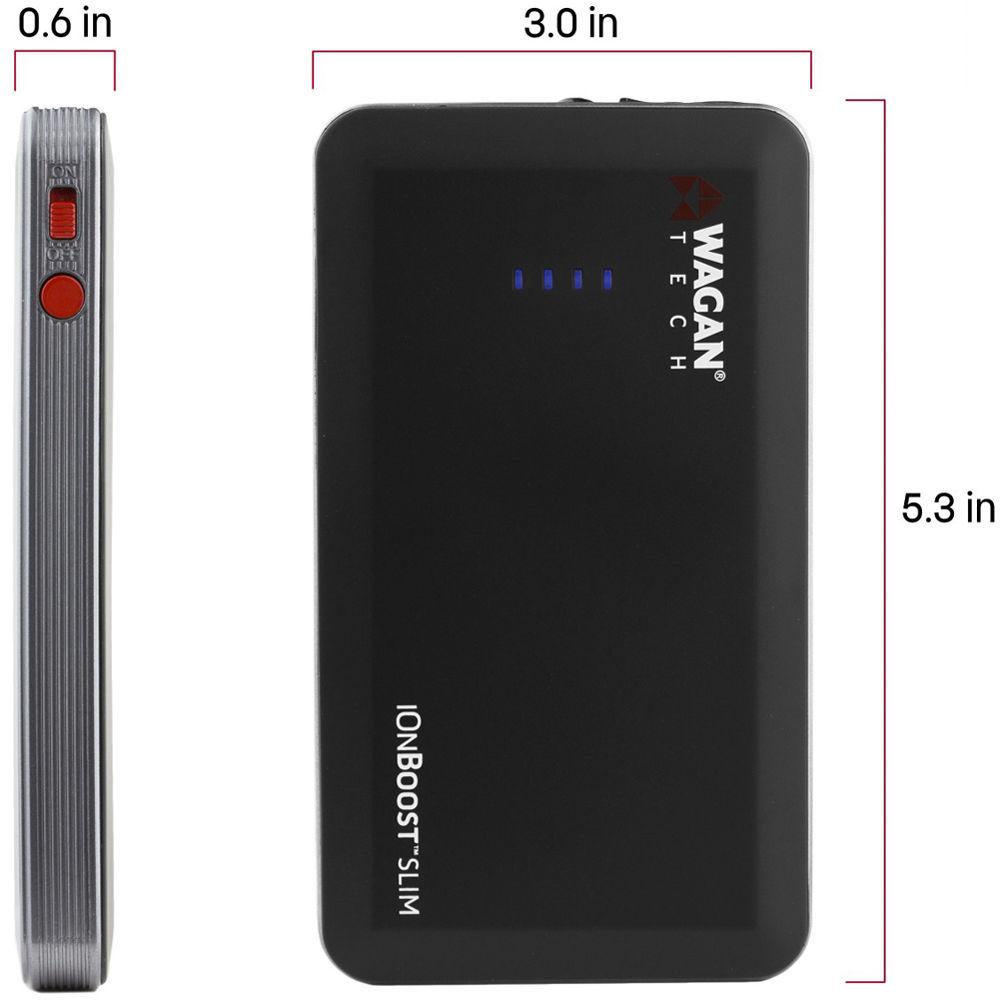

Cranking: 200 A | | Cables | Jumper Cables: 10 AWG, 8" / 20.3 cm | | USB Power | 5 V, 2.1 A | | Flashlight | LED with 3 Modes: solid, strobe, SOS | | Recharging Time | Approx. 2 h | | Operating Temperature | -4°F-140°F / -20°C-60°C | | Storage Temperature | 32°F-185°F / 0°C-85°C | | Dimensions | 5.3 x 3.0 x 0.6" / 13.5 x 7.6 x 1.5 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to WAGAN iOnBoost Slim Lithium Jump Starter & Power Bank
| Subject: Can’t start my motorcycle error sound | | Date: 23.03.2022 07:33:49 | Name: Owen Asayas | | .I used to my once’s my car it started .now when I used to my Harley the light just flushing back and forth no solid green I try to starting the motorcycle just have error sound and the light stay on red I polled it out then replaced it again to the battery the light is flushing again I wait at lest 5mnts. Then try it again still no luck same thing good thing my co worker has jump starter from harbor Freight .my motorcycle start right up .I thought my slim boat has not charged but when I press to check if is charged the indicator lights is 100% do you think my slim boost has a problem | | Post reply |
