User Manual for WAGAN iOnBoost V8 Jump Starter and Battery Bank Click to enlarge the picture
Contents of the user manual for the WAGAN iOnBoost V8 Jump Starter and
- Product category: Jump Starters & Air Compressors WAGAN
- Brand: WAGAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WAGAN Jump Starters & Air Compressors
 |
User manual for the WAGAN iOnBoost V8 Jump Starter and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WAGAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!
|

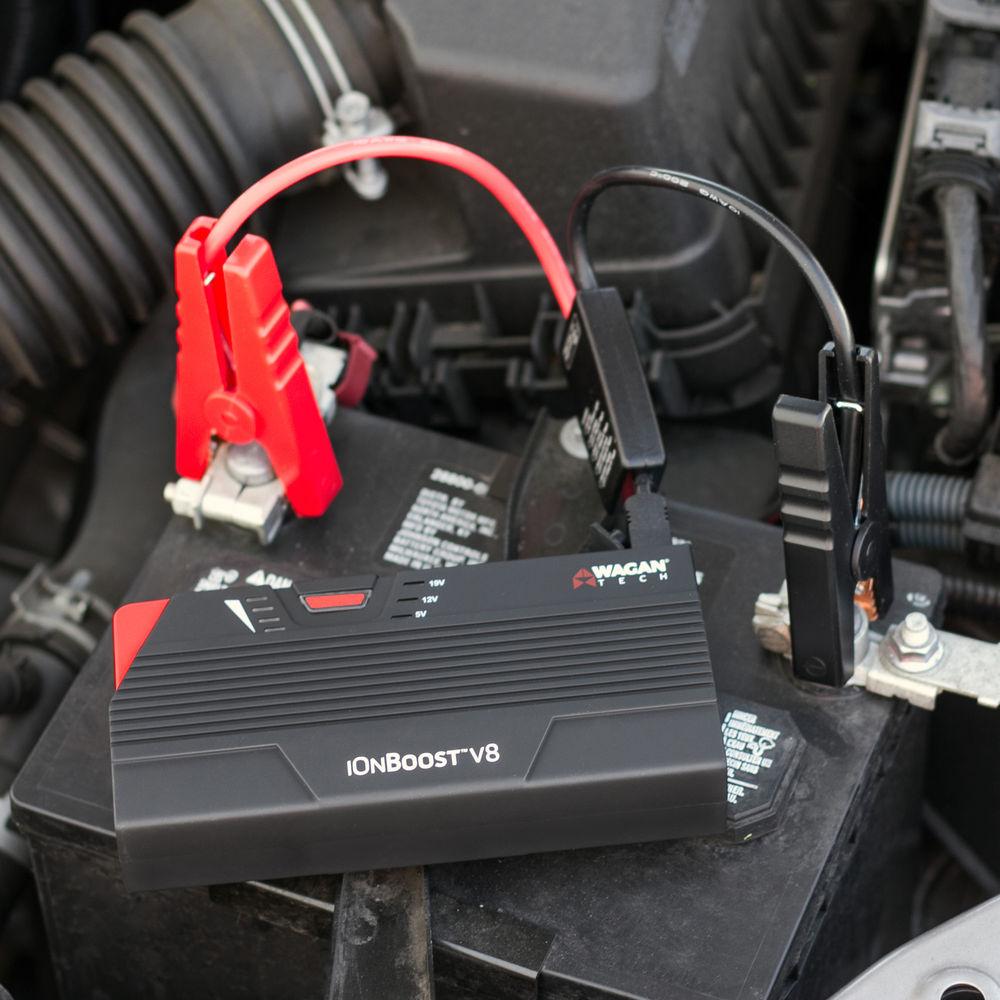

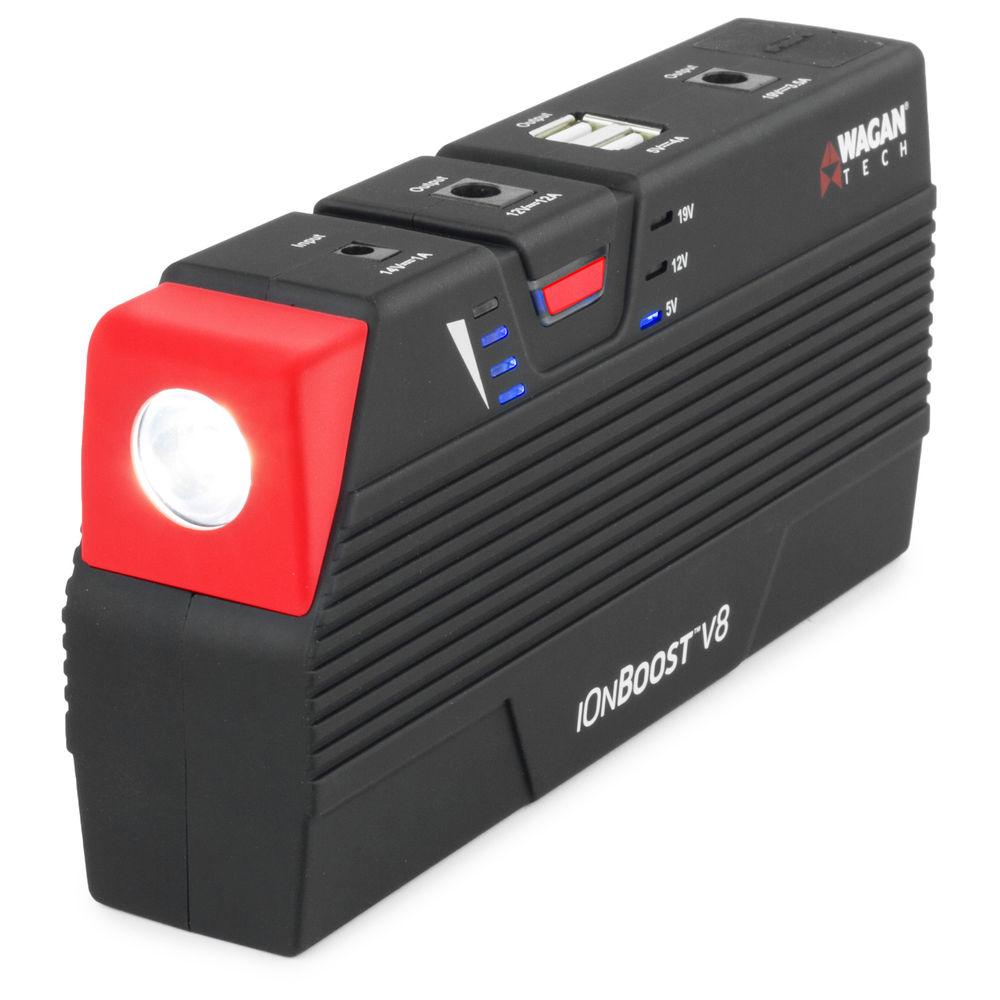

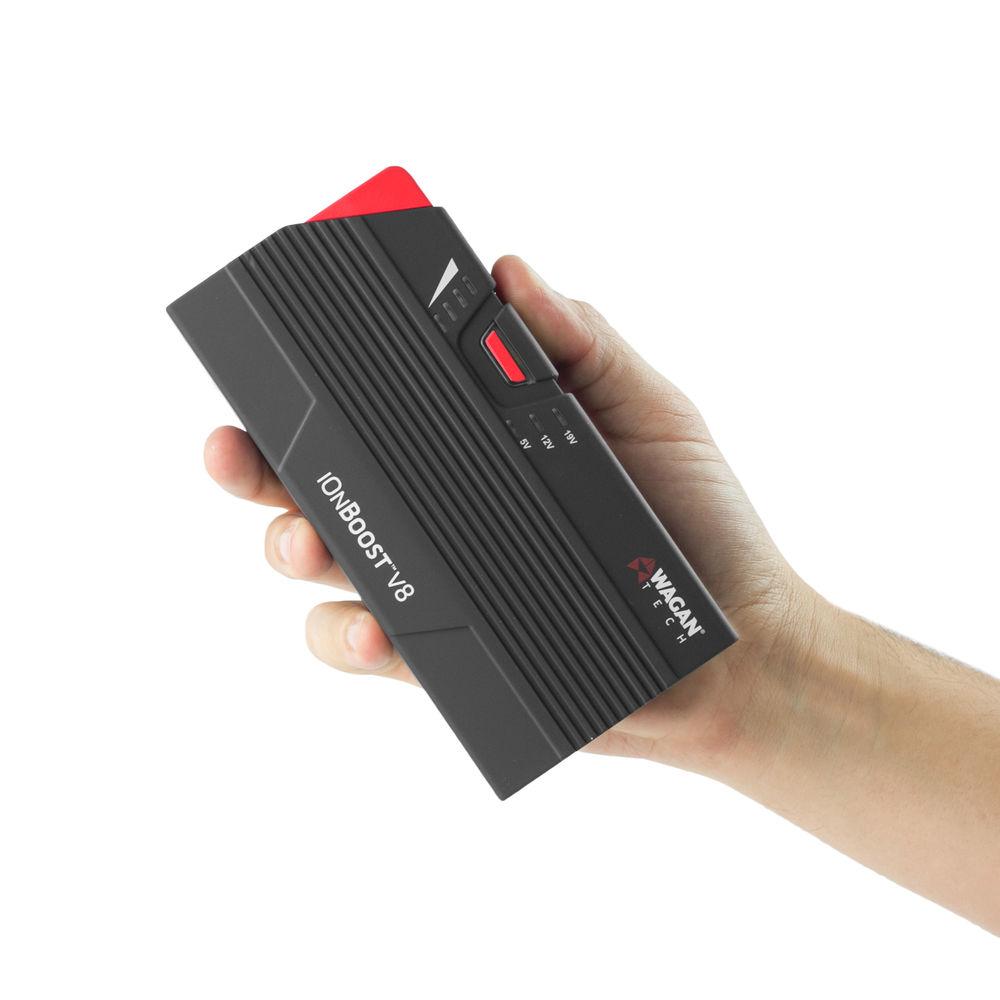

Product description Wagan Tech designed and built the iOnBoost V8+ Jump Starter and Battery Bank as an essential car companion that is as useful as it is small. Measuring just 6.5x1.5x3.1" and weighing a little over 1.5 pounds, the iOnBoost has a powerful lithium-ion polymer battery that powers two DC ports, two USB charging ports, a battery jumper, and flashlight. It comes in a highly-visible red case that fits the unit, jumper cables, plus two accessory cables. The first cable is a laptop charging cord that comes with eight tips for popular computer connectors; and the second is a USB octopus cord with mini USB, Micro-USB, and Apple 30-pin and Lightning cables to charge smartphones, tablets, and a variety of small electronics. - Battery
-
- Lithium-ion polymer
- Battery capacity: 55.5wh
- Charge time: 24 hours using 110 VAC
- Includes 12 VDC car/vehicle and 110 VAC wall chargers
- 4-bar LED battery status indicator
- Over-voltage, over-charge, short circuit, and reverse polarity protection circuitry

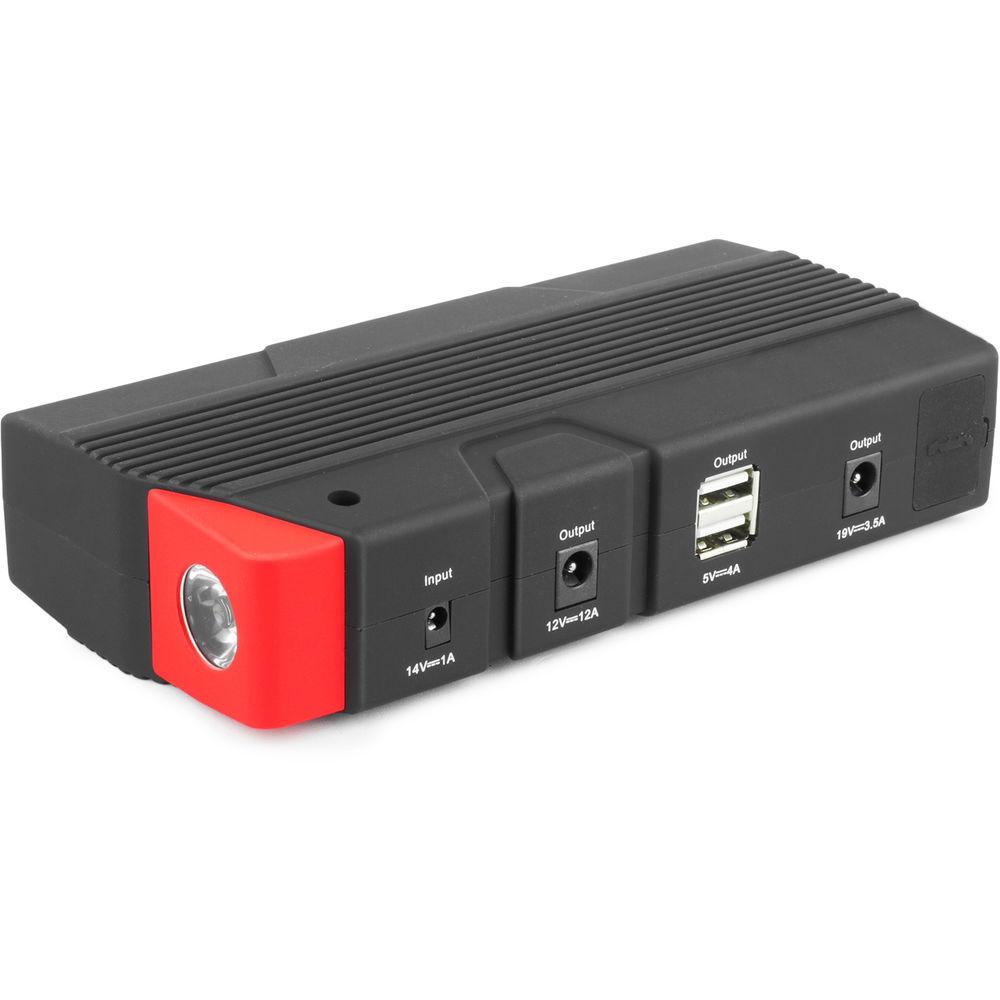

- DC Outputs
-
- One 12 VDC, 3.5A output port
- One DC 12A output port with 12V, 16V, or 19V output selection voltage switch
- Two 5 VDC, 2A USB charging ports
- Octopus USB charging cable with mini USB, Micro-USB, and Apple 30-pin and Lightning cables
- One 19V laptop charging port
- Eight laptop charging tips
- Work Light
-
- White LED flashlight
- Located on front of unit for optimum beam throw
- SOS mode automatically flashes the Morse Code distress signal
- Constant flashing signal mode
- Car Jumper
-
- One set jumper cables
- 10 AWG, 8" (20.3cm) long
- 300A cranking amps, 600A peak

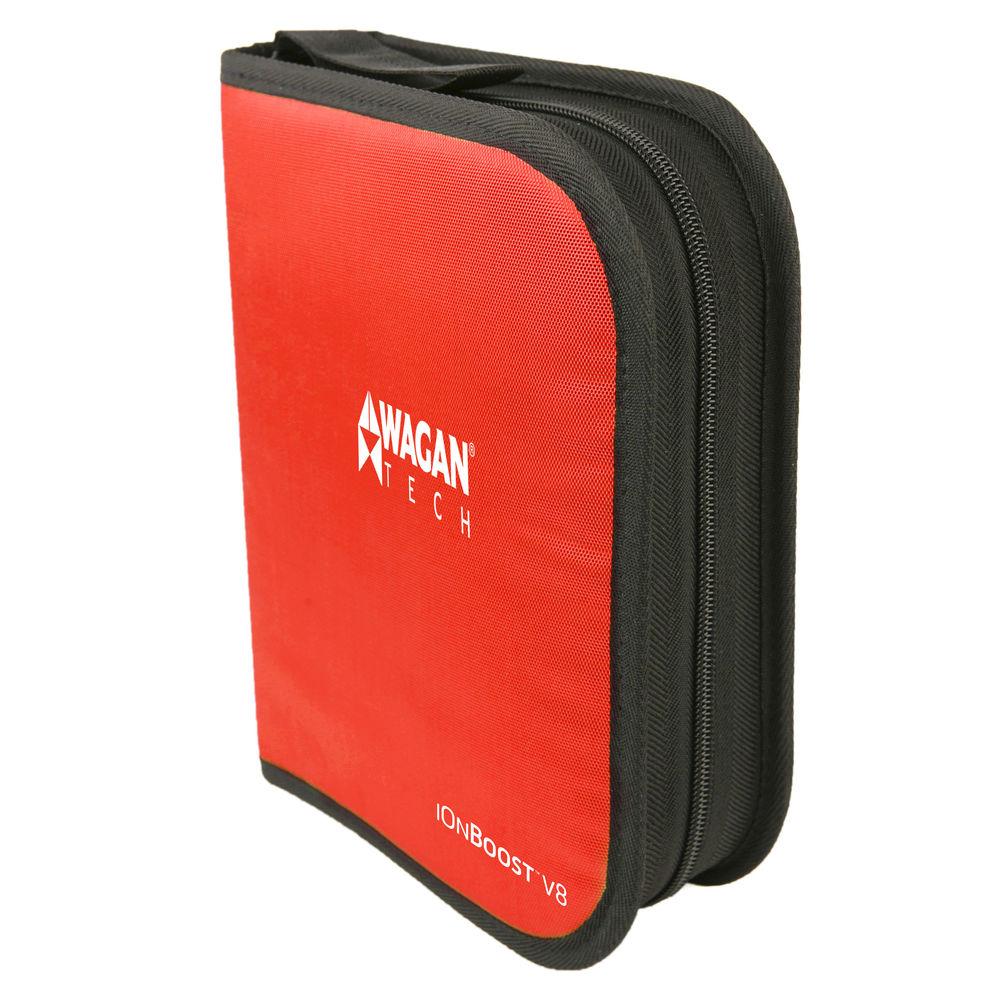

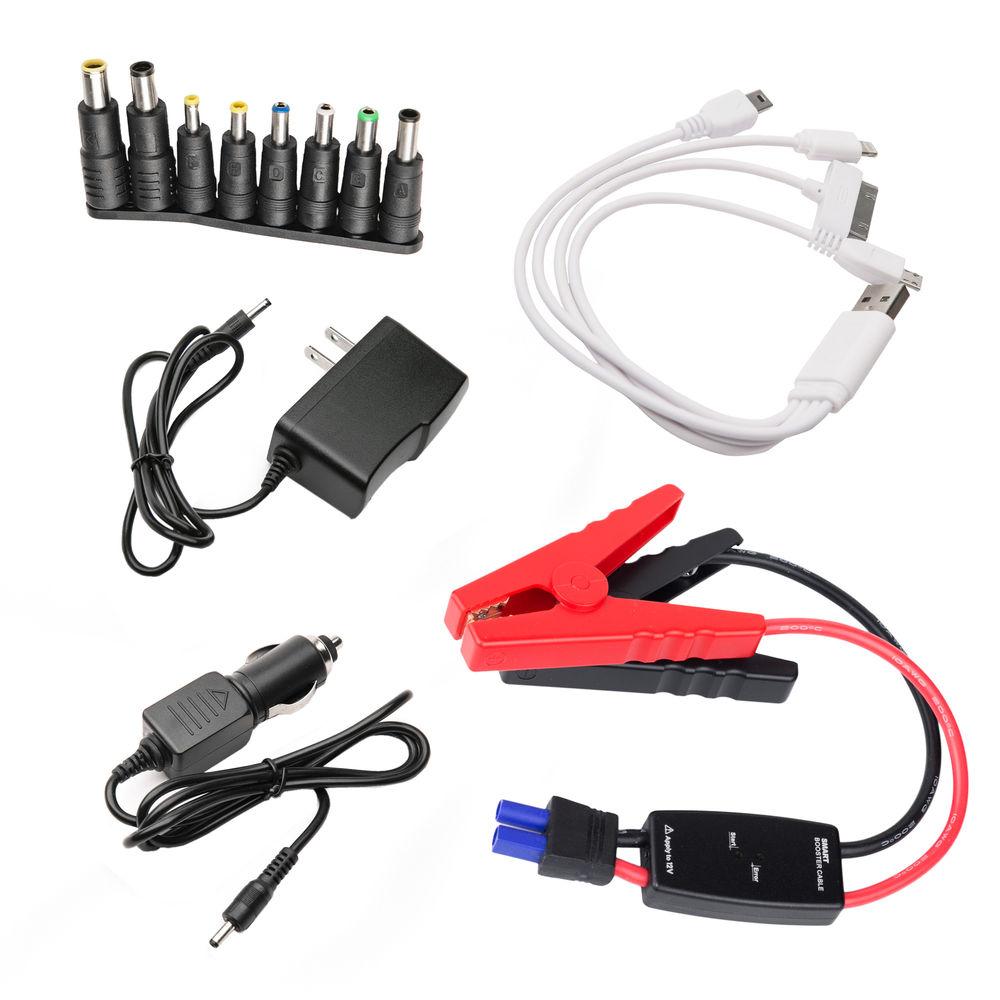

UPC: 084367075031 In the Box WAGAN iOnBoost V8+ Jump Starter and Battery Bank High-Visibility Case Jumper Cables 12 VDC Charger 110 VAC Charger Laptop Charging Cable with 8 Adapter Tips USB Octopus Charging Adapter with mini USB, micro USB, and Apple 30-pin and Lightning Cables Limited One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN iOnBoost V8 Jump Starter and Battery Bank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN V8+ Specs | Battery | Lithium-ion Polymer
Battery Capacity: 55.5wh
Cranking Amps: 300 A
Peak Amps: 600 A | | Charging Time | 2 - 4 h, using AC
4-5 h, DC with engine running | | Outputs | 1 x 12 VDC, 3.5 A port
1 x variable-voltage DC port; 12 A, 12/16/19V
2 x USB port; 5 VDC, 2 A | | Environmental | Operating Temperature: 32 to 140°F / 0 to 60°C
Storage Temperature: 32 to 185°F / 0 to 85°C | | Dimensions | 6.5 x 3.1 x 1.5" / 16.5 x 7.9 x 3.8 cm | | Weight | 27.2 oz / 771.1 g | | | | Package Weight | 2.515 lb | | Box Dimensions (LxWxH) | 10.35 x 7.6 x 2.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
