User Manual for WAGAN PowerDome PLEX Jump Starter & Air Compressor Click to enlarge the picture
Contents of the user manual for the WAGAN PowerDome PLEX Jump Starter &
- Product category: Jump Starters & Air Compressors WAGAN
- Brand: WAGAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WAGAN Jump Starters & Air Compressors
 |
User manual for the WAGAN PowerDome PLEX Jump Starter & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WAGAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!
|

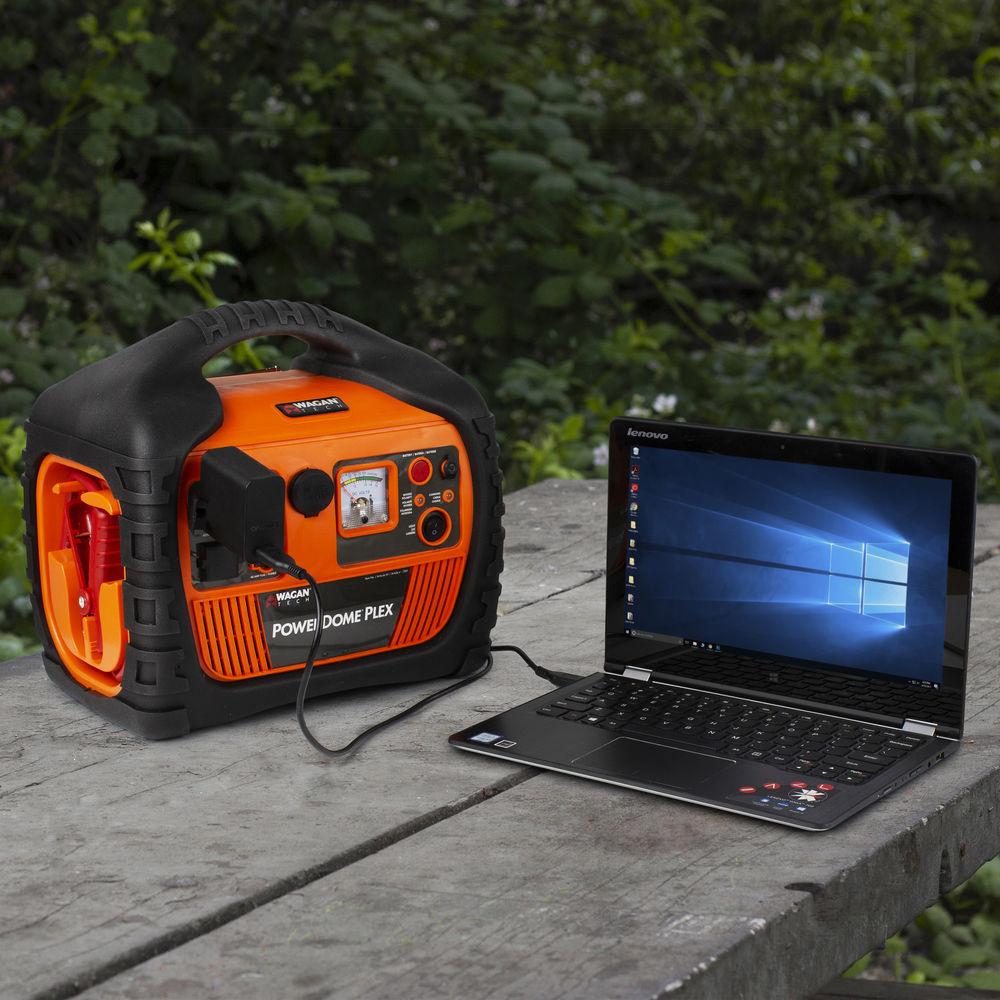

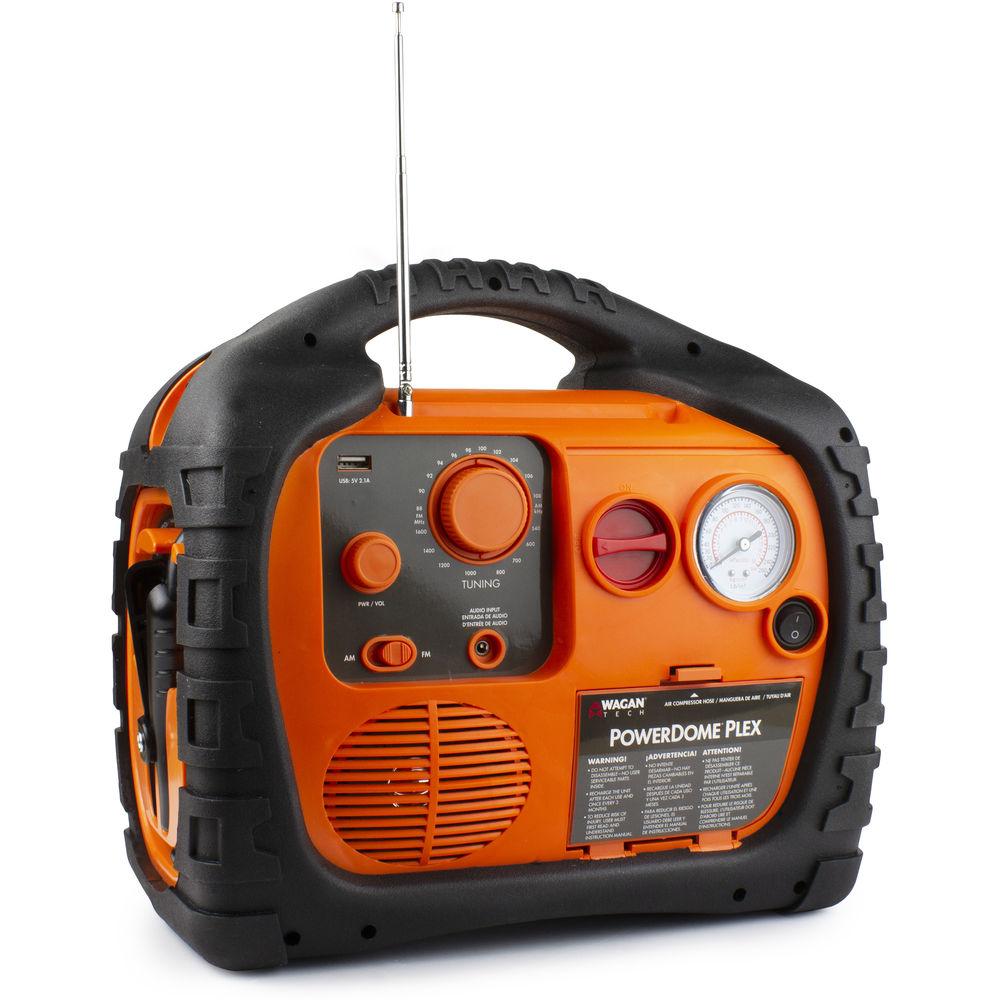

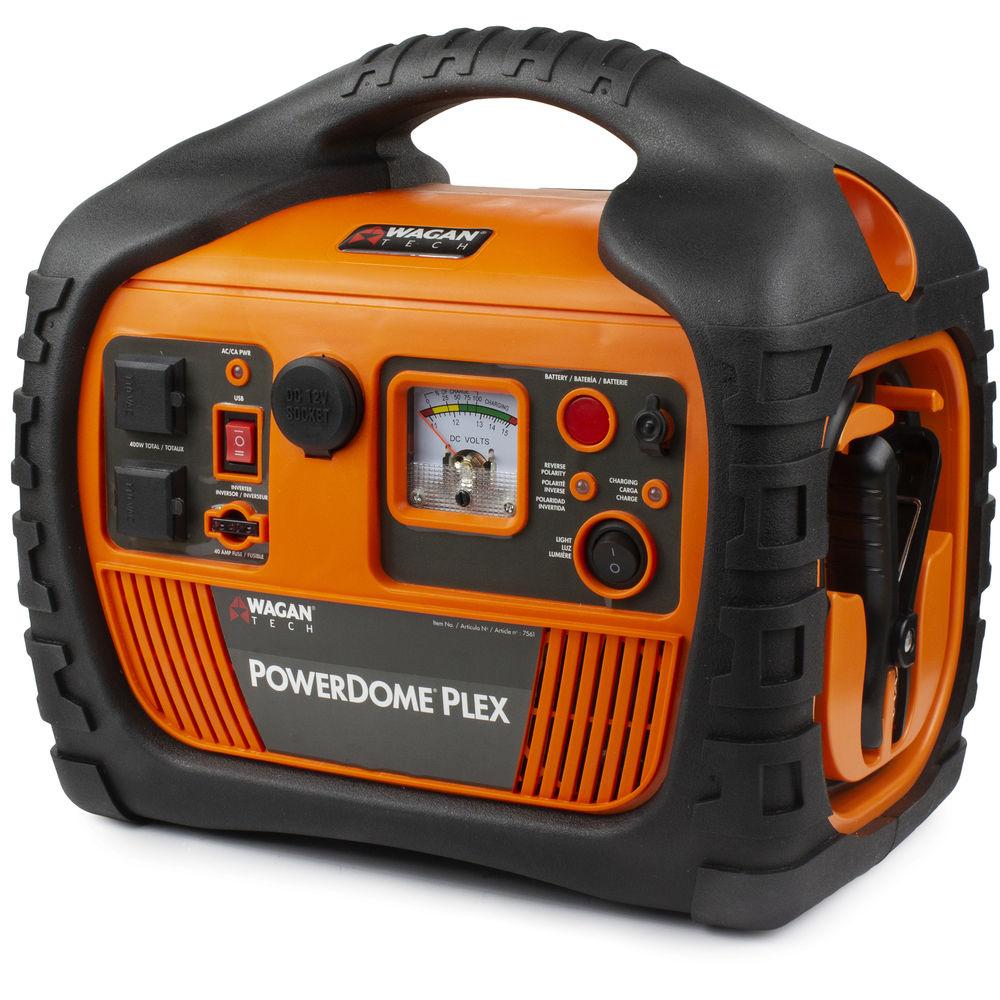

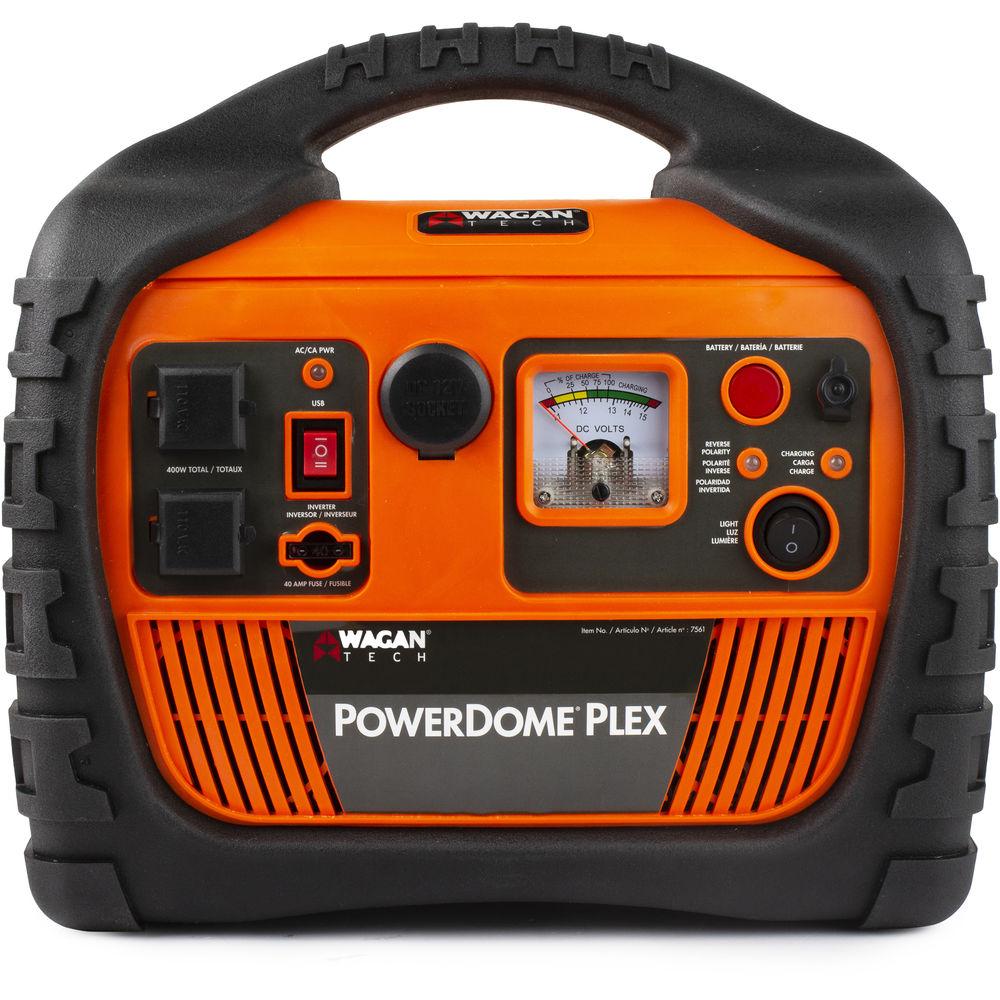

Product description Built as an essential roadside assistance tool, a convenient camping companion, or part of a storm/emergency preparedness kit, Wagan Tech's 300-Amp Power Dome PLEX Jump Starter & Air Compressor is outfitted with a 12 VDC, 14Ah sealed lead-acid battery that can be recharged using AC or DC power using the included power adapters. Use it to jump-start your vehicle, power or charge electronic devices, inflate tires and sports equipment, or even listen to music or news—it comes with an AM/FM radio and a 3.5mm jack for your music player.Power outlets include two three-prong AC outlets, which deliver 400 watts (800 watts surge), along with a 12 VDC car/vehicle style socket, and a 5 VDC, 2.1A USB port. The jump starter features 24" cables made of sturdy 6 AWG wire. The compressor produces up to 260 psi. A five-LED, 50-lumen work light will come in handy time and time again. - Battery
-
- 12 VDC, 14A rechargeable AGM sealed lead-acid battery
- Charge time: 34 hours using AC, 12 hours DC with engine running
- Includes 12 VDC car/vehicle and 110 VAC wall charging adapters
- DC Outputs
-
- One 12 VDC car/vehicle type port, 11-amp max, 132W
- One 5 VDC 2.1A 2.0 USB port
- AC Output
-
- Two 115V standard US wall socket
- Integrated 400W power inverter, 800W peak surge
- Replaceable 40A fuse
- Low-voltage alarm & auto shutoff
- Work Light
-
- 50-lumen total output
- Five white LED emitters
- Independent on/off switch

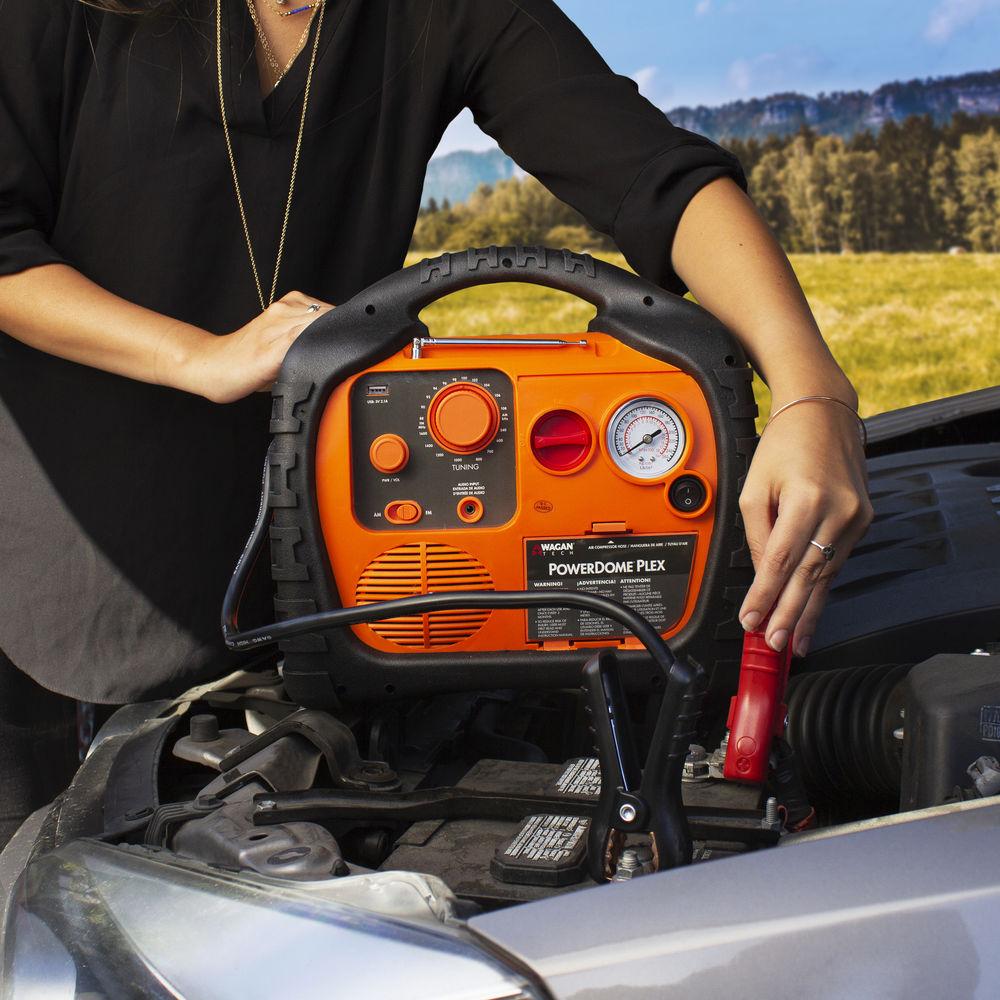

- Car Jumper
-

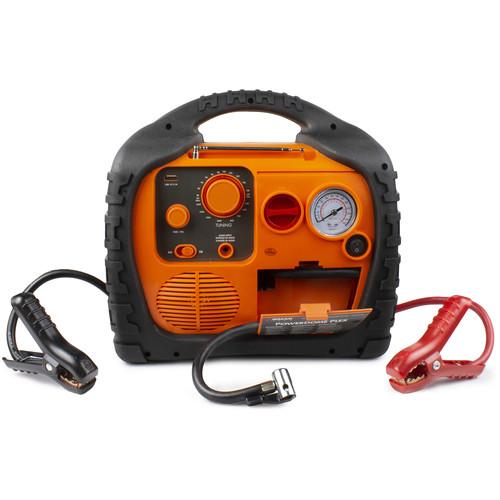

- One set jumper cables: 6 AWG, 24"
- 300A cranking, 1000A peak
- Reverse polarity warning

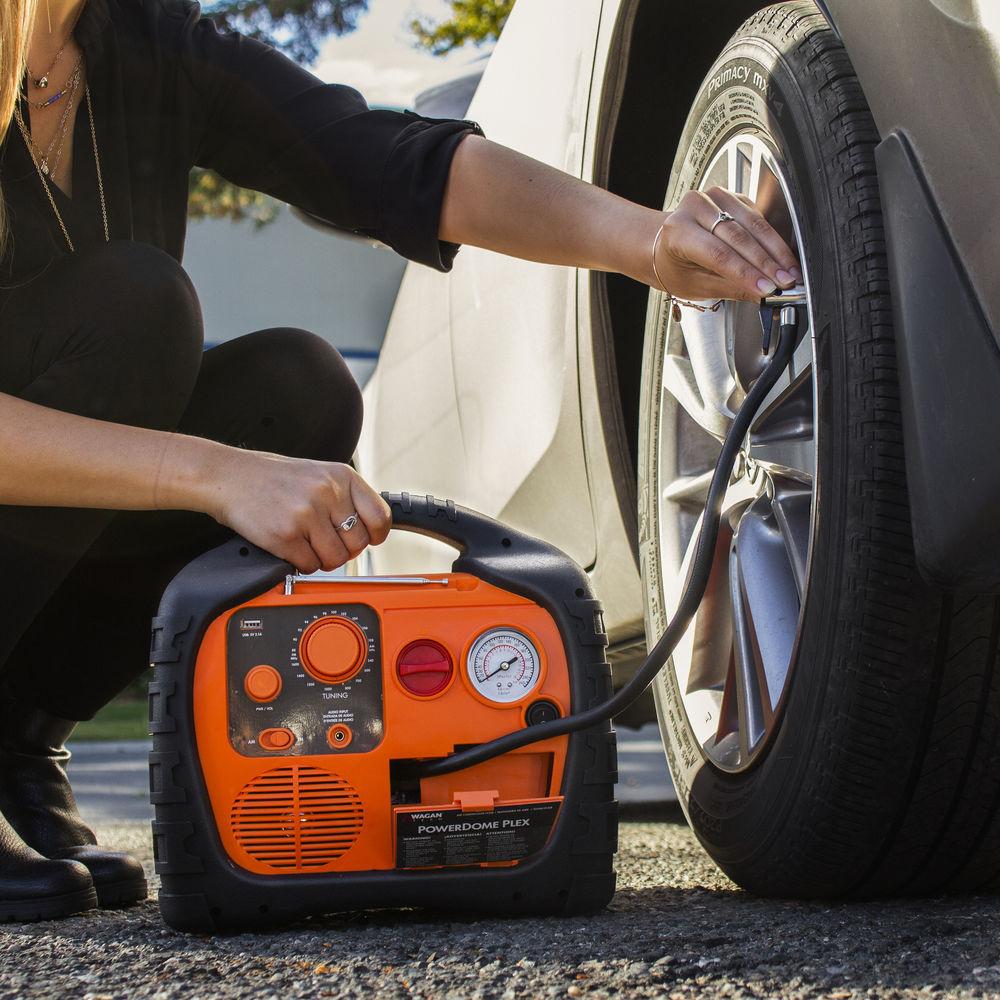

- Air Compressor
-
- 260 PSI output pressure, flow rate 15L per minute

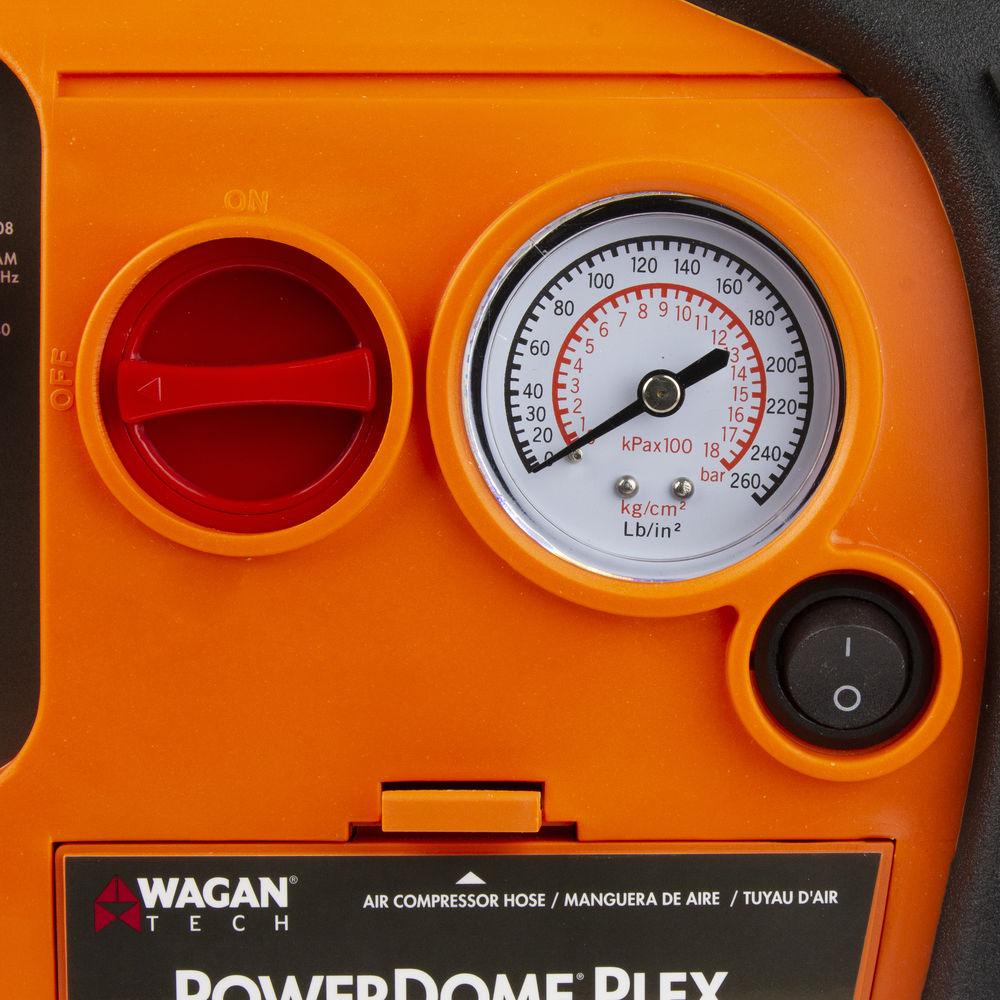

- Analog pressure gauge
- Air hose nozzle adapter tips included
- Hose stores in cover compartment on back of unit
In the Box WAGAN PowerDome PLEX Jump Starter & Air Compressor 12 VDC Charger 110 VAC Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN PowerDome PLEX Jump Starter & Air Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN PowerDome PLEX Specs | Battery | 12 V, 14 A, Rechargeable AGM Sealed Lead-Acid | | Charging Time | 24 h Using AC, 12 h DC with Engine Running | | Outputs | 1 x 12 VDC Car/Vehicle Type Port: 11 A Max, 132 W
2 x 115 VAC US Outlet, 60 Hz
Power Inverter: 400 W Continuous, 800 Peak 0.3 Seconds
1 x USB Port; 5 VDC, 2.1 A | | Fuse | 1 x 40 A, Replaceable | | Dimensions | 12
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to WAGAN PowerDome PLEX Jump Starter & Air Compressor
| Subject: Replacement charger | | Date: 20.10.2022 03:39:59 | Name: Clay Dyer | | I have lost my AC adapter to charge my Powerdome Flex. What kind of AC adapter can I use to charge it? | | Post reply |
