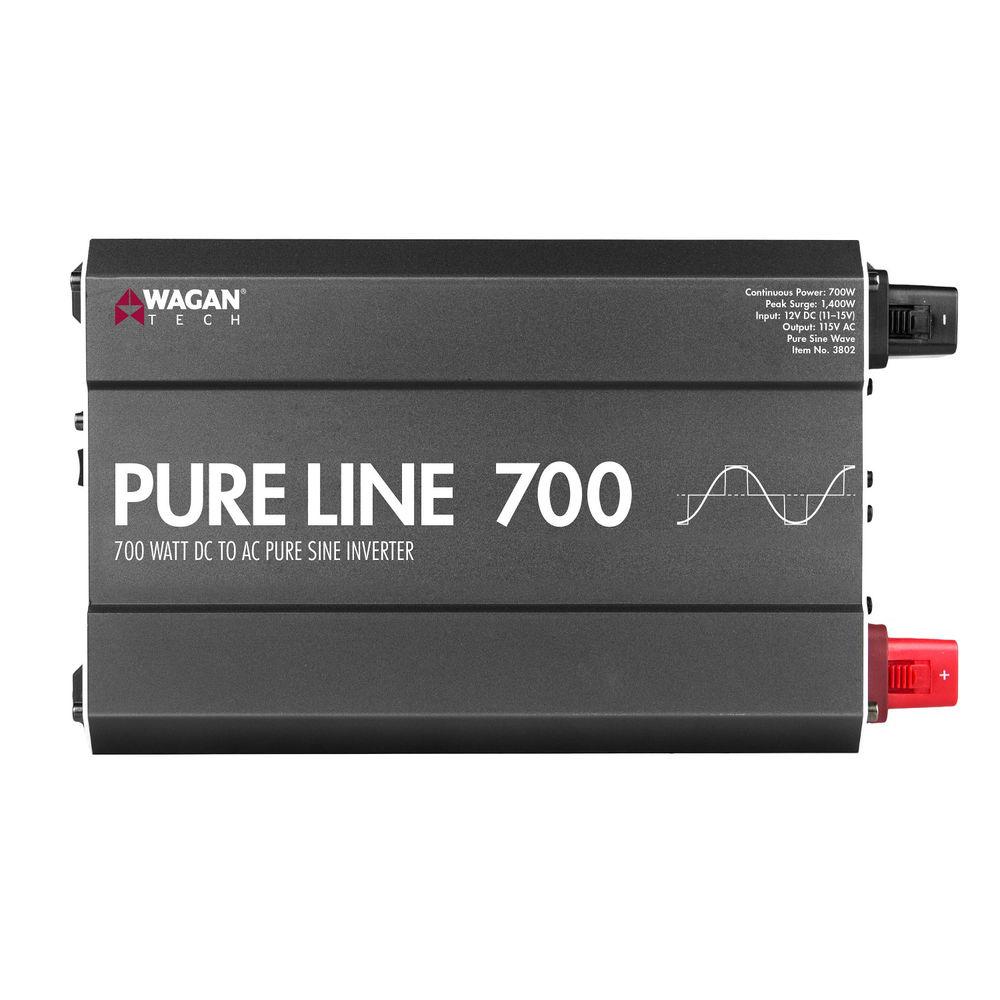

Product description Use a vehicle or boat battery to power electronics, tools, and appliances that you would normally plug into a wall socket with the Pure Line 700W Power Inverter by Wagan Tech. This DC-to-AC power inverter delivers pure sine wave AC power, the same kind of power you get from an AC wall socket. Pure sine wave AC means that your sensitive electronics, such as audio/video systems, computers, and communications equipment, will operate cooler, quieter, and more efficiently than they would using modified sine wave power. Featuring two three-prong grounded AC outlets and one USB power port, the inverter runs on a 12-volt battery (technically 11-15 VDC) and continuously delivers 700W AC power at 110-120V, 60 Hz. The surge capability of 1400W accommodates devices and appliances that draw higher wattage upon start-up or at certain points in their operation. A neutral to ground bond is provided for safety and compliance with US electric standards. The power cable has direct terminal clips for attaching to battery terminals, providing a more secure and higher-capacity connection than alligator clips or a cigarette lighter socket plug. The inverter warns you when your car's battery has been drawn down to 10.5V and will automatically shut off when the battery's remaining power reaches 10V. It also offers overload, overheat, short-circuit, and reverse polarity protection. - Converts 11-15 VDC to 110-120 VAC to run and charge household electronics in vehicle or boat
- TrueRated continuous 700W AC power, 1400W surge power
- Pure sine wave power allows devices to run cleaner & cooler

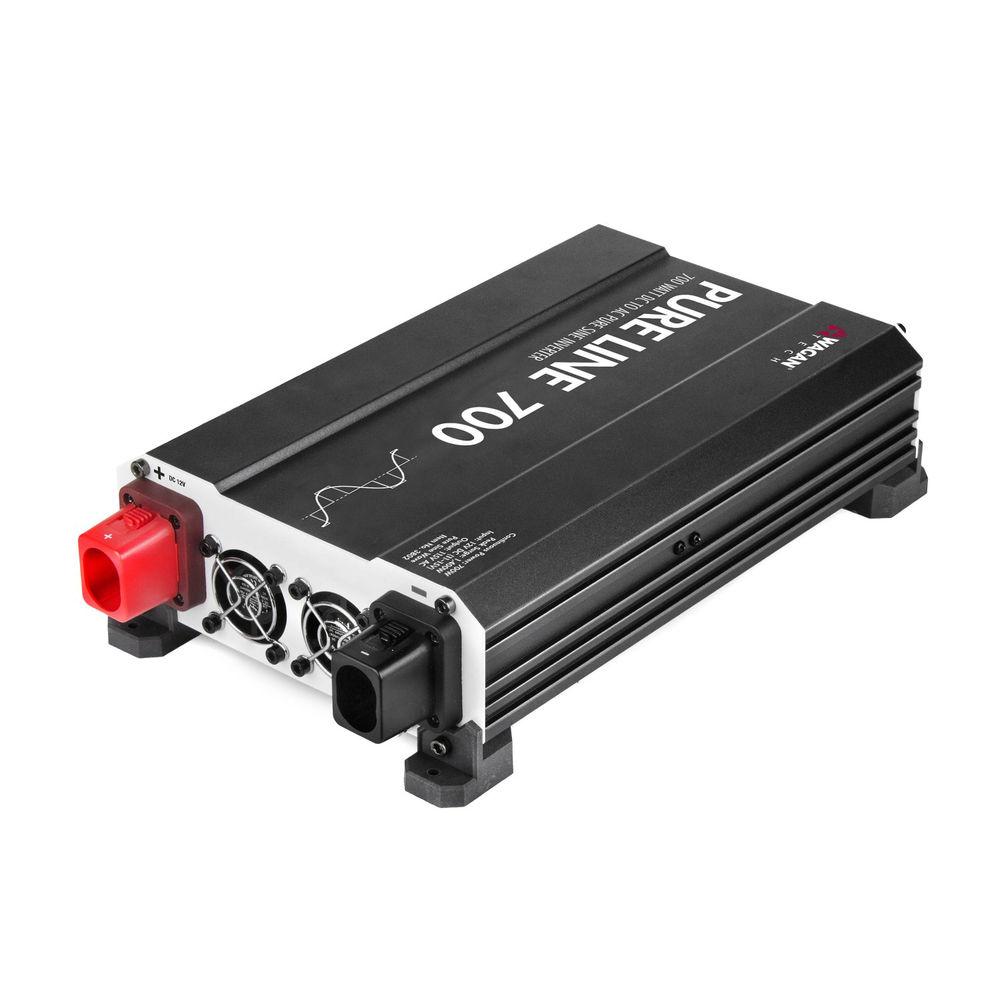

- Connects to battery terminals

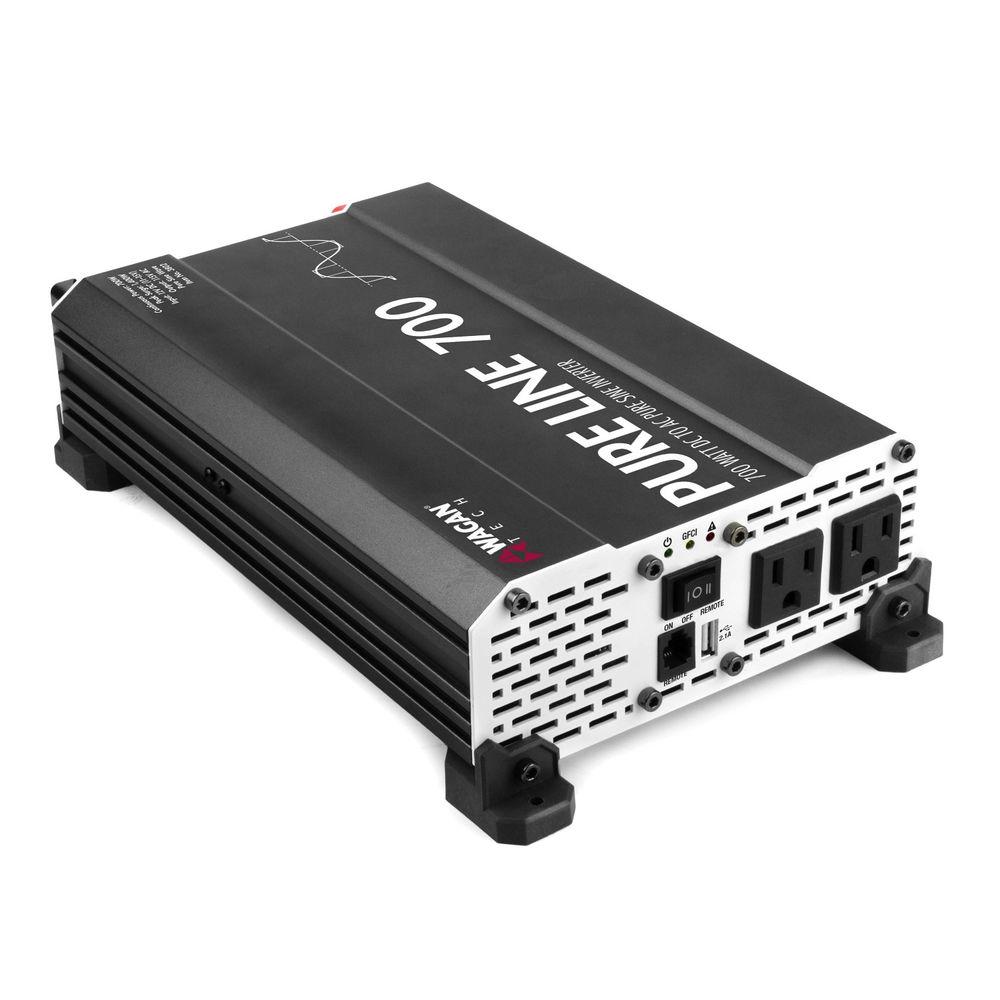

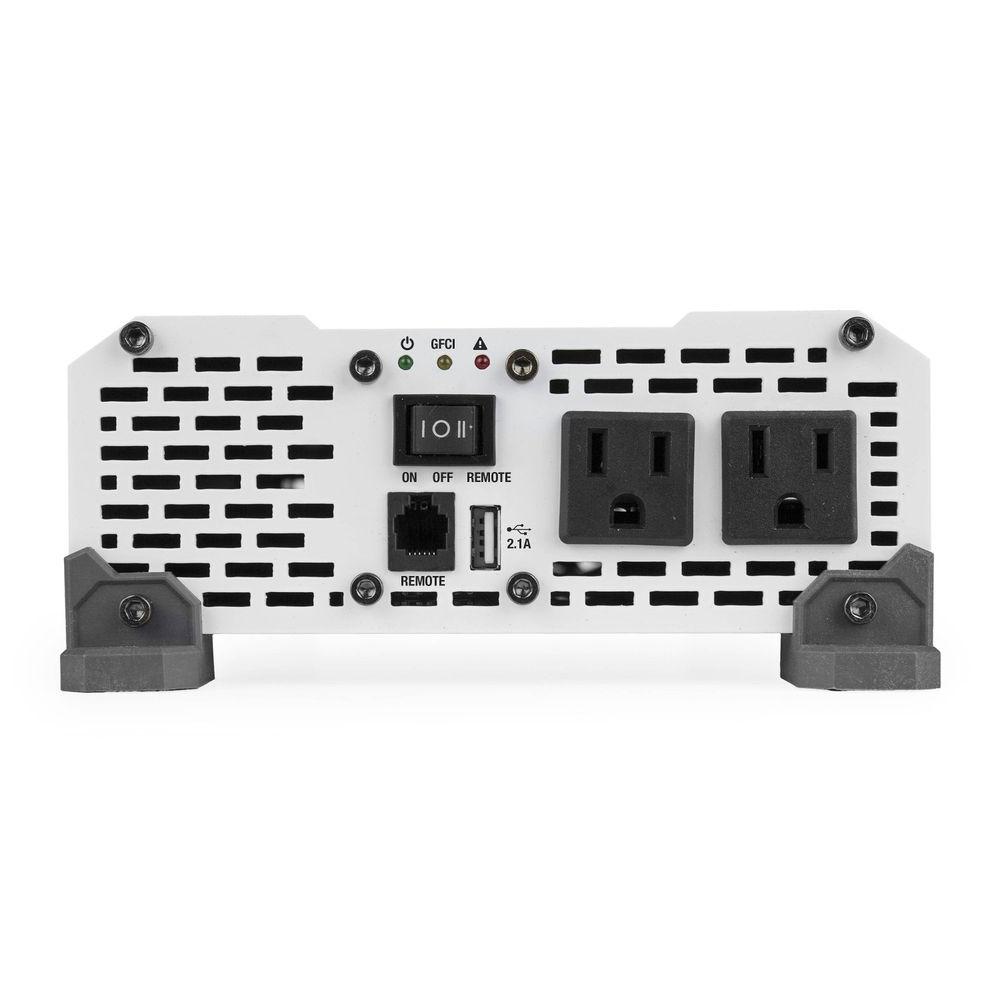

- Two 3-prong grounded AC outlets
- Automatically shuts down when DC battery voltage drops to 10.5V
- Overload, overheat, short-circuit, and reverse polarity protection
UPC: 084367038029 In the Box WAGAN Pure Line 700W Power Inverter 3' DC Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN Pure Line 700W Power Inverter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 3802 Specs Waveform | Output: pure sine waveform | Input | 11-15 VDC | Output | 110-120 VAC | Power | TrueRated: 700 W continuous | Surge | Peak: 1400 W | Efficiency | 90% | Frequency | 60 Hz | Total Harmonic Distortion (THD) | Less than 3% | No Load Current Draw | 0.8 A | Battery | Low Battery Alarm: 10.5 V ± 0.5 VDC Low Battery Shutdown: 10.0 V ± 0.5 VDC | USB Power Port | 2.1 A, 5 V ± 0.25 V | Dimensions | 12.5 x 7.0 x 3.0" / 31.8 x 17.8 x 7.6 cm | Weight | 5.6 lb / 2.5 kg | | Package Weight | 7.275 lb | Box Dimensions (LxWxH) | 14.5 x 9.4 x 5.5" |
