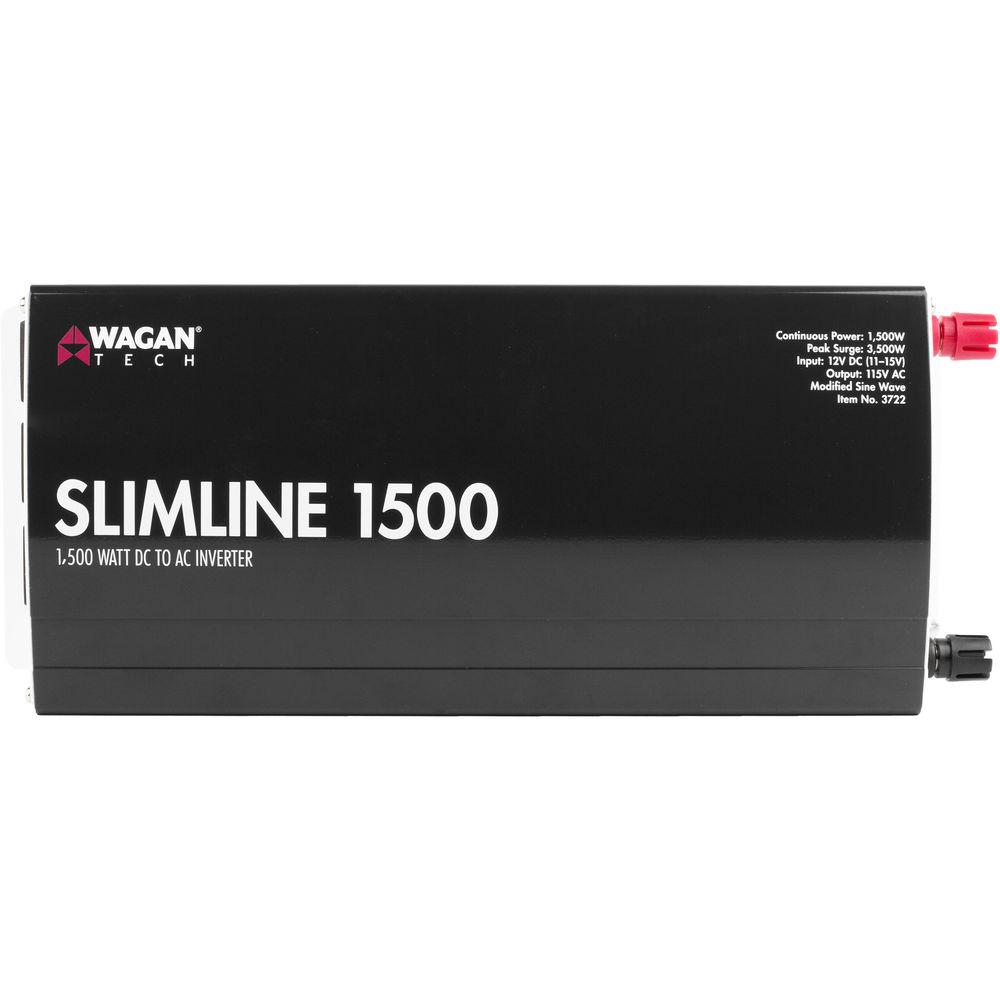

User Manual for WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter

Click to enlarge the picture
WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter Contents of the user manual for the WAGAN SlimLine 1500W 12 VDC to
  • Product category: Power Inverters WAGAN
  • Brand: WAGAN
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for WAGAN Power Inverters

WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter
User manual for the WAGAN SlimLine 1500W 12 VDC to contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any WAGAN product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!



Product description

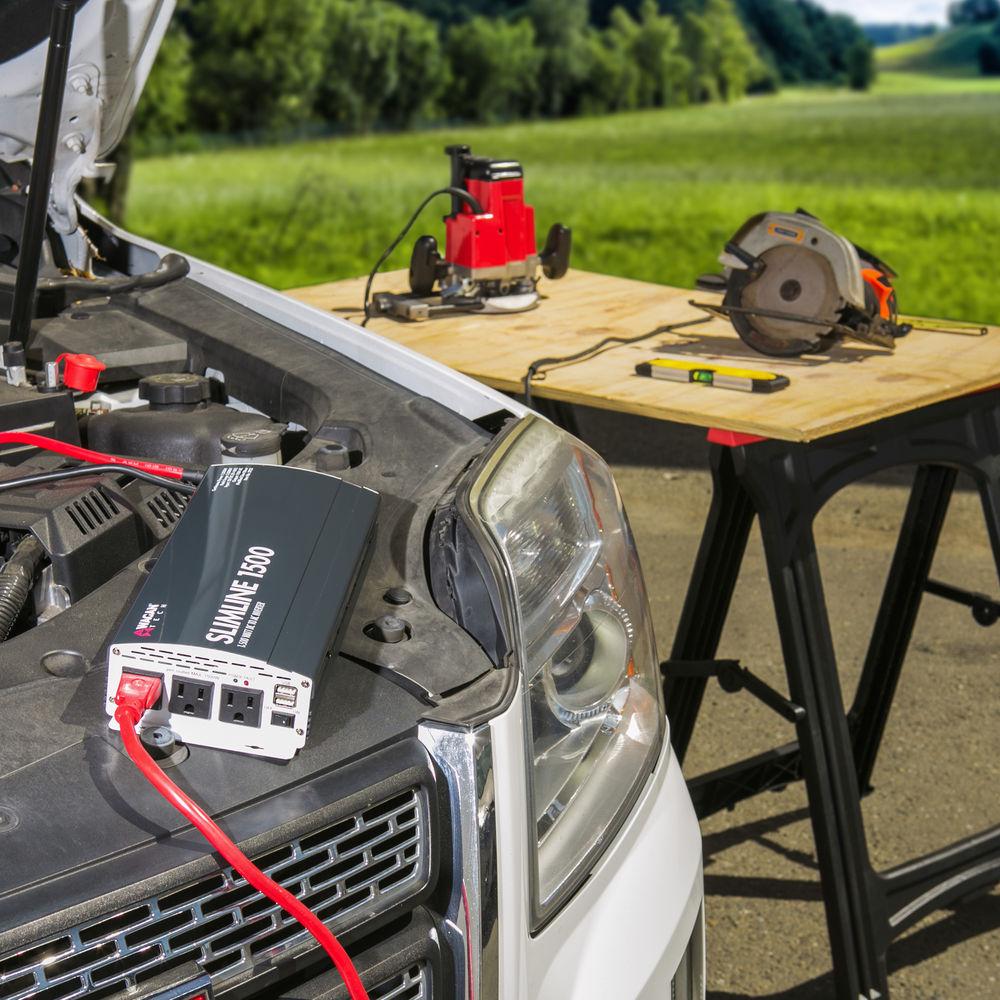

Power tools, appliances, electronics – the SlimLine 1500W 12 VDC to 115 VAC Power Inverter from Wagan allows you to run them all and more, even where there's no wall socket to plug them in. The inverter converts the DC power in a vehicle or boat's 12V battery to 1,500 watts of AC power, enough to run a wide range of electrical devices. Featuring three, three-prong AC outlets and two USB power ports, the inverter connects easily to any vehicle battery with the supplied three-foot cord. It supplies 1,500 continuous watts, with available surge power of up to 3,500 watts for equipment such as tools, microwaves, air conditioners, and refrigerators, which draw more power when starting up. Check your devices' power requirements to be sure they are compatible with this inverter. To protect the 12V battery, an alarm will sound and the inverter will shut itself off if the battery is being drawn too low. The inverter will also shutdown if too much power is being drawn or if a short circuit occurs. Dual cooling fans ensure an appropriate operating temperature, but the inverter also has auto-shutdown protection in the event it becomes overheated.
    Performance
    • Power
      • 1500W continuous
      • 3500W peak/surge to safely use appliances that require high-wattage at start-up
    • Input power:
      • 11-15 VDC

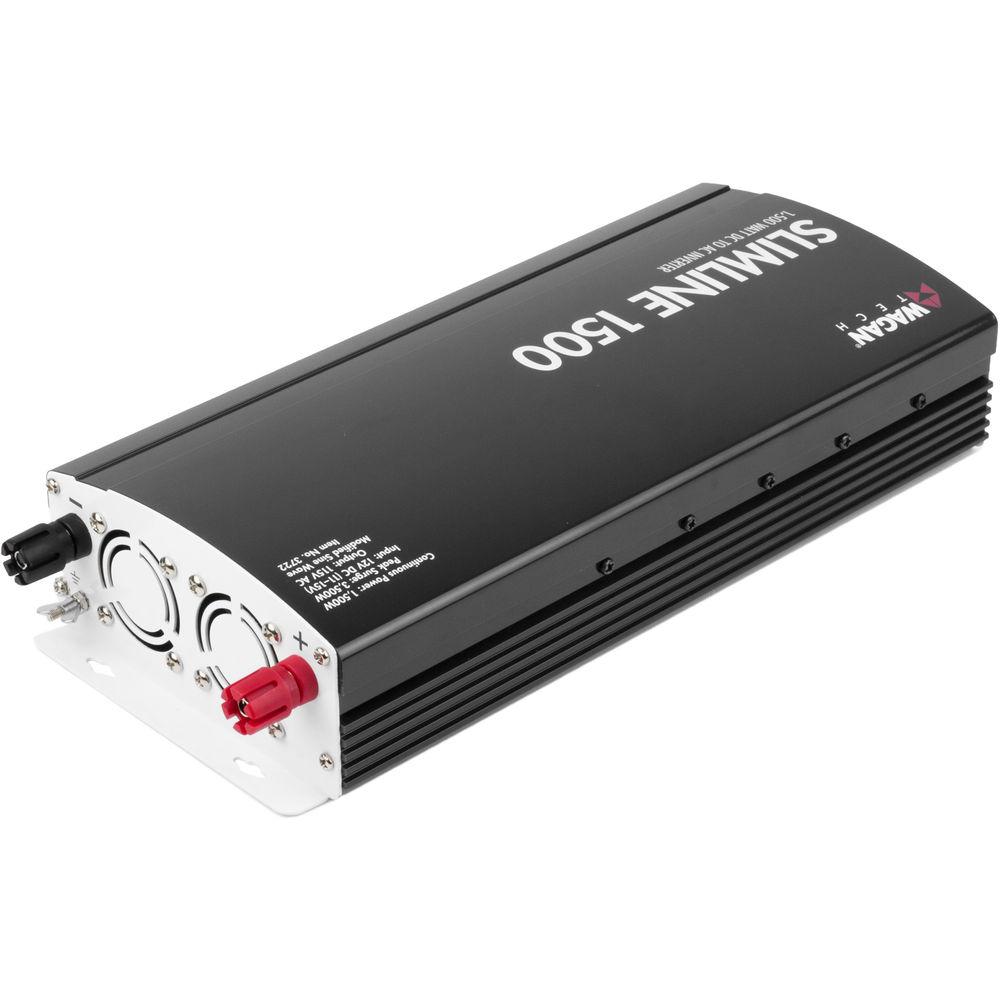

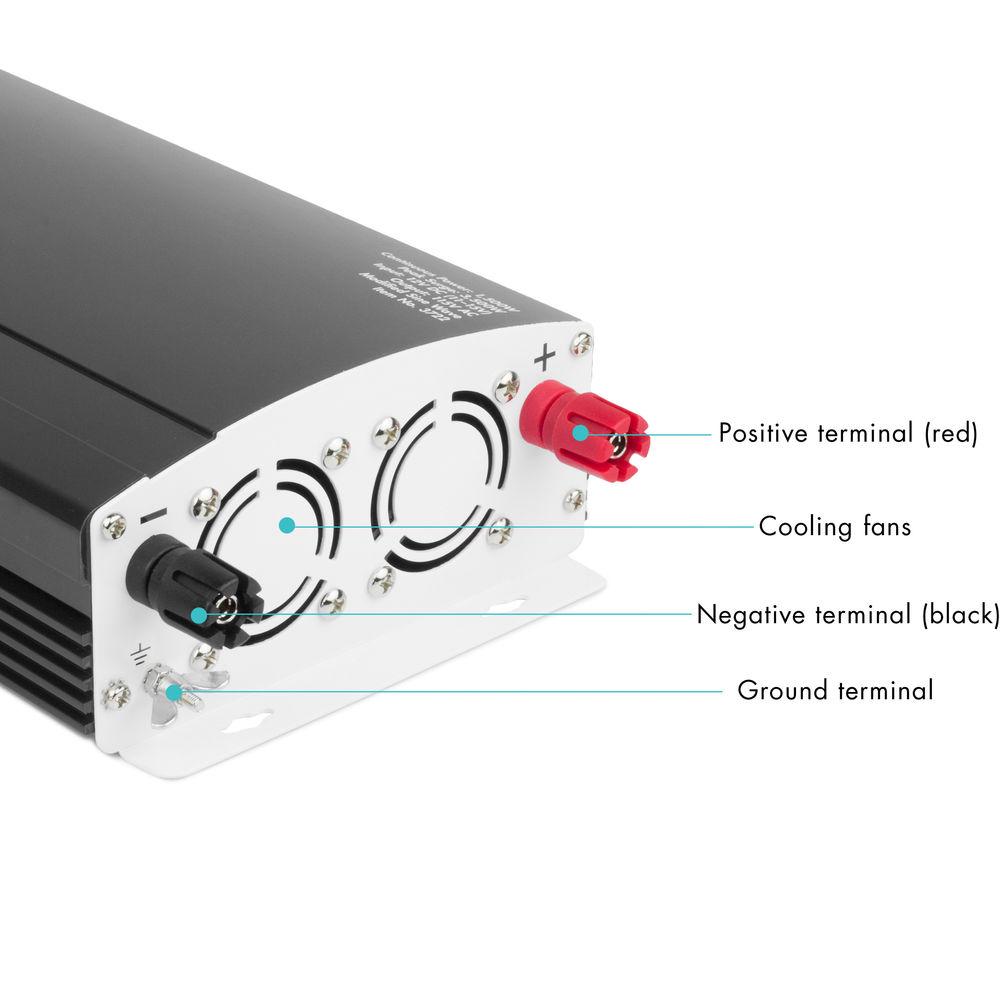

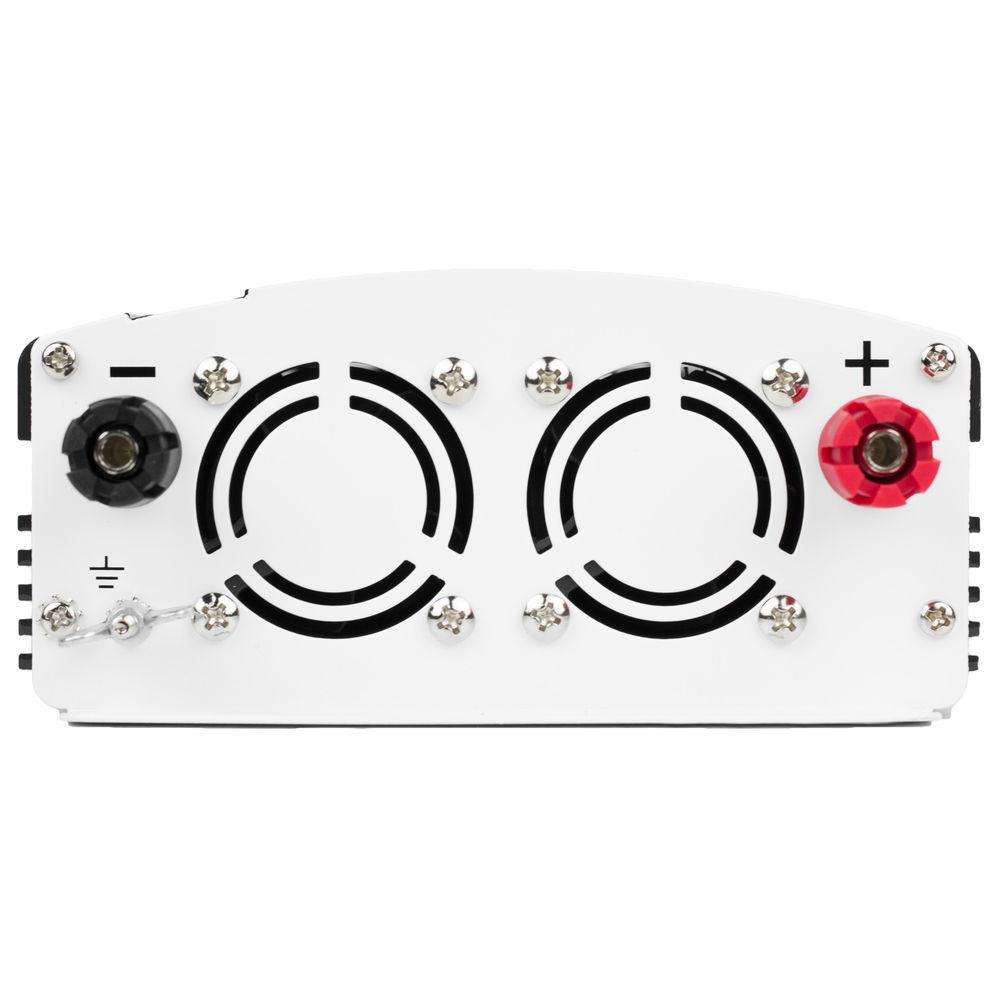

      • Screw-down positive and negative wire terminals to hard-wire to car/vehicle/boat battery
    • Outputs:
      • 115 VAC

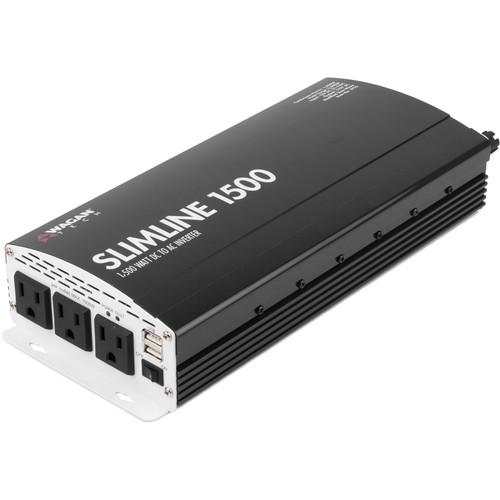

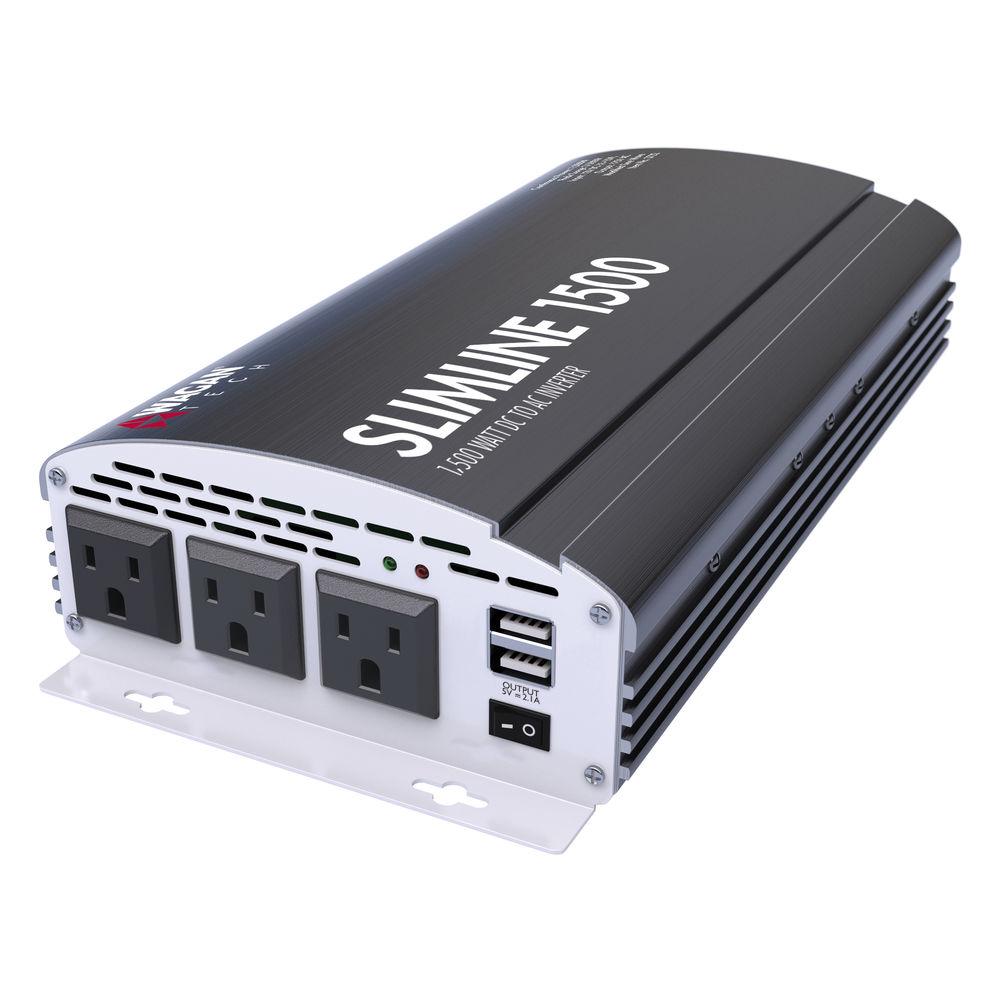

      • Three 3-prong grounded standard US outlet
      • Two USB ports (3A shared)
    • No load current draw: Less than 0.95A
    Protections
    • Overload protection with automatic shutdown
    • Overheat protection with automatic shutdown
    • Car/vehicle low-battery alarm when battery drops below 10.5V
    • Automatic shutdown when car/vehicle battery drops to 9.5V
    • Neutral-to-ground bonded

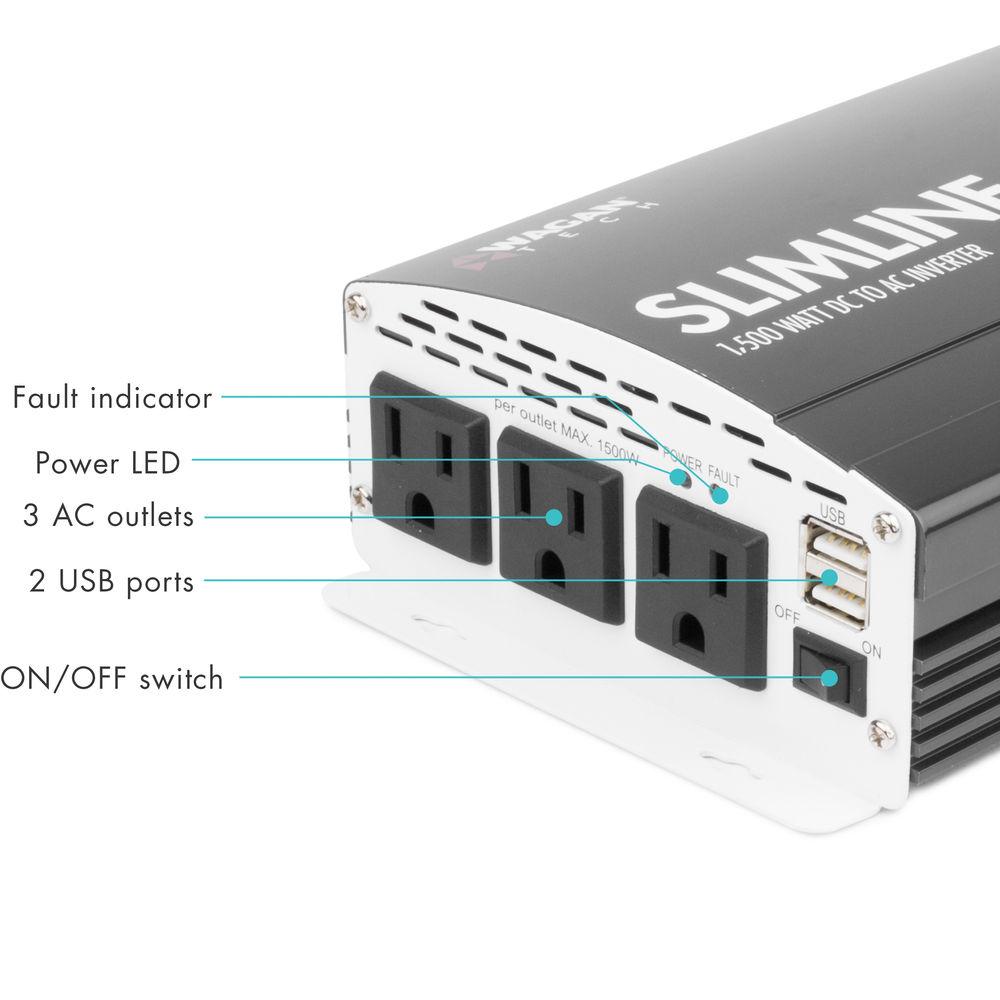

    • Green LED power indicator
    • Red LED overload indicator
    • On/off switch to reduce wear and save battery
    Construction
    • Dual internal cooling fans maintain safe temperature while under load
    • Slim aluminum housing for easier installation
    • Front and rear mounting flanges
UPC: 084367037220 In the Box WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    WAGAN 3722 Specs

    Power Continuous: 1500 W
    Surge: 3500 W
    Output Frequency 60 Hz
    Input Power 11 - 15 VDC
    Output Power 115 VAC, per outlet
    Input Ports 1 x Pair wire terminals
    Output Ports 3 x 3-prong VAC US wall outlet

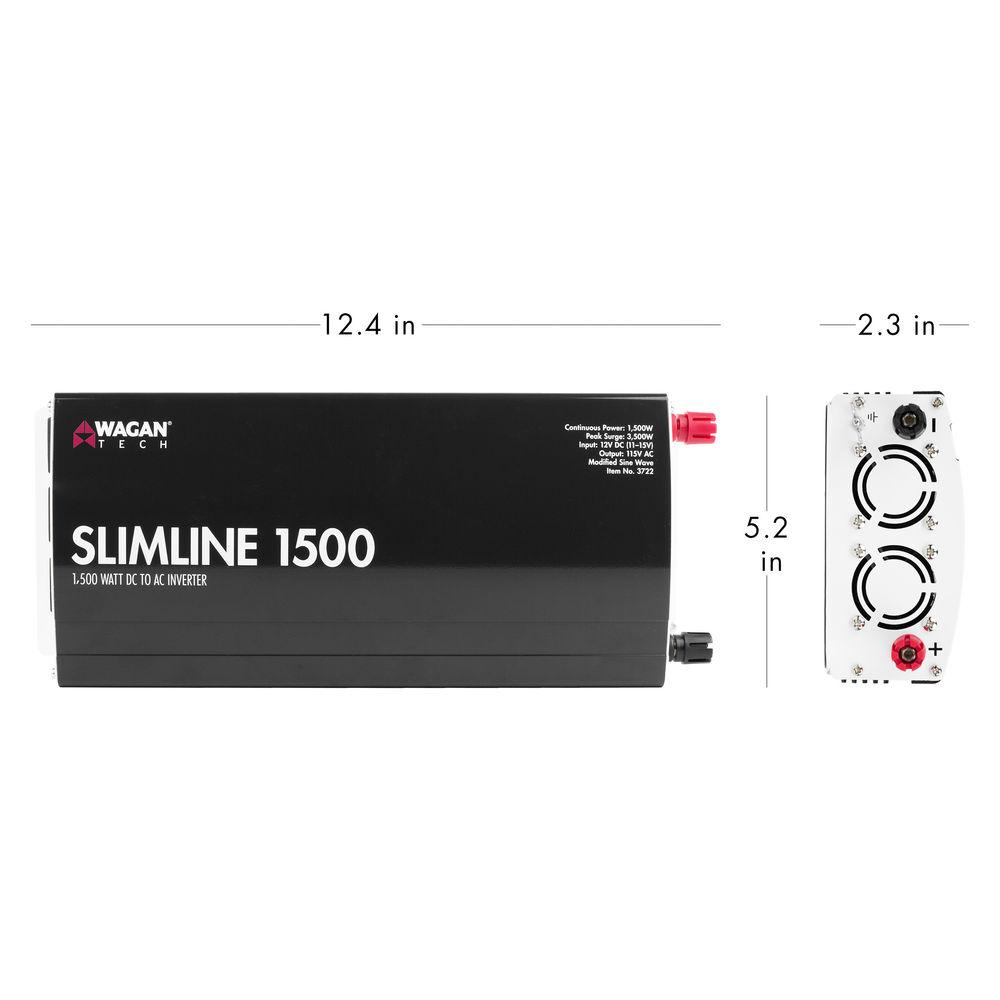

    Dimensions 11.7 x 5.2 x 2.6" / 29.7 x 13.2 x 6.6 cm
    Weight 5.2 lb / 2.4 kg including cable
    Package Weight 5.5 lb
    Box Dimensions (LxWxH) 13.6 x 8.0 x 3.2"

    Rating

    20% users recommend this product to others. And what about you?
    Rating: 1.0 of 5

    This product has already been rated by 68 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to WAGAN SlimLine 1500W 12 VDC to 115 VAC Power Inverter

    Subject: fuses
    Date: 31.03.2023 17:48:20Name: Odalis Lacle
    How and where do I place the fuses in the inverter and how many fuses does it use. What is the fuse ampere.
    Post reply

    Subject: Advise
    Date: 05.01.2023 01:22:37Name: Mahadeo Roopnarine
    Hi, I just unboxed my slimline 1500 inverter and made my connections to a fully charged 12v battery, the power light is on but there is no output.
    Please advise
    Post reply
